SS050M-0196-S4-S440-FB

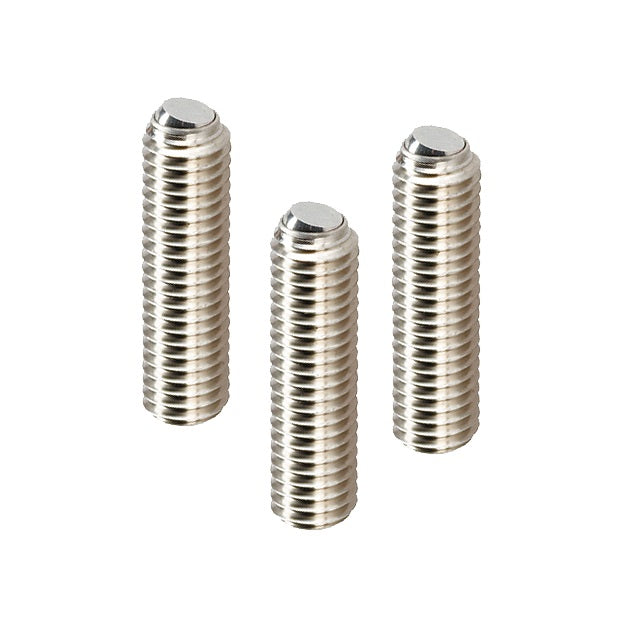

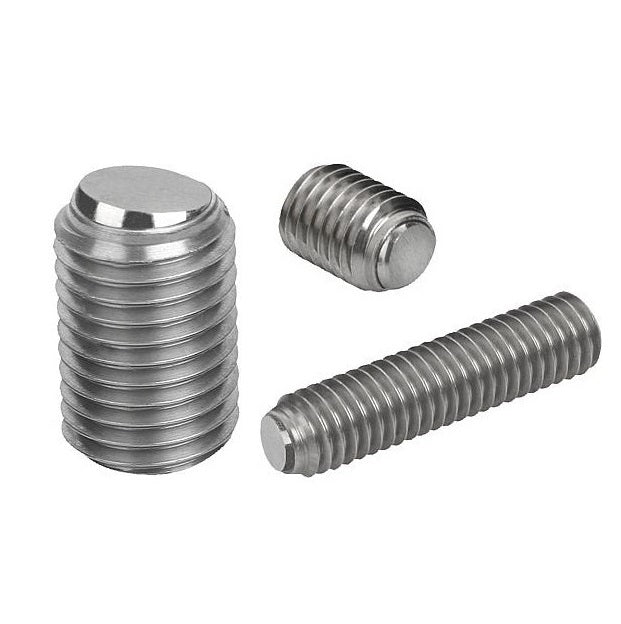

Flat Tip Aligning Socket Set Screws - M5 - 5x0.8mm - 19.6 mm - Aligning Flat Tip - 304 Stainless Steel with 440C Stainless HRC 50-55 tip Screw

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

Equivalent

SS050M-0196-S4-S440-FB has been identified as a possible equivalent to MISUMI BSF5X20-SUS. Please take care when ordering equivalents, and check the data displayed further down to ensure it meets your requirements.

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Socket Set Screws Master PDF
Price:
$28.95 AUD
$34.75 AUD $28.95 AUD
Each
Backorder
Order 50 or more for $26.06 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 29, 2025

Base Category: Socket Set Screws - Flat Tip Aligning

Top Level Category: Socket Set Screws - Flat Tip Aligning - Stainless Steel

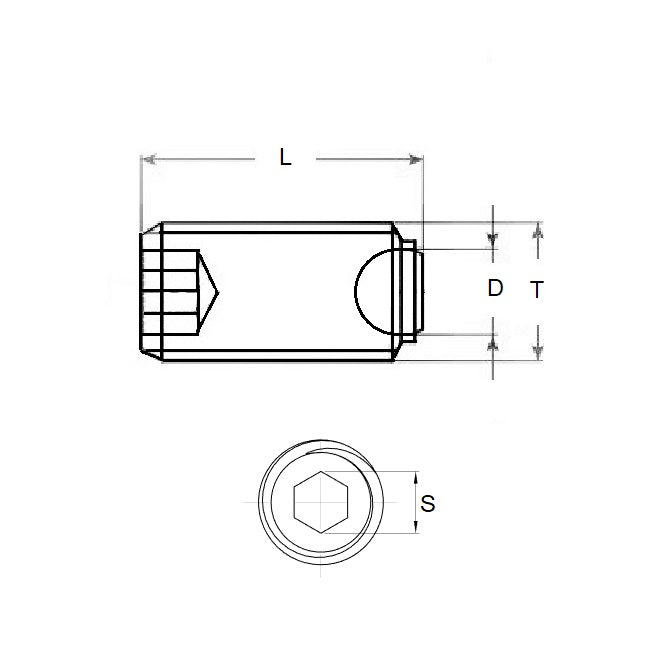

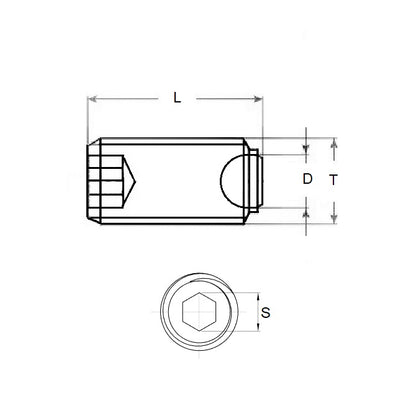

Product Details

Thread Size: M5 (5x0.8mm)

304 Stainless Steel with 440C Stainless HRC 50-55 tip
  • Thread Length (L): 19.6mm
    (19.6mm is 0.772 in.)
  • Type: Aligning Flat Tip
  • 20.0
  • Ball Diameter (D): 2.4
  • Hex Key Size: 2.5
  • Body Material: 304 Stainless Steel
  • Ball Material: 440C Stainless HRC 50-55
  • Pitch: 0.8mm
  • Threads Per Inch: 31.75TPI

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Misumi BSF5X20-SUS
  • Misumi FSU5-20
  • FSU520
  • BSF5X20SUS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
