B-025T-0071-0060-PSA

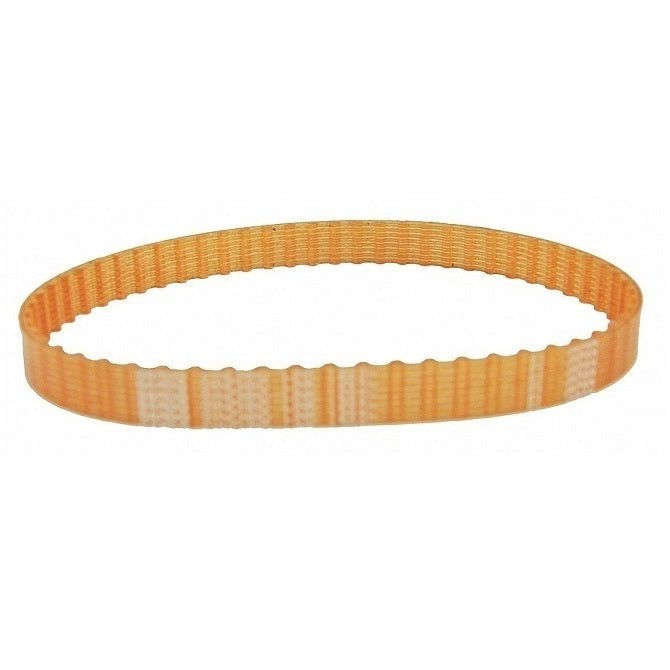

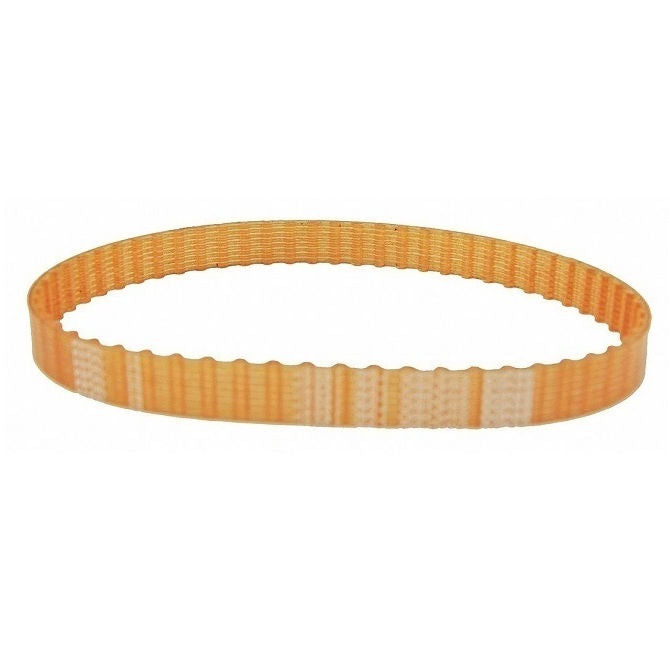

Timing 2.5mm Pitch T2.5 Belts - 71 tooth - 177.5x6 mm 6mm Wide - Polyurethane with Steel Cords Belt

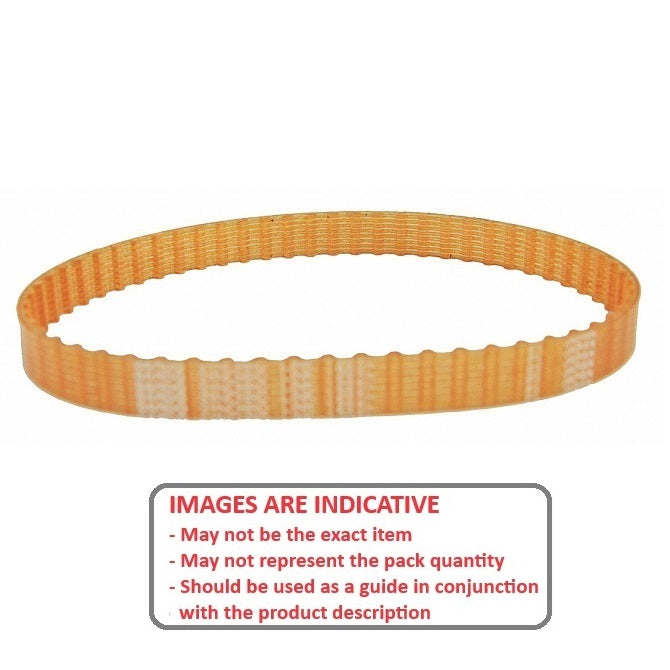

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
2.5mm T2.5 Timing Pulleys
Price:
$9.00 AUD
$20.67 AUD $9.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop location

Usually Ready in 4 Hours (If ordered Mon-Fri 8am to 1pm)

Base Category: Belts - Timing 2.500mm Pitch T2.5

Top Level Category: Belts - Timing 2.500mm Pitch T2.5 - 6mm Wide

Product Details


Deleted Item. Available while stocks last.

Number of Teeth: 71

Polyurethane with Steel Cords
  • Number of Teeth: 71
  • Length: 177.5mm
    (177.5mm is 6.988 in.)
  • Width: 6.0mm
    (6.0mm is 0.236 in.)
  • Reinforcement: Steel
  • Appearance: Amber
  • Breaking Strength: 234N
  • Min Temperature (C): -18Deg C
  • Max Temperature (C): 82Deg C
  • Tooth Angle (A): 40°

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Gates 6T2.5-177
  • Gates 6T2.5-177.5
  • 6T25177
  • 6T251775

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
