CCE-00600-S15 - Datasheet
MBA
Category Information

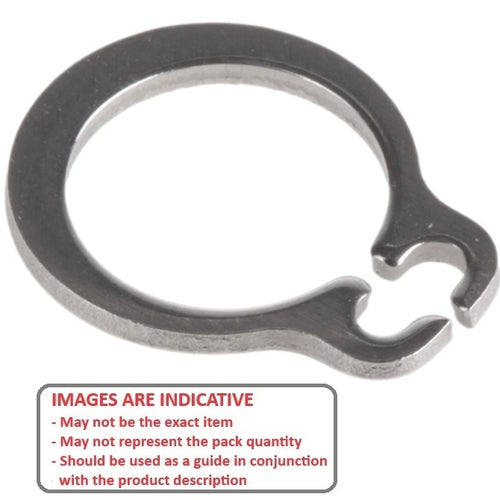

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.

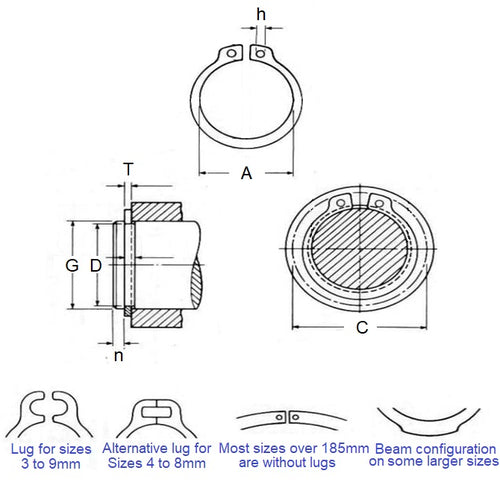

Product Data
- Shaft Diameter (Ds) : 6.00 mm
- Clip Thickness (T)
0.70
mm
+ 0.00 / - 0.05
(Equiv. 0.028 in.) - Groove Dia. (Dg)
5.70
mm
+ 0.00 / - 0.04
(Equiv. 0.224 in.) - Approx. Loose Circlip ID (A) 5.60 mm
- Groove Width (W) 0.80 mm
- Clearance on Shaft (C1) 11.70 mm
- Clearance in Groove (C1) 11.10 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-006-SS
- 90667A110
- Seeger® A-006-SS
- Seeger® A6K500-BLS
- Seeger® A6X0.7-411
- Seeger® A6X0.7SS
- Bossard® BN818-006-SS
- Waldes® D1400-006-SS
- Huyett® DSH-006-SS
- NoCor® DSH-006-SS
- Rotor Clip® DSH-006-SS
- BN818006SS
- A006SS
- D14000060KSF
- D1400-0060KSF
- D1400006SS
- A6X07411
- A6K500BLS
- 471006SS
- DSH006SS
