Retaining Rings -> External -> Circlips -> Standard -> Stainless Steel

There are 147 products in the sub-categories of Retaining Rings - External - Circlips - Standard - Stainless Steel. Scroll down or follow the link to Retaining Rings - External - Circlips - Standard - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
PH15-7 Mo Stainless Steel.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Standard - Stainless Steel category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)
External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.04} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 900
Part Number: CCE-00400-S15 (Pack of 5) 204 units (1020 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 204 available can be backordered.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.04} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 900
Part Number: CCE-00400-S15 (Pack of 5) 204 units (1020 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 204 units (1020 pcs) Available Now. Backorder if more than 204.
CCE-00400-S15 (Pack of 5) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00400-S15 (Pack of 5) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 204 Available Now
External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.04} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 22776
Part Number: CCE-00500-S15 (Pack of 10) 43 units (430 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $2.77 AUD Regular price ~~$7.68 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 43 available can be backordered.
External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.04} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 22776
Part Number: CCE-00500-S15 (Pack of 10) 43 units (430 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $2.77 AUD Regular price ~~$7.68 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
CCE-00500-S15 (Pack of 10) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00500-S15 (Pack of 10) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.77 AUD Regular price ~~$7.68 AUD~~ Sale price $2.77 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 43 Available Now Sale
External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 6.00 mm	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 19787
Part Number: CCE-00600-S15 (Pack of 10) 34 units (340 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 34 available can be backordered.
External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 6.00 mm	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 19787
Part Number: CCE-00600-S15 (Pack of 10) 34 units (340 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 34 units (340 pcs) Available Now. Backorder if more than 34.
CCE-00600-S15 (Pack of 10) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00600-S15 (Pack of 10) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 34 Available Now
External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 6.35 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.038} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7372
Part Number: CCE-00635-S15 (Pack of 5) 29 units (145 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 29 available can be backordered.
External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 6.35 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.038} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7372
Part Number: CCE-00635-S15 (Pack of 5) 29 units (145 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 29 units (145 pcs) Available Now. Backorder if more than 29.
CCE-00635-S15 (Pack of 5) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00635-S15 (Pack of 5) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 29 Available Now
External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.00 mm	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 14472
Part Number: CCE-00700-S15 (Pack of 2) 55 units (110 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.95 AUD Regular price ~~$5.25 AUD~~ Sale price $1.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 55 available can be backordered.
External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.00 mm	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 14472
Part Number: CCE-00700-S15 (Pack of 2) 55 units (110 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.95 AUD Regular price ~~$5.25 AUD~~ Sale price $1.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 55 units (110 pcs) Available Now. Backorder if more than 55.
CCE-00700-S15 (Pack of 2) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00700-S15 (Pack of 2) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.95 AUD Regular price ~~$5.25 AUD~~ Sale price $1.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 55 Available Now Sale
External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.01 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-S15 (Pack of 2) 15 units (30 pcs) Available Now \| Further orders can be expected around Tue, Nov 10, 2026 Regular price $1.50 AUD Regular price ~~$4.14 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 15 available can be backordered.
External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.01 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-S15 (Pack of 2) 15 units (30 pcs) Available Now \| Further orders can be expected around Tue, Nov 10, 2026 Regular price $1.50 AUD Regular price ~~$4.14 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 15 units (30 pcs) Available Now. Backorder if more than 15.
CCE-00701-S15 (Pack of 2) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00701-S15 (Pack of 2) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.50 AUD Regular price ~~$4.14 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 15 Available Now Sale
External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.14 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1908
Part Number: CCE-00714-S15 (Pack of 5) 14 units (70 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.23 AUD Regular price ~~$9.08 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 14 available can be backordered.
External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.14 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1908
Part Number: CCE-00714-S15 (Pack of 5) 14 units (70 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.23 AUD Regular price ~~$9.08 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
CCE-00714-S15 (Pack of 5) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00714-S15 (Pack of 5) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.23 AUD Regular price ~~$9.08 AUD~~ Sale price $3.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 14 Available Now Sale
External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.94 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2032
Part Number: CCE-00794-S15 (Pack of 5) 47 units (235 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 47 available can be backordered.
External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 7.94 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2032
Part Number: CCE-00794-S15 (Pack of 5) 47 units (235 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 47 units (235 pcs) Available Now. Backorder if more than 47.
CCE-00794-S15 (Pack of 5) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00794-S15 (Pack of 5) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 47 Available Now
External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.00 mm	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1619
Part Number: CCE-00800-S15 (Pack of 5) 20 units (100 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 20 available can be backordered.
External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.00 mm	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1619
Part Number: CCE-00800-S15 (Pack of 5) 20 units (100 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
CCE-00800-S15 (Pack of 5) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00800-S15 (Pack of 5) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 20 Available Now
External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.74 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1833
Part Number: CCE-00874-S15 (Pack of 5) 13 units (65 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.59 AUD Regular price ~~$10.06 AUD~~ Sale price $3.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 13 available can be backordered.
External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.74 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1833
Part Number: CCE-00874-S15 (Pack of 5) 13 units (65 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.59 AUD Regular price ~~$10.06 AUD~~ Sale price $3.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
CCE-00874-S15 (Pack of 5) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00874-S15 (Pack of 5) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.59 AUD Regular price ~~$10.06 AUD~~ Sale price $3.59 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 13 Available Now Sale
External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.99 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1261
Part Number: CCE-00899-S15 (Pack of 2) 12 units (24 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.50 AUD Regular price ~~$4.20 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 12 available can be backordered.
External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 8.99 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1261
Part Number: CCE-00899-S15 (Pack of 2) 12 units (24 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.50 AUD Regular price ~~$4.20 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCE-00899-S15 (Pack of 2) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00899-S15 (Pack of 2) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.50 AUD Regular price ~~$4.20 AUD~~ Sale price $1.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 12 Available Now Sale

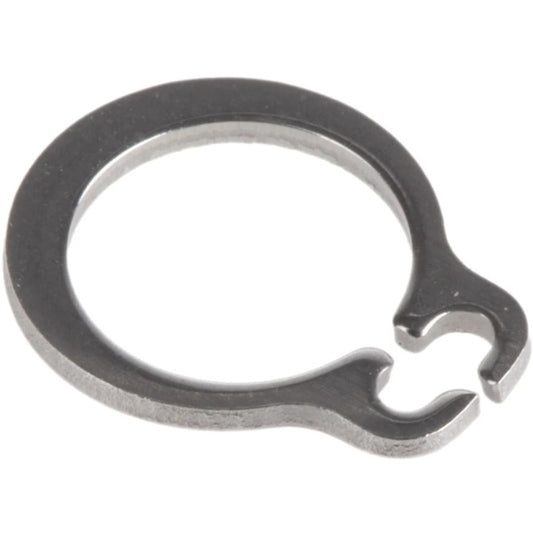

External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 9.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1176
Part Number: CCE-00900-S15 (Pack of 5) 6 units (30 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 6 available can be backordered.
External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 9.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1176
Part Number: CCE-00900-S15 (Pack of 5) 6 units (30 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 6 units (30 pcs) Available Now. Backorder if more than 6.
CCE-00900-S15 (Pack of 5) --- External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00900-S15 (Pack of 5) --- External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $13.95 AUD Regular price Sale price $13.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 6 Available Now
External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.87 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 10.21 mm _{+ 0.025 / - 0.052} (Equiv. 0.402 in.)	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217 Additional stock available from USA subject to Prior Sale = 178
Part Number: CCE-01087H-S15 (Each) 5 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.59 AUD Regular price ~~$12.48 AUD~~ Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 5 available can be backordered.
External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.87 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 10.21 mm _{+ 0.025 / - 0.052} (Equiv. 0.402 in.)	Approx. Loose Circlip ID (A) 10.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Standard: MIL-3217 Additional stock available from USA subject to Prior Sale = 178
Part Number: CCE-01087H-S15 (Each) 5 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.59 AUD Regular price ~~$12.48 AUD~~ Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
CCE-01087H-S15 (Each) --- External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01087H-S15 (Each) --- External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.59 AUD Regular price ~~$12.48 AUD~~ Sale price $4.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now Sale
External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 9.53 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 21621
Part Number: CCE-00953-S15 (Pack of 2) 13 units (26 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.59 AUD Regular price ~~$4.28 AUD~~ Sale price $1.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 13 available can be backordered.
External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 9.53 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 21621
Part Number: CCE-00953-S15 (Pack of 2) 13 units (26 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.59 AUD Regular price ~~$4.28 AUD~~ Sale price $1.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (26 pcs) Available Now. Backorder if more than 13.
CCE-00953-S15 (Pack of 2) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00953-S15 (Pack of 2) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.59 AUD Regular price ~~$4.28 AUD~~ Sale price $1.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 13 Available Now Sale
External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.11} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1520
Part Number: CCE-01000-S15 (Pack of 5) 92 units (460 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 92 available can be backordered.
External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.11} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1520
Part Number: CCE-01000-S15 (Pack of 5) 92 units (460 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 92 units (460 pcs) Available Now. Backorder if more than 92.
CCE-01000-S15 (Pack of 5) --- External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01000-S15 (Pack of 5) --- External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 92 Available Now
External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.01 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2053
Part Number: CCE-01001-S15 (Pack of 2) 48 units (96 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 48 available can be backordered.
External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.01 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2053
Part Number: CCE-01001-S15 (Pack of 2) 48 units (96 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 48 units (96 pcs) Available Now. Backorder if more than 48.
CCE-01001-S15 (Pack of 2) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01001-S15 (Pack of 2) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 48 Available Now Sale
External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.01 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+ 0.025 / - 0.052} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217 Additional stock available from USA subject to Prior Sale = 615
Part Number: CCE-01001H-S15 (Each) 15 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.32 AUD Regular price ~~$11.81 AUD~~ Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 15 available can be backordered.
External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.01 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+ 0.025 / - 0.052} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Standard: MIL-3217 Additional stock available from USA subject to Prior Sale = 615
Part Number: CCE-01001H-S15 (Each) 15 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.32 AUD Regular price ~~$11.81 AUD~~ Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 15 Available Now. Backorder if more than 15.
CCE-01001H-S15 (Each) --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01001H-S15 (Each) --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.32 AUD Regular price ~~$11.81 AUD~~ Sale price $4.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 15 Available Now Sale
External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.32 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Min. Extension (n): 0.99 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 396
Part Number: CCE-01032-S15 (Pack of 2) 75 units (150 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.52 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 75 available can be backordered.
External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 10.32 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 396
Part Number: CCE-01032-S15 (Pack of 2) 75 units (150 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.52 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
CCE-01032-S15 (Pack of 2) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01032-S15 (Pack of 2) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.52 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 75 Available Now Sale
External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.39 mm _{+ 0.00 / - 0.11} (Equiv. 0.409 in.)	Approx. Loose Circlip ID (A) 10.20 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1294
Part Number: CCE-01100-S15 (Pack of 5) 49 units (245 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 49 available can be backordered.
External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.39 mm _{+ 0.00 / - 0.11} (Equiv. 0.409 in.)	Approx. Loose Circlip ID (A) 10.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 1294
Part Number: CCE-01100-S15 (Pack of 5) 49 units (245 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 49 units (245 pcs) Available Now. Backorder if more than 49.
CCE-01100-S15 (Pack of 5) --- External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01100-S15 (Pack of 5) --- External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 49 Available Now
External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.11 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 4884
Part Number: CCE-01111-S15 (Pack of 2) 87 units (174 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 87 available can be backordered.
External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.11 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 4884
Part Number: CCE-01111-S15 (Pack of 2) 87 units (174 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 87 units (174 pcs) Available Now. Backorder if more than 87.
CCE-01111-S15 (Pack of 2) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01111-S15 (Pack of 2) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 87 Available Now Sale
External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.91 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm _{+/- 0.051} (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 10.87 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 908
Part Number: CCE-01191-S15 (Pack of 2) 26 units (52 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 26 available can be backordered.
External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 11.91 mm	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm _{+/- 0.051} (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 10.87 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 908
Part Number: CCE-01191-S15 (Pack of 2) 26 units (52 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 26 units (52 pcs) Available Now. Backorder if more than 26.
CCE-01191-S15 (Pack of 2) --- External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01191-S15 (Pack of 2) --- External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 26 Available Now
External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 12.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.50 mm _{+ 0.00 / - 0.11} (Equiv. 0.453 in.)	Approx. Loose Circlip ID (A) 11.00 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 19.00 mm Clearance in Groove (C1): 18.10 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01200-S15 (Pack of 5) 8 units (40 pcs) Available Now \| Further orders can be expected around Mon, Sep 28, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 8 available can be backordered.
External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 12.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.50 mm _{+ 0.00 / - 0.11} (Equiv. 0.453 in.)	Approx. Loose Circlip ID (A) 11.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 19.00 mm Clearance in Groove (C1): 18.10 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01200-S15 (Pack of 5) 8 units (40 pcs) Available Now \| Further orders can be expected around Mon, Sep 28, 2026 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (40 pcs) Available Now. Backorder if more than 8.
CCE-01200-S15 (Pack of 5) --- External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01200-S15 (Pack of 5) --- External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 8 Available Now
External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 13.99 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm		Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 20.57 mm Min. Lug Diameter (h): 1.14 mm Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3162
Part Number: CCE-01399-S15 (Each) 39 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 39 available can be backordered.
External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 13.99 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Clearance in Groove (C1): 20.57 mm Min. Lug Diameter (h): 1.14 mm Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3162
Part Number: CCE-01399-S15 (Each) 39 Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 39 Available Now. Backorder if more than 39.
CCE-01399-S15 (Each) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01399-S15 (Each) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 39 Available Now

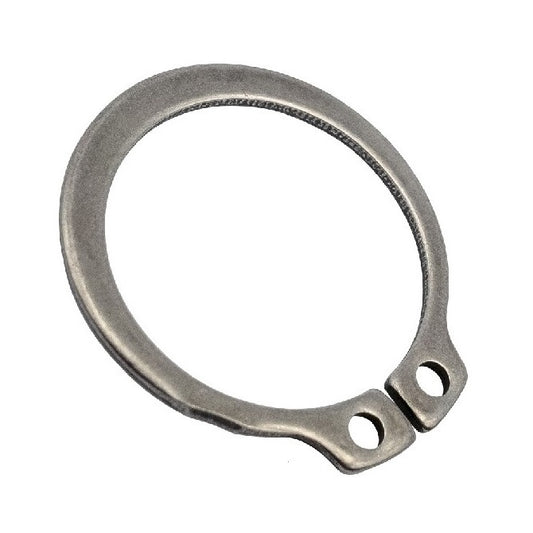

External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 12.70 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm		Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7640
Part Number: CCE-01270-S15 (Pack of 2) 7 units (14 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 7 available can be backordered.
External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Shaft Diameter (Ds) 12.70 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7640
Part Number: CCE-01270-S15 (Pack of 2) 7 units (14 pcs) Available Now \| Further orders can be expected around Tue, Aug 18, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 7 units (14 pcs) Available Now. Backorder if more than 7.
CCE-01270-S15 (Pack of 2) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01270-S15 (Pack of 2) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 7 Available Now

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

Category Details

Filter

Filter

Subscribe to our emails
