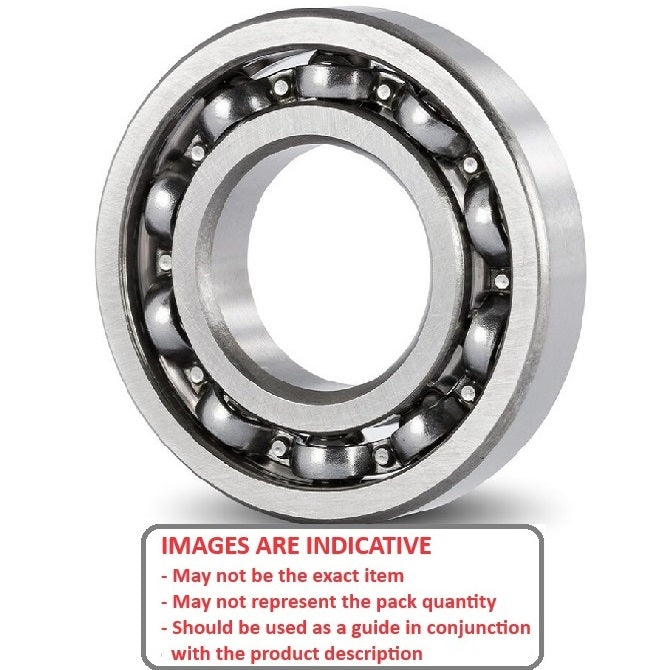

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

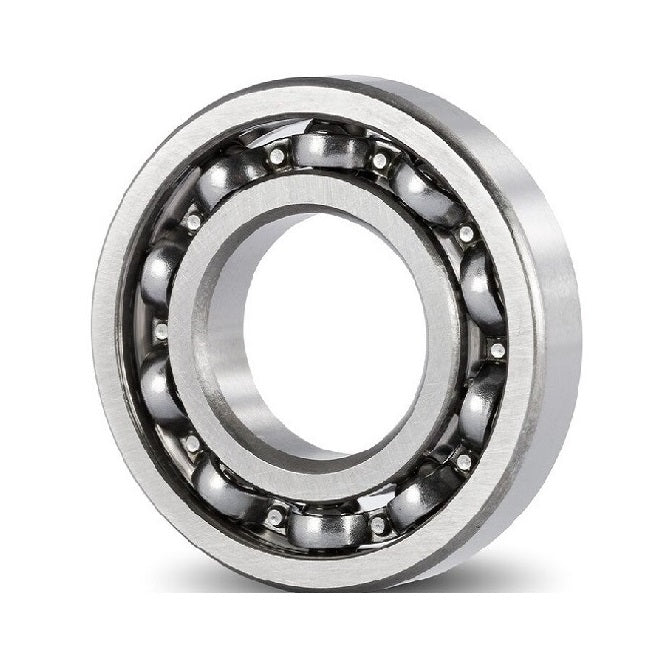

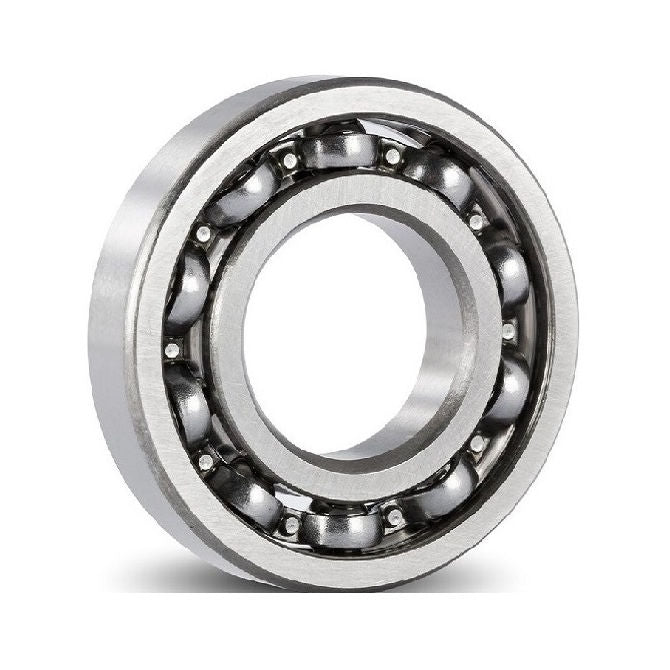

Single Row Ball Bearings - 4 mm x 9 mm x 2.5 mm
684-MC3-AF12

Name: 1054158 | 684-MC3-AF12 --- Single Row Ball Bearings - 4 mm x 9 mm x 2.5 mm
Brand: MBA
SKU: 684MC3AF12
Price: 7.32 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$7.32 AUD

Each
Qty: 53 available now
Order 50 or more for $6.59 AUD Each

More stock due Oct 06, 2025: Qty 100 You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. If you wish to order more than 100, delivery is expected before Oct 06, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details:

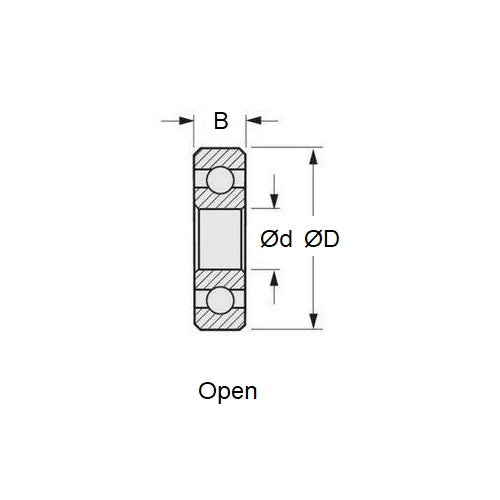

ID (d): 4.000mm
_{+0.000/-0.0075}

SAE52100 Chrome Steel

OD (D): 9.000mm
_{+0.000/-0.0075}
Width (B): 2.500mm
_{+0.000/-0.125}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternatives: 618-4, 684, 684-AF2, 684AX50, AX4, BGB-7183, L940, MR4009, UL409, UL40C, W684

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
