DJK-036 - Datasheet
MBA
Category Information

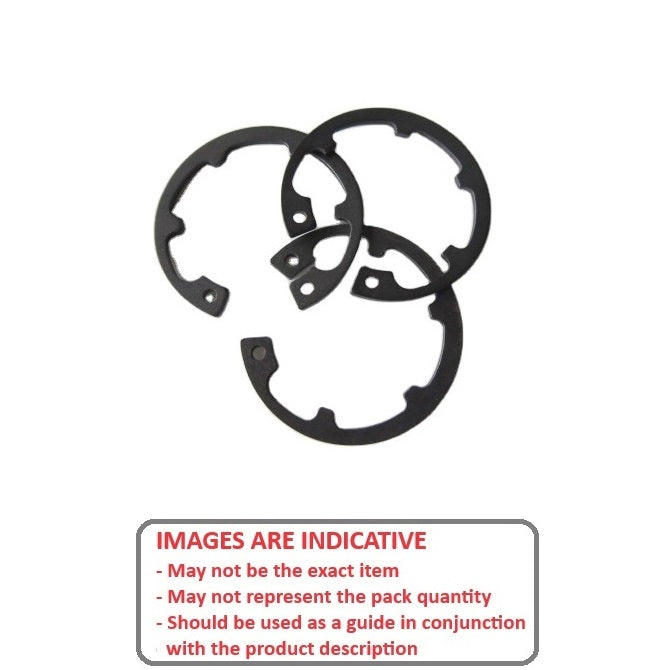

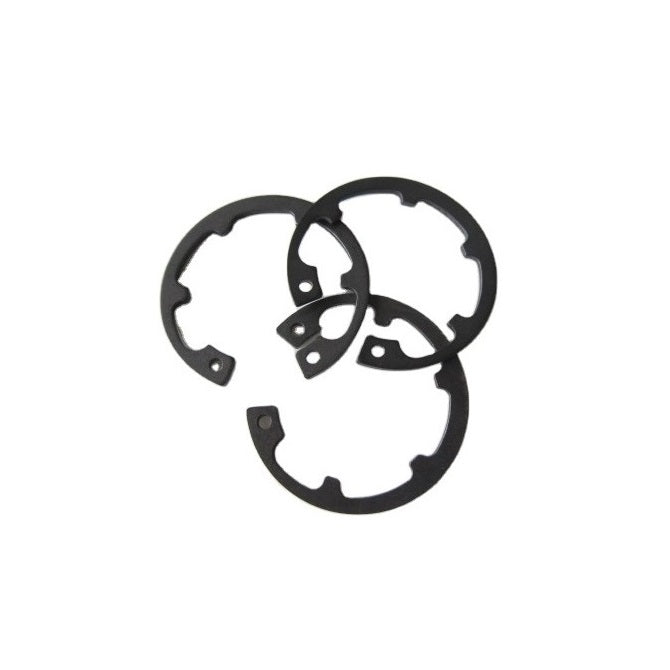

Retaining Rings - Internal - Circlips - TabbedTabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
- Internal tabs are concentrically positioned for a concealed assembly.
- Tabs act as spacers for securing machine components.
Product Data
- Housing Bore (B)
:
36.00
mm
(Equiv. 1.417 in.) - Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.) - Groove Dia. (Dg)
38.25
mm
+ 0.00 / - 0.06
(Equiv. 1.506 in.) - Approx. Loose Circlip OD (Dr) 38.55 - 39.30 mm
- Radial Wall Max. (b) 3.60 mm
- Groove Width (W) 1.60 mm
- Tool PRS-I018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- D2000-036
- D2000036
