Retaining Rings - Internal - Circlips - Tabbed

Retaining Rings -> Internal -> Circlips -> Tabbed

There are 44 products in the sub-categories of Retaining Rings - Internal - Circlips - Tabbed. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Tabbed in the products table to see all these items combined into a handy table with filters.

Category Details

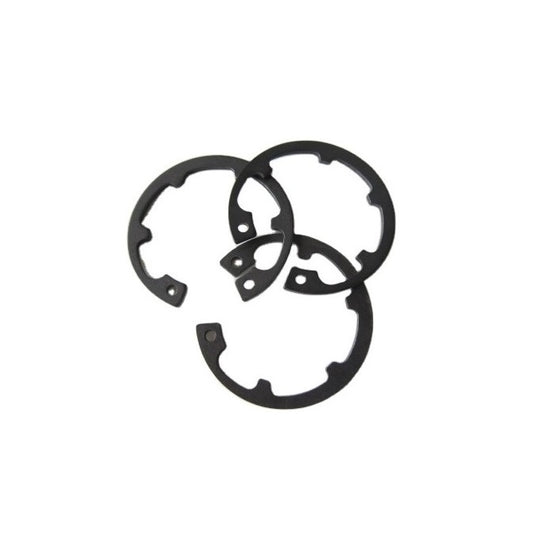

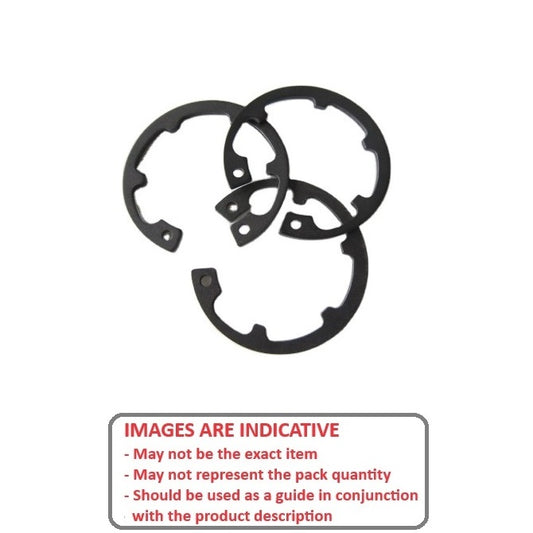

A selection of Tabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Internal tabs are concentrically positioned for a concealed assembly.
  • Tabs act as spacers for securing machine components.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Circlips - Tabbed category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.91
mm
+ 0.00 / - 0.06
(Equiv. 0.666 in.)
Approx. Loose Circlip OD (Dr)
17.17 - 17.73
mm
Radial Wall (S) Approx.
2.10
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 16x1x16.91 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I011
Part Number: DJK-016 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.91
mm
+ 0.00 / - 0.06
(Equiv. 0.666 in.)
Approx. Loose Circlip OD (Dr)
17.17 - 17.73
mm
Internal Retaining Rings - 16x1x16.91 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.10 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: DJK-016 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.91
mm
+ 0.00 / - 0.06
(Equiv. 0.705 in.)
Approx. Loose Circlip OD (Dr)
18.17 - 18.73
mm
Radial Wall (S) Approx.
2.20
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 17x1x17.91 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I011
Part Number: DJK-017 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.91
mm
+ 0.00 / - 0.06
(Equiv. 0.705 in.)
Approx. Loose Circlip OD (Dr)
18.17 - 18.73
mm
Internal Retaining Rings - 17x1x17.91 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.20 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: DJK-017 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.15
mm
+ 0.00 / - 0.06
(Equiv. 0.754 in.)
Approx. Loose Circlip OD (Dr)
19.37
mm
Radial Wall (S) Approx.
2.30
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 18x1x19.15 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 268
Part Number: DJK-018 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$29.86 AUD
$70.00 AUD $29.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.15
mm
+ 0.00 / - 0.06
(Equiv. 0.754 in.)
Approx. Loose Circlip OD (Dr)
19.37
mm
Internal Retaining Rings - 18x1x19.15 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.30 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Additional stock available from USA subject to Prior Sale = 268
Part Number: DJK-018 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$29.86 AUD
$70.00 AUD $29.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.15
mm
+ 0.00 / - 0.06
(Equiv. 0.793 in.)
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm
Radial Wall (S) Approx.
2.30
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 19x1x20.15 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-019 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.15
mm
+ 0.00 / - 0.06
(Equiv. 0.793 in.)
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm
Internal Retaining Rings - 19x1x20.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-019 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 20x1x21.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.15
mm
+ 0.00 / - 0.06
(Equiv. 0.833 in.)
Approx. Loose Circlip OD (Dr)
21.37
mm
Radial Wall (S) Approx.
2.40
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 20x1x21.15 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-020 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 20x1x21.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.15
mm
+ 0.00 / - 0.06
(Equiv. 0.833 in.)
Approx. Loose Circlip OD (Dr)
21.37
mm
Internal Retaining Rings - 20x1x21.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.40 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-020 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 21x1x22.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
21.00
mm

(Equiv. 0.827 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
22.15
mm
+ 0.00 / - 0.06
(Equiv. 0.872 in.)
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm
Radial Wall (S) Approx.
2.40
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 21x1x22.15 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-021 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 21x1x22.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
21.00
mm

(Equiv. 0.827 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
22.15
mm
+ 0.00 / - 0.06
(Equiv. 0.872 in.)
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm
Internal Retaining Rings - 21x1x22.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.40 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-021 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.15
mm
+ 0.00 / - 0.06
(Equiv. 0.911 in.)
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm
Radial Wall (S) Approx.
2.60
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 22x1x23.15 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-022 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.15
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.15
mm
+ 0.00 / - 0.06
(Equiv. 0.911 in.)
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm
Internal Retaining Rings - 22x1x23.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.60 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-022 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
23.00
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.25
mm
+ 0.00 / - 0.06
(Equiv. 0.955 in.)
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm
Radial Wall (S) Approx.
2.60
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 23x1.2x24.25 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-023 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
23.00
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.15
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.25
mm
+ 0.00 / - 0.06
(Equiv. 0.955 in.)
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm
Internal Retaining Rings - 23x1.2x24.25 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.60 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-023 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.41
mm
+ 0.00 / - 0.06
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
25.69 - 26.32
mm
Radial Wall (S) Approx.
2.60
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 24x1.2x25.41 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-024 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.41
mm
+ 0.00 / - 0.06
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
25.69 - 26.32
mm
Internal Retaining Rings - 24x1.2x25.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.60 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-024 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.41
mm
+ 0.00 / - 0.06
(Equiv. 1.04 in.)
Approx. Loose Circlip OD (Dr)
26.69
mm
Radial Wall (S) Approx.
2.80
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 25x1.2x26.41 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-025 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.41
mm
+ 0.00 / - 0.06
(Equiv. 1.04 in.)
Approx. Loose Circlip OD (Dr)
26.69
mm
Internal Retaining Rings - 25x1.2x26.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-025 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.00 / - 0.06
(Equiv. 1.079 in.)
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm
Radial Wall (S) Approx.
2.80
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 26x1.2x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-026 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.00 / - 0.06
(Equiv. 1.079 in.)
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm
Internal Retaining Rings - 26x1.2x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-026 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.61
mm
+ 0.00 / - 0.06
(Equiv. 1.126 in.)
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm
Radial Wall (S) Approx.
2.90
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 27x1.2x28.61 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-027 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.61
mm
+ 0.00 / - 0.06
(Equiv. 1.126 in.)
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm
Internal Retaining Rings - 27x1.2x28.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.90 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-027 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.61
mm
+ 0.00 / - 0.06
(Equiv. 1.166 in.)
Approx. Loose Circlip OD (Dr)
29.85
mm
Radial Wall (S) Approx.
3.00
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 28x1.2x29.61 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.61
mm
+ 0.00 / - 0.06
(Equiv. 1.166 in.)
Approx. Loose Circlip OD (Dr)
29.85
mm
Internal Retaining Rings - 28x1.2x29.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.65
mm
+ 0.00 / - 0.06
(Equiv. 1.246 in.)
Approx. Loose Circlip OD (Dr)
31.85
mm
Radial Wall (S) Approx.
3.20
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 30x1.2x31.65 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
30.00
mm

(Equiv. 1.181 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.65
mm
+ 0.00 / - 0.06
(Equiv. 1.246 in.)
Approx. Loose Circlip OD (Dr)
31.85
mm
Internal Retaining Rings - 30x1.2x31.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.20 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 31x1.2x32.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
31.00
mm

(Equiv. 1.22 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
32.95
mm
+ 0.00 / - 0.06
(Equiv. 1.297 in.)
Approx. Loose Circlip OD (Dr)
33.15 - 33.90
mm
Radial Wall (S) Approx.
3.20
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 31x1.2x32.95 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-031 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 31x1.2x32.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
31.00
mm

(Equiv. 1.22 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
32.95
mm
+ 0.00 / - 0.06
(Equiv. 1.297 in.)
Approx. Loose Circlip OD (Dr)
33.15 - 33.90
mm
Internal Retaining Rings - 31x1.2x32.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.20 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-031 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 32x1.2x33.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
33.95
mm
+ 0.00 / - 0.06
(Equiv. 1.337 in.)
Approx. Loose Circlip OD (Dr)
34.15
mm
Radial Wall (S) Approx.
3.30
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 32x1.2x33.95 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-032 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 32x1.2x33.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
32.00
mm

(Equiv. 1.26 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
33.95
mm
+ 0.00 / - 0.06
(Equiv. 1.337 in.)
Approx. Loose Circlip OD (Dr)
34.15
mm
Internal Retaining Rings - 32x1.2x33.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.30 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-032 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 33x1.2x34.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
33.00
mm

(Equiv. 1.299 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
34.95
mm
+ 0.00 / - 0.06
(Equiv. 1.376 in.)
Approx. Loose Circlip OD (Dr)
35.25 - 36.00
mm
Radial Wall (S) Approx.
3.30
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 33x1.2x34.95 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-033 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 33x1.2x34.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
33.00
mm

(Equiv. 1.299 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.)
Groove Dia. (Dg)
34.95
mm
+ 0.00 / - 0.06
(Equiv. 1.376 in.)
Approx. Loose Circlip OD (Dr)
35.25 - 36.00
mm
Internal Retaining Rings - 33x1.2x34.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.30 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-033 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 34x1.5x37.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
37.95
mm
+ 0.00 / - 0.06
(Equiv. 1.494 in.)
Approx. Loose Circlip OD (Dr)
36.25 - 37.00
mm
Radial Wall (S) Approx.
3.40
mm
Groove Width (W)
1.60
mm
Internal Retaining Rings - 34x1.5x37.95 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-034 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 34x1.5x37.95 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
34.00
mm

(Equiv. 1.339 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
37.95
mm
+ 0.00 / - 0.06
(Equiv. 1.494 in.)
Approx. Loose Circlip OD (Dr)
36.25 - 37.00
mm
Internal Retaining Rings - 34x1.5x37.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.40 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-034 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 35x1.5x37.25 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
37.25
mm
+ 0.00 / - 0.06
(Equiv. 1.467 in.)
Approx. Loose Circlip OD (Dr)
37.55
mm
Radial Wall (S) Approx.
3.60
mm
Groove Width (W)
1.60
mm
Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I018
Additional stock available from USA subject to Prior Sale = 269
Part Number: DJK-035 (PK-5)
7 units (35 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$7.14 AUD
$16.60 AUD $7.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 7 available can be backordered.
Internal Retaining Rings - 35x1.5x37.25 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
35.00
mm

(Equiv. 1.378 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
37.25
mm
+ 0.00 / - 0.06
(Equiv. 1.467 in.)
Approx. Loose Circlip OD (Dr)
37.55
mm
Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 3.60 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Additional stock available from USA subject to Prior Sale = 269
Part Number: DJK-035 (PK-5)
7 units (35 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$7.14 AUD
$16.60 AUD $7.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (35 pcs) Available Now. Backorder if more than 7.
Internal Retaining Rings - 36x1.5x38.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
36.00
mm

(Equiv. 1.417 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
38.25
mm
+ 0.00 / - 0.06
(Equiv. 1.506 in.)
Approx. Loose Circlip OD (Dr)
38.55 - 39.30
mm
Radial Wall (S) Approx.
3.60
mm
Groove Width (W)
1.60
mm
Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-036 (Each)
30 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$6.32 AUD
$6.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 30 available can be backordered.
Internal Retaining Rings - 36x1.5x38.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
36.00
mm

(Equiv. 1.417 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
38.25
mm
+ 0.00 / - 0.06
(Equiv. 1.506 in.)
Approx. Loose Circlip OD (Dr)
38.55 - 39.30
mm
Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.60 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-036 (Each)
30 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$6.32 AUD
$6.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

30 Available Now. Backorder if more than 30.
Internal Retaining Rings - 38x1.5x40.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
40.25
mm
+ 0.00 / - 0.06
(Equiv. 1.585 in.)
Approx. Loose Circlip OD (Dr)
40.55
mm
Radial Wall (S) Approx.
3.80
mm
Groove Width (W)
1.60
mm
Internal Retaining Rings - 38x1.5x40.25 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I018
Part Number: DJK-038 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 38x1.5x40.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
38.00
mm

(Equiv. 1.496 in.)
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.25
(Equiv. 0.059 in.)
Groove Dia. (Dg)
40.25
mm
+ 0.00 / - 0.06
(Equiv. 1.585 in.)
Approx. Loose Circlip OD (Dr)
40.55
mm
Internal Retaining Rings - 38x1.5x40.25 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.80 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-038 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 40x1.75x42.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
42.75
mm
+ 0.00 / - 0.06
(Equiv. 1.683 in.)
Approx. Loose Circlip OD (Dr)
43.11
mm
Radial Wall (S) Approx.
4.00
mm
Groove Width (W)
1.85
mm
Internal Retaining Rings - 40x1.75x42.75 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I023
Part Number: DJK-040 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 40x1.75x42.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
40.00
mm

(Equiv. 1.575 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
42.75
mm
+ 0.00 / - 0.06
(Equiv. 1.683 in.)
Approx. Loose Circlip OD (Dr)
43.11
mm
Internal Retaining Rings - 40x1.75x42.75 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.00 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-040 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 42x1.75x44.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
44.75
mm
+ 0.00 / - 0.06
(Equiv. 1.762 in.)
Approx. Loose Circlip OD (Dr)
45.11
mm
Radial Wall (S) Approx.
4.10
mm
Groove Width (W)
1.85
mm
Internal Retaining Rings - 42x1.75x44.75 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I023
Part Number: DJK-042 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 42x1.75x44.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
42.00
mm

(Equiv. 1.654 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
44.75
mm
+ 0.00 / - 0.06
(Equiv. 1.762 in.)
Approx. Loose Circlip OD (Dr)
45.11
mm
Internal Retaining Rings - 42x1.75x44.75 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.10 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-042 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
Internal Retaining Rings - 44x1.75x46.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
44.00
mm

(Equiv. 1.732 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
46.75
mm
+ 0.00 / - 0.06
(Equiv. 1.841 in.)
Approx. Loose Circlip OD (Dr)
47.11 - 48.40
mm
Radial Wall (S) Approx.
4.20
mm
Groove Width (W)
1.85
mm
Internal Retaining Rings - 44x1.75x46.75 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRS-I023
Part Number: DJK-044 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 44x1.75x46.75 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
44.00
mm

(Equiv. 1.732 in.)
Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.)
Groove Dia. (Dg)
46.75
mm
+ 0.00 / - 0.06
(Equiv. 1.841 in.)
Approx. Loose Circlip OD (Dr)
47.11 - 48.40
mm
Internal Retaining Rings - 44x1.75x46.75 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.20 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-044 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
