CCE-01000-S15 - Datasheet
MBA
Category Information

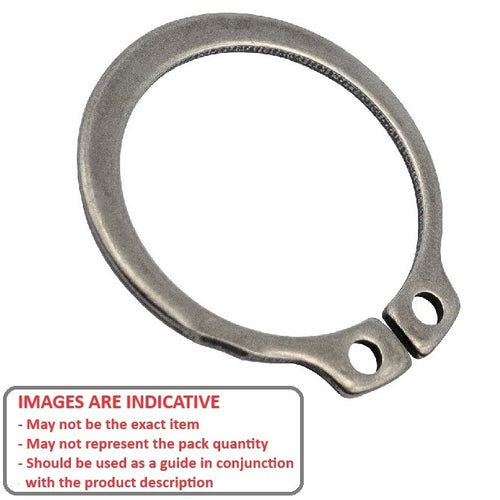

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data

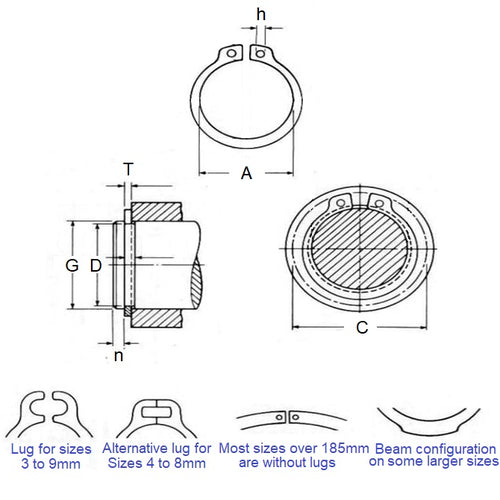

- Shaft Diameter (Ds) : 10.00 mm
- Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
9.60
mm
+ 0.00 / - 0.11
(Equiv. 0.378 in.) - Approx. Loose Circlip ID (A) 9.30 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 17.00 mm
- Clearance in Groove (C1) 16.20 mm
- Min. Lug Diameter (h) 1.50 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-010-SS
- 90967A160
- Seeger® A-010-SS
- Seeger® A10K500-BLS
- Seeger® A10X1-411
- Seeger® A10X1SS
- Bossard® BN818-010-SS
- Waldes® D1400-010-SS
- Huyett® DSH-010-SS
- NoCor® DSH-010-SS
- Rotor Clip® DSH-010-SS
- BN818010SS
- A010SS
- A10K500BLS
- A10X1411
- D14000100KSF
- D1400-0100KSF
- D1400010SS
- 471010SS
- DSH010SS
