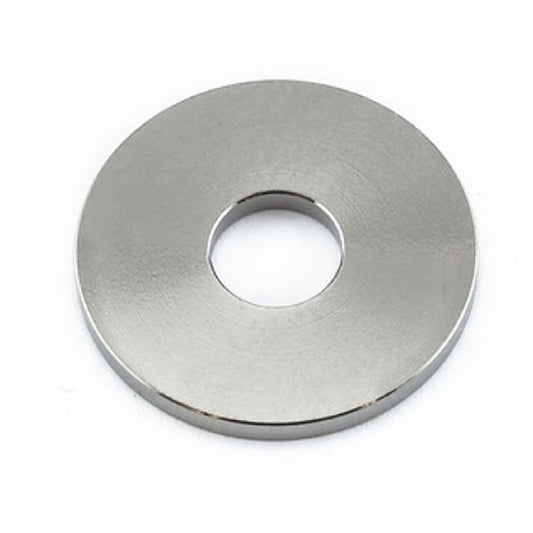

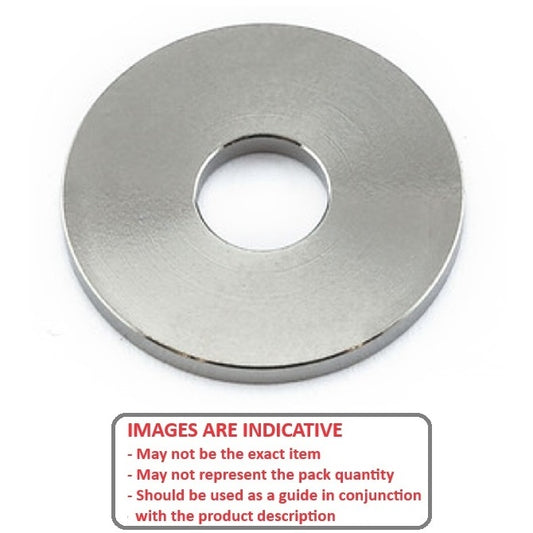

Washers - Flat - Commercial - Titanium - CP Grade 1

5 Products in this selection
  • Flat washers. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.
  • Commercially pure for general industrial corrosion applications. UNS R50250.
  • Please note! Tolerances for commercial grade washers are much larger than for precision washers. Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
Additional resources:
Washers and Spacers PDF Catalogue
Screws
Nom. ID (d) Nom. OD (D) Thickness (T) Other Indicative
4
mm
DIN125 		9
mm
DIN125 		1
mm
DIN125 		To Suit M4 Screw
 1054151 | W0040-F-009-010-TC1 (10 Pcs) --- Washers - 4 mm x 9 mm x 1 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 4.3 mm
Part Number: W0040-F-009-010-TC1 (10 Pcs) Washers - 4 mm x 9 mm x 1 mm
40 units (400 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
Nom. ID (d) Nom. OD (D) Thickness (T) Other Indicative
4
mm
DIN125 		9
mm
DIN125 		1
mm
DIN125 		To Suit M4 Screw
 1054151 | W0040-F-009-010-TC1 (10 Pcs) --- Washers - 4 mm x 9 mm x 1 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 4.3 mm
Part Number: W0040-F-009-010-TC1 (10 Pcs) Washers - 4 mm x 9 mm x 1 mm
40 units (400 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
5
mm
DIN125 		10
mm
DIN125 		1
mm
DIN125 		To Suit M5 Screw
 1062766 | W0050-F-010-010-TC1 (10 Pcs) --- Washers - 5 mm x 10 mm x 1 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 5.3 mm
Part Number: W0050-F-010-010-TC1 (10 Pcs) Washers - 5 mm x 10 mm x 1 mm
6 units (60 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
5
mm
DIN125 		10
mm
DIN125 		1
mm
DIN125 		To Suit M5 Screw
 1062766 | W0050-F-010-010-TC1 (10 Pcs) --- Washers - 5 mm x 10 mm x 1 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 5.3 mm
Part Number: W0050-F-010-010-TC1 (10 Pcs) Washers - 5 mm x 10 mm x 1 mm
6 units (60 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6
mm
DIN125 		12
mm
DIN125 		1.6
mm
DIN125 		To Suit M6 Screw
 1067963 | W0060-F-012-016-TC1 (10 Pcs) --- Washers - 6 mm x 12 mm x 1.6 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 6.4 mm
Part Number: W0060-F-012-016-TC1 (10 Pcs) Washers - 6 mm x 12 mm x 1.6 mm
5 units (50 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6
mm
DIN125 		12
mm
DIN125 		1.6
mm
DIN125 		To Suit M6 Screw
 1067963 | W0060-F-012-016-TC1 (10 Pcs) --- Washers - 6 mm x 12 mm x 1.6 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 6.4 mm
Part Number: W0060-F-012-016-TC1 (10 Pcs) Washers - 6 mm x 12 mm x 1.6 mm
5 units (50 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
8
mm
DIN125 		16
mm
DIN125 		1.6
mm
DIN125 		To Suit M8 Screw
 1082320 | W0080-F-016-016-TC1 (10 Pcs) --- Washers - 8 mm x 16 mm x 1.6 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 8.4 mm
Part Number: W0080-F-016-016-TC1 (10 Pcs) Washers - 8 mm x 16 mm x 1.6 mm
8 units (80 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
8
mm
DIN125 		16
mm
DIN125 		1.6
mm
DIN125 		To Suit M8 Screw
 1082320 | W0080-F-016-016-TC1 (10 Pcs) --- Washers - 8 mm x 16 mm x 1.6 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 8.4 mm
Part Number: W0080-F-016-016-TC1 (10 Pcs) Washers - 8 mm x 16 mm x 1.6 mm
8 units (80 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
10
mm
DIN125 		20
mm
DIN125 		2
mm
DIN125 		To Suit M10 Screw
 1092935 | W0100-F-020-020-TC1 (10 Pcs) --- Washers - 10 mm x 20 mm x 2 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 10.5 mm
Part Number: W0100-F-020-020-TC1 (10 Pcs) Washers - 10 mm x 20 mm x 2 mm
7 units (70 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
10
mm
DIN125 		20
mm
DIN125 		2
mm
DIN125 		To Suit M10 Screw
 1092935 | W0100-F-020-020-TC1 (10 Pcs) --- Washers - 10 mm x 20 mm x 2 mm
Material: Titanium CP Grade 1    Actual ID (Ref): 10.5 mm
Part Number: W0100-F-020-020-TC1 (10 Pcs) Washers - 10 mm x 20 mm x 2 mm
7 units (70 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
