Springs - Die - Metric - Extra Heavy Duty

Springs - Die Springs - Die - Metric   Springs - Die - Metric - Extra Heavy Duty
19 Products In this Selection

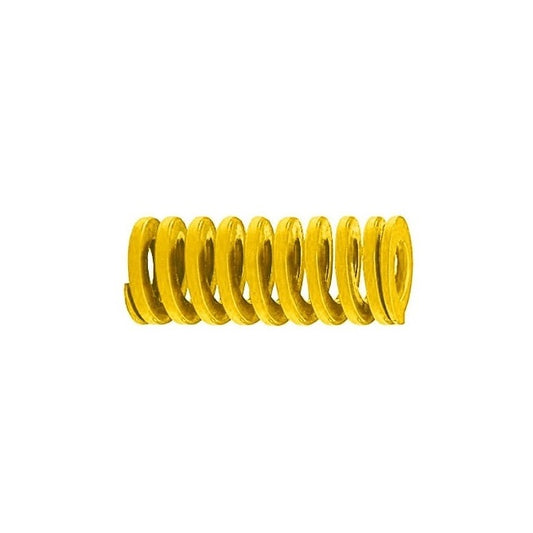

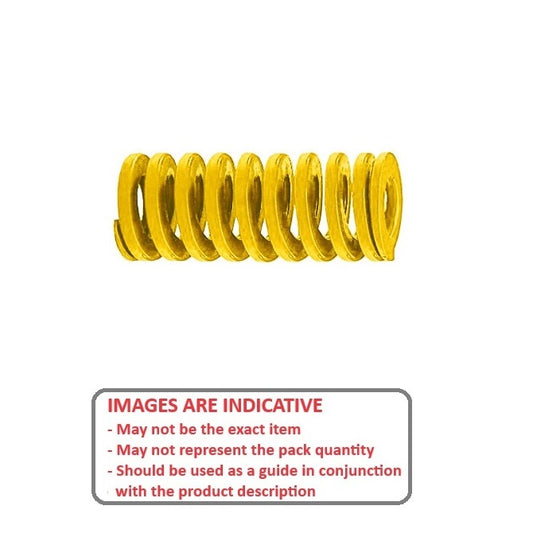

Colour coded yellow
High tensile strength chromium alloy steels.
Heat Resistance: Up to +230oC (Loss of load occurs above +120oC).
Spring Ends: Squared and ground.
For compressed length, Subtract Deflection from Free Length.
Hole Diameter (A) Rod Diameter (B) Length (L) Optimum Deflection Optimum Deflection Load at Optimal Indicative
10.00
mm 		5.00
mm 		25.00
mm 		25
Percent 		6.3
mm 		231.8
N 		1090994 | DS-100-025-EHD --- Springs - 10 mm x 5 mm x 25 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 342.2 N    Spring Rate: 36.8 N/mm    Colour Code: Yellow
Part Number: DS-100-025-EHD --- Springs - 10 mm x 5 mm x 25 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$17.86 AUD
$17.86 AUD
Per Each
Hole Diameter (A) Rod Diameter (B) Length (L) Optimum Deflection Indicative
10.00
mm 		5.00
mm 		25.00
mm 		25
Percent 		1090994 | DS-100-025-EHD --- Springs - 10 mm x 5 mm x 25 mm
Material: Spring Steel    Optimum Deflection: 6.3 mm    Load at Optimal: 231.8 N    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 342.2 N    Spring Rate: 36.8 N/mm    Colour Code: Yellow
Part Number: DS-100-025-EHD --- Springs - 10 mm x 5 mm x 25 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$17.86 AUD
$17.86 AUD
Per Each
10.00
mm 		5.00
mm 		32.00
mm 		25
Percent 		8.0
mm 		223.2
N 		1090998 | DS-100-032-EHD --- Springs - 10 mm x 5 mm x 32 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 11.8 mm    Load at Maximum: 329.2 N    Spring Rate: 27.9 N/mm    Colour Code: Yellow
Part Number: DS-100-032-EHD --- Springs - 10 mm x 5 mm x 32 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$12.50 AUD
$12.50 AUD
Per Each
10.00
mm 		5.00
mm 		32.00
mm 		25
Percent 		1090998 | DS-100-032-EHD --- Springs - 10 mm x 5 mm x 32 mm
Material: Spring Steel    Optimum Deflection: 8.0 mm    Load at Optimal: 223.2 N    Maximum Deflection: 37 Percent    Maximum Deflection: 11.8 mm    Load at Maximum: 329.2 N    Spring Rate: 27.9 N/mm    Colour Code: Yellow
Part Number: DS-100-032-EHD --- Springs - 10 mm x 5 mm x 32 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$12.50 AUD
$12.50 AUD
Per Each
10.00
mm 		5.00
mm 		38.00
mm 		25
Percent 		9.5
mm 		225.2
N 		1091002 | DS-100-038-EHD --- Springs - 10 mm x 5 mm x 38 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 14.1 mm    Load at Maximum: 334.2 N    Spring Rate: 23.7 N/mm    Colour Code: Yellow
Part Number: DS-100-038-EHD --- Springs - 10 mm x 5 mm x 38 mm
4 Available
| Backorders for more can be expected around Sat, Nov 16, 2024
$17.23 AUD
$17.23 AUD
Per Each
10.00
mm 		5.00
mm 		38.00
mm 		25
Percent 		1091002 | DS-100-038-EHD --- Springs - 10 mm x 5 mm x 38 mm
Material: Spring Steel    Optimum Deflection: 9.5 mm    Load at Optimal: 225.2 N    Maximum Deflection: 37 Percent    Maximum Deflection: 14.1 mm    Load at Maximum: 334.2 N    Spring Rate: 23.7 N/mm    Colour Code: Yellow
Part Number: DS-100-038-EHD --- Springs - 10 mm x 5 mm x 38 mm
4 Available
| | Backorders for more can be expected around Sat, Nov 16, 2024
$17.23 AUD
$17.23 AUD
Per Each
12.50
mm 		6.30
mm 		25.00
mm 		25
Percent 		6.3
mm 		368.6
N 		1101708 | DS-125-025-EHD --- Springs - 12.5 mm x 6.3 mm x 25 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 544.1 N    Spring Rate: 58.5 N/mm    Colour Code: Yellow
Part Number: DS-125-025-EHD --- Springs - 12.5 mm x 6.3 mm x 25 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$18.23 AUD
$18.23 AUD
Per Each
12.50
mm 		6.30
mm 		25.00
mm 		25
Percent 		1101708 | DS-125-025-EHD --- Springs - 12.5 mm x 6.3 mm x 25 mm
Material: Spring Steel    Optimum Deflection: 6.3 mm    Load at Optimal: 368.6 N    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 544.1 N    Spring Rate: 58.5 N/mm    Colour Code: Yellow
Part Number: DS-125-025-EHD --- Springs - 12.5 mm x 6.3 mm x 25 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$18.23 AUD
$18.23 AUD
Per Each
12.50
mm 		6.30
mm 		32.00
mm 		25
Percent 		8.0
mm 		351.2
N 		1101712 | DS-125-032-EHD --- Springs - 12.5 mm x 6.3 mm x 32 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 11.8 mm    Load at Maximum: 518.0 N    Spring Rate: 43.9 N/mm    Colour Code: Yellow
Part Number: DS-125-032-EHD --- Springs - 12.5 mm x 6.3 mm x 32 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$15.95 AUD
$15.95 AUD
Per Each
12.50
mm 		6.30
mm 		32.00
mm 		25
Percent 		1101712 | DS-125-032-EHD --- Springs - 12.5 mm x 6.3 mm x 32 mm
Material: Spring Steel    Optimum Deflection: 8.0 mm    Load at Optimal: 351.2 N    Maximum Deflection: 37 Percent    Maximum Deflection: 11.8 mm    Load at Maximum: 518.0 N    Spring Rate: 43.9 N/mm    Colour Code: Yellow
Part Number: DS-125-032-EHD --- Springs - 12.5 mm x 6.3 mm x 32 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$15.95 AUD
$15.95 AUD
Per Each
12.50
mm 		6.30
mm 		38.00
mm 		25
Percent 		9.5
mm 		342.0
N 		1101715 | DS-125-038-EHD --- Springs - 12.5 mm x 6.3 mm x 38 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 14.1 mm    Load at Maximum: 507.6 N    Spring Rate: 36.0 N/mm    Colour Code: Yellow
Part Number: DS-125-038-EHD --- Springs - 12.5 mm x 6.3 mm x 38 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$17.95 AUD
$17.95 AUD
Per Each
12.50
mm 		6.30
mm 		38.00
mm 		25
Percent 		1101715 | DS-125-038-EHD --- Springs - 12.5 mm x 6.3 mm x 38 mm
Material: Spring Steel    Optimum Deflection: 9.5 mm    Load at Optimal: 342.0 N    Maximum Deflection: 37 Percent    Maximum Deflection: 14.1 mm    Load at Maximum: 507.6 N    Spring Rate: 36.0 N/mm    Colour Code: Yellow
Part Number: DS-125-038-EHD --- Springs - 12.5 mm x 6.3 mm x 38 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$17.95 AUD
$17.95 AUD
Per Each
16.00
mm 		8.00
mm 		25.00
mm 		25
Percent 		6.3
mm 		743.4
N 		1114155 | DS-160-025-EHD --- Springs - 16 mm x 8 mm x 25 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 1097.4 N    Spring Rate: 118.0 N/mm    Colour Code: Yellow
Part Number: DS-160-025-EHD --- Springs - 16 mm x 8 mm x 25 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Nov 16, 2024
$20.05 AUD
$20.05 AUD
Per Each
16.00
mm 		8.00
mm 		25.00
mm 		25
Percent 		1114155 | DS-160-025-EHD --- Springs - 16 mm x 8 mm x 25 mm
Material: Spring Steel    Optimum Deflection: 6.3 mm    Load at Optimal: 743.4 N    Maximum Deflection: 37 Percent    Maximum Deflection: 9.3 mm    Load at Maximum: 1097.4 N    Spring Rate: 118.0 N/mm    Colour Code: Yellow
Part Number: DS-160-025-EHD --- Springs - 16 mm x 8 mm x 25 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Nov 16, 2024
$20.05 AUD
$20.05 AUD
Per Each
16.00
mm 		8.00
mm 		38.00
mm 		25
Percent 		9.5
mm 		685.0
N 		1114162 | DS-160-038-EHD --- Springs - 16 mm x 8 mm x 38 mm
Material: Spring Steel    Maximum Deflection: 37 Percent    Maximum Deflection: 14.1 mm    Load at Maximum: 1016.6 N    Spring Rate: 72.1 N/mm    Colour Code: Yellow
