Collection: Springs - Die - Imperial - Medium Duty

Springs (With Images)

Die

Imperial

Medium Heavy Duty
Medium-Heavy Duty

119 Products in this selection

This is a combined category of Medium Duty Imperial Die Springs.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
9.53 mm	4.763 mm	25.400 mm	25 Percent	6.4 mm	67.2 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 107.1 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon

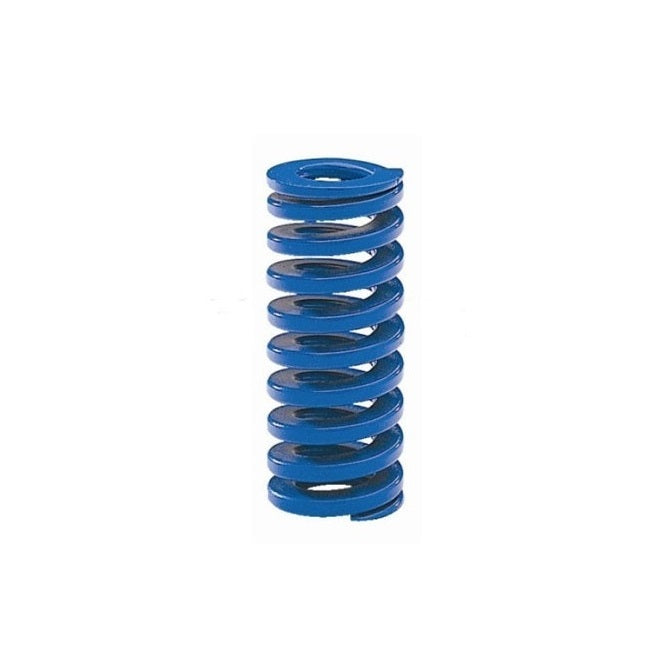

Part Number: DS-095-025-MDS Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
9.53 mm	4.763 mm	25.400 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 67.2 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 107.1 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-025-MDS Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MDS --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Chrome Silicon DS-095-025-MDS --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Chrome Silicon Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	25.400 mm	25 Percent	6.4 mm	67.2 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 107.1 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-025-MD Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each
9.53 mm	4.763 mm	25.400 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 67.2 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 107.1 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-025-MD Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MD --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Spring Steel DS-095-025-MD --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Spring Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	31.750 mm	25 Percent	7.9 mm	69.5 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 111.8 N Spring Rate: 8.8 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-032-MD Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each
9.53 mm	4.763 mm	31.750 mm	25 Percent
Material: Spring Steel Optimum Deflection: 7.9 mm Load at Optimal: 69.5 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 111.8 N Spring Rate: 8.8 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-032-MD Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MD --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Spring Steel DS-095-032-MD --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Spring Steel Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	31.750 mm	25 Percent	7.9 mm	69.5 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 111.8 N Spring Rate: 8.8 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-032-MDS Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each
9.53 mm	4.763 mm	31.750 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 7.9 mm Load at Optimal: 69.5 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 111.8 N Spring Rate: 8.8 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-032-MDS Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MDS --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Chrome Silicon DS-095-032-MDS --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Chrome Silicon Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	38.100 mm	25 Percent	9.5 mm	70.3 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 112.5 N Spring Rate: 7.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-038-MD Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
9.53 mm	4.763 mm	38.100 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 70.3 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 112.5 N Spring Rate: 7.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-038-MD Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MD --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Spring Steel DS-095-038-MD --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Spring Steel Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	38.100 mm	25 Percent	9.5 mm	70.3 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 112.5 N Spring Rate: 7.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-038-MDS Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
9.53 mm	4.763 mm	38.100 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 70.3 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 112.5 N Spring Rate: 7.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-038-MDS Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MDS --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Chrome Silicon DS-095-038-MDS --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Chrome Silicon Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	44.450 mm	25 Percent	11.1 mm	72.2 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 115.7 N Spring Rate: 6.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-044-MD Die Springs - 9.53 mm x 4.763 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each
9.53 mm	4.763 mm	44.450 mm	25 Percent
Material: Spring Steel Optimum Deflection: 11.1 mm Load at Optimal: 72.2 N Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 115.7 N Spring Rate: 6.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-044-MD Die Springs - 9.53 mm x 4.763 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-044-MD --- Die Springs - 9.53 mm x 4.763 mm x 44.45 mm Spring Steel DS-095-044-MD --- Die Springs - 9.53 mm x 4.763 mm x 44.45 mm Spring Steel Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	50.800 mm	25 Percent	12.7 mm	68.6 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 109.6 N Spring Rate: 5.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-051-MDS Die Springs - 9.53 mm x 4.763 mm x 50.8 mm 2 Available Immediately \| Further orders can be expected around Sat, Apr 05, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each
9.53 mm	4.763 mm	50.800 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 68.6 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 109.6 N Spring Rate: 5.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-051-MDS Die Springs - 9.53 mm x 4.763 mm x 50.8 mm 2 Available Immediately \| Further orders can be expected around Sat, Apr 05, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MDS --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Chrome Silicon Sale DS-095-051-MDS --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Chrome Silicon Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per 2 Available Now Sale
9.53 mm	4.763 mm	50.800 mm	25 Percent	12.7 mm	68.6 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 109.6 N Spring Rate: 5.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-051-MD Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
9.53 mm	4.763 mm	50.800 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 68.6 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 109.6 N Spring Rate: 5.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-051-MD Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MD --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Spring Steel DS-095-051-MD --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Spring Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	63.500 mm	25 Percent	15.9 mm	73.1 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Load at Maximum: 116.8 N Spring Rate: 4.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-064-MD Die Springs - 9.53 mm x 4.763 mm x 63.5 mm 3 Available Immediately \| Further orders can be expected around Sat, Apr 05, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each
9.53 mm	4.763 mm	63.500 mm	25 Percent
Material: Spring Steel Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Load at Maximum: 116.8 N Spring Rate: 4.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-064-MD Die Springs - 9.53 mm x 4.763 mm x 63.5 mm 3 Available Immediately \| Further orders can be expected around Sat, Apr 05, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MD --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Spring Steel Sale DS-095-064-MD --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Spring Steel Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per 3 Available Now Sale
9.53 mm	4.763 mm	63.500 mm	25 Percent	15.9 mm	73.1 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Load at Maximum: 116.8 N Spring Rate: 4.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-064-MDS Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each
9.53 mm	4.763 mm	63.500 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Load at Maximum: 116.8 N Spring Rate: 4.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-064-MDS Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MDS --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Chrome Silicon DS-095-064-MDS --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Chrome Silicon Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	76.200 mm	25 Percent	19.1 mm	70.7 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Load at Maximum: 112.9 N Spring Rate: 3.7 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-076-MD Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Each
9.53 mm	4.763 mm	76.200 mm	25 Percent
Material: Spring Steel Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Load at Maximum: 112.9 N Spring Rate: 3.7 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-076-MD Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-MD --- Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Spring Steel DS-095-076-MD --- Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Spring Steel Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	76.200 mm	25 Percent	19.1 mm	70.7 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Load at Maximum: 112.9 N Spring Rate: 3.7 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-076-MDS Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Each
9.53 mm	4.763 mm	76.200 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Load at Maximum: 112.9 N Spring Rate: 3.7 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-095-076-MDS Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-MDS --- Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Chrome Silicon DS-095-076-MDS --- Die Springs - 9.53 mm x 4.763 mm x 76.2 mm Chrome Silicon Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	304.800 mm	25 Percent	76.2 mm	83.8 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Load at Maximum: 134.1 N Spring Rate: 1.1 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-305-MD Die Springs - 9.53 mm x 4.763 mm x 304.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Each
9.53 mm	4.763 mm	304.800 mm	25 Percent
Material: Spring Steel Optimum Deflection: 76.2 mm Load at Optimal: 83.8 N Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Load at Maximum: 134.1 N Spring Rate: 1.1 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-095-305-MD Die Springs - 9.53 mm x 4.763 mm x 304.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-305-MD --- Die Springs - 9.53 mm x 4.763 mm x 304.8 mm Spring Steel DS-095-305-MD --- Die Springs - 9.53 mm x 4.763 mm x 304.8 mm Spring Steel Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	25.400 mm	25 Percent	6.4 mm	123.5 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 196.9 N Spring Rate: 19.3 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-025-MDS Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Each
12.70 mm	7.144 mm	25.400 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 123.5 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 196.9 N Spring Rate: 19.3 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-025-MDS Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Each View the product page first if you are unsure.
DS-127-025-MDS --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Chrome Silicon DS-127-025-MDS --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Chrome Silicon Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	25.400 mm	25 Percent	6.4 mm	123.5 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 196.9 N Spring Rate: 19.3 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-025-MD Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each
12.70 mm	7.144 mm	25.400 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 123.5 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Load at Maximum: 196.9 N Spring Rate: 19.3 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-025-MD Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each View the product page first if you are unsure.
DS-127-025-MD --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Spring Steel DS-127-025-MD --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Spring Steel Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	31.750 mm	25 Percent	7.9 mm	113.8 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 182.9 N Spring Rate: 14.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-032-MDS Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each
12.70 mm	7.144 mm	31.750 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 7.9 mm Load at Optimal: 113.8 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 182.9 N Spring Rate: 14.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-032-MDS Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each View the product page first if you are unsure.
DS-127-032-MDS --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Chrome Silicon DS-127-032-MDS --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Chrome Silicon Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	31.750 mm	25 Percent	7.9 mm	113.8 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 182.9 N Spring Rate: 14.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-032-MD Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each
12.70 mm	7.144 mm	31.750 mm	25 Percent
Material: Spring Steel Optimum Deflection: 7.9 mm Load at Optimal: 113.8 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Load at Maximum: 182.9 N Spring Rate: 14.4 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-032-MD Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each View the product page first if you are unsure.
DS-127-032-MD --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Spring Steel DS-127-032-MD --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Spring Steel Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	38.100 mm	25 Percent	9.5 mm	113.1 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 180.9 N Spring Rate: 11.9 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-038-MDS Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each
12.70 mm	7.144 mm	38.100 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 180.9 N Spring Rate: 11.9 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-038-MDS Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each View the product page first if you are unsure.
DS-127-038-MDS --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Chrome Silicon DS-127-038-MDS --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Chrome Silicon Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	38.100 mm	25 Percent	9.5 mm	113.1 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 180.9 N Spring Rate: 11.9 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-038-MD Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each
12.70 mm	7.144 mm	38.100 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Load at Maximum: 180.9 N Spring Rate: 11.9 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-038-MD Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each View the product page first if you are unsure.
DS-127-038-MD --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Spring Steel DS-127-038-MD --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Spring Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	44.450 mm	25 Percent	11.1 mm	116.6 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 186.9 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-044-MDS Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each
12.70 mm	7.144 mm	44.450 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 11.1 mm Load at Optimal: 116.6 N Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 186.9 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-044-MDS Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each View the product page first if you are unsure.
DS-127-044-MDS --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Chrome Silicon DS-127-044-MDS --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Chrome Silicon Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	44.450 mm	25 Percent	11.1 mm	116.6 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 186.9 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-044-MD Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each
12.70 mm	7.144 mm	44.450 mm	25 Percent
Material: Spring Steel Optimum Deflection: 11.1 mm Load at Optimal: 116.6 N Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Load at Maximum: 186.9 N Spring Rate: 10.5 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-044-MD Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each View the product page first if you are unsure.
DS-127-044-MD --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Spring Steel DS-127-044-MD --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Spring Steel Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	50.800 mm	25 Percent	12.7 mm	121.9 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 194.9 N Spring Rate: 9.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-051-MDS Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Each
12.70 mm	7.144 mm	50.800 mm	25 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 121.9 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 194.9 N Spring Rate: 9.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon
Part Number: DS-127-051-MDS Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Each View the product page first if you are unsure.
DS-127-051-MDS --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Chrome Silicon DS-127-051-MDS --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Chrome Silicon Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	50.800 mm	25 Percent	12.7 mm	121.9 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 194.9 N Spring Rate: 9.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-051-MD Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
12.70 mm	7.144 mm	50.800 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 121.9 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Load at Maximum: 194.9 N Spring Rate: 9.6 N/mm Category: Springs - Die - Imperial - Medium Duty - Standard
Part Number: DS-127-051-MD Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
DS-127-051-MD --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Spring Steel DS-127-051-MD --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Spring Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
