Collection: Springs - Die - Imperial - Heavy Duty

Springs (With Images)

Die

Imperial

Extra Heavy Duty
Heavy Duty

69 Products in this selection

This is a combined category of Heavy Duty Imperial Die Springs.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
15.88 mm	8.731 mm	50.800 mm	15 Percent	7.6 mm	277.4 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 463.6 N Spring Rate: 36.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon

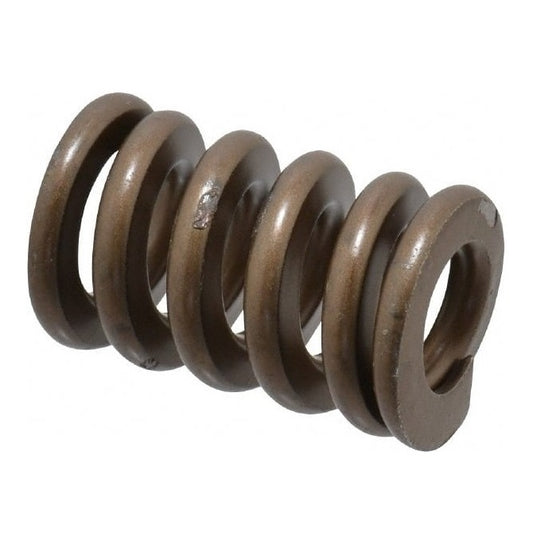

Part Number: DS-159-051-HDS Die Springs - 15.88 mm x 8.731 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Each
Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
15.88 mm	8.731 mm	50.800 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 277.4 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 463.6 N Spring Rate: 36.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-159-051-HDS Die Springs - 15.88 mm x 8.731 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Each View the product page first if you are unsure.
DS-159-051-HDS --- Die Springs - 15.88 mm x 8.731 mm x 50.8 mm Chrome Silicon DS-159-051-HDS --- Die Springs - 15.88 mm x 8.731 mm x 50.8 mm Chrome Silicon Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	63.500 mm	15 Percent	9.5 mm	283.1 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 473.8 N Spring Rate: 29.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-159-064-HD Die Springs - 15.88 mm x 8.731 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each
15.88 mm	8.731 mm	63.500 mm	15 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 283.1 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 473.8 N Spring Rate: 29.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-159-064-HD Die Springs - 15.88 mm x 8.731 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each View the product page first if you are unsure.
DS-159-064-HD --- Die Springs - 15.88 mm x 8.731 mm x 63.5 mm Spring Steel DS-159-064-HD --- Die Springs - 15.88 mm x 8.731 mm x 63.5 mm Spring Steel Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	76.200 mm	15 Percent	11.4 mm	279.3 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 468.0 N Spring Rate: 24.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-159-076-HDS Die Springs - 15.88 mm x 8.731 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $28.68 AUD Regular price Sale price $28.68 AUD Unit price per Each
15.88 mm	8.731 mm	76.200 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 11.4 mm Load at Optimal: 279.3 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 468.0 N Spring Rate: 24.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-159-076-HDS Die Springs - 15.88 mm x 8.731 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $28.68 AUD Regular price Sale price $28.68 AUD Unit price per Each View the product page first if you are unsure.
DS-159-076-HDS --- Die Springs - 15.88 mm x 8.731 mm x 76.2 mm Chrome Silicon DS-159-076-HDS --- Die Springs - 15.88 mm x 8.731 mm x 76.2 mm Chrome Silicon Regular price $28.68 AUD Regular price Sale price $28.68 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	25.400 mm	15 Percent	3.8 mm	718.6 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 1210.2 N Spring Rate: 189.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-025-HD Die Springs - 19.05 mm x 9.525 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each
19.05 mm	9.525 mm	25.400 mm	15 Percent
Material: Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 718.6 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 1210.2 N Spring Rate: 189.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-025-HD Die Springs - 19.05 mm x 9.525 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each View the product page first if you are unsure.
DS-191-025-HD --- Die Springs - 19.05 mm x 9.525 mm x 25.4 mm Spring Steel DS-191-025-HD --- Die Springs - 19.05 mm x 9.525 mm x 25.4 mm Spring Steel Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	31.750 mm	15 Percent	4.8 mm	739.7 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 1217.4 N Spring Rate: 154.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-032-HD Die Springs - 19.05 mm x 9.525 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each
19.05 mm	9.525 mm	31.750 mm	15 Percent
Material: Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 739.7 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 1217.4 N Spring Rate: 154.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-032-HD Die Springs - 19.05 mm x 9.525 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Each View the product page first if you are unsure.
DS-191-032-HD --- Die Springs - 19.05 mm x 9.525 mm x 31.75 mm Spring Steel DS-191-032-HD --- Die Springs - 19.05 mm x 9.525 mm x 31.75 mm Spring Steel Regular price $21.41 AUD Regular price Sale price $21.41 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	38.100 mm	15 Percent	5.7 mm	688.6 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1147.6 N Spring Rate: 120.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-038-HD Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Each
19.05 mm	9.525 mm	38.100 mm	15 Percent
Material: Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 688.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1147.6 N Spring Rate: 120.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-038-HD Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Each View the product page first if you are unsure.
DS-191-038-HD --- Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Spring Steel DS-191-038-HD --- Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	38.100 mm	15 Percent	5.7 mm	689.7 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1149.5 N Spring Rate: 121.0 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-038-HDS Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each
19.05 mm	9.525 mm	38.100 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 5.7 mm Load at Optimal: 689.7 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1149.5 N Spring Rate: 121.0 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-038-HDS Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each View the product page first if you are unsure.
DS-191-038-HDS --- Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Chrome Silicon DS-191-038-HDS --- Die Springs - 19.05 mm x 9.525 mm x 38.1 mm Chrome Silicon Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	44.450 mm	15 Percent	6.7 mm	704.2 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 1166.6 N Spring Rate: 105.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-044-HD Die Springs - 19.05 mm x 9.525 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
19.05 mm	9.525 mm	44.450 mm	15 Percent
Material: Spring Steel Optimum Deflection: 6.7 mm Load at Optimal: 704.2 N Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 1166.6 N Spring Rate: 105.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-044-HD Die Springs - 19.05 mm x 9.525 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
DS-191-044-HD --- Die Springs - 19.05 mm x 9.525 mm x 44.45 mm Spring Steel DS-191-044-HD --- Die Springs - 19.05 mm x 9.525 mm x 44.45 mm Spring Steel Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	50.800 mm	15 Percent	7.6 mm	685.5 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1145.5 N Spring Rate: 90.2 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-051-HD Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Each
19.05 mm	9.525 mm	50.800 mm	15 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 685.5 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1145.5 N Spring Rate: 90.2 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-051-HD Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Each View the product page first if you are unsure.
DS-191-051-HD --- Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Spring Steel DS-191-051-HD --- Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Spring Steel Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	50.800 mm	15 Percent	7.6 mm	686.3 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1146.8 N Spring Rate: 90.3 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-051-HDS Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Each
19.05 mm	9.525 mm	50.800 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 686.3 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1146.8 N Spring Rate: 90.3 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-051-HDS Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Each View the product page first if you are unsure.
DS-191-051-HDS --- Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Chrome Silicon DS-191-051-HDS --- Die Springs - 19.05 mm x 9.525 mm x 50.8 mm Chrome Silicon Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	63.500 mm	15 Percent	9.5 mm	665.0 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1113.0 N Spring Rate: 70.0 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-064-HD Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Each
19.05 mm	9.525 mm	63.500 mm	15 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 665.0 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1113.0 N Spring Rate: 70.0 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-064-HD Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Each View the product page first if you are unsure.
DS-191-064-HD --- Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Spring Steel DS-191-064-HD --- Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Spring Steel Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	63.500 mm	15 Percent	9.5 mm	666.0 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1114.6 N Spring Rate: 70.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-064-HDS Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $41.59 AUD Regular price Sale price $41.59 AUD Unit price per Each
19.05 mm	9.525 mm	63.500 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 666.0 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1114.6 N Spring Rate: 70.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-064-HDS Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $41.59 AUD Regular price Sale price $41.59 AUD Unit price per Each View the product page first if you are unsure.
DS-191-064-HDS --- Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Chrome Silicon DS-191-064-HDS --- Die Springs - 19.05 mm x 9.525 mm x 63.5 mm Chrome Silicon Regular price $41.59 AUD Regular price Sale price $41.59 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	76.200 mm	15 Percent	11.4 mm	658.9 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-076-HDS Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
19.05 mm	9.525 mm	76.200 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 11.4 mm Load at Optimal: 658.9 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-076-HDS Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
DS-191-076-HDS --- Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Chrome Silicon DS-191-076-HDS --- Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Chrome Silicon Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	76.200 mm	15 Percent	11.4 mm	658.9 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-076-HD Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $29.68 AUD Regular price Sale price $29.68 AUD Unit price per Each
19.05 mm	9.525 mm	76.200 mm	15 Percent
Material: Spring Steel Optimum Deflection: 11.4 mm Load at Optimal: 658.9 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-191-076-HD Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $29.68 AUD Regular price Sale price $29.68 AUD Unit price per Each View the product page first if you are unsure.
DS-191-076-HD --- Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Spring Steel DS-191-076-HD --- Die Springs - 19.05 mm x 9.525 mm x 76.2 mm Spring Steel Regular price $29.68 AUD Regular price Sale price $29.68 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	88.900 mm	15 Percent	13.3 mm	675.6 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 22.2 mm Load at Maximum: 1127.8 N Spring Rate: 50.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-089-HDS Die Springs - 19.05 mm x 9.525 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Each
19.05 mm	9.525 mm	88.900 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 13.3 mm Load at Optimal: 675.6 N Maximum Deflection: 25 Percent Maximum Deflection: 22.2 mm Load at Maximum: 1127.8 N Spring Rate: 50.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-089-HDS Die Springs - 19.05 mm x 9.525 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Each View the product page first if you are unsure.
DS-191-089-HDS --- Die Springs - 19.05 mm x 9.525 mm x 88.9 mm Chrome Silicon DS-191-089-HDS --- Die Springs - 19.05 mm x 9.525 mm x 88.9 mm Chrome Silicon Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	101.600 mm	15 Percent	15.2 mm	665.8 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 25.4 mm Load at Maximum: 1112.5 N Spring Rate: 43.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-102-HDS Die Springs - 19.05 mm x 9.525 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each
19.05 mm	9.525 mm	101.600 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 15.2 mm Load at Optimal: 665.8 N Maximum Deflection: 25 Percent Maximum Deflection: 25.4 mm Load at Maximum: 1112.5 N Spring Rate: 43.8 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-102-HDS Die Springs - 19.05 mm x 9.525 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each View the product page first if you are unsure.
DS-191-102-HDS --- Die Springs - 19.05 mm x 9.525 mm x 101.6 mm Chrome Silicon DS-191-102-HDS --- Die Springs - 19.05 mm x 9.525 mm x 101.6 mm Chrome Silicon Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Out of stock! Backorder Now
19.05 mm	9.525 mm	139.700 mm	15 Percent	21.0 mm	810.6 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 34.9 mm Load at Maximum: 1347.1 N Spring Rate: 38.6 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-140-HDS Die Springs - 19.05 mm x 9.525 mm x 139.7 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each
19.05 mm	9.525 mm	139.700 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 21.0 mm Load at Optimal: 810.6 N Maximum Deflection: 25 Percent Maximum Deflection: 34.9 mm Load at Maximum: 1347.1 N Spring Rate: 38.6 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-191-140-HDS Die Springs - 19.05 mm x 9.525 mm x 139.7 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each View the product page first if you are unsure.
DS-191-140-HDS --- Die Springs - 19.05 mm x 9.525 mm x 139.7 mm Chrome Silicon DS-191-140-HDS --- Die Springs - 19.05 mm x 9.525 mm x 139.7 mm Chrome Silicon Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	25.400 mm	15 Percent	3.8 mm	1285.5 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 2165.1 N Spring Rate: 338.3 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-025-HD Die Springs - 25.4 mm x 12.7 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
25.40 mm	12.700 mm	25.400 mm	15 Percent
Material: Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 1285.5 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 2165.1 N Spring Rate: 338.3 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-025-HD Die Springs - 25.4 mm x 12.7 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
DS-254-025-HD --- Die Springs - 25.4 mm x 12.7 mm x 25.4 mm Spring Steel DS-254-025-HD --- Die Springs - 25.4 mm x 12.7 mm x 25.4 mm Spring Steel Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	31.750 mm	15 Percent	4.8 mm	1231.2 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 2026.4 N Spring Rate: 256.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-032-HD Die Springs - 25.4 mm x 12.7 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each
25.40 mm	12.700 mm	31.750 mm	15 Percent
Material: Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 1231.2 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 2026.4 N Spring Rate: 256.5 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-032-HD Die Springs - 25.4 mm x 12.7 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each View the product page first if you are unsure.
DS-254-032-HD --- Die Springs - 25.4 mm x 12.7 mm x 31.75 mm Spring Steel DS-254-032-HD --- Die Springs - 25.4 mm x 12.7 mm x 31.75 mm Spring Steel Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	38.100 mm	15 Percent	5.7 mm	1197.6 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1996.0 N Spring Rate: 210.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-038-HD Die Springs - 25.4 mm x 12.7 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Each
25.40 mm	12.700 mm	38.100 mm	15 Percent
Material: Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 1197.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1996.0 N Spring Rate: 210.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-038-HD Die Springs - 25.4 mm x 12.7 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Each View the product page first if you are unsure.
DS-254-038-HD --- Die Springs - 25.4 mm x 12.7 mm x 38.1 mm Spring Steel DS-254-038-HD --- Die Springs - 25.4 mm x 12.7 mm x 38.1 mm Spring Steel Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	44.450 mm	15 Percent	6.7 mm	1220.1 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 2021.3 N Spring Rate: 182.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-044-HD Die Springs - 25.4 mm x 12.7 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each
25.40 mm	12.700 mm	44.450 mm	15 Percent
Material: Spring Steel Optimum Deflection: 6.7 mm Load at Optimal: 1220.1 N Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 2021.3 N Spring Rate: 182.1 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-044-HD Die Springs - 25.4 mm x 12.7 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each View the product page first if you are unsure.
DS-254-044-HD --- Die Springs - 25.4 mm x 12.7 mm x 44.45 mm Spring Steel DS-254-044-HD --- Die Springs - 25.4 mm x 12.7 mm x 44.45 mm Spring Steel Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	50.800 mm	15 Percent	7.6 mm	1160.5 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1939.3 N Spring Rate: 152.7 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-051-HD Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each
25.40 mm	12.700 mm	50.800 mm	15 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 1160.5 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1939.3 N Spring Rate: 152.7 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-051-HD Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each View the product page first if you are unsure.
DS-254-051-HD --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Spring Steel DS-254-051-HD --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Spring Steel Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	50.800 mm	15 Percent	7.6 mm	1162.0 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1941.8 N Spring Rate: 152.9 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-254-051-HDS Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $47.23 AUD Regular price Sale price $47.23 AUD Unit price per Each
25.40 mm	12.700 mm	50.800 mm	15 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 1162.0 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1941.8 N Spring Rate: 152.9 N/mm Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Part Number: DS-254-051-HDS Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $47.23 AUD Regular price Sale price $47.23 AUD Unit price per Each View the product page first if you are unsure.
DS-254-051-HDS --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Chrome Silicon DS-254-051-HDS --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Chrome Silicon Regular price $47.23 AUD Regular price Sale price $47.23 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	63.500 mm	15 Percent	9.5 mm	1105.8 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1850.8 N Spring Rate: 116.4 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-064-HD Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Each
25.40 mm	12.700 mm	63.500 mm	15 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 1105.8 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1850.8 N Spring Rate: 116.4 N/mm Category: Springs - Die - Imperial - Heavy Duty - Standard
Part Number: DS-254-064-HD Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sat, Apr 05, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Each View the product page first if you are unsure.
DS-254-064-HD --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Spring Steel DS-254-064-HD --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Spring Steel Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Out of stock! Backorder Now
