Snap Buttons - Double End

Snap Buttons -> Double End

There are 3 products in the sub-categories of Snap Buttons - Double End.

Category Details

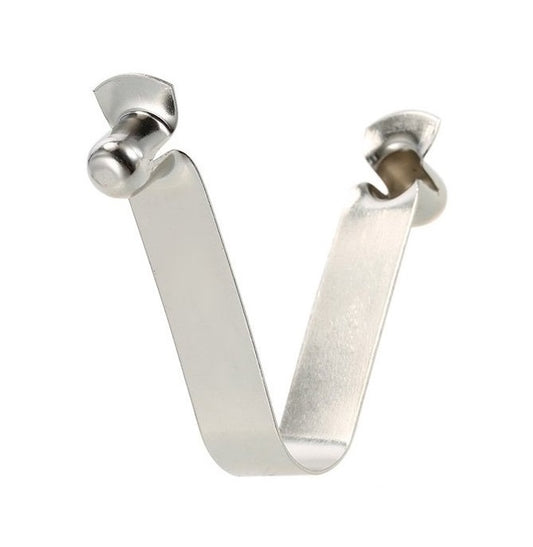

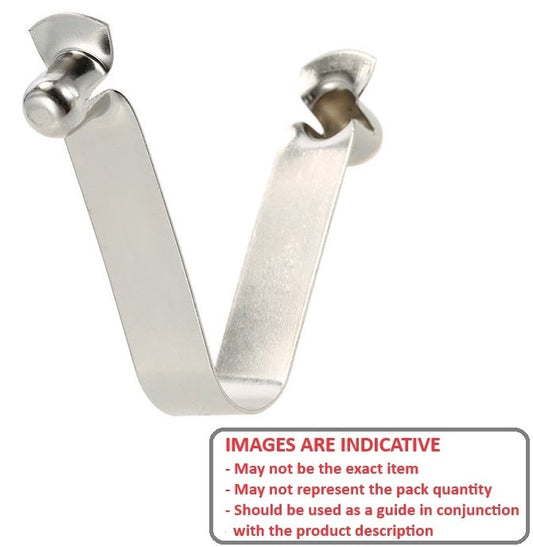

A selection of Double End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.

  • Eliminates the need for rivets and screws.
  • Simply snap into place in square or round tubing.
  • Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Snap Buttons - Double End category on the Small Parts & Bearings online store.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Centre to Middle of End (C) Use with Round Tubing Indicative
Button Diameter (A)
6.35
mm

(Equiv. 0.25 in.)
Button Height (B)
7.11
mm

(Equiv. 0.28 in.)
Material Thickness
0.457
mm

(Equiv. 0.018 in.)
Clip Width
9.27
mm
Centre to Middle of End (C)
38.61
mm
Use with Round Tubing
15.7 to 22.1
Double End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Use with Square Tubing: 15.7 to 22.1
Part Number: SBTN-0635-DE (30 Pcs) Double End Snap Buttons - 6.35x7.11x0.457 mm
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 16, 2025
$159.23 AUD
$159.23 AUD
Per 30
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
Button Diameter (A)
6.35
mm

(Equiv. 0.25 in.)
Button Height (B)
7.11
mm

(Equiv. 0.28 in.)
Material Thickness
0.457
mm

(Equiv. 0.018 in.)
Clip Width
9.27
mm
Double End Snap Buttons - 6.35x7.11x0.457 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 38.61 mm    Use with Round Tubing: 15.7 to 22.1    Use with Square Tubing: 15.7 to 22.1
Part Number: SBTN-0635-DE (30 Pcs) Double End Snap Buttons - 6.35x7.11x0.457 mm
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 16, 2025
$159.23 AUD
$159.23 AUD
Per 30
View the product page first if you are unsure.
Button Diameter (A)
7.93
mm

(Equiv. 0.312 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.508
mm

(Equiv. 0.02 in.)
Clip Width
11.18
mm
Centre to Middle of End (C)
52.07
mm
Use with Round Tubing
20.8 to 28.5
Double End Snap Buttons - 7.93x9.4x0.508 mm
Material: Carbon Spring Steel    Use with Square Tubing: 20.8 to 28.4
Part Number: SBTN-0793-DE Double End Snap Buttons - 7.93x9.4x0.508 mm
48 Available Now | Further orders can be expected around Sat, Aug 16, 2025
$11.95 AUD
$11.95 AUD
Each
Button Diameter (A)
7.93
mm

(Equiv. 0.312 in.)
Button Height (B)
9.40
mm

(Equiv. 0.37 in.)
Material Thickness
0.508
mm

(Equiv. 0.02 in.)
Clip Width
11.18
mm
Double End Snap Buttons - 7.93x9.4x0.508 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 52.07 mm    Use with Round Tubing: 20.8 to 28.5    Use with Square Tubing: 20.8 to 28.4
Part Number: SBTN-0793-DE Double End Snap Buttons - 7.93x9.4x0.508 mm
48 Available Now | Further orders can be expected around Sat, Aug 16, 2025
$11.95 AUD
$11.95 AUD
Each
View the product page first if you are unsure.
Button Diameter (A)
9.53
mm

(Equiv. 0.375 in.)
Button Height (B)
11.18
mm

(Equiv. 0.44 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
13.46
mm
Centre to Middle of End (C)
71.63
mm
Use with Round Tubing
25.4 to 47.5
Double End Snap Buttons - 9.53x11.18x0.635 mm
Material: Carbon Spring Steel    Use with Square Tubing: 25.4 to 47.5
Part Number: SBTN-0953-DE Double End Snap Buttons - 9.53x11.18x0.635 mm
36 Available Now | Further orders can be expected around Sat, Aug 16, 2025
$12.14 AUD
$12.14 AUD
Each
Button Diameter (A)
9.53
mm

(Equiv. 0.375 in.)
Button Height (B)
11.18
mm

(Equiv. 0.44 in.)
Material Thickness
0.635
mm

(Equiv. 0.025 in.)
Clip Width
13.46
mm
Double End Snap Buttons - 9.53x11.18x0.635 mm
Material: Carbon Spring Steel    Centre to Middle of End (C): 71.63 mm    Use with Round Tubing: 25.4 to 47.5    Use with Square Tubing: 25.4 to 47.5
Part Number: SBTN-0953-DE Double End Snap Buttons - 9.53x11.18x0.635 mm
36 Available Now | Further orders can be expected around Sat, Aug 16, 2025
$12.14 AUD
$12.14 AUD
Each
View the product page first if you are unsure.
