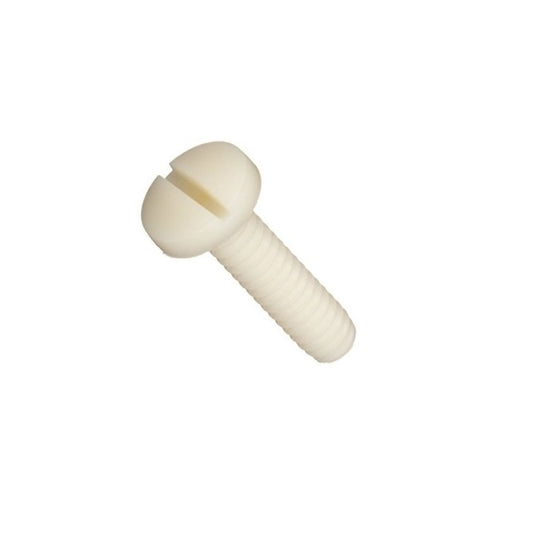

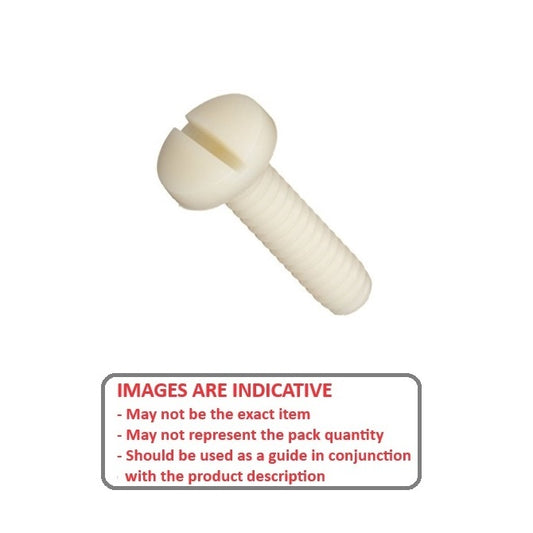

Screws - Round Head - Slotted - Nylon

6 Products in this selection
  • UNC - UNF
  • Non Conductive.
  • Non Corrosive.
  • Non Magnetic.
  • Lightweight.
  • Vibration Resistant.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
Thread Size (C) Thread Length Material Max Head Diameter Max Head Height Indicative
2-56 UNC (2.18mm)
 9.5
mm 		Nylon (Zytel 101)
 4.12
mm 		1.75
mm 		1042460 | SC022C-010-R-SL-N (10 Pcs) --- Round Head Screws - 2-56 UNC (2.18mm) x 9.5 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.454 mm    Threads Per Inch: 56 TPI
Part Number: SC022C-010-R-SL-N (10 Pcs) Round Head Screws - 2-56 UNC (2.18mm) x 9.5 mm
7 units (70 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
Thread Size (C) Thread Length Material Max Head Diameter Indicative
2-56 UNC (2.18mm)
 9.5
mm 		Nylon (Zytel 101)
 4.12
mm 		1042460 | SC022C-010-R-SL-N (10 Pcs) --- Round Head Screws - 2-56 UNC (2.18mm) x 9.5 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 1.75 mm    Type: Round / Slotted    Pitch: 0.454 mm    Threads Per Inch: 56 TPI
Part Number: SC022C-010-R-SL-N (10 Pcs) Round Head Screws - 2-56 UNC (2.18mm) x 9.5 mm
7 units (70 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6-32 UNC (3.5mm)
 6.4
mm 		Nylon (Zytel 101)
 6.61
mm 		2.62
mm 		1051529 | SC035C-006-R-SL-N (50 Pcs) --- Round Head Screws - 6-32 UNC (3.5mm) x 6.4 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-006-R-SL-N (50 Pcs) Round Head Screws - 6-32 UNC (3.5mm) x 6.4 mm
8 units (400 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
6-32 UNC (3.5mm)
 6.4
mm 		Nylon (Zytel 101)
 6.61
mm 		1051529 | SC035C-006-R-SL-N (50 Pcs) --- Round Head Screws - 6-32 UNC (3.5mm) x 6.4 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 2.62 mm    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-006-R-SL-N (50 Pcs) Round Head Screws - 6-32 UNC (3.5mm) x 6.4 mm
8 units (400 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
6-32 UNC (3.5mm)
 19.1
mm 		Nylon (Zytel 101)
 6.61
mm 		2.62
mm 		1051841 | SC035C-019-R-SL-N (40 Pcs) --- Round Head Screws - 6-32 UNC (3.5mm) x 19.1 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-019-R-SL-N (40 Pcs) Round Head Screws - 6-32 UNC (3.5mm) x 19.1 mm
1 pack (40 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 40
6-32 UNC (3.5mm)
 19.1
mm 		Nylon (Zytel 101)
 6.61
mm 		1051841 | SC035C-019-R-SL-N (40 Pcs) --- Round Head Screws - 6-32 UNC (3.5mm) x 19.1 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 2.62 mm    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-019-R-SL-N (40 Pcs) Round Head Screws - 6-32 UNC (3.5mm) x 19.1 mm
1 pack (40 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 40
10-32 UNF (4.76mm)
 9.5
mm 		Nylon (Zytel 101)
 9.12
mm 		3.48
mm 		1060847 | SC048F-010-R-SL-N (50 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 9.5 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-010-R-SL-N (50 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 9.5 mm
2 units (100 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
10-32 UNF (4.76mm)
 9.5
mm 		Nylon (Zytel 101)
 9.12
mm 		1060847 | SC048F-010-R-SL-N (50 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 9.5 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 3.48 mm    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-010-R-SL-N (50 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 9.5 mm
2 units (100 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
10-32 UNF (4.76mm)
 15.9
mm 		Nylon (Zytel 101)
 9.12
mm 		3.48
mm 		1061014 | SC048F-016-R-SL-N (10 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 15.9 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-016-R-SL-N (10 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 15.9 mm
8 units (80 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
10-32 UNF (4.76mm)
 15.9
mm 		Nylon (Zytel 101)
 9.12
mm 		1061014 | SC048F-016-R-SL-N (10 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 15.9 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 3.48 mm    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-016-R-SL-N (10 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 15.9 mm
8 units (80 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
10-32 UNF (4.76mm)
 19.1
mm 		Nylon (Zytel 101)
 9.12
mm 		3.48
mm 		1061077 | SC048F-019-R-SL-N (10 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 19.1 mm
Material: Nylon (Polyamide 6/6)    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-019-R-SL-N (10 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 19.1 mm
10 units (100 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
10-32 UNF (4.76mm)
 19.1
mm 		Nylon (Zytel 101)
 9.12
mm 		1061077 | SC048F-019-R-SL-N (10 Pcs) --- Round Head Screws - 10-32 UNF (4.76mm) x 19.1 mm
Material: Nylon (Polyamide 6/6)    Max Head Height: 3.48 mm    Type: Round / Slotted    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC048F-019-R-SL-N (10 Pcs) Round Head Screws - 10-32 UNF (4.76mm) x 19.1 mm
10 units (100 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
