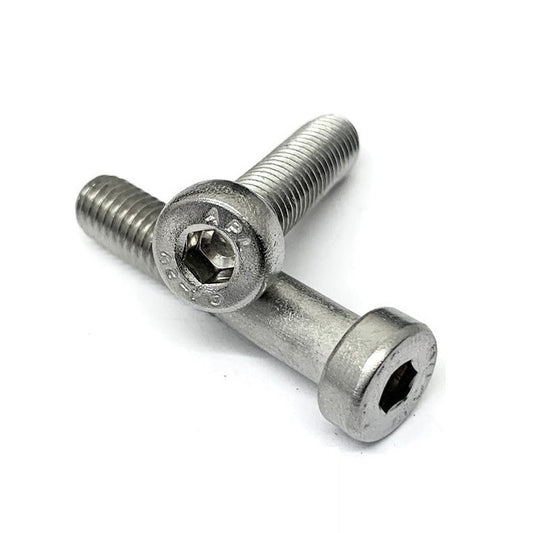

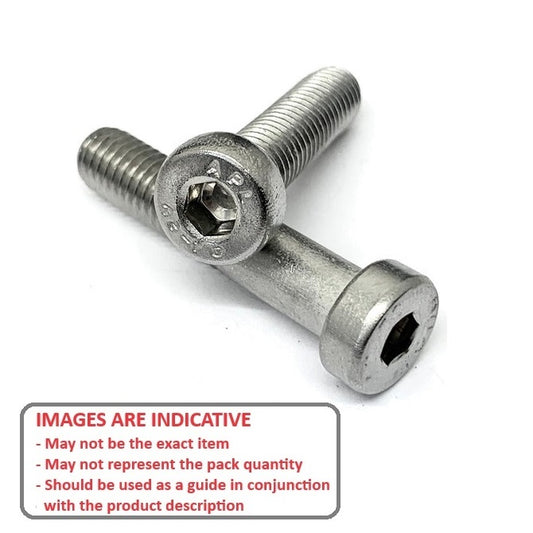

Screws - Low Head - Socket - 316L Stainless

2 Products in this selection
  • 316L Stainless Steel. Other sizes available on request.
  • Hexagon socket cap head with low head. Safety improvements and compact size for equipment and devices.
  • May be used in vacuum chamber applications in clean rooms, Flat Panel Displays, Semiconductor production equipment and devices.
  • All clean washed, preventing the inclusion of oil and foreign particles.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
M Length Head Diameter (A) Head Height (B) Hex Key Size (D) Hex Key Depth (E) Indicative
M4x0.7
 10
mm 		7.00
mm 		2.8
mm 		2.5
mm 		2.3
mm 		1054369 | SC040M-010-LH-SK-S6L (2 Pcs) --- Screw - M4x0.7 x 10 mm x 7 mm
Material: Stainless 316L    L2: 10.00 (Full Thread) mm    Mass: 1.4 g
Part Number: SC040M-010-LH-SK-S6L (2 Pcs) Screw - M4x0.7 x 10 mm x 7 mm / Screws
100 units (200 pcs) Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$5.68 AUD
$5.68 AUD
Per 2
M Length Head Diameter (A) Head Height (B) Indicative
M4x0.7
 10
mm 		7.00
mm 		2.8
mm 		1054369 | SC040M-010-LH-SK-S6L (2 Pcs) --- Screw - M4x0.7 x 10 mm x 7 mm
Material: Stainless 316L    Hex Key Size (D): 2.5 mm    Hex Key Depth (E): 2.3 mm    L2: 10.00 (Full Thread) mm    Mass: 1.4 g
Part Number: SC040M-010-LH-SK-S6L (2 Pcs) Screw - M4x0.7 x 10 mm x 7 mm / Screws
100 units (200 pcs) Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$5.68 AUD
$5.68 AUD
Per 2
M4x0.7
 12
mm 		7.00
mm 		2.8
mm 		2.5
mm 		2.3
mm 		1054646 | SC040M-012-LH-SK-S6L (2 Pcs) --- Screw - M4x0.7 x 12 mm x 7 mm
Material: Stainless 316L    L2: 12.00 (Full Thread) mm    Mass: 1.5 g
Part Number: SC040M-012-LH-SK-S6L (2 Pcs) Screw - M4x0.7 x 12 mm x 7 mm / Screws
100 units (200 pcs) Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$5.68 AUD
$5.68 AUD
Per 2
M4x0.7
 12
mm 		7.00
mm 		2.8
mm 		1054646 | SC040M-012-LH-SK-S6L (2 Pcs) --- Screw - M4x0.7 x 12 mm x 7 mm
Material: Stainless 316L    Hex Key Size (D): 2.5 mm    Hex Key Depth (E): 2.3 mm    L2: 12.00 (Full Thread) mm    Mass: 1.5 g
Part Number: SC040M-012-LH-SK-S6L (2 Pcs) Screw - M4x0.7 x 12 mm x 7 mm / Screws
100 units (200 pcs) Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$5.68 AUD
$5.68 AUD
Per 2
