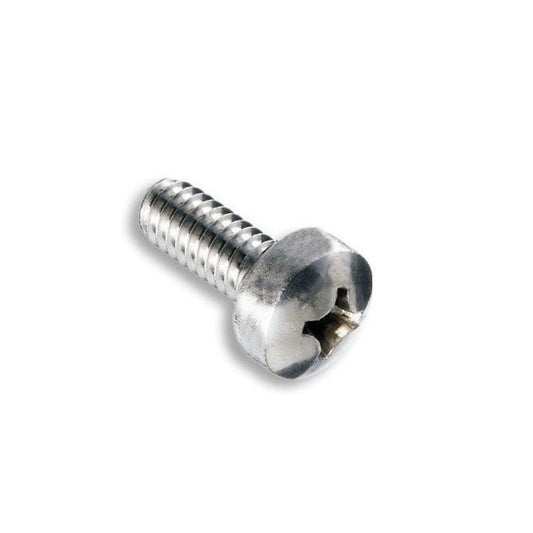

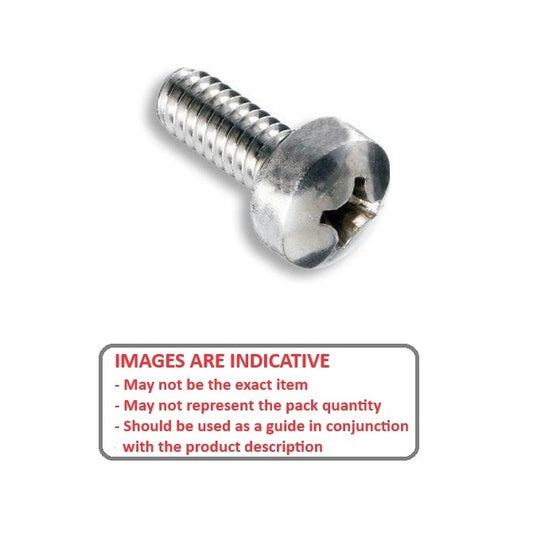

Screws - Fillister Head - Phillips - 304 Stainless

4 Products in this selection
  • UNC Only
  • Nuts sold seperately - See Nuts.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
Thread Size (C) Thread Length Material Max Head Diameter Max Head Height Indicative
4-40 UNC (2.85mm)
 6.4
mm 		304 Stainless
 5.6
mm 		1.7
mm 		1044738 | SC028C-006-F-PH-S4 (50 Pcs) --- Fillister Head Screws - 4-40 UNC (2.85mm) x 6.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Type: Fillister (Cheese) / Philips    Pitch: 0.635 mm    Threads Per Inch: 40 TPI
Part Number: SC028C-006-F-PH-S4 (50 Pcs) Fillister Head Screws - 4-40 UNC (2.85mm) x 6.4 mm
17 units (850 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
Thread Size (C) Thread Length Material Max Head Diameter Indicative
4-40 UNC (2.85mm)
 6.4
mm 		304 Stainless
 5.6
mm 		1044738 | SC028C-006-F-PH-S4 (50 Pcs) --- Fillister Head Screws - 4-40 UNC (2.85mm) x 6.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Max Head Height: 1.7 mm    Type: Fillister (Cheese) / Philips    Pitch: 0.635 mm    Threads Per Inch: 40 TPI
Part Number: SC028C-006-F-PH-S4 (50 Pcs) Fillister Head Screws - 4-40 UNC (2.85mm) x 6.4 mm
17 units (850 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
4-40 UNC (2.85mm)
 9.5
mm 		304 Stainless
 5.6
mm 		1.7
mm 		1044793 | SC028C-010-F-PH-S4 (10 Pcs) --- Fillister Head Screws - 4-40 UNC (2.85mm) x 9.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Type: Fillister (Cheese) / Philips    Pitch: 0.635 mm    Threads Per Inch: 40 TPI
Part Number: SC028C-010-F-PH-S4 (10 Pcs) Fillister Head Screws - 4-40 UNC (2.85mm) x 9.5 mm
8 units (80 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
4-40 UNC (2.85mm)
 9.5
mm 		304 Stainless
 5.6
mm 		1044793 | SC028C-010-F-PH-S4 (10 Pcs) --- Fillister Head Screws - 4-40 UNC (2.85mm) x 9.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Max Head Height: 1.7 mm    Type: Fillister (Cheese) / Philips    Pitch: 0.635 mm    Threads Per Inch: 40 TPI
Part Number: SC028C-010-F-PH-S4 (10 Pcs) Fillister Head Screws - 4-40 UNC (2.85mm) x 9.5 mm
8 units (80 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6-32 UNC (3.5mm)
 7.9
mm 		304 Stainless
 6.9
mm 		2.1
mm 		1051557 | SC035C-007-F-PH-S4 (10 Pcs) --- Fillister Head Screws - 6-32 UNC (3.5mm) x 7.9 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Type: Fillister (Cheese) / Philips    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-007-F-PH-S4 (10 Pcs) Fillister Head Screws - 6-32 UNC (3.5mm) x 7.9 mm
7 units (70 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6-32 UNC (3.5mm)
 7.9
mm 		304 Stainless
 6.9
mm 		1051557 | SC035C-007-F-PH-S4 (10 Pcs) --- Fillister Head Screws - 6-32 UNC (3.5mm) x 7.9 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Max Head Height: 2.1 mm    Type: Fillister (Cheese) / Philips    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-007-F-PH-S4 (10 Pcs) Fillister Head Screws - 6-32 UNC (3.5mm) x 7.9 mm
7 units (70 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 10
6-32 UNC (3.5mm)
 9.5
mm 		304 Stainless
 5.7
mm 		2.1
mm 		1051590 | SC035C-010-F-PH-S4 (50 Pcs) --- Fillister Head Screws - 6-32 UNC (3.5mm) x 9.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Type: Fillister (Cheese) / Philips    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-010-F-PH-S4 (50 Pcs) Fillister Head Screws - 6-32 UNC (3.5mm) x 9.5 mm
17 units (850 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
6-32 UNC (3.5mm)
 9.5
mm 		304 Stainless
 5.7
mm 		1051590 | SC035C-010-F-PH-S4 (50 Pcs) --- Fillister Head Screws - 6-32 UNC (3.5mm) x 9.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Max Head Height: 2.1 mm    Type: Fillister (Cheese) / Philips    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SC035C-010-F-PH-S4 (50 Pcs) Fillister Head Screws - 6-32 UNC (3.5mm) x 9.5 mm
17 units (850 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 50
