Rod Ends - Male - Steel - Bronze Lined

Rod Ends -> Male -> Steel -> Bronze Lined

There are 57 products in the sub-categories of Rod Ends - Male - Steel - Bronze Lined. Scroll down or follow the link to Rod Ends - Male - Steel - Bronze Lined in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

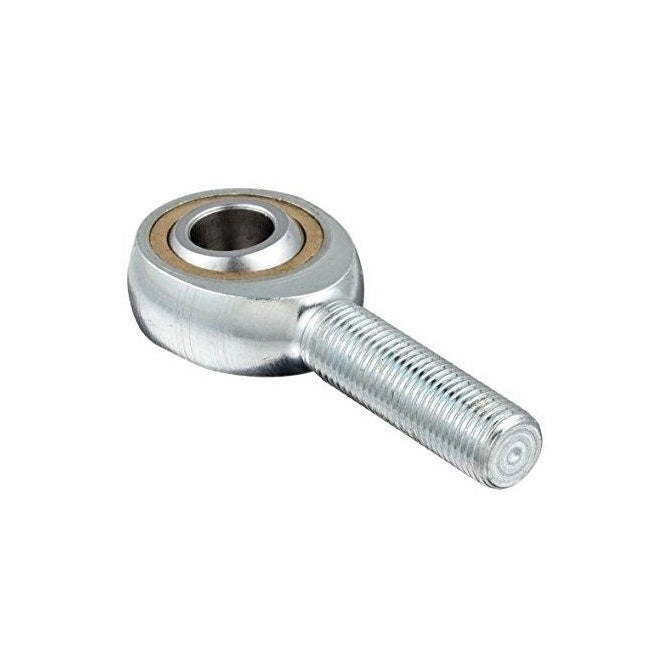

Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel

Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea

A selection of Ferrobal Narrow Hea Bronze Lined Steel Male Rod Ends....

Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea

Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel

Rod Ends - Male - Steel - Bronze Lined - Standard

A selection of Standard Bronze Lined Steel Male Rod Ends. Imperial and...

Rod Ends - Male - Steel - Bronze Lined - Standard

Category Details

This category includes various types of male rod ends.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Male - Steel - Bronze Lined category on the Small Parts & Bearings online store.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
3.00
mm
Overall Length (L)
33.00
mm
Thread Size
M3x0.5 Left
Min. Thread Length (l2)
15.00
mm
Head Width (W)
4.30
mm
Eye Width (W1)
6.00
mm
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 12.00 mm    Centre Height: 27.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-030-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$5.23 AUD
$6.27 AUD $5.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Indicative
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
3.00
mm
Overall Length (L)
33.00
mm
Thread Size
M3x0.5 Left
Min. Thread Length (l2)
15.00
mm
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 4.30 mm    Eye Width (W1): 6.00 mm    Head Diameter: 12.00 mm    Centre Height: 27.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-030-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$5.23 AUD
$6.27 AUD $5.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End
Eye Size (d1)
3.00
mm
Overall Length (L)
33.00
mm
Thread Size
M3x0.5 Right
Min. Thread Length (l2)
15.00
mm
Head Width (W)
4.50
mm
Eye Width (W1)
6.00
mm
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 12.00 mm    Centre Height: 27.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-030-R-CB (Each)
22 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.23 AUD
$7.18 AUD $4.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 22 available can be backordered.
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End
Eye Size (d1)
3.00
mm
Overall Length (L)
33.00
mm
Thread Size
M3x0.5 Right
Min. Thread Length (l2)
15.00
mm
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 4.50 mm    Eye Width (W1): 6.00 mm    Head Diameter: 12.00 mm    Centre Height: 27.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-030-R-CB (Each)
22 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.23 AUD
$7.18 AUD $4.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

22 Available Now. Backorder if more than 22.
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End
Eye Size (d1)
4.00
mm
Overall Length (L)
37.00
mm
Thread Size
M4x0.7 Left
Min. Thread Length (l2)
17.00
mm
Head Width (W)
5.30
mm
Eye Width (W1)
7.00
mm
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 14.00 mm    Centre Height: 30.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-040-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$24.32 AUD
$29.18 AUD $24.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End
Eye Size (d1)
4.00
mm
Overall Length (L)
37.00
mm
Thread Size
M4x0.7 Left
Min. Thread Length (l2)
17.00
mm
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 5.30 mm    Eye Width (W1): 7.00 mm    Head Diameter: 14.00 mm    Centre Height: 30.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-040-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$24.32 AUD
$29.18 AUD $24.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End
Eye Size (d1)
4.00
mm
Overall Length (L)
37.00
mm
Thread Size
M4x0.7 Right
Min. Thread Length (l2)
17.00
mm
Head Width (W)
5.30
mm
Eye Width (W1)
7.00
mm
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 14.00 mm    Centre Height: 30.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-040-R-CB (Each)
30 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$6.68 AUD
$6.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 30 available can be backordered.
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End
Eye Size (d1)
4.00
mm
Overall Length (L)
37.00
mm
Thread Size
M4x0.7 Right
Min. Thread Length (l2)
17.00
mm
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 5.30 mm    Eye Width (W1): 7.00 mm    Head Diameter: 14.00 mm    Centre Height: 30.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-040-R-CB (Each)
30 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$6.68 AUD
$6.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

30 Available Now. Backorder if more than 30.
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
4.763
mm
Overall Length (L)
39.70
mm
Thread Size
10-32 UNF Left
Min. Thread Length (l2)
19.05
mm
Head Width (W)
6.35
mm
Eye Width (W1)
7.92
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 15.88 mm    Centre Height: 31.75 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-048-L-CB (Each)
50 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.86 AUD
$8.32 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 50 available can be backordered.
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
4.763
mm
Overall Length (L)
39.70
mm
Thread Size
10-32 UNF Left
Min. Thread Length (l2)
19.05
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.35 mm    Eye Width (W1): 7.92 mm    Head Diameter: 15.88 mm    Centre Height: 31.75 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-048-L-CB (Each)
50 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.86 AUD
$8.32 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

50 Available Now. Backorder if more than 50.
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
4.763
mm
Overall Length (L)
39.70
mm
Thread Size
10-32 UNF Right
Min. Thread Length (l2)
19.05
mm
Head Width (W)
6.35
mm
Eye Width (W1)
7.92
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 15.88 mm    Centre Height: 31.75 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-048-R-CB (Each)
12 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 12 available can be backordered.
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
4.763
mm
Overall Length (L)
39.70
mm
Thread Size
10-32 UNF Right
Min. Thread Length (l2)
19.05
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.35 mm    Eye Width (W1): 7.92 mm    Head Diameter: 15.88 mm    Centre Height: 31.75 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-048-R-CB (Each)
12 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

12 Available Now. Backorder if more than 12.
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End
Eye Size (d1)
5.00
mm
Overall Length (L)
41.00
mm
Thread Size
M5x0.8 Left
Min. Thread Length (l2)
20.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 16.00 mm    Centre Height: 33.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-050-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$5.14 AUD
$6.16 AUD $5.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End
Eye Size (d1)
5.00
mm
Overall Length (L)
41.00
mm
Thread Size
M5x0.8 Left
Min. Thread Length (l2)
20.00
mm
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 16.00 mm    Centre Height: 33.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-050-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$5.14 AUD
$6.16 AUD $5.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End
Eye Size (d1)
5.00
mm
Overall Length (L)
41.00
mm
Thread Size
M5x0.8 Right
Min. Thread Length (l2)
20.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 16.00 mm    Centre Height: 33.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-050-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.

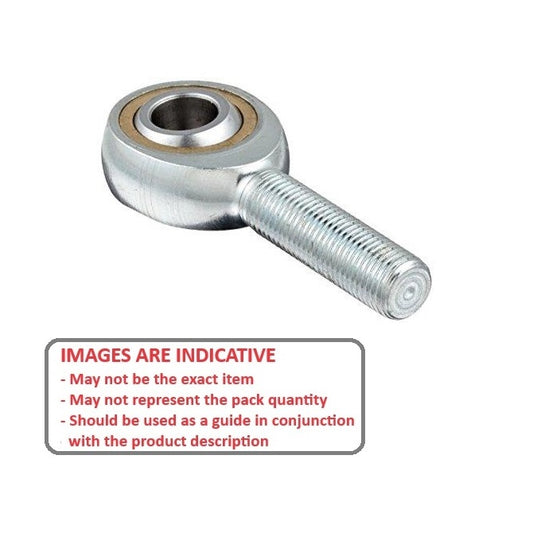

Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End
Eye Size (d1)
5.00
mm
Overall Length (L)
41.00
mm
Thread Size
M5x0.8 Right
Min. Thread Length (l2)
20.00
mm
Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 16.00 mm    Centre Height: 33.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-050-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.00
mm
Thread Size
M6x1 Left
Min. Thread Length (l2)
22.00
mm
Head Width (W)
6.75
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.00
mm
Thread Size
M6x1 Left
Min. Thread Length (l2)
22.00
mm
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.75 mm    Eye Width (W1): 9.00 mm    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.00
mm
Thread Size
M6x1 Right
Min. Thread Length (l2)
22.00
mm
Head Width (W)
6.75
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-R-CB-B (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$4.50 AUD
$4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.00
mm
Thread Size
M6x1 Right
Min. Thread Length (l2)
22.00
mm
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.75 mm    Eye Width (W1): 9.00 mm    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-R-CB-B (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026
$4.50 AUD
$4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.000
mm
Thread Size
M6x1.0 Right
Min. Thread Length (l2)
36.00
mm
Head Width (W)
6.75
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-R-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.00
mm
Overall Length (L)
45.000
mm
Thread Size
M6x1.0 Right
Min. Thread Length (l2)
36.00
mm
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.75 mm    Eye Width (W1): 9.00 mm    Head Diameter: 18.00 mm    Centre Height: 36.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-060-R-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$4.77 AUD
$5.73 AUD $4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
6.35
mm
Overall Length (L)
49.20
mm
Thread Size
1/4-28 UNF Left
Min. Thread Length (l2)
25.40
mm
Head Width (W)
7.14
mm
Eye Width (W1)
9.53
mm
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 19.05 mm    Centre Height: 39.67 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-064-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$19.50 AUD
$23.40 AUD $19.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
6.35
mm
Overall Length (L)
49.20
mm
Thread Size
1/4-28 UNF Left
Min. Thread Length (l2)
25.40
mm
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 7.14 mm    Eye Width (W1): 9.53 mm    Head Diameter: 19.05 mm    Centre Height: 39.67 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-064-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$19.50 AUD
$23.40 AUD $19.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.35
mm
Overall Length (L)
49.20
mm
Thread Size
1/4-28 UNF Right
Min. Thread Length (l2)
25.40
mm
Head Width (W)
7.14
mm
Eye Width (W1)
9.53
mm
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 19.05 mm    Centre Height: 39.67 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-064-R-CB (Each)
3 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.50 AUD
$4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 3 available can be backordered.
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
6.35
mm
Overall Length (L)
49.20
mm
Thread Size
1/4-28 UNF Right
Min. Thread Length (l2)
25.40
mm
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 7.14 mm    Eye Width (W1): 9.53 mm    Head Diameter: 19.05 mm    Centre Height: 39.67 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-064-R-CB (Each)
3 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.50 AUD
$4.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
7.938
mm
Overall Length (L)
58.72
mm
Thread Size
5/16-24 UNF Left
Min. Thread Length (l2)
31.75
mm
Head Width (W)
8.74
mm
Eye Width (W1)
11.10
mm
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.23 mm    Centre Height: 47.63 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-079-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$22.23 AUD
$26.67 AUD $22.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
7.938
mm
Overall Length (L)
58.72
mm
Thread Size
5/16-24 UNF Left
Min. Thread Length (l2)
31.75
mm
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 8.74 mm    Eye Width (W1): 11.10 mm    Head Diameter: 22.23 mm    Centre Height: 47.63 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-079-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$22.23 AUD
$26.67 AUD $22.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
7.938
mm
Overall Length (L)
58.72
mm
Thread Size
5/16-24 UNF Right
Min. Thread Length (l2)
31.75
mm
Head Width (W)
8.74
mm
Eye Width (W1)
11.10
mm
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.23 mm    Centre Height: 47.63 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-079-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$2.59 AUD
$4.31 AUD $2.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
7.938
mm
Overall Length (L)
58.72
mm
Thread Size
5/16-24 UNF Right
Min. Thread Length (l2)
31.75
mm
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 8.74 mm    Eye Width (W1): 11.10 mm    Head Diameter: 22.23 mm    Centre Height: 47.63 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-079-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$2.59 AUD
$4.31 AUD $2.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Eye Size (d1)
8.00
mm
Overall Length (L)
53.00
mm
Thread Size
M8x1.25 Left
Min. Thread Length (l2)
25.00
mm
Head Width (W)
9.00
mm
Eye Width (W1)
12.00
mm
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 42.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-080-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$5.05 AUD
$6.05 AUD $5.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Eye Size (d1)
8.00
mm
Overall Length (L)
53.00
mm
Thread Size
M8x1.25 Left
Min. Thread Length (l2)
25.00
mm
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 9.00 mm    Eye Width (W1): 12.00 mm    Head Diameter: 22.00 mm    Centre Height: 42.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-080-L-CB (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$5.05 AUD
$6.05 AUD $5.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Eye Size (d1)
8.00
mm
Overall Length (L)
53.00
mm
Thread Size
M8x1.25 Right
Min. Thread Length (l2)
25.00
mm
Head Width (W)
9.00
mm
Eye Width (W1)
12.00
mm
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 42.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-080-R-CB (Each)
5 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$3.68 AUD
$6.21 AUD $3.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 5 available can be backordered.
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Eye Size (d1)
8.00
mm
Overall Length (L)
53.00
mm
Thread Size
M8x1.25 Right
Min. Thread Length (l2)
25.00
mm
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 9.00 mm    Eye Width (W1): 12.00 mm    Head Diameter: 22.00 mm    Centre Height: 42.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-080-R-CB (Each)
5 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$3.68 AUD
$6.21 AUD $3.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Eye Size (d1)
8
mm
Overall Length (L)
54.00
mm
Thread Size
M8x1.25 Right
Min. Thread Length (l2)
42.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-080-R-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$51.95 AUD
$62.35 AUD $51.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Eye Size (d1)
8
mm
Overall Length (L)
54.00
mm
Thread Size
M8x1.25 Right
Min. Thread Length (l2)
42.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-080-R-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$51.95 AUD
$62.35 AUD $51.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Eye Size (d1)
8
mm
Overall Length (L)
54.00
mm
Thread Size
M8x1.25 Left
Min. Thread Length (l2)
42.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-080-L-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$68.41 AUD
$68.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Eye Size (d1)
8
mm
Overall Length (L)
54.00
mm
Thread Size
M8x1.25 Left
Min. Thread Length (l2)
42.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-080-L-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$68.41 AUD
$68.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
9.525
mm
Overall Length (L)
61.93
mm
Thread Size
3/8-24 UNF Left
Min. Thread Length (l2)
31.75
mm
Head Width (W)
10.31
mm
Eye Width (W1)
12.70
mm
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 25.40 mm    Centre Height: 49.23 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-095-L-CB (Each)
10 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.86 AUD
$8.40 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End
Eye Size (d1)
9.525
mm
Overall Length (L)
61.93
mm
Thread Size
3/8-24 UNF Left
Min. Thread Length (l2)
31.75
mm
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 10.31 mm    Eye Width (W1): 12.70 mm    Head Diameter: 25.40 mm    Centre Height: 49.23 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-095-L-CB (Each)
10 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.86 AUD
$8.40 AUD $4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
9.525
mm
Overall Length (L)
61.93
mm
Thread Size
3/8-24 UNF Right
Min. Thread Length (l2)
31.75
mm
Head Width (W)
10.31
mm
Eye Width (W1)
12.70
mm
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 25.40 mm    Centre Height: 49.23 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-095-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$8.59 AUD
$8.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End
Eye Size (d1)
9.525
mm
Overall Length (L)
61.93
mm
Thread Size
3/8-24 UNF Right
Min. Thread Length (l2)
31.75
mm
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 10.31 mm    Eye Width (W1): 12.70 mm    Head Diameter: 25.40 mm    Centre Height: 49.23 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-095-R-CB (Each)
8 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$8.59 AUD
$8.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

8 Available Now. Backorder if more than 8.
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
10.00
mm
Overall Length (L)
61.00
mm
Thread Size
M10x1.5 Left
Min. Thread Length (l2)
29.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 26.00 mm    Centre Height: 48.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-100-L-CB (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$104.86 AUD
$125.84 AUD $104.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
10.00
mm
Overall Length (L)
61.00
mm
Thread Size
M10x1.5 Left
Min. Thread Length (l2)
29.00
mm
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Head Diameter: 26.00 mm    Centre Height: 48.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-100-L-CB (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 11, 2026
$104.86 AUD
$125.84 AUD $104.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Eye Size (d1)
10.00
mm
Overall Length (L)
61.00
mm
Thread Size
M10x1.5 Right
Min. Thread Length (l2)
29.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 26.00 mm    Centre Height: 48.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-100-R-CB (PK-200)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$4,281.59 AUD
$5,137.91 AUD $4,281.59 AUD
Priced, Stocked and Sold Per 200 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Eye Size (d1)
10.00
mm
Overall Length (L)
61.00
mm
Thread Size
M10x1.5 Right
Min. Thread Length (l2)
29.00
mm
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Head Diameter: 26.00 mm    Centre Height: 48.00 mm    Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard
Part Number: REM-100-R-CB (PK-200)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jun 15, 2026
$4,281.59 AUD
$5,137.91 AUD $4,281.59 AUD
Priced, Stocked and Sold Per 200 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
10
mm
Overall Length (L)
62.50
mm
Thread Size
M10x1.5 Left
Min. Thread Length (l2)
48.00
mm
Head Width (W)
7.00
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-100-L-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$59.86 AUD
$71.84 AUD $59.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Eye Size (d1)
10
mm
Overall Length (L)
62.50
mm
Thread Size
M10x1.5 Left
Min. Thread Length (l2)
48.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 7.00 mm    Eye Width (W1): 9.00 mm    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
Part Number: REM-100-L-CB-N (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$59.86 AUD
$71.84 AUD $59.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
