| Thread Size | Thread Length (H) | Thread Length (C) | Head Diameter (E) | Centre Height (G) | Top Width (M) |
Indicative Image |
|---|---|---|---|---|---|---|
|
4.764 |
14.28 mm |
11.10 mm |
15.88 mm |
26.98 mm |
6.35 mm |
|
|
Material: Steel with Nylon Seat
Ball Width (L): 7.93 mm
Base Width: 10.31 mm
Base Length (P): 7.93 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF3SRS Female Rod Ends - 4.764 x 14.28 mm x 11.1 mm
2 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$11.51 AUD
Regular price
Unit price
per
Each
|
||||||
| Thread Size | Thread Length (H) | Thread Length (C) | Head Diameter (E) |
Indicative Image |
||
|
4.764 |
14.28 mm |
11.10 mm |
15.88 mm |
|
||
|
Material: Steel with Nylon Seat
Centre Height (G): 26.98 mm
Top Width (M): 6.35 mm
Ball Width (L): 7.93 mm
Base Width: 10.31 mm
Base Length (P): 7.93 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF3SRS Female Rod Ends - 4.764 x 14.28 mm x 11.1 mm
2 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$11.51 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
1/4-28 UNF (6.35mm) Right Hand |
19.05 mm |
14.28 mm |
19.05 mm |
33.33 mm |
07.14 mm |
|
|
Ball Width (L): 09.53 mm
Base Width: 11.91 mm
Base Length (P): 09.53 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF4SRS (50 Pcs) Female Rod Ends - 1/4-28 UNF (6.35mm) Right Hand x 19.05 mm x 14.28 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
1/4-28 UNF (6.35mm) Right Hand |
19.05 mm |
14.28 mm |
19.05 mm |
|
||
|
Centre Height (G): 33.33 mm
Top Width (M): 07.14 mm
Ball Width (L): 09.53 mm
Base Width: 11.91 mm
Base Length (P): 09.53 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF4SRS (50 Pcs) Female Rod Ends - 1/4-28 UNF (6.35mm) Right Hand x 19.05 mm x 14.28 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
5/16-24 UNF (7.94mm) Right Hand |
19.05 mm |
17.45 mm |
22.23 mm |
34.93 mm |
08.74 mm |
|
|
Ball Width (L): 11.10 mm
Base Width: 12.70 mm
Base Length (P): 11.10 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF5SRS (50 Pcs) Female Rod Ends - 5/16-24 UNF (7.94mm) Right Hand x 19.05 mm x 17.45 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
5/16-24 UNF (7.94mm) Right Hand |
19.05 mm |
17.45 mm |
22.23 mm |
|
||
|
Centre Height (G): 34.93 mm
Top Width (M): 08.74 mm
Ball Width (L): 11.10 mm
Base Width: 12.70 mm
Base Length (P): 11.10 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF5SRS (50 Pcs) Female Rod Ends - 5/16-24 UNF (7.94mm) Right Hand x 19.05 mm x 17.45 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
3/8-24 UNF (9.53mm) Right Hand |
23.80 mm |
22.23 mm |
25.40 mm |
41.28 mm |
10.31 mm |
|
|
Ball Width (L): 12.70 mm
Base Width: 17.45 mm
Base Length (P): 14.28 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF6SRS Female Rod Ends - 3/8-24 UNF (9.53mm) Right Hand x 23.8 mm x 22.23 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
3/8-24 UNF (9.53mm) Right Hand |
23.80 mm |
22.23 mm |
25.40 mm |
|
||
|
Centre Height (G): 41.28 mm
Top Width (M): 10.31 mm
Ball Width (L): 12.70 mm
Base Width: 17.45 mm
Base Length (P): 14.28 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF6SRS Female Rod Ends - 3/8-24 UNF (9.53mm) Right Hand x 23.8 mm x 22.23 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|

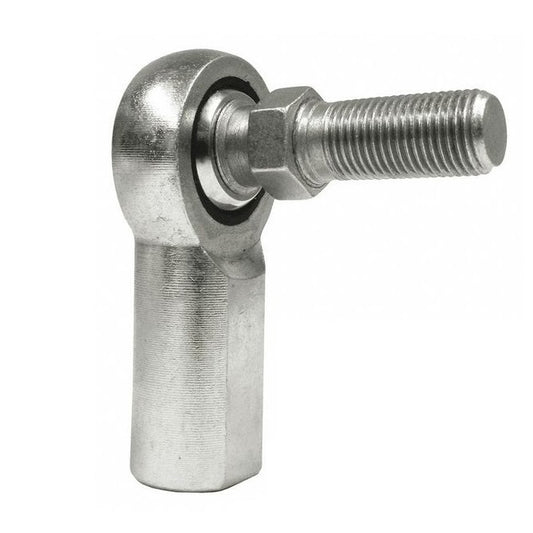

7/16-20 UNF (11.11mm) Right Hand |
26.19 mm |
26.98 mm |
28.58 mm |
46.03 mm |
11.10 mm |
|
|
Ball Width (L): 14.28 mm
Base Width: 19.05 mm
Base Length (P): 15.88 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF7SRS (50 Pcs) Female Rod Ends - 7/16-20 UNF (11.11mm) Right Hand x 26.19 mm x 26.98 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
7/16-20 UNF (11.11mm) Right Hand |
26.19 mm |
26.98 mm |
28.58 mm |
|
||
|
Centre Height (G): 46.03 mm
Top Width (M): 11.10 mm
Ball Width (L): 14.28 mm
Base Width: 19.05 mm
Base Length (P): 15.88 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF7SRS (50 Pcs) Female Rod Ends - 7/16-20 UNF (11.11mm) Right Hand x 26.19 mm x 26.98 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
1/2-20 UNF (12.7mm) Right Hand |
47.50 mm |
28.58 mm |
33.33 mm |
53.98 mm |
12.70 mm |
|
|
Ball Width (L): 15.88 mm
Base Width: 22.23 mm
Base Length (P): 19.05 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF8SRS (50 Pcs) Female Rod Ends - 1/2-20 UNF (12.7mm) Right Hand x 47.5 mm x 28.58 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
1/2-20 UNF (12.7mm) Right Hand |
47.50 mm |
28.58 mm |
33.33 mm |
|
||
|
Centre Height (G): 53.98 mm
Top Width (M): 12.70 mm
Ball Width (L): 15.88 mm
Base Width: 22.23 mm
Base Length (P): 19.05 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF8SRS (50 Pcs) Female Rod Ends - 1/2-20 UNF (12.7mm) Right Hand x 47.5 mm x 28.58 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
3/4-16 UNF (19.05mm) Right Hand |
39.68 mm |
46.03 mm |
44.45 mm |
73.03 mm |
17.45 mm |
|
|
Ball Width (L): 22.23 mm
Base Width: 28.58 mm
Base Length (P): 25.40 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF12SRS (50 Pcs) Female Rod Ends - 3/4-16 UNF (19.05mm) Right Hand x 39.68 mm x 46.03 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
3/4-16 UNF (19.05mm) Right Hand |
39.68 mm |
46.03 mm |
44.45 mm |
|
||
|
Centre Height (G): 73.03 mm
Top Width (M): 17.45 mm
Ball Width (L): 22.23 mm
Base Width: 28.58 mm
Base Length (P): 25.40 mm
Category: Rod Ends - Female - Steel - Studded - Nylon Seat |
||||||
|
Part Number: SPF12SRS (50 Pcs) Female Rod Ends - 3/4-16 UNF (19.05mm) Right Hand x 39.68 mm x 46.03 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
