Rod Ends - Female - Stainless

5 Products in this selection
This is a combined category of Stainless Female Rod Ends.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Rod Ends - Female - Stainless. Smallparts promote the most popular MBA products.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
4.826
mm 		34.925
mm 		10-32 UNF Right
14.28
mm 		6.35
mm 		7.93
mm 		1061482 | REF-048-R-SN --- Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 15.88 mm    Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-048-R-SN Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$55.86 AUD
$55.86 AUD
Each
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Indicative
4.826
mm 		34.925
mm 		10-32 UNF Right
14.28
mm 		1061482 | REF-048-R-SN --- Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 6.35 mm    Eye Width (W1): 7.93 mm    Head Diameter (D): 15.88 mm    Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-048-R-SN Female Rod Ends - 4.826x34.925 mm - 10-32 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$55.86 AUD
$55.86 AUD
Each
View the product page first if you are unsure.
5.000
mm 		37.00
mm 		M5x0.8 Right
14.00
mm 		6.00
mm 		8.00

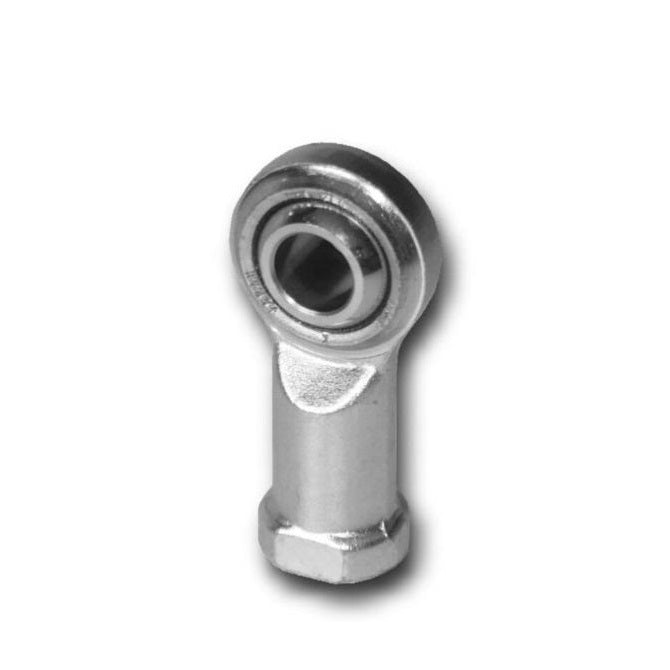

mm 		1064773 | REF-050-R-SB --- Female Rod Ends - 5x37 mm - M5x0.8 Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 18.00 mm    Centre Height (l1): 28.00 mm
Category: Rod Ends - Female - Stainless - 304 with 420 Ball Bronze Lined
Part Number: REF-050-R-SB Female Rod Ends - 5x37 mm - M5x0.8 Right - Stainless Steel with Nylon
6 Available Immediately | Further orders can be expected around Sat, May 17, 2025
$20.59 AUD
$20.59 AUD
Each
5.000
mm 		37.00
mm 		M5x0.8 Right
14.00
mm 		1064773 | REF-050-R-SB --- Female Rod Ends - 5x37 mm - M5x0.8 Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter (D): 18.00 mm    Centre Height (l1): 28.00 mm
Category: Rod Ends - Female - Stainless - 304 with 420 Ball Bronze Lined
Part Number: REF-050-R-SB Female Rod Ends - 5x37 mm - M5x0.8 Right - Stainless Steel with Nylon
6 Available Immediately | Further orders can be expected around Sat, May 17, 2025
$20.59 AUD
$20.59 AUD
Each
View the product page first if you are unsure.
6.350
mm 		42.850
mm 		1/4-28 UNF Right
19.05
mm 		7.14
mm 		9.53
mm 		1074866 | REF-064-R-SN --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 19.05 mm    Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-064-R-SN Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$60.77 AUD
$60.77 AUD
Each
6.350
mm 		42.850
mm 		1/4-28 UNF Right
19.05
mm 		1074866 | REF-064-R-SN --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 7.14 mm    Eye Width (W1): 9.53 mm    Head Diameter (D): 19.05 mm    Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-064-R-SN Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$60.77 AUD
$60.77 AUD
Each
View the product page first if you are unsure.
9.525
mm 		53.975
mm 		3/8-24 UNF Right
23.80
mm 		10.31
mm 		12.70

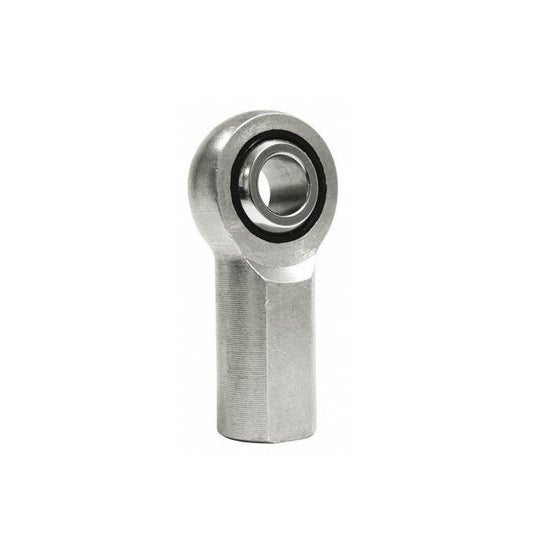

mm 		1088738 | REF-095-R-SN --- Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 25.40 mm    Centre Height (l1): 41.28 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-095-R-SN Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$93.59 AUD
$93.59 AUD
Each
9.525
mm 		53.975
mm 		3/8-24 UNF Right
23.80
mm 		1088738 | REF-095-R-SN --- Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 10.31 mm    Eye Width (W1): 12.70 mm    Head Diameter (D): 25.40 mm    Centre Height (l1): 41.28 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-095-R-SN Female Rod Ends - 9.525x53.975 mm - 3/8-24 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$93.59 AUD
$93.59 AUD
Each
View the product page first if you are unsure.
12.700
mm 		70.637
mm 		1/2-20 UNF Right
30.15
mm 		12.70
mm 		15.88

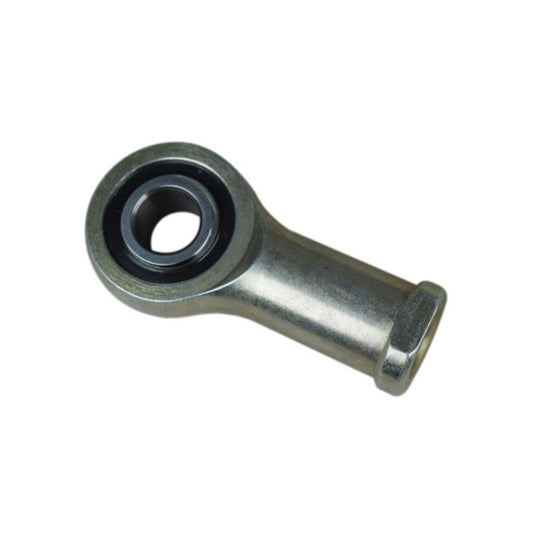

mm 		1104600 | REF-127-R-SN --- Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Diameter (D): 33.33 mm    Centre Height (l1): 56.20 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-127-R-SN Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$159.23 AUD
$159.23 AUD
Each
12.700
mm 		70.637
mm 		1/2-20 UNF Right
30.15
mm 		1104600 | REF-127-R-SN --- Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Material: Stainless Steel with Nylon    Head Width (W): 12.70 mm    Eye Width (W1): 15.88 mm    Head Diameter (D): 33.33 mm    Centre Height (l1): 56.20 mm
Category: Rod Ends - Female - Stainless - 303 Housing and Ball and Nylon Raceway
Part Number: REF-127-R-SN Female Rod Ends - 12.7x70.637 mm - 1/2-20 UNF Right - Stainless Steel with Nylon
Out of Stock | Backorder Now | Orders can be expected around Mon, May 12, 2025
$159.23 AUD
$159.23 AUD
Each
View the product page first if you are unsure.
