| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

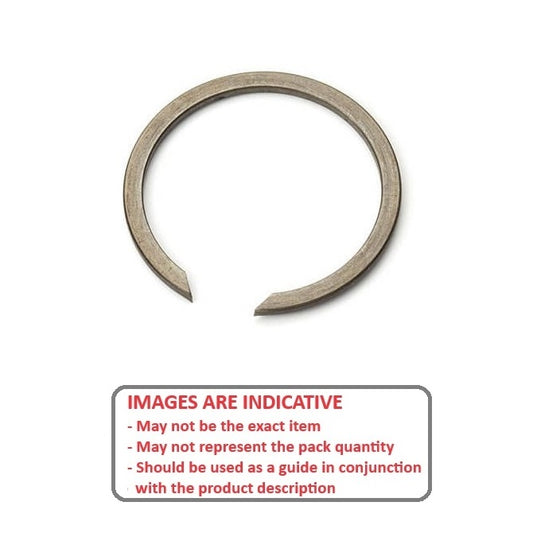

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 370x4x375 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
370.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
375.0
mm + 0.36 / - 0.00 (Equiv. 14.764 in.) |
Approx. Loose Circlip OD (Dr)
378.50
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 363.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3700-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 370x4x375 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
370.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
375.0
mm + 0.36 / - 0.00 (Equiv. 14.764 in.) |
Approx. Loose Circlip OD (Dr)
378.50
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 363.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3700-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 375x4x380 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
375.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
380.0
mm + 0.36 / - 0.00 (Equiv. 14.961 in.) |
Approx. Loose Circlip OD (Dr)
383.50
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 368.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3750-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 375x4x380 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
375.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
380.0
mm + 0.36 / - 0.00 (Equiv. 14.961 in.) |
Approx. Loose Circlip OD (Dr)
383.50
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 368.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3750-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 375x6x385 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
375.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
385.00
mm + 0.89 / - 0.00 (Equiv. 15.157 in.) |
Approx. Loose Circlip OD (Dr)
392.00
mm + 2.00 / - 1.00 |
Groove Width (W)
6.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-37500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 375x6x385 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
375.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
385.00
mm + 0.89 / - 0.00 (Equiv. 15.157 in.) |
Approx. Loose Circlip OD (Dr)
392.00
mm + 2.00 / - 1.00 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 6.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-37500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 380x4x385 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
380.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
385.0
mm + 0.36 / - 0.00 (Equiv. 15.157 in.) |
Approx. Loose Circlip OD (Dr)
388.60
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 373.6 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3800-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 380x4x385 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
380.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
385.0
mm + 0.36 / - 0.00 (Equiv. 15.157 in.) |
Approx. Loose Circlip OD (Dr)
388.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 373.6 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3800-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 385x6x395 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
385.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
395.00
mm + 0.89 / - 0.00 (Equiv. 15.551 in.) |
Approx. Loose Circlip OD (Dr)
402.00
mm + 2.00 / - 1.00 |
Groove Width (W)
6.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-38500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 385x6x395 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
385.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
395.00
mm + 0.89 / - 0.00 (Equiv. 15.551 in.) |
Approx. Loose Circlip OD (Dr)
402.00
mm + 2.00 / - 1.00 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 6.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-38500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 390x4x395 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
390.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
395.0
mm + 0.36 / - 0.00 (Equiv. 15.551 in.) |
Approx. Loose Circlip OD (Dr)
398.70
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 383.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3900-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 390x4x395 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
390.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
395.0
mm + 0.36 / - 0.00 (Equiv. 15.551 in.) |
Approx. Loose Circlip OD (Dr)
398.70
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 383.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3900-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 395x4x400 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
395.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
400.0
mm + 0.40 / - 0.00 (Equiv. 15.748 in.) |
Approx. Loose Circlip OD (Dr)
403.70
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 388.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3950-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 395x4x400 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
395.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
400.0
mm + 0.40 / - 0.00 (Equiv. 15.748 in.) |
Approx. Loose Circlip OD (Dr)
403.70
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 388.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-3950-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 395x6x405 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
395.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
405.00
mm + 1.00 / - 0.00 (Equiv. 15.945 in.) |
Approx. Loose Circlip OD (Dr)
412.00
mm + 2.00 / - 1.00 |
Groove Width (W)
6.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-39500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 395x6x405 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
395.00
mm |
Clip Thickness (T)
6.00
mm + 0.00 / - 0.15 (Equiv. 0.236 in.) |
Groove Dia. (Dg)
405.00
mm + 1.00 / - 0.00 (Equiv. 15.945 in.) |
Approx. Loose Circlip OD (Dr)
412.00
mm + 2.00 / - 1.00 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 6.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-39500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 400x4x405 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
400.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
405.0
mm + 0.40 / - 0.00 (Equiv. 15.945 in.) |
Approx. Loose Circlip OD (Dr)
408.90
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 393.9 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4000-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 400x4x405 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
400.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
405.0
mm + 0.40 / - 0.00 (Equiv. 15.945 in.) |
Approx. Loose Circlip OD (Dr)
408.90
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 393.9 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4000-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 410x4x415 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
410.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
415.0
mm + 0.40 / - 0.00 (Equiv. 16.339 in.) |
Approx. Loose Circlip OD (Dr)
419.00
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 404 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4100-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 410x4x415 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
410.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
415.0
mm + 0.40 / - 0.00 (Equiv. 16.339 in.) |
Approx. Loose Circlip OD (Dr)
419.00
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 404 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4100-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 415x4x420 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
415.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
420.0
mm + 0.40 / - 0.00 (Equiv. 16.535 in.) |
Approx. Loose Circlip OD (Dr)
424.00
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 409 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4150-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 415x4x420 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
415.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
420.0
mm + 0.40 / - 0.00 (Equiv. 16.535 in.) |
Approx. Loose Circlip OD (Dr)
424.00
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 409 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4150-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 420x4x425 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
420.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
425.0
mm + 0.40 / - 0.00 (Equiv. 16.732 in.) |
Approx. Loose Circlip OD (Dr)
429.10
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 414.1 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4200-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 420x4x425 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
420.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
425.0
mm + 0.40 / - 0.00 (Equiv. 16.732 in.) |
Approx. Loose Circlip OD (Dr)
429.10
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 414.1 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4200-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
430.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 424.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4300-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
430.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 424.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4300-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
440.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 434.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4400-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
440.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 434.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-4400-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 270x4x275 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
270.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
275.0
mm + 0.32 / - 0.00 (Equiv. 10.827 in.) |
Approx. Loose Circlip OD (Dr)
277.70
mm |
Radial Wall (S) Approx.
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 262.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-2700-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$37.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 270x4x275 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
270.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
275.0
mm + 0.32 / - 0.00 (Equiv. 10.827 in.) |
Approx. Loose Circlip OD (Dr)
277.70
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Clearance in Groove (C1): 262.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-2700-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$37.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 270x5x278 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
270.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
278.00
mm + 0.81 / - 0.00 (Equiv. 10.945 in.) |
Approx. Loose Circlip OD (Dr)
285.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 236.00 mm
Clearance in Groove (C1): 245.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 14 |
||||||
|
Part Number: CCI-27000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$57.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 270x5x278 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
270.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
278.00
mm + 0.81 / - 0.00 (Equiv. 10.945 in.) |
Approx. Loose Circlip OD (Dr)
285.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 236.00 mm
Clearance in Groove (C1): 245.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 14 |
||||||
|
Part Number: CCI-27000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$57.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 510x8x524 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
510.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
524.00
mm + 1.00 / - 0.00 (Equiv. 20.63 in.) |
Approx. Loose Circlip OD (Dr)
535.00
mm + 3.00 / - 1.50 |
Groove Width (W)
8.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-51000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 510x8x524 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
510.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
524.00
mm + 1.00 / - 0.00 (Equiv. 20.63 in.) |
Approx. Loose Circlip OD (Dr)
535.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 8.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-51000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 530x8x544 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
530.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
544.00
mm + 1.00 / - 0.00 (Equiv. 21.417 in.) |
Approx. Loose Circlip OD (Dr)
555.00
mm + 3.00 / - 1.50 |
Groove Width (W)
8.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-53000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 530x8x544 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
530.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
544.00
mm + 1.00 / - 0.00 (Equiv. 21.417 in.) |
Approx. Loose Circlip OD (Dr)
555.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 8.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-53000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 290x5x298 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
290.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
298.00
mm + 0.81 / - 0.00 (Equiv. 11.732 in.) |
Approx. Loose Circlip OD (Dr)
305.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 256.00 mm
Clearance in Groove (C1): 265.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 51 |
||||||
|
Part Number: CCI-29000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$59.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 290x5x298 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
290.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
298.00
mm + 0.81 / - 0.00 (Equiv. 11.732 in.) |
Approx. Loose Circlip OD (Dr)
305.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 256.00 mm
Clearance in Groove (C1): 265.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 51 |
||||||
|
Part Number: CCI-29000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 10, 2026 Regular price
$59.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 550x8x564 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
550.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
564.00
mm + 1.00 / - 0.00 (Equiv. 22.205 in.) |
Approx. Loose Circlip OD (Dr)
575.00
mm + 3.00 / - 1.50 |
Groove Width (W)
8.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-55000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 550x8x564 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
550.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
564.00
mm + 1.00 / - 0.00 (Equiv. 22.205 in.) |
Approx. Loose Circlip OD (Dr)
575.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 8.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-55000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 570x8x584 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
570.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
584.00
mm + 1.00 / - 0.00 (Equiv. 22.992 in.) |
Approx. Loose Circlip OD (Dr)
595.00
mm + 3.00 / - 1.50 |
Groove Width (W)
8.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-57000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 570x8x584 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
570.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
584.00
mm + 1.00 / - 0.00 (Equiv. 22.992 in.) |
Approx. Loose Circlip OD (Dr)
595.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 8.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-57000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 590x8x604 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
590.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
604.00
mm + 1.00 / - 0.00 (Equiv. 23.78 in.) |
Approx. Loose Circlip OD (Dr)
615.00
mm + 3.00 / - 1.50 |
Groove Width (W)
8.20
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-59000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 590x8x604 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
590.00
mm |
Clip Thickness (T)
8.00
mm + 0.00 / - 0.15 (Equiv. 0.315 in.) |
Groove Dia. (Dg)
604.00
mm + 1.00 / - 0.00 (Equiv. 23.78 in.) |
Approx. Loose Circlip OD (Dr)
615.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 8.20 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-59000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 650x9x666 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
650.00
mm |
Clip Thickness (T)
9.00
mm + 0.00 / - 0.20 (Equiv. 0.354 in.) |
Groove Dia. (Dg)
666.00
mm + 1.00 / - 0.00 (Equiv. 26.22 in.) |
Approx. Loose Circlip OD (Dr)
680.00
mm + 3.00 / - 1.50 |
Groove Width (W)
9.30
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-65000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 650x9x666 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
650.00
mm |
Clip Thickness (T)
9.00
mm + 0.00 / - 0.20 (Equiv. 0.354 in.) |
Groove Dia. (Dg)
666.00
mm + 1.00 / - 0.00 (Equiv. 26.22 in.) |
Approx. Loose Circlip OD (Dr)
680.00
mm + 3.00 / - 1.50 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 9.30 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-65000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
| Internal Retaining Rings - 700x9x716 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
700.00
mm |
Clip Thickness (T)
9.00
mm + 0.00 / - 0.20 (Equiv. 0.354 in.) |
Groove Dia. (Dg)
716.00
mm + 1.00 / - 0.00 (Equiv. 28.189 in.) |
Approx. Loose Circlip OD (Dr)
730.00
mm + 4.00 / - 2.00 |
Groove Width (W)
9.30
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-70000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 700x9x716 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
700.00
mm |
Clip Thickness (T)
9.00
mm + 0.00 / - 0.20 (Equiv. 0.354 in.) |
Groove Dia. (Dg)
716.00
mm + 1.00 / - 0.00 (Equiv. 28.189 in.) |
Approx. Loose Circlip OD (Dr)
730.00
mm + 4.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 9.30 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-70000-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 07, 2029 |
||||||
