| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

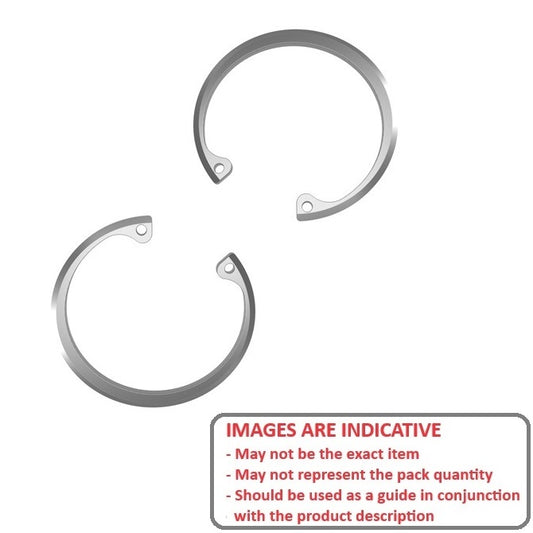

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 158x4x163 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
158.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.12 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
163.00
mm + 0.63 / - 0.00 (Equiv. 6.417 in.) |
Approx. Loose Circlip OD (Dr)
167.00
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-15800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 158x4x163 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
158.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.12 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
163.00
mm + 0.63 / - 0.00 (Equiv. 6.417 in.) |
Approx. Loose Circlip OD (Dr)
167.00
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-15800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 158.75x3.96x164.03 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
164.03
mm +/- 0.20 (Equiv. 6.458 in.) |
Approx. Loose Circlip OD (Dr)
166.83
mm + 3.18 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 149.41 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1588-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 158.75x3.96x164.03 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
164.03
mm +/- 0.20 (Equiv. 6.458 in.) |
Approx. Loose Circlip OD (Dr)
166.83
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 149.41 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1588-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 158.75x3.96x165.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
165.86
mm +/- 0.20 (Equiv. 6.53 in.) |
Approx. Loose Circlip OD (Dr)
168.66
mm + 3.80 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 151.24 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1588-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 158.75x3.96x165.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
165.86
mm +/- 0.20 (Equiv. 6.53 in.) |
Approx. Loose Circlip OD (Dr)
168.66
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 151.24 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1588-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
Radial Wall (S) Approx.
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 156.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1600-LS (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Oct 02, 2026 Regular price
$801.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 156.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1600-LS (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Oct 02, 2026 Regular price
$801.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 160x4x165 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
165.00
mm + 0.63 / - 0.00 (Equiv. 6.496 in.) |
Approx. Loose Circlip OD (Dr)
169.00
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 132.70 mm
Clearance in Groove (C1): 139.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 96 |
||||||
|
Part Number: CCI-16000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 14, 2026 Regular price
$16.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 160x4x165 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
165.00
mm + 0.63 / - 0.00 (Equiv. 6.496 in.) |
Approx. Loose Circlip OD (Dr)
169.00
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.15 / - 0.00
Clearance in Bore (C): 132.70 mm
Clearance in Groove (C1): 139.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 96 |
||||||
|
Part Number: CCI-16000-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 14, 2026 Regular price
$16.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 160x5x165 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
165.00
mm + 0.63 / - 0.00 (Equiv. 6.496 in.) |
Approx. Loose Circlip OD (Dr)
169.00
mm + 1.50 / - 0.63 |
Groove Width (W)
5.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 160x5x165 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
160.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
165.00
mm + 0.63 / - 0.00 (Equiv. 6.496 in.) |
Approx. Loose Circlip OD (Dr)
169.00
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 130x4x134 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
130.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
134.00
mm + 0.63 / - 0.00 (Equiv. 5.276 in.) |
Approx. Loose Circlip OD (Dr)
137.00
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 106.90 mm
Clearance in Groove (C1): 112.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 138 |
||||||
|
Part Number: CCI-13000-C (Each)
48 Available Now | Further orders can be expected around Tue, Aug 11, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 130x4x134 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
130.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
134.00
mm + 0.63 / - 0.00 (Equiv. 5.276 in.) |
Approx. Loose Circlip OD (Dr)
137.00
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 106.90 mm
Clearance in Groove (C1): 112.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 138 |
||||||
|
Part Number: CCI-13000-C (Each)
48 Available Now | Further orders can be expected around Tue, Aug 11, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 162x4x167 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
162.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
167.00
mm + 0.63 / - 0.00 (Equiv. 6.575 in.) |
Approx. Loose Circlip OD (Dr)
171.50
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 162x4x167 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
162.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
167.00
mm + 0.63 / - 0.00 (Equiv. 6.575 in.) |
Approx. Loose Circlip OD (Dr)
171.50
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 4.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
163.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
Radial Wall (S) Approx.
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 159.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1630-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
163.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 159.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1630-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
165.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
Radial Wall (S) Approx.
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 161.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1650-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
165.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 161.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1650-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 165x5x170 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
165.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
170.00
mm + 0.63 / - 0.00 (Equiv. 6.693 in.) |
Approx. Loose Circlip OD (Dr)
174.50
mm + 1.50 / - 0.63 |
Groove Width (W)
5.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 165x5x170 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
165.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
170.00
mm + 0.63 / - 0.00 (Equiv. 6.693 in.) |
Approx. Loose Circlip OD (Dr)
174.50
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 158.24 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 158.24 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 165.1x3.84x175.46 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.84
mm +/- 0.08 (Equiv. 0.151 in.) |
Groove Dia. (Dg)
175.46
mm + 0.20 / - 0.00 (Equiv. 6.908 in.) |
Approx. Loose Circlip OD (Dr)
180.09
mm + 4.10 / - 0.00 |
Groove Width (W)
3.28
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-16510-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Oct 02, 2026 Regular price
$447.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 165.1x3.84x175.46 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.84
mm +/- 0.08 (Equiv. 0.151 in.) |
Groove Dia. (Dg)
175.46
mm + 0.20 / - 0.00 (Equiv. 6.908 in.) |
Approx. Loose Circlip OD (Dr)
180.09
mm + 4.10 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.28 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-16510-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Oct 02, 2026 Regular price
$447.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
170.49
mm +/- 0.20 (Equiv. 6.712 in.) |
Approx. Loose Circlip OD (Dr)
173.53
mm + 4.00 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 156.11 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
170.49
mm +/- 0.20 (Equiv. 6.712 in.) |
Approx. Loose Circlip OD (Dr)
173.53
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 156.11 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
172.47
mm +/- 0.20 (Equiv. 6.79 in.) |
Approx. Loose Circlip OD (Dr)
175.39
mm + 3.80 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 157.97 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
172.47
mm +/- 0.20 (Equiv. 6.79 in.) |
Approx. Loose Circlip OD (Dr)
175.39
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 157.97 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1651-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 133.35x3.07x142.54 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
133.35
mm |
Clip Thickness (T)
3.07
mm +/- 0.08 (Equiv. 0.121 in.) |
Groove Dia. (Dg)
142.54
mm + 0.18 / - 0.00 (Equiv. 5.612 in.) |
Approx. Loose Circlip OD (Dr)
144.91
mm + 3.30 / - 0.00 |
Groove Width (W)
2.59
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 5 |
||||||
|
Part Number: CIB-13335-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$142.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 133.35x3.07x142.54 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
133.35
mm |
Clip Thickness (T)
3.07
mm +/- 0.08 (Equiv. 0.121 in.) |
Groove Dia. (Dg)
142.54
mm + 0.18 / - 0.00 (Equiv. 5.612 in.) |
Approx. Loose Circlip OD (Dr)
144.91
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.59 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 5 |
||||||
|
Part Number: CIB-13335-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$142.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 167x4x172 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
167.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
172.00
mm + 0.63 / - 0.00 (Equiv. 6.772 in.) |
Approx. Loose Circlip OD (Dr)
177.50
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 167x4x172 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
167.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
172.00
mm + 0.63 / - 0.00 (Equiv. 6.772 in.) |
Approx. Loose Circlip OD (Dr)
177.50
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 4.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 168x4x173 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
168.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
173.00
mm + 0.63 / - 0.00 (Equiv. 6.811 in.) |
Approx. Loose Circlip OD (Dr)
177.50
mm + 1.50 / - 0.63 |
Groove Width (W)
4.15
mm + 0.15 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 168x4x173 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
168.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
173.00
mm + 0.63 / - 0.00 (Equiv. 6.811 in.) |
Approx. Loose Circlip OD (Dr)
177.50
mm + 1.50 / - 0.63 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 4.15 mm + 0.15 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-16800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 168.28x2.19x172.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
2.19
mm +/- 0.11 (Equiv. 0.086 in.) |
Groove Dia. (Dg)
172.90
mm |
Approx. Loose Circlip OD (Dr)
175.68
mm + 1.40 / - 0.00 |
Radial Wall (S) Approx.
7.93
mm +/- 0.16 |
Groove Width (W)
2.47
mm +/- 0.20 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 159.82 mm +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 24 |
||||||
|
Part Number: RR-662-S02 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$45.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 168.28x2.19x172.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
2.19
mm +/- 0.11 (Equiv. 0.086 in.) |
Groove Dia. (Dg)
172.90
mm |
Approx. Loose Circlip OD (Dr)
175.68
mm + 1.40 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 7.93 mm +/- 0.16
Groove Width (W): 2.47 mm +/- 0.20
Clearance in Groove (C1): 159.82 mm +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 24 |
||||||
|
Part Number: RR-662-S02 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$45.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 168.28x3.84x178.87 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.84
mm +/- 0.08 (Equiv. 0.151 in.) |
Groove Dia. (Dg)
178.87
mm + 0.20 / - 0.00 (Equiv. 7.042 in.) |
Approx. Loose Circlip OD (Dr)
183.59
mm + 4.10 / - 0.00 |
Groove Width (W)
3.28
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-16828-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 168.28x3.84x178.87 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.84
mm +/- 0.08 (Equiv. 0.151 in.) |
Groove Dia. (Dg)
178.87
mm + 0.20 / - 0.00 (Equiv. 7.042 in.) |
Approx. Loose Circlip OD (Dr)
183.59
mm + 4.10 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.28 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-16828-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
173.86
mm +/- 0.20 (Equiv. 6.845 in.) |
Approx. Loose Circlip OD (Dr)
177.17
mm + 4.00 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 159.75 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1683-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
173.86
mm +/- 0.20 (Equiv. 6.845 in.) |
Approx. Loose Circlip OD (Dr)
177.17
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 159.75 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1683-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.20 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
178.94
mm + 3.80 / - 0.00 |
Radial Wall (S) Approx.
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 161.52 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.20 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
178.94
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Clearance in Groove (C1): 161.52 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029 |
||||||
| Internal Retaining Rings - 168.28x4.09x175.9 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
4.09
mm + 0.00 / - 0.10 (Equiv. 0.161 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.204 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
186.79
mm + 2.03 / - 2.03 |
Groove Width (W)
4.42
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 13 |
||||||
|
Part Number: CCI-16828-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$69.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 168.28x4.09x175.9 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
168.28
mm |
Clip Thickness (T)
4.09
mm + 0.00 / - 0.10 (Equiv. 0.161 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.204 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
186.79
mm + 2.03 / - 2.03 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.42 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 13 |
||||||
|
Part Number: CCI-16828-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026 Regular price
$69.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
170.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
172.6
mm + 0.25 / - 0.00 (Equiv. 6.795 in.) |
Approx. Loose Circlip OD (Dr)
174.30
mm |
Radial Wall (S) Approx.
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 166.3 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 18 |
||||||
|
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Tue, Aug 11, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
170.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
172.6
mm + 0.25 / - 0.00 (Equiv. 6.795 in.) |
Approx. Loose Circlip OD (Dr)
174.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 166.3 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 18 |
||||||
|
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Tue, Aug 11, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
