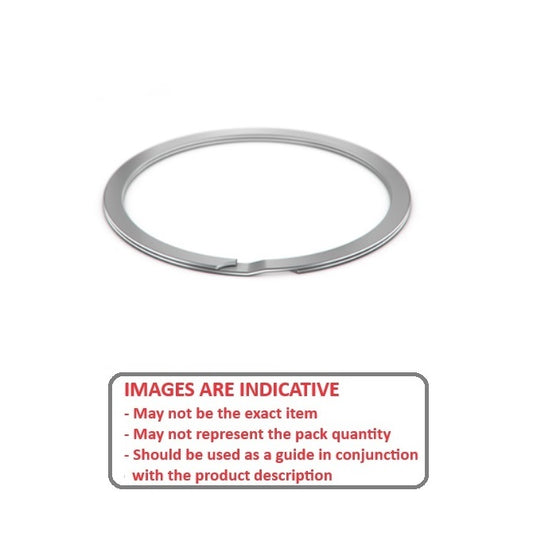

Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel

8 Products in this selection
  • Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Stainless Steel.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1
Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
15.88
mm 		0.64
mm
+/-0.06 		16.53
mm 		16.58
mm
+0.33/-0.00 		1.14
mm
+/-0.10 		0.80
mm
+/-0.05 		1113065 | RR-062-S02 (10 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 14.3 +/-0.04   Groove Depth (d): 0.33
Part Number: RR-062-S02 (10 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings
48 units (480 pcs) Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$3.77 AUD
$3.77 AUD
Per 10
View the product page first if you are unsure.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
15.88
mm 		0.64
mm
+/-0.06 		16.53
mm 		16.58
mm
+0.33/-0.00 		1113065 | RR-062-S02 (10 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.14 mm +/-0.10    Groove Width (W): 0.80 mm +/-0.05   Approx. Loose Clip ID: 14.3 +/-0.04   Groove Depth (d): 0.33
Part Number: RR-062-S02 (10 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings
48 units (480 pcs) Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$3.77 AUD
$3.77 AUD
Per 10
View the product page first if you are unsure.
19.05
mm 		0.79
mm
+/-0.05 		19.86
mm 		19.89
mm
+0.33/-0.00 		1.65
mm
+/-0.10 		0.95
mm
+/-0.05 		1120504 | RR-075-S02 (38 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 19.86 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 16.59 +/-0.04   Groove Depth (d): 0.41
Part Number: RR-075-S02 (38 Pcs) Spiral - 19.05 mm x 0.79 mm x 19.86 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$13.59 AUD
$13.59 AUD
Per 38
View the product page first if you are unsure.
19.05
mm 		0.79
mm
+/-0.05 		19.86
mm 		19.89
mm
+0.33/-0.00 		1120504 | RR-075-S02 (38 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 19.86 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.65 mm +/-0.10    Groove Width (W): 0.95 mm +/-0.05   Approx. Loose Clip ID: 16.59 +/-0.04   Groove Depth (d): 0.41
Part Number: RR-075-S02 (38 Pcs) Spiral - 19.05 mm x 0.79 mm x 19.86 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$13.59 AUD
$13.59 AUD
Per 38
View the product page first if you are unsure.
25.40
mm 		0.94
mm
+/-0.05 		26.50
mm 		26.52
mm
+0.33/-0.00 		1.91
mm
+/-0.11 		1.11
mm
+/-0.07 		1134951 | RR-100-S02 --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 22.7 +/-0.03   Groove Depth (d): 0.53
Part Number: RR-100-S02 Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings
80 Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$7.14 AUD
$7.14 AUD
Each
View the product page first if you are unsure.
25.40
mm 		0.94
mm
+/-0.05 		26.50
mm 		26.52
mm
+0.33/-0.00 		1134951 | RR-100-S02 --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm
Material: 302 Stainless Steel    Radial Wall (S): 1.91 mm +/-0.11    Groove Width (W): 1.11 mm +/-0.07   Approx. Loose Clip ID: 22.7 +/-0.03   Groove Depth (d): 0.53
Part Number: RR-100-S02 Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings
80 Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$7.14 AUD
$7.14 AUD
Each
View the product page first if you are unsure.
41.28
mm 		1.25
mm
+/-0.08 		42.77
mm 		43.10
mm
+0.51/-0.00 		2.74
mm
+/-0.10 		1.47
mm
+/-0.13 		1155272 | RR-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 37.62 +/-0.05   Groove Depth (d): 0.76
Part Number: RR-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$10.23 AUD
$10.23 AUD
Per 2
View the product page first if you are unsure.
41.28
mm 		1.25
mm
+/-0.08 		42.77
mm 		43.10
mm
+0.51/-0.00 		1155272 | RR-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm
Material: 302 Stainless Steel    Radial Wall (S): 2.74 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.13   Approx. Loose Clip ID: 37.62 +/-0.05   Groove Depth (d): 0.76
Part Number: RR-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$10.23 AUD
$10.23 AUD
Per 2
View the product page first if you are unsure.
44.45
mm 		1.25
mm
+/-0.08 		46.05
mm 		46.41
mm
+0.51/-0.00 		3.00
mm
+/-0.10 		1.47
mm
+/-0.13 		1157195 | RR-175-S02 (50 Pcs) --- Spiral - 44.45 mm x 1.25 mm x 46.05 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 40.41 +/-0.05   Groove Depth (d): 0.79
Part Number: RR-175-S02 (50 Pcs) Spiral - 44.45 mm x 1.25 mm x 46.05 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$200.41 AUD
$200.41 AUD
Per 50
View the product page first if you are unsure.
44.45
mm 		1.25
mm
+/-0.08 		46.05
mm 		46.41
mm
+0.51/-0.00 		1157195 | RR-175-S02 (50 Pcs) --- Spiral - 44.45 mm x 1.25 mm x 46.05 mm
Material: 302 Stainless Steel    Radial Wall (S): 3.00 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.13   Approx. Loose Clip ID: 40.41 +/-0.05   Groove Depth (d): 0.79
Part Number: RR-175-S02 (50 Pcs) Spiral - 44.45 mm x 1.25 mm x 46.05 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$200.41 AUD
$200.41 AUD
Per 50
View the product page first if you are unsure.
90.47
mm 		1.55
mm
+/-0.08 		93.27
mm 		94.45
mm
+0.76/-0.00 		5.03
mm
+/-0.13 		1.79
mm
+/-0.15 		1184530 | RR-356-S02 --- Spiral - 90.47 mm x 1.55 mm x 93.27 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 84.39 +/-0.06   Groove Depth (d): 1.42
Part Number: RR-356-S02 Spiral - 90.47 mm x 1.55 mm x 93.27 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$9.32 AUD
$9.32 AUD
Each
View the product page first if you are unsure.
90.47
mm 		1.55
mm
+/-0.08 		93.27
mm 		94.45
mm
+0.76/-0.00 		1184530 | RR-356-S02 --- Spiral - 90.47 mm x 1.55 mm x 93.27 mm
Material: 302 Stainless Steel    Radial Wall (S): 5.03 mm +/-0.13    Groove Width (W): 1.79 mm +/-0.15   Approx. Loose Clip ID: 84.39 +/-0.06   Groove Depth (d): 1.42
Part Number: RR-356-S02 Spiral - 90.47 mm x 1.55 mm x 93.27 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$9.32 AUD
$9.32 AUD
Each
View the product page first if you are unsure.
101.60
mm 		1.55
mm
+/-0.08 		104.75
mm 		106.07
mm
+0.76/-0.00 		5.54
mm
+/-0.13 		1.79
mm
+/-0.15 		1188747 | RR-400-S02 --- Spiral - 101.6 mm x 1.55 mm x 104.75 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 94.99 +/-0.06   Groove Depth (d): 1.57
Part Number: RR-400-S02 Spiral - 101.6 mm x 1.55 mm x 104.75 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$48.32 AUD
$48.32 AUD
Each
View the product page first if you are unsure.
101.60
mm 		1.55
mm
+/-0.08 		104.75
mm 		106.07
mm
+0.76/-0.00 		1188747 | RR-400-S02 --- Spiral - 101.6 mm x 1.55 mm x 104.75 mm
Material: 302 Stainless Steel    Radial Wall (S): 5.54 mm +/-0.13    Groove Width (W): 1.79 mm +/-0.15   Approx. Loose Clip ID: 94.99 +/-0.06   Groove Depth (d): 1.57
Part Number: RR-400-S02 Spiral - 101.6 mm x 1.55 mm x 104.75 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$48.32 AUD
$48.32 AUD
Each
View the product page first if you are unsure.
168.28
mm 		2.19
mm
+/-0.11 		172.90
mm 		175.68
mm
+1.40/-0.00 		7.93
mm
+/-0.16 		2.47
mm

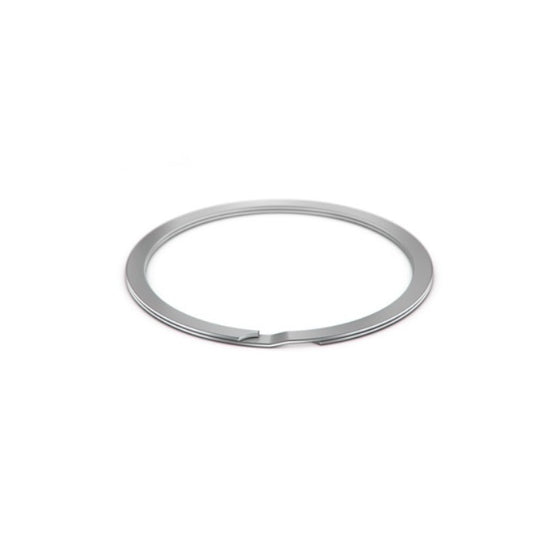

+/-0.20 		1203750 | RR-662-S02 --- Spiral - 168.28 mm x 2.19 mm x 172.9 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 159.82 +/-0.08   Groove Depth (d): 2.31
Part Number: RR-662-S02 Spiral - 168.28 mm x 2.19 mm x 172.9 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$51.05 AUD
$51.05 AUD
Each
View the product page first if you are unsure.
168.28
mm 		2.19
mm
+/-0.11 		172.90
mm 		175.68
mm
+1.40/-0.00 		1203750 | RR-662-S02 --- Spiral - 168.28 mm x 2.19 mm x 172.9 mm
Material: 302 Stainless Steel    Radial Wall (S): 7.93 mm +/-0.16    Groove Width (W): 2.47 mm +/-0.20   Approx. Loose Clip ID: 159.82 +/-0.08   Groove Depth (d): 2.31
Part Number: RR-662-S02 Spiral - 168.28 mm x 2.19 mm x 172.9 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$51.05 AUD
$51.05 AUD
Each
View the product page first if you are unsure.
