| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall Max (S) | Groove Width (W) |

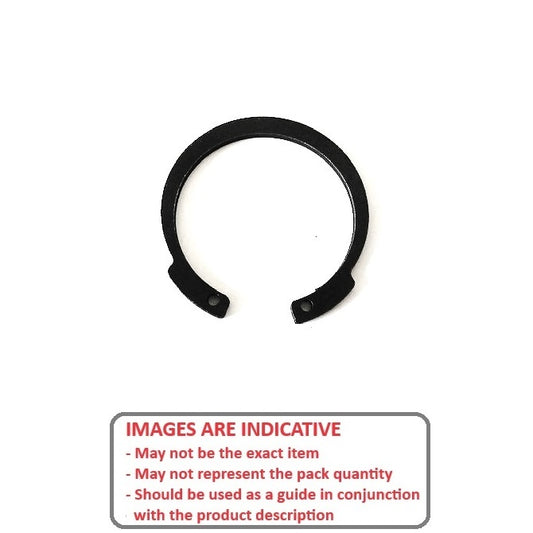

Indicative Image |
|---|---|---|---|---|---|---|
|
100.00 mm |
3.00 mm +0.35/-0.00 |
103.50 mm +0.00/-0.08 |
105.44 mm +1.30/-0.54 |
7.1 - 7.4 |
3.15 mm |
|
| Material: Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: CCI-10000-C-V Circlips - 100 mm x 3 mm x 103.5 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

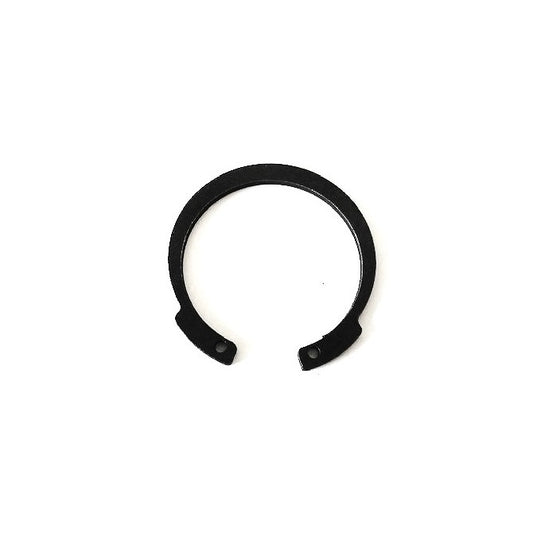

Indicative Image |
||
|
100.00 mm |
3.00 mm +0.35/-0.00 |
103.50 mm +0.00/-0.08 |
105.44 mm +1.30/-0.54 |
|
||
| Material: Spring Steel Radial Wall Max (S): 7.1 - 7.4 Groove Width (W): 3.15 mm Tool: PRS-I023 | ||||||
|
Part Number: CCI-10000-C-V Circlips - 100 mm x 3 mm x 103.5 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
|
101.60 mm |
2.77 mm +/-0.152 |
107.70 mm +/-0.076 |
112.37 mm |
4.09 - 8.59 |
3.05 mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-10160-C-V Circlips - 101.6 mm x 2.77 mm x 107.7 mm / Retaining Rings
Out of Stock Backorder Now | Backorders for more can be expected around Sun, Jan 19, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
101.60 mm |
2.77 mm +/-0.152 |
107.70 mm +/-0.076 |
112.37 mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 4.09 - 8.59 Groove Width (W): 3.05 mm | ||||||
|
Part Number: CCI-10160-C-V Circlips - 101.6 mm x 2.77 mm x 107.7 mm / Retaining Rings
Out of Stock Backorder Now | | Backorders for more can be expected around Sun, Jan 19, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
