Retaining Rings - External - Snap Rings - Carbon Steel

Retaining Rings -> External -> Snap Rings -> Carbon Steel
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 12x1x11.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.50
mm
+ 0 / - 0.11
(Equiv. 0.453 in.)
Approx. Loose Circlip ID (A)
11.20
mm
Radial Wall (S) Approx.
1.30
mm
+ 0 / - 0.10
Groove Width (W)
1.10
mm
External Retaining Rings - 12x1x11.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 13.8    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 723
Part Number: WRE-0120-LS (PK-10)
227 units (2270 pcs) Available Now | Item Discontinued - Up to 227 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.49 AUD
$23.15 AUD $3.49 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

227 units (2270 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 12x1x11.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.50
mm
+ 0 / - 0.11
(Equiv. 0.453 in.)
Approx. Loose Circlip ID (A)
11.20
mm
External Retaining Rings - 12x1x11.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip OD: 13.8    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 723
Part Number: WRE-0120-LS (PK-10)
227 units (2270 pcs) Available Now | Item Discontinued - Up to 227 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.49 AUD
$23.15 AUD $3.49 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

227 units (2270 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.04
mm
+/- 0.05
(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.81
mm
- 0.00 / + 0.65
Radial Wall (S) Approx.
1.22
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.25    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.04
mm
+/- 0.05
(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.81
mm
- 0.00 / + 0.65
External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 14.25    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.04
mm
+/- 0.05
(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.79
mm
+ 0.00 / - 0.64
Radial Wall (S) Approx.
1.22
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.23    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.04
mm
+/- 0.05
(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.79
mm
+ 0.00 / - 0.64
External Retaining Rings - 12.7x0.89x12.04 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 14.23    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 12.7x0.89x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.09
mm

(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
12.04
mm
+ 0.00 / - 0.60
Radial Wall (S) Approx.
1.22
mm
Groove Width (W)
0.99
mm
External Retaining Rings - 12.7x0.89x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.48    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x0.89x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
12.09
mm

(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
12.04
mm
+ 0.00 / - 0.60
External Retaining Rings - 12.7x0.89x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 14.48    Section Profile: Rectangular with Square Edge
Part Number: WRE-0127-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 12.7x1.17x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.17
mm
+/- 0.05
(Equiv. 0.046 in.)
Groove Dia. (Dg)
12.09
mm
+ 0.08 / - 0.00
(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
11.96
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.17
mm
+/- 0.05
Groove Width (W)
1.32
mm
External Retaining Rings - 12.7x1.17x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.3    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-C (PK-800)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x1.17x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.17
mm
+/- 0.05
(Equiv. 0.046 in.)
Groove Dia. (Dg)
12.09
mm
+ 0.08 / - 0.00
(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
11.96
mm
+ 0.00 / - 0.65
External Retaining Rings - 12.7x1.17x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.17 mm +/- 0.05    Groove Width (W): 1.32 mm    Approx. Loose Clip OD: 14.3    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-C (PK-800)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 12.7x1.17x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.17
mm
+/- 0.05
(Equiv. 0.046 in.)
Groove Dia. (Dg)
12.09
mm
+ 0.08 / - 0.00
(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
11.96
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.17
mm
+/- 0.05
Groove Width (W)
1.32
mm
External Retaining Rings - 12.7x1.17x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.3    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Additional stock available from USA subject to Prior Sale = 4992
Part Number: WRE-0127-SQ-O (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$22.86 AUD
$27.44 AUD $22.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 12.7x1.17x12.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.17
mm
+/- 0.05
(Equiv. 0.046 in.)
Groove Dia. (Dg)
12.09
mm
+ 0.08 / - 0.00
(Equiv. 0.476 in.)
Approx. Loose Circlip ID (A)
11.96
mm
+ 0.00 / - 0.65
External Retaining Rings - 12.7x1.17x12.09 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.17 mm +/- 0.05    Groove Width (W): 1.32 mm    Approx. Loose Clip OD: 14.3    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Additional stock available from USA subject to Prior Sale = 4992
Part Number: WRE-0127-SQ-O (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$22.86 AUD
$27.44 AUD $22.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

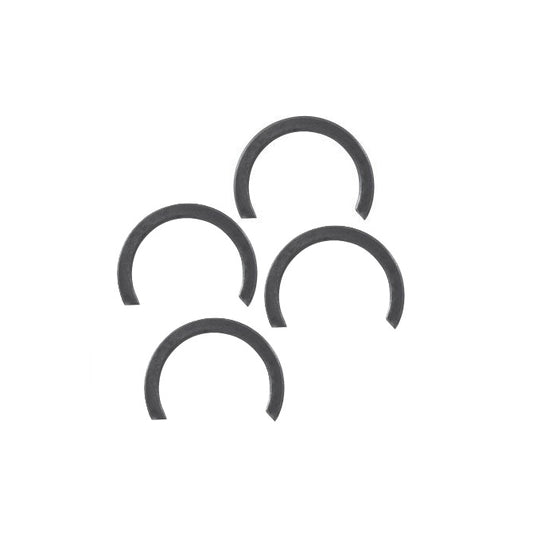

External Retaining Rings - 12.7x1.58x11.89 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
11.89
mm
+ 0.08 / - 0.00
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.76
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.58
mm
+/- 0.05
Groove Width (W)
1.75
mm
External Retaining Rings - 12.7x1.58x11.89 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.92    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x1.58x11.89 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
11.89
mm
+ 0.08 / - 0.00
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.76
mm
+ 0.00 / - 0.65
External Retaining Rings - 12.7x1.58x11.89 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.05    Groove Width (W): 1.75 mm    Approx. Loose Clip OD: 14.92    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 12.7x1.58x11.89 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
11.89
mm
+ 0.08 / - 0.00
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.76
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.58
mm
+/- 0.05
Groove Width (W)
1.75
mm
External Retaining Rings - 12.7x1.58x11.89 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.92    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 12.7x1.58x11.89 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
11.89
mm
+ 0.08 / - 0.00
(Equiv. 0.468 in.)
Approx. Loose Circlip ID (A)
11.76
mm
+ 0.00 / - 0.65
External Retaining Rings - 12.7x1.58x11.89 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.05    Groove Width (W): 1.75 mm    Approx. Loose Clip OD: 14.92    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0127-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 13x1x12.5 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
13.00
mm

(Equiv. 0.512 in.)
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.50
mm
+ 0 / - 0.11
(Equiv. 0.492 in.)
Approx. Loose Circlip ID (A)
12.20
mm
Radial Wall (S) Approx.
1.30
mm
+ 0 / - 0.10
Groove Width (W)
1.10
mm
External Retaining Rings - 13x1x12.5 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.8    Section Profile: Rectangular with Square Edge
Part Number: WRE-0130-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$85.59 AUD
$85.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 13x1x12.5 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
13.00
mm

(Equiv. 0.512 in.)
Clip Thickness (T)
1.00
mm
+ 0 / - 0.10
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.50
mm
+ 0 / - 0.11
(Equiv. 0.492 in.)
Approx. Loose Circlip ID (A)
12.20
mm
External Retaining Rings - 13x1x12.5 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.30 mm + 0 / - 0.10    Groove Width (W): 1.10 mm    Approx. Loose Clip OD: 14.8    Section Profile: Rectangular with Square Edge
Part Number: WRE-0130-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$85.59 AUD
$85.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 14x0.89x13.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.31
mm
+/- 0.05
(Equiv. 0.524 in.)
Approx. Loose Circlip ID (A)
13.06
mm
+ 0.00 / - 0.64
Radial Wall (S) Approx.
1.22
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 14x0.89x13.31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 15.5    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0140-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14x0.89x13.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.31
mm
+/- 0.05
(Equiv. 0.524 in.)
Approx. Loose Circlip ID (A)
13.06
mm
+ 0.00 / - 0.64
External Retaining Rings - 14x0.89x13.31 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 15.5    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0140-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 14x1.2x13.5 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
13.50
mm
+ 0 / - 0.11
(Equiv. 0.531 in.)
Approx. Loose Circlip ID (A)
13.10
mm
Radial Wall (S) Approx.
1.50
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 14x1.2x13.5 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.1    Section Profile: Rectangular with Square Edge
Part Number: WRE-0140-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$30.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 14x1.2x13.5 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
13.50
mm
+ 0 / - 0.11
(Equiv. 0.531 in.)
Approx. Loose Circlip ID (A)
13.10
mm
External Retaining Rings - 14x1.2x13.5 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.50 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 16.1    Section Profile: Rectangular with Square Edge
Part Number: WRE-0140-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$30.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 14.28x0.89x13.56 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.56
mm
+/- 0.05
(Equiv. 0.534 in.)
Approx. Loose Circlip ID (A)
13.31
mm
+ 0.00 / - 0.64
Radial Wall (S) Approx.
1.22
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 14.28x0.89x13.56 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 15.75    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0143-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x0.89x13.56 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.56
mm
+/- 0.05
(Equiv. 0.534 in.)
Approx. Loose Circlip ID (A)
13.31
mm
+ 0.00 / - 0.64
External Retaining Rings - 14.28x0.89x13.56 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 15.75    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0143-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 14.28x0.89x13.61 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.61
mm

(Equiv. 0.536 in.)
Approx. Loose Circlip ID (A)
13.56
mm
+ 0.00 / - 0.68
Radial Wall (S) Approx.
1.22
mm
Groove Width (W)
0.99
mm
External Retaining Rings - 14.28x0.89x13.61 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16    Section Profile: Rectangular with Square Edge
Part Number: WRE-0143-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x0.89x13.61 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.61
mm

(Equiv. 0.536 in.)
Approx. Loose Circlip ID (A)
13.56
mm
+ 0.00 / - 0.68
External Retaining Rings - 14.28x0.89x13.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 16    Section Profile: Rectangular with Square Edge
Part Number: WRE-0143-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 14.28x1.58x13.46 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.08 / - 0.00
(Equiv. 0.53 in.)
Approx. Loose Circlip ID (A)
13.34
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.58
mm
+/- 0.05
Groove Width (W)
1.75
mm
External Retaining Rings - 14.28x1.58x13.46 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.5    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x1.58x13.46 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.08 / - 0.00
(Equiv. 0.53 in.)
Approx. Loose Circlip ID (A)
13.34
mm
+ 0.00 / - 0.65
External Retaining Rings - 14.28x1.58x13.46 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.05    Groove Width (W): 1.75 mm    Approx. Loose Clip OD: 16.5    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 14.28x1.58x13.46 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.08 / - 0.00
(Equiv. 0.53 in.)
Approx. Loose Circlip ID (A)
13.34
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.58
mm
+/- 0.05
Groove Width (W)
1.75
mm
External Retaining Rings - 14.28x1.58x13.46 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.5    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x1.58x13.46 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.08 / - 0.00
(Equiv. 0.53 in.)
Approx. Loose Circlip ID (A)
13.34
mm
+ 0.00 / - 0.65
External Retaining Rings - 14.28x1.58x13.46 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.05    Groove Width (W): 1.75 mm    Approx. Loose Clip OD: 16.5    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028

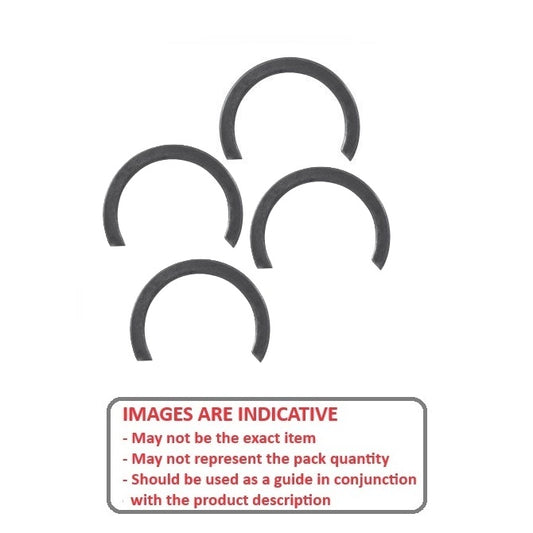

External Retaining Rings - 14.28x1.8x13.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
13.36
mm
+ 0.08 / - 0.00
(Equiv. 0.526 in.)
Approx. Loose Circlip ID (A)
13.23
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.80
mm
+/- 0.05
Groove Width (W)
1.98
mm
External Retaining Rings - 14.28x1.8x13.36 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.83    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x1.8x13.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
13.36
mm
+ 0.08 / - 0.00
(Equiv. 0.526 in.)
Approx. Loose Circlip ID (A)
13.23
mm
+ 0.00 / - 0.65
External Retaining Rings - 14.28x1.8x13.36 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.80 mm +/- 0.05    Groove Width (W): 1.98 mm    Approx. Loose Clip OD: 16.83    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 14.28x1.8x13.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
13.36
mm
+ 0.08 / - 0.00
(Equiv. 0.526 in.)
Approx. Loose Circlip ID (A)
13.23
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.80
mm
+/- 0.05
Groove Width (W)
1.98
mm
External Retaining Rings - 14.28x1.8x13.36 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.83    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 14.28x1.8x13.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
14.28
mm

(Equiv. 0.562 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
13.36
mm
+ 0.08 / - 0.00
(Equiv. 0.526 in.)
Approx. Loose Circlip ID (A)
13.23
mm
+ 0.00 / - 0.65
External Retaining Rings - 14.28x1.8x13.36 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.80 mm +/- 0.05    Groove Width (W): 1.98 mm    Approx. Loose Clip OD: 16.83    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0143-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15x1.2x14.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
14.40
mm
+ 0 / - 0.11
(Equiv. 0.567 in.)
Approx. Loose Circlip ID (A)
14.00
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 15x1.2x14.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 17.5    Section Profile: Rectangular with Square Edge
Part Number: WRE-0150-LS (PK-10)
1 pack (10 pcs) Available Now | Further orders can be expected around Tue, Feb 03, 2026
$17.77 AUD
$32.66 AUD $17.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
External Retaining Rings - 15x1.2x14.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
14.40
mm
+ 0 / - 0.11
(Equiv. 0.567 in.)
Approx. Loose Circlip ID (A)
14.00
mm
External Retaining Rings - 15x1.2x14.4 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 17.5    Section Profile: Rectangular with Square Edge
Part Number: WRE-0150-LS (PK-10)
1 pack (10 pcs) Available Now | Further orders can be expected around Tue, Feb 03, 2026
$17.77 AUD
$32.66 AUD $17.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (10 pcs) Available Now. Backorder if more than 1.
External Retaining Rings - 15.09x0.89x14.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
14.38
mm
+/- 0.05
(Equiv. 0.566 in.)
Approx. Loose Circlip ID (A)
14.10
mm
+ 0.00 / - 0.64
Radial Wall (S) Approx.
1.22
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 15.09x0.89x14.38 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 16.54    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0151-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.09x0.89x14.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
14.38
mm
+/- 0.05
(Equiv. 0.566 in.)
Approx. Loose Circlip ID (A)
14.10
mm
+ 0.00 / - 0.64
External Retaining Rings - 15.09x0.89x14.38 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.22 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 16.54    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0151-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15.09x0.89x14.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
14.40
mm

(Equiv. 0.567 in.)
Approx. Loose Circlip ID (A)
14.35
mm
+ 0.00 / - 0.72
Radial Wall (S) Approx.
1.52
mm
Groove Width (W)
0.99
mm
External Retaining Rings - 15.09x0.89x14.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 17.39    Section Profile: Rectangular with Square Edge
Part Number: WRE-0151-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.09x0.89x14.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
14.40
mm

(Equiv. 0.567 in.)
Approx. Loose Circlip ID (A)
14.35
mm
+ 0.00 / - 0.72
External Retaining Rings - 15.09x0.89x14.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.52 mm    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 17.39    Section Profile: Rectangular with Square Edge
Part Number: WRE-0151-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.16
mm
+/- 0.05
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
14.91
mm
- 0.00 / + 0.65
Radial Wall (S) Approx.
1.58
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 15.88x0.89x15.16 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 18.07    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.16
mm
+/- 0.05
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
14.91
mm
- 0.00 / + 0.65
External Retaining Rings - 15.88x0.89x15.16 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 18.07    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.16
mm
+/- 0.05
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
14.88
mm
+ 0.00 / - 0.64
Radial Wall (S) Approx.
1.58
mm
+/- 0.08
Groove Width (W)
0.99
mm
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 18.04    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.05
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.16
mm
+/- 0.05
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
14.88
mm
+ 0.00 / - 0.64
External Retaining Rings - 15.88x0.89x15.16 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.08    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 18.04    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15.88x0.89x15.19 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.19
mm

(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
15.14
mm
+ 0.00 / - 0.76
Radial Wall (S) Approx.
1.52
mm
Groove Width (W)
0.99
mm
External Retaining Rings - 15.88x0.89x15.19 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 18.18    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.88x0.89x15.19 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.04
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.19
mm

(Equiv. 0.598 in.)
Approx. Loose Circlip ID (A)
15.14
mm
+ 0.00 / - 0.76
External Retaining Rings - 15.88x0.89x15.19 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.52 mm    Groove Width (W): 0.99 mm    Approx. Loose Clip OD: 18.18    Section Profile: Rectangular with Square Edge
Part Number: WRE-0159-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 15.88x1.4x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
1.40
mm
+/- 0.05
(Equiv. 0.055 in.)
Groove Dia. (Dg)
15.16
mm
+ 0.08 / - 0.00
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
15.01
mm
+ 0.00 / - 0.65
Radial Wall (S) Approx.
1.40
mm
+/- 0.05
Groove Width (W)
1.58
mm
External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 17.81    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0159-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 15.88x1.4x15.16 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
1.40
mm
+/- 0.05
(Equiv. 0.055 in.)
Groove Dia. (Dg)
15.16
mm
+ 0.08 / - 0.00
(Equiv. 0.597 in.)
Approx. Loose Circlip ID (A)
15.01
mm
+ 0.00 / - 0.65
External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.40 mm +/- 0.05    Groove Width (W): 1.58 mm    Approx. Loose Clip OD: 17.81    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0159-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
