Retaining Rings - External - Snap Rings - Carbon Steel

Retaining Rings -> External -> Snap Rings -> Carbon Steel
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.60
mm
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.12    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0572-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.60 mm    Approx. Loose Clip OD: 66.12    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0572-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.60
mm
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.12    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0572-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 57.15x6.35x53.95 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
53.95
mm
+ 0.10 / - 0.00
(Equiv. 2.124 in.)
Approx. Loose Circlip ID (A)
53.42
mm
+ 0.00 / - 2.00
External Retaining Rings - 57.15x6.35x53.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.60 mm    Approx. Loose Clip OD: 66.12    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0572-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 58x1.12x55.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
58.00
mm

(Equiv. 2.283 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
55.60
mm
+ 0 / - 0.25
(Equiv. 2.189 in.)
Approx. Loose Circlip ID (A)
55.20
mm
Radial Wall (S) Approx.
4.04
mm
+ 0 / - 0.10
Groove Width (W)
1.65
mm
External Retaining Rings - 58x1.12x55.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 63.28    Info: Radiused Edge    Section Profile: Rectangular with Radiused Edge
Part Number: WRE-0580-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 58x1.12x55.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
58.00
mm

(Equiv. 2.283 in.)
Clip Thickness (T)
1.12
mm
+ 0 / - 0.10
(Equiv. 0.044 in.)
Groove Dia. (Dg)
55.60
mm
+ 0 / - 0.25
(Equiv. 2.189 in.)
Approx. Loose Circlip ID (A)
55.20
mm
External Retaining Rings - 58x1.12x55.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.04 mm + 0 / - 0.10    Groove Width (W): 1.65 mm    Approx. Loose Clip OD: 63.28    Info: Radiused Edge    Section Profile: Rectangular with Radiused Edge
Part Number: WRE-0580-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 58.73x1.98x55.32 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.32
mm
+/- 0.15
(Equiv. 2.178 in.)
Approx. Loose Circlip ID (A)
54.81
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 58.73x1.98x55.32 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 65.13    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0587-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 58.73x1.98x55.32 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.32
mm
+/- 0.15
(Equiv. 2.178 in.)
Approx. Loose Circlip ID (A)
54.81
mm
+ 0.00 / - 1.50
External Retaining Rings - 58.73x1.98x55.32 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 65.13    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0587-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.98
mm
+/- 0.15
(Equiv. 2.204 in.)
Approx. Loose Circlip ID (A)
55.22
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 64.72    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0587-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
58.73
mm

(Equiv. 2.312 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
55.98
mm
+/- 0.15
(Equiv. 2.204 in.)
Approx. Loose Circlip ID (A)
55.22
mm
+ 0.00 / - 1.17
External Retaining Rings - 58.73x1.98x55.98 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 64.72    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0587-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
58.50
mm
+ 0 / - 0.19
(Equiv. 2.303 in.)
Approx. Loose Circlip ID (A)
57.60
mm
Radial Wall (S) Approx.
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 62.2    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 75
Part Number: WRE-0600-LS (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$59.50 AUD
$71.40 AUD $59.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
60.00
mm

(Equiv. 2.362 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
58.50
mm
+ 0 / - 0.19
(Equiv. 2.303 in.)
Approx. Loose Circlip ID (A)
57.60
mm
External Retaining Rings - 60x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip OD: 62.2    Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 75
Part Number: WRE-0600-LS (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$59.50 AUD
$71.40 AUD $59.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 60.33x1.07x58.29 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
58.29
mm
+/- 0.15
(Equiv. 2.295 in.)
Approx. Loose Circlip ID (A)
57.66
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 60.33x1.07x58.29 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 65.58    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 60.33x1.07x58.29 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
58.29
mm
+/- 0.15
(Equiv. 2.295 in.)
Approx. Loose Circlip ID (A)
57.66
mm
- 0.00 / + 1.60
External Retaining Rings - 60.33x1.07x58.29 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 65.58    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 60.33x1.98x56.87 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
56.87
mm
+/- 0.15
(Equiv. 2.239 in.)
Approx. Loose Circlip ID (A)
56.36
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 60.33x1.98x56.87 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.68    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 60.33x1.98x56.87 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
56.87
mm
+/- 0.15
(Equiv. 2.239 in.)
Approx. Loose Circlip ID (A)
56.36
mm
+ 0.00 / - 1.50
External Retaining Rings - 60.33x1.98x56.87 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 66.68    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
57.53
mm
+/- 0.15
(Equiv. 2.265 in.)
Approx. Loose Circlip ID (A)
56.77
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 66.27    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
60.33
mm

(Equiv. 2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
57.53
mm
+/- 0.15
(Equiv. 2.265 in.)
Approx. Loose Circlip ID (A)
56.77
mm
+ 0.00 / - 1.17
External Retaining Rings - 60.33x1.98x57.53 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 66.27    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0603-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
61.90
mm

(Equiv. 2.437 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.06
mm
+/- 0.15
(Equiv. 2.325 in.)
Approx. Loose Circlip ID (A)
58.29
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 67.79    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0619-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
61.90
mm

(Equiv. 2.437 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.06
mm
+/- 0.15
(Equiv. 2.325 in.)
Approx. Loose Circlip ID (A)
58.29
mm
+ 0.00 / - 1.17
External Retaining Rings - 61.9x1.98x59.06 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 67.79    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0619-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 61.93x1.98x58.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
61.93
mm

(Equiv. 2.438 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
58.40
mm
+/- 0.15
(Equiv. 2.299 in.)
Approx. Loose Circlip ID (A)
57.89
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.16
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 61.93x1.98x58.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 68.21    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0619-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 61.93x1.98x58.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
61.93
mm

(Equiv. 2.438 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
58.40
mm
+/- 0.15
(Equiv. 2.299 in.)
Approx. Loose Circlip ID (A)
57.89
mm
+ 0.00 / - 1.50
External Retaining Rings - 61.93x1.98x58.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.16 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 68.21    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0619-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x1.07x61.47 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.15
(Equiv. 2.42 in.)
Approx. Loose Circlip ID (A)
60.71
mm
- 0.00 / + 1.60
Radial Wall (S) Approx.
3.96
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 63.5x1.07x61.47 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 68.63    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0635-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x1.07x61.47 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.15
(Equiv. 2.42 in.)
Approx. Loose Circlip ID (A)
60.71
mm
- 0.00 / + 1.60
External Retaining Rings - 63.5x1.07x61.47 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.96 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 68.63    Info: Light Duty    Section Profile: Rectangular with Square Edge
Part Number: WRE-0635-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x1.98x59.94 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.94
mm
+/- 0.15
(Equiv. 2.36 in.)
Approx. Loose Circlip ID (A)
59.44
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 63.5x1.98x59.94 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 70.52    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0635-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x1.98x59.94 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
59.94
mm
+/- 0.15
(Equiv. 2.36 in.)
Approx. Loose Circlip ID (A)
59.44
mm
+ 0.00 / - 1.50
External Retaining Rings - 63.5x1.98x59.94 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 70.52    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0635-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x6.35x60.3 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
60.30
mm
+ 0.10 / - 0.00
(Equiv. 2.374 in.)
Approx. Loose Circlip ID (A)
59.69
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.73
mm

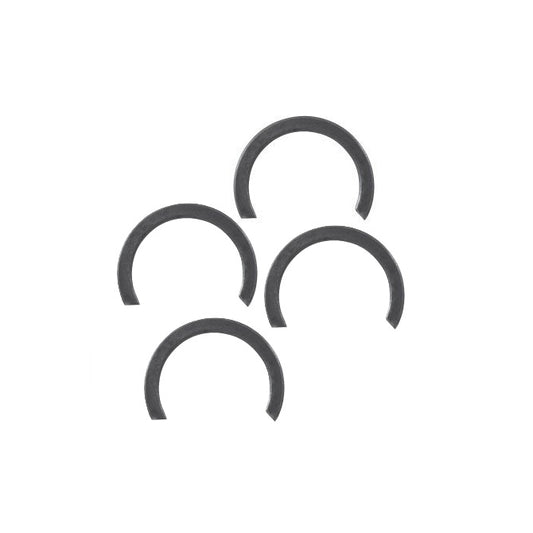

External Retaining Rings - 63.5x6.35x60.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.39    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x6.35x60.3 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
60.30
mm
+ 0.10 / - 0.00
(Equiv. 2.374 in.)
Approx. Loose Circlip ID (A)
59.69
mm
+ 0.00 / - 2.00
External Retaining Rings - 63.5x6.35x60.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.73 mm    Approx. Loose Clip OD: 72.39    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x6.35x60.3 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
60.30
mm
+ 0.10 / - 0.00
(Equiv. 2.374 in.)
Approx. Loose Circlip ID (A)
59.69
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.73
mm
External Retaining Rings - 63.5x6.35x60.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.39    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x6.35x60.3 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
60.30
mm
+ 0.10 / - 0.00
(Equiv. 2.374 in.)
Approx. Loose Circlip ID (A)
59.69
mm
+ 0.00 / - 2.00
External Retaining Rings - 63.5x6.35x60.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.73 mm    Approx. Loose Clip OD: 72.39    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
7.93
mm
+/- 0.08
Groove Width (W)
8.31
mm
External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 74.81    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 7.93 mm +/- 0.08    Groove Width (W): 8.31 mm    Approx. Loose Clip OD: 74.81    Info: Axial Assembly - Closed Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
7.93
mm
+/- 0.08
Groove Width (W)
8.31
mm
External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 74.81    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 7.93 mm +/- 0.08    Groove Width (W): 8.31 mm    Approx. Loose Clip OD: 74.81    Info: Radial Assembly - Open Gap    Section Profile: Square Section
Part Number: WRE-0635-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 65x1.98x61.44 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
61.44
mm
+/- 0.15
(Equiv. 2.419 in.)
Approx. Loose Circlip ID (A)
60.94
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 65x1.98x61.44 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.02    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0650-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 65x1.98x61.44 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
61.44
mm
+/- 0.15
(Equiv. 2.419 in.)
Approx. Loose Circlip ID (A)
60.94
mm
+ 0.00 / - 1.50
External Retaining Rings - 65x1.98x61.44 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 72.02    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0650-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 65x1.98x62.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
62.05
mm
+/- 0.15
(Equiv. 2.443 in.)
Approx. Loose Circlip ID (A)
61.29
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 65x1.98x62.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 70.79    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0650-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 65x1.98x62.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
62.05
mm
+/- 0.15
(Equiv. 2.443 in.)
Approx. Loose Circlip ID (A)
61.29
mm
+ 0.00 / - 1.17
External Retaining Rings - 65x1.98x62.05 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 70.79    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0650-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 66.68x1.98x63.02 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.02
mm
+/- 0.15
(Equiv. 2.481 in.)
Approx. Loose Circlip ID (A)
62.51
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 66.68x1.98x63.02 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.59    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0667-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 66.68x1.98x63.02 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.02
mm
+/- 0.15
(Equiv. 2.481 in.)
Approx. Loose Circlip ID (A)
62.51
mm
+ 0.00 / - 1.50
External Retaining Rings - 66.68x1.98x63.02 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 73.59    Info: Notched    Section Profile: Rectangular with Square Edge
Part Number: WRE-0667-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.63
mm
+/- 0.15
(Equiv. 2.505 in.)
Approx. Loose Circlip ID (A)
62.87
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.37    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0667-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.63
mm
+/- 0.15
(Equiv. 2.505 in.)
Approx. Loose Circlip ID (A)
62.87
mm
+ 0.00 / - 1.17
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 72.37    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0667-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
1.70
mm
+ 0 / - 0.10
(Equiv. 0.067 in.)
Groove Dia. (Dg)
64.82
mm
+ 0 / - 0.50
(Equiv. 2.552 in.)
Approx. Loose Circlip ID (A)
64.20
mm
Radial Wall (S) Approx.
4.85
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm
External Retaining Rings - 68x1.7x64.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.9    Info: Radiused Edge    Section Profile: Rectangular with Radiused Edge
Part Number: WRE-0680-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
1.70
mm
+ 0 / - 0.10
(Equiv. 0.067 in.)
Groove Dia. (Dg)
64.82
mm
+ 0 / - 0.50
(Equiv. 2.552 in.)
Approx. Loose Circlip ID (A)
64.20
mm
External Retaining Rings - 68x1.7x64.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.85 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 73.9    Info: Radiused Edge    Section Profile: Rectangular with Radiused Edge
Part Number: WRE-0680-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
66.20
mm
+ 0 / - 0.19
(Equiv. 2.606 in.)
Approx. Loose Circlip ID (A)
65.40
mm
Radial Wall (S) Approx.
2.80
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 71    Section Profile: Rectangular with Square Edge
Part Number: WRE-0680-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
66.20
mm
+ 0 / - 0.19
(Equiv. 2.606 in.)
Approx. Loose Circlip ID (A)
65.40
mm
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 71    Section Profile: Rectangular with Square Edge
Part Number: WRE-0680-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.25
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.15
mm
+/- 0.15
(Equiv. 2.565 in.)
Approx. Loose Circlip ID (A)
64.39
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.89    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0683-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.25
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.15
mm
+/- 0.15
(Equiv. 2.565 in.)
Approx. Loose Circlip ID (A)
64.39
mm
+ 0.00 / - 1.17
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 73.89    Info: Basic    Section Profile: Rectangular with Square Edge
Part Number: WRE-0683-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Sep 15, 2028
