Retaining Rings - External - Circlips - Standard - Carbon Steel

Retaining Rings -> External -> Circlips -> Standard -> Carbon Steel
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 186x4x181 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
186.00
mm

(Equiv. 7.323 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
181.00
mm
+ 0.00 / - 0.10
(Equiv. 7.126 in.)
Approx. Loose Circlip ID (A)
177.13
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 186x4x181 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clearance on Shaft (C1): 210.00 mm    Clearance in Groove (C1): 216.20 mm    Min. Lug Diameter (h): 4.000 mm    Min. Extension (n): 7.50    Standard: DIN471
Part Number: CCE-18600-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 186x4x181 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
186.00
mm

(Equiv. 7.323 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
181.00
mm
+ 0.00 / - 0.10
(Equiv. 7.126 in.)
Approx. Loose Circlip ID (A)
177.13
mm
External Retaining Rings - 186x4x181 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Clearance on Shaft (C1): 210.00 mm    Clearance in Groove (C1): 216.20 mm    Min. Lug Diameter (h): 4.000 mm    Min. Extension (n): 7.50    Standard: DIN471
Part Number: CCE-18600-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 187x4x182 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
187.00
mm

(Equiv. 7.362 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
182.00
mm
+ 0.00 / - 0.10
(Equiv. 7.165 in.)
Approx. Loose Circlip ID (A)
177.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 187x4x182 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-18700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 187x4x182 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
187.00
mm

(Equiv. 7.362 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
182.00
mm
+ 0.00 / - 0.10
(Equiv. 7.165 in.)
Approx. Loose Circlip ID (A)
177.50
mm
External Retaining Rings - 187x4x182 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Standard: DIN471
Part Number: CCE-18700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 188x4x183 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
188.00
mm

(Equiv. 7.402 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
183.00
mm
+ 0.00 / - 0.10
(Equiv. 7.205 in.)
Approx. Loose Circlip ID (A)
177.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 188x4x183 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-18800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 188x4x183 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
188.00
mm

(Equiv. 7.402 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
183.00
mm
+ 0.00 / - 0.10
(Equiv. 7.205 in.)
Approx. Loose Circlip ID (A)
177.50
mm
External Retaining Rings - 188x4x183 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Standard: DIN471
Part Number: CCE-18800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 190x4x185 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
185.00
mm
+ 0.00 / - 0.10
(Equiv. 7.283 in.)
Approx. Loose Circlip ID (A)
180.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 190x4x185 mm - Carbon Steel
Material: Carbon Steel    Clearance on Shaft (C1): 214.00 mm    Clearance in Groove (C1): 220.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 7.50    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15
Part Number: CCE-19000-C (Each)
5 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$19.50 AUD
$36.72 AUD $19.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 5 available can be backordered.
External Retaining Rings - 190x4x185 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.63
(Equiv. 0.157 in.)
Groove Dia. (Dg)
185.00
mm
+ 0.00 / - 0.10
(Equiv. 7.283 in.)
Approx. Loose Circlip ID (A)
180.50
mm
External Retaining Rings - 190x4x185 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm    Clearance on Shaft (C1): 214.00 mm    Clearance in Groove (C1): 220.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 7.50    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 15
Part Number: CCE-19000-C (Each)
5 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$19.50 AUD
$36.72 AUD $19.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
External Retaining Rings - 190x5x185 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
185.00
mm
+ 0.00 / - 0.12
(Equiv. 7.283 in.)
Approx. Loose Circlip ID (A)
180.50
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 190x5x185 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-19000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 190x5x185 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
185.00
mm
+ 0.00 / - 0.12
(Equiv. 7.283 in.)
Approx. Loose Circlip ID (A)
180.50
mm
External Retaining Rings - 190x5x185 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-19000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028

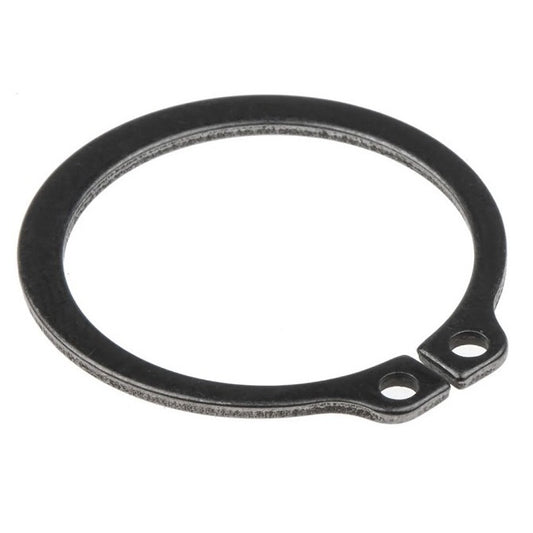

External Retaining Rings - 190.5x4.75x182.4 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
182.40
mm
+/- 0.127
(Equiv. 7.181 in.)
Approx. Loose Circlip ID (A)
178.00
mm
Groove Width (W)
5.30
mm
External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCE-19050-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$185.95 AUD
$223.15 AUD $185.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 190.5x4.75x182.4 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
182.40
mm
+/- 0.127
(Equiv. 7.181 in.)
Approx. Loose Circlip ID (A)
178.00
mm
External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.30 mm    Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCE-19050-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$185.95 AUD
$223.15 AUD $185.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 192x4x187 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
192.00
mm

(Equiv. 7.559 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
187.00
mm
+ 0.00 / - 0.10
(Equiv. 7.362 in.)
Approx. Loose Circlip ID (A)
180.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 192x4x187 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-19200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 192x4x187 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
192.00
mm

(Equiv. 7.559 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
187.00
mm
+ 0.00 / - 0.10
(Equiv. 7.362 in.)
Approx. Loose Circlip ID (A)
180.50
mm
External Retaining Rings - 192x4x187 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Standard: DIN471
Part Number: CCE-19200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 195x4x190 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
190.00
mm
+ 0.00 / - 0.10
(Equiv. 7.48 in.)
Approx. Loose Circlip ID (A)
186.22
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 195x4x190 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clearance on Shaft (C1): 219.00 mm    Clearance in Groove (C1): 225.00 mm    Min. Lug Diameter (h): 4.000 mm    Min. Extension (n): 7.50    Standard: DIN471
Part Number: CCE-19500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 195x4x190 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
190.00
mm
+ 0.00 / - 0.10
(Equiv. 7.48 in.)
Approx. Loose Circlip ID (A)
186.22
mm
External Retaining Rings - 195x4x190 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Clearance on Shaft (C1): 219.00 mm    Clearance in Groove (C1): 225.00 mm    Min. Lug Diameter (h): 4.000 mm    Min. Extension (n): 7.50    Standard: DIN471
Part Number: CCE-19500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 195x5x190 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
190.00
mm
+ 0.00 / - 0.12
(Equiv. 7.48 in.)
Approx. Loose Circlip ID (A)
185.50
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 195x5x190 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-19500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 195x5x190 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
190.00
mm
+ 0.00 / - 0.12
(Equiv. 7.48 in.)
Approx. Loose Circlip ID (A)
185.50
mm
External Retaining Rings - 195x5x190 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-19500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 196.85x4.8x188.5 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.80
mm
+/- 0.204
(Equiv. 0.189 in.)
Groove Dia. (Dg)
188.50
mm
+/- 0.127
(Equiv. 7.421 in.)
Approx. Loose Circlip ID (A)
184.00
mm
Groove Width (W)
5.30
mm
External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16624
Part Number: CCE-19685-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$177.50 AUD
$213.00 AUD $177.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 196.85x4.8x188.5 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.80
mm
+/- 0.204
(Equiv. 0.189 in.)
Groove Dia. (Dg)
188.50
mm
+/- 0.127
(Equiv. 7.421 in.)
Approx. Loose Circlip ID (A)
184.00
mm
External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.30 mm    Standard: MIL-16624
Part Number: CCE-19685-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$177.50 AUD
$213.00 AUD $177.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 197x4x192 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
197.00
mm

(Equiv. 7.756 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
192.00
mm
+ 0.00 / - 0.10
(Equiv. 7.559 in.)
Approx. Loose Circlip ID (A)
187.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 197x4x192 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-19700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 197x4x192 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
197.00
mm

(Equiv. 7.756 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
192.00
mm
+ 0.00 / - 0.10
(Equiv. 7.559 in.)
Approx. Loose Circlip ID (A)
187.50
mm
External Retaining Rings - 197x4x192 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Standard: DIN471
Part Number: CCE-19700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 198x4x193 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
198.00
mm

(Equiv. 7.795 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
193.00
mm
+ 0.00 / - 0.10
(Equiv. 7.598 in.)
Approx. Loose Circlip ID (A)
187.50
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 198x4x193 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-19800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 198x4x193 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
198.00
mm

(Equiv. 7.795 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
193.00
mm
+ 0.00 / - 0.10
(Equiv. 7.598 in.)
Approx. Loose Circlip ID (A)
187.50
mm
External Retaining Rings - 198x4x193 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm    Standard: DIN471
Part Number: CCE-19800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 200x4x194.28 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
194.28
mm
+ 0.00 / - 0.10
(Equiv. 7.649 in.)
Approx. Loose Circlip ID (A)
191.22
mm
Groove Width (W)
4.15
mm
External Retaining Rings - 200x4x194.28 mm - Carbon Steel
Material: Carbon Steel    Clearance on Shaft (C1): 224.00 mm    Clearance in Groove (C1): 230.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 7.50    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 64
Part Number: CCE-20000-C (Each)
1 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$23.14 AUD
$43.79 AUD $23.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
External Retaining Rings - 200x4x194.28 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.72
(Equiv. 0.157 in.)
Groove Dia. (Dg)
194.28
mm
+ 0.00 / - 0.10
(Equiv. 7.649 in.)
Approx. Loose Circlip ID (A)
191.22
mm
External Retaining Rings - 200x4x194.28 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm    Clearance on Shaft (C1): 224.00 mm    Clearance in Groove (C1): 230.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 7.50    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 64
Part Number: CCE-20000-C (Each)
1 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$23.14 AUD
$43.79 AUD $23.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
External Retaining Rings - 200x5x195 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
195.00
mm
+ 0.00 / - 0.12
(Equiv. 7.677 in.)
Approx. Loose Circlip ID (A)
190.50
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 200x5x195 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-20000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 200x5x195 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
195.00
mm
+ 0.00 / - 0.12
(Equiv. 7.677 in.)
Approx. Loose Circlip ID (A)
190.50
mm
External Retaining Rings - 200x5x195 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: Heavy Duty Variation DIN471 table 2
Part Number: CCE-20000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 202x5x196 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
202.00
mm

(Equiv. 7.953 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
196.00
mm
+ 0.00 / - 0.10
(Equiv. 7.717 in.)
Approx. Loose Circlip ID (A)
190.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 202x5x196 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-20200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 202x5x196 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
202.00
mm

(Equiv. 7.953 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
196.00
mm
+ 0.00 / - 0.10
(Equiv. 7.717 in.)
Approx. Loose Circlip ID (A)
190.00
mm
External Retaining Rings - 202x5x196 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-20200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 203.2x4.75x194.46 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
194.46
mm
+/- 0.127
(Equiv. 7.656 in.)
Approx. Loose Circlip ID (A)
189.94
mm
Groove Width (W)
5.31
mm
External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel
Material: Carbon Steel    Min. Lug Diameter (h): 4.3 mm    Standard: MIL-16624
Part Number: CCE-20320-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Apr 04, 2026
$199.32 AUD
$239.18 AUD $199.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 203.2x4.75x194.46 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
194.46
mm
+/- 0.127
(Equiv. 7.656 in.)
Approx. Loose Circlip ID (A)
189.94
mm
External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.31 mm    Min. Lug Diameter (h): 4.3 mm    Standard: MIL-16624
Part Number: CCE-20320-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Apr 04, 2026
$199.32 AUD
$239.18 AUD $199.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 205x5x199 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
205.00
mm

(Equiv. 8.071 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
199.00
mm
+ 0.00 / - 0.12
(Equiv. 7.835 in.)
Approx. Loose Circlip ID (A)
193.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 205x5x199 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-20500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 205x5x199 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
205.00
mm

(Equiv. 8.071 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
199.00
mm
+ 0.00 / - 0.12
(Equiv. 7.835 in.)
Approx. Loose Circlip ID (A)
193.00
mm
External Retaining Rings - 205x5x199 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-20500-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 207x5x201 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
207.00
mm

(Equiv. 8.15 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
201.00
mm
+ 0.00 / - 0.12
(Equiv. 7.913 in.)
Approx. Loose Circlip ID (A)
193.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 207x5x201 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-20700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 207x5x201 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
207.00
mm

(Equiv. 8.15 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
201.00
mm
+ 0.00 / - 0.12
(Equiv. 7.913 in.)
Approx. Loose Circlip ID (A)
193.00
mm
External Retaining Rings - 207x5x201 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-20700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 208x5x202 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
208.00
mm

(Equiv. 8.189 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
202.00
mm
+ 0.00 / - 0.12
(Equiv. 7.953 in.)
Approx. Loose Circlip ID (A)
193.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 208x5x202 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-20800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 208x5x202 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
208.00
mm

(Equiv. 8.189 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
202.00
mm
+ 0.00 / - 0.12
(Equiv. 7.953 in.)
Approx. Loose Circlip ID (A)
193.00
mm
External Retaining Rings - 208x5x202 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-20800-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 209.55x4.8x200.7 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
209.55
mm

(Equiv. 8.25 in.)
Clip Thickness (T)
4.80
mm
+/- 0.204
(Equiv. 0.189 in.)
Groove Dia. (Dg)
200.70
mm
+/- 0.127
(Equiv. 7.902 in.)
Approx. Loose Circlip ID (A)
195.90
mm
Groove Width (W)
5.30
mm
External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16624
Part Number: CCE-20955-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$191.95 AUD
$230.35 AUD $191.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 209.55x4.8x200.7 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
209.55
mm

(Equiv. 8.25 in.)
Clip Thickness (T)
4.80
mm
+/- 0.204
(Equiv. 0.189 in.)
Groove Dia. (Dg)
200.70
mm
+/- 0.127
(Equiv. 7.902 in.)
Approx. Loose Circlip ID (A)
195.90
mm
External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.30 mm    Standard: MIL-16624
Part Number: CCE-20955-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$191.95 AUD
$230.35 AUD $191.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 212x5x206 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
212.00
mm

(Equiv. 8.346 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
206.00
mm
+ 0.00 / - 0.12
(Equiv. 8.11 in.)
Approx. Loose Circlip ID (A)
198.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 212x5x206 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-21200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 212x5x206 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
212.00
mm

(Equiv. 8.346 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
206.00
mm
+ 0.00 / - 0.12
(Equiv. 8.11 in.)
Approx. Loose Circlip ID (A)
198.00
mm
External Retaining Rings - 212x5x206 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-21200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
External Retaining Rings - 215x5x208.28 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
215.00
mm

(Equiv. 8.465 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
208.28
mm
+ 0.00 / - 0.12
(Equiv. 8.2 in.)
Approx. Loose Circlip ID (A)
203.72
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 215x5x208.28 mm - Carbon Steel
Material: Carbon Steel    Min. Lug Diameter (h): 4.00 mm    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 26
Part Number: CCE-21500-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$43.77 AUD
$52.53 AUD $43.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 215x5x208.28 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
215.00
mm

(Equiv. 8.465 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
208.28
mm
+ 0.00 / - 0.12
(Equiv. 8.2 in.)
Approx. Loose Circlip ID (A)
203.72
mm
External Retaining Rings - 215x5x208.28 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.15 mm    Min. Lug Diameter (h): 4.00 mm    Standard: DIN471
Additional stock available from USA subject to Prior Sale = 26
Part Number: CCE-21500-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$43.77 AUD
$52.53 AUD $43.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 215.9x4.75x206.8 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
215.90
mm

(Equiv. 8.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
206.80
mm
+/- 0.127
(Equiv. 8.142 in.)
Approx. Loose Circlip ID (A)
201.90
mm
Groove Width (W)
5.30
mm
External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCE-21590-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$95.95 AUD
$115.15 AUD $95.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 215.9x4.75x206.8 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
215.90
mm

(Equiv. 8.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.204
(Equiv. 0.187 in.)
Groove Dia. (Dg)
206.80
mm
+/- 0.127
(Equiv. 8.142 in.)
Approx. Loose Circlip ID (A)
201.90
mm
External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 5.30 mm    Standard: MIL-16624
Additional stock available from USA subject to Prior Sale = 5
Part Number: CCE-21590-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026
$95.95 AUD
$115.15 AUD $95.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 217x5x211 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
217.00
mm

(Equiv. 8.543 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
211.00
mm
+ 0.00 / - 0.12
(Equiv. 8.307 in.)
Approx. Loose Circlip ID (A)
203.00
mm
Groove Width (W)
5.15
mm
External Retaining Rings - 217x5x211 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN471
Part Number: CCE-21700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 217x5x211 mm Circlips - Carbon Spring Steel Self Finish Circlip
Shaft Diameter (Ds)
217.00
mm

(Equiv. 8.543 in.)
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.72
(Equiv. 0.197 in.)
Groove Dia. (Dg)
211.00
mm
+ 0.00 / - 0.12
(Equiv. 8.307 in.)
Approx. Loose Circlip ID (A)
203.00
mm
External Retaining Rings - 217x5x211 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm    Standard: DIN471
Part Number: CCE-21700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
