Collection: Pulleys - Metric Timing - 10.000mm Pitch - AT10 - 16mm Wide Aluminium

Pulleys (With Images)

Pulleys - Metric Timing
Pulleys - Metric Timing - 10.000mm Pitch
Pulleys - Metric Timing - 10.000mm Pitch - AT10

Pulleys - Metric Timing - 10.000mm Pitch - AT10 - 16mm Wide Aluminium

13 Products in this selection

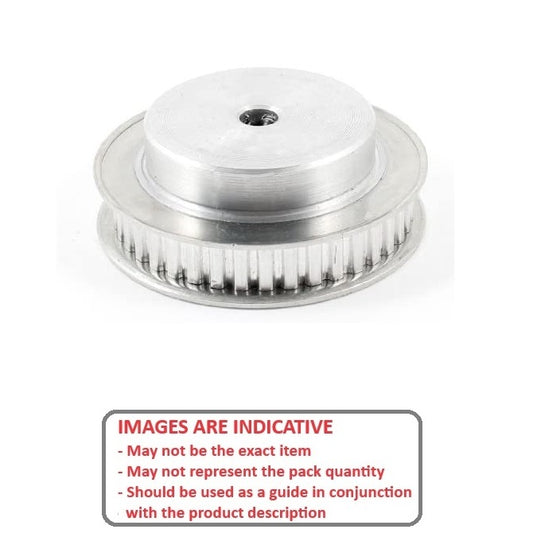

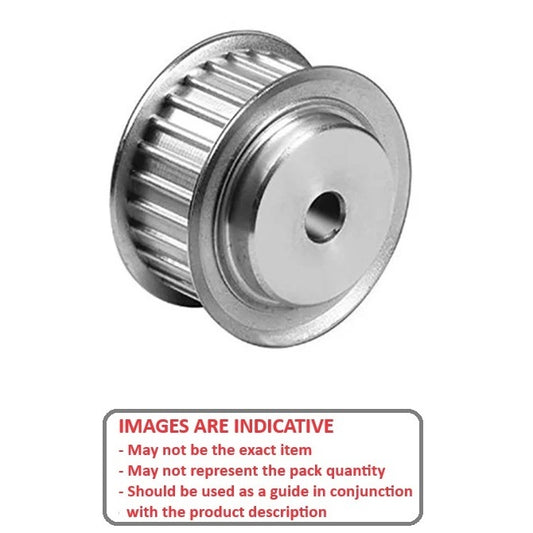

Timing pulleys to suit AT10 Series belts
Aluminium
Zinc Plated Steel Flanges
Plain Hub No Grub Screw
Finished Bore

Additional resources:
Timing Pulleys Catalogue PDF
AT10 Timing Belts

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
18 Nr.	16.00 mm	10.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 40.0
Part Number: P-100A-018-160FF-AL-N-100 Pulleys - 18 Teeth x 16 mm x 10 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $80.86 AUD Regular price Sale price $80.86 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
18 Nr.	16.00 mm	10.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 40.0
Part Number: P-100A-018-160FF-AL-N-100 Pulleys - 18 Teeth x 16 mm x 10 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $80.86 AUD Regular price Sale price $80.86 AUD Unit price per Each
P-100A-018-160FF-AL-N-100 --- Pulleys - 18 Teeth x 16 mm x 10 mm Aluminium P-100A-018-160FF-AL-N-100 --- Pulleys - 18 Teeth x 16 mm x 10 mm Aluminium Regular price $80.86 AUD Regular price Sale price $80.86 AUD Unit price per Out of stock! Backorder Now
20 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 46.0
Part Number: P-100A-020-160FF-AL-N-120 Pulleys - 20 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Each
20 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 46.0
Part Number: P-100A-020-160FF-AL-N-120 Pulleys - 20 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Each
P-100A-020-160FF-AL-N-120 --- Pulleys - 20 Teeth x 16 mm x 12 mm Aluminium P-100A-020-160FF-AL-N-120 --- Pulleys - 20 Teeth x 16 mm x 12 mm Aluminium Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Out of stock! Backorder Now
22 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 70.00 mm Flange Diameter (FD): 75.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 52.0
Part Number: P-100A-022-160FF-AL-N-120 Pulleys - 22 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $82.68 AUD Regular price Sale price $82.68 AUD Unit price per Each
22 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 70.00 mm Flange Diameter (FD): 75.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 52.0
Part Number: P-100A-022-160FF-AL-N-120 Pulleys - 22 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $82.68 AUD Regular price Sale price $82.68 AUD Unit price per Each
P-100A-022-160FF-AL-N-120 --- Pulleys - 22 Teeth x 16 mm x 12 mm Aluminium P-100A-022-160FF-AL-N-120 --- Pulleys - 22 Teeth x 16 mm x 12 mm Aluminium Regular price $82.68 AUD Regular price Sale price $82.68 AUD Unit price per Out of stock! Backorder Now
24 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 76.36 mm Flange Diameter (FD): 83.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 58.0
Part Number: P-100A-024-160FF-AL-N-120 Pulleys - 24 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Each
24 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 76.36 mm Flange Diameter (FD): 83.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 58.0
Part Number: P-100A-024-160FF-AL-N-120 Pulleys - 24 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Each
P-100A-024-160FF-AL-N-120 --- Pulleys - 24 Teeth x 16 mm x 12 mm Aluminium P-100A-024-160FF-AL-N-120 --- Pulleys - 24 Teeth x 16 mm x 12 mm Aluminium Regular price $84.23 AUD Regular price Sale price $84.23 AUD Unit price per Out of stock! Backorder Now
25 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 79.54 mm Flange Diameter (FD): 83.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-025-160FF-AL-N-120 Pulleys - 25 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $84.95 AUD Regular price Sale price $84.95 AUD Unit price per Each
25 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 79.54 mm Flange Diameter (FD): 83.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-025-160FF-AL-N-120 Pulleys - 25 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $84.95 AUD Regular price Sale price $84.95 AUD Unit price per Each
P-100A-025-160FF-AL-N-120 --- Pulleys - 25 Teeth x 16 mm x 12 mm Aluminium P-100A-025-160FF-AL-N-120 --- Pulleys - 25 Teeth x 16 mm x 12 mm Aluminium Regular price $84.95 AUD Regular price Sale price $84.95 AUD Unit price per Out of stock! Backorder Now
27 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 85.91 mm Flange Diameter (FD): 87.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-027-160FF-AL-N-120 Pulleys - 27 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Each
27 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 85.91 mm Flange Diameter (FD): 87.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-027-160FF-AL-N-120 Pulleys - 27 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Each
P-100A-027-160FF-AL-N-120 --- Pulleys - 27 Teeth x 16 mm x 12 mm Aluminium P-100A-027-160FF-AL-N-120 --- Pulleys - 27 Teeth x 16 mm x 12 mm Aluminium Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Out of stock! Backorder Now
30 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 95.45 mm Flange Diameter (FD): 97.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-030-160FF-AL-N-120 Pulleys - 30 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $97.95 AUD Regular price Sale price $97.95 AUD Unit price per Each
30 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 95.45 mm Flange Diameter (FD): 97.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 60.0
Part Number: P-100A-030-160FF-AL-N-120 Pulleys - 30 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $97.95 AUD Regular price Sale price $97.95 AUD Unit price per Each
P-100A-030-160FF-AL-N-120 --- Pulleys - 30 Teeth x 16 mm x 12 mm Aluminium P-100A-030-160FF-AL-N-120 --- Pulleys - 30 Teeth x 16 mm x 12 mm Aluminium Regular price $97.95 AUD Regular price Sale price $97.95 AUD Unit price per Out of stock! Backorder Now
32 Nr.	16.00 mm	12.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 101.81 mm Flange Diameter (FD): 106.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 65.0
Part Number: P-100A-032-160FF-AL-N-120 Pulleys - 32 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $125.41 AUD Regular price Sale price $125.41 AUD Unit price per Each
32 Nr.	16.00 mm	12.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 101.81 mm Flange Diameter (FD): 106.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 65.0
Part Number: P-100A-032-160FF-AL-N-120 Pulleys - 32 Teeth x 16 mm x 12 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $125.41 AUD Regular price Sale price $125.41 AUD Unit price per Each
P-100A-032-160FF-AL-N-120 --- Pulleys - 32 Teeth x 16 mm x 12 mm Aluminium P-100A-032-160FF-AL-N-120 --- Pulleys - 32 Teeth x 16 mm x 12 mm Aluminium Regular price $125.41 AUD Regular price Sale price $125.41 AUD Unit price per Out of stock! Backorder Now
36 Nr.	16.00 mm	16.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 114.54 mm Flange Diameter (FD): 119.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 70.0
Part Number: P-100A-036-160FF-AL-N-160 Pulleys - 36 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Each
36 Nr.	16.00 mm	16.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 114.54 mm Flange Diameter (FD): 119.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 70.0
Part Number: P-100A-036-160FF-AL-N-160 Pulleys - 36 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Each
P-100A-036-160FF-AL-N-160 --- Pulleys - 36 Teeth x 16 mm x 16 mm Aluminium P-100A-036-160FF-AL-N-160 --- Pulleys - 36 Teeth x 16 mm x 16 mm Aluminium Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Out of stock! Backorder Now
40 Nr.	16.00 mm	16.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 127.27 mm Flange Diameter (FD): 131.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 80.0
Part Number: P-100A-040-160FF-AL-N-160 Pulleys - 40 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $153.59 AUD Regular price Sale price $153.59 AUD Unit price per Each
40 Nr.	16.00 mm	16.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 127.27 mm Flange Diameter (FD): 131.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 80.0
Part Number: P-100A-040-160FF-AL-N-160 Pulleys - 40 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $153.59 AUD Regular price Sale price $153.59 AUD Unit price per Each
P-100A-040-160FF-AL-N-160 --- Pulleys - 40 Teeth x 16 mm x 16 mm Aluminium P-100A-040-160FF-AL-N-160 --- Pulleys - 40 Teeth x 16 mm x 16 mm Aluminium Regular price $153.59 AUD Regular price Sale price $153.59 AUD Unit price per Out of stock! Backorder Now
44 Nr.	16.00 mm	16.000 mm	Plain	None
Material: Aluminium Type: 2 Pitch Dia. (PD): 139.99 mm Flange Diameter (FD): 144.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 90.0
Part Number: P-100A-044-160FF-AL-N-160 Pulleys - 44 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $169.32 AUD Regular price Sale price $169.32 AUD Unit price per Each
44 Nr.	16.00 mm	16.000 mm	Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 139.99 mm Flange Diameter (FD): 144.0 mm Overall Length: 31.0 mm Hub Diameter (HD): 90.0
Part Number: P-100A-044-160FF-AL-N-160 Pulleys - 44 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $169.32 AUD Regular price Sale price $169.32 AUD Unit price per Each
P-100A-044-160FF-AL-N-160 --- Pulleys - 44 Teeth x 16 mm x 16 mm Aluminium P-100A-044-160FF-AL-N-160 --- Pulleys - 44 Teeth x 16 mm x 16 mm Aluminium Regular price $169.32 AUD Regular price Sale price $169.32 AUD Unit price per Out of stock! Backorder Now
48 Nr.	16.00 mm	16.000 mm	Plain	None
Material: Aluminium Type: 3 Pitch Dia. (PD): 152.72 mm Overall Length: 31.0 mm Hub Diameter (HD): 95.0
Part Number: P-100A-048-160P-AL-N-160 Pulleys - 48 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $202.77 AUD Regular price Sale price $202.77 AUD Unit price per Each
48 Nr.	16.00 mm	16.000 mm	Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 152.72 mm Overall Length: 31.0 mm Hub Diameter (HD): 95.0
Part Number: P-100A-048-160P-AL-N-160 Pulleys - 48 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $202.77 AUD Regular price Sale price $202.77 AUD Unit price per Each
P-100A-048-160P-AL-N-160 --- Pulleys - 48 Teeth x 16 mm x 16 mm Aluminium P-100A-048-160P-AL-N-160 --- Pulleys - 48 Teeth x 16 mm x 16 mm Aluminium Regular price $202.77 AUD Regular price Sale price $202.77 AUD Unit price per Out of stock! Backorder Now
60 Nr.	16.00 mm	16.000 mm	Plain	None
Material: Aluminium Type: 3 Pitch Dia. (PD): 190.90 mm Overall Length: 31.0 mm Hub Diameter (HD): 110.0
Part Number: P-100A-060-160P-AL-N-160 Pulleys - 60 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $261.77 AUD Regular price Sale price $261.77 AUD Unit price per Each
60 Nr.	16.00 mm	16.000 mm	Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 190.90 mm Overall Length: 31.0 mm Hub Diameter (HD): 110.0
Part Number: P-100A-060-160P-AL-N-160 Pulleys - 60 Teeth x 16 mm x 16 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $261.77 AUD Regular price Sale price $261.77 AUD Unit price per Each
P-100A-060-160P-AL-N-160 --- Pulleys - 60 Teeth x 16 mm x 16 mm Aluminium P-100A-060-160P-AL-N-160 --- Pulleys - 60 Teeth x 16 mm x 16 mm Aluminium Regular price $261.77 AUD Regular price Sale price $261.77 AUD Unit price per Out of stock! Backorder Now
