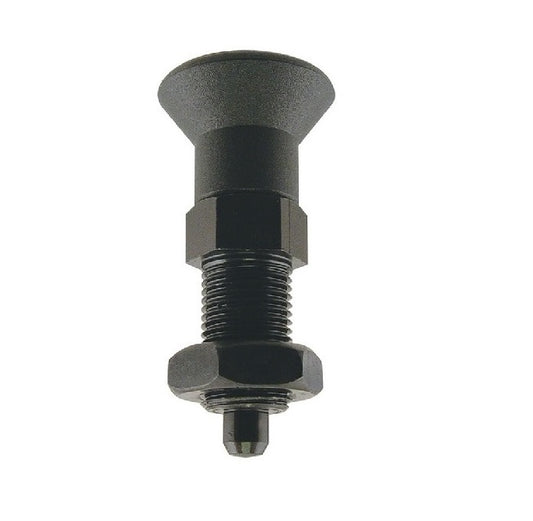

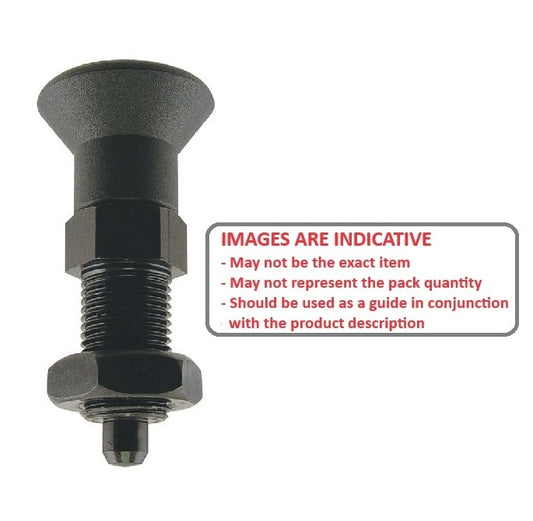

Plungers - Indexing - Pull Knob - Steel - With Nut

7 Products in this selection
  • With thermoplastic knob
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
M6.0x0.75 (6.0mm)
mm 		31.5
mm 		2.0
N 		5.0
N 		3.0
mm 		3.5
mm 		1069692 | PLIT-030-060-075-32-KPN-C --- Plungers - M6.0x0.75 (6.0mm) x 31.5 mm x 2 N
Material: Steel    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
Part Number: PLIT-030-060-075-32-KPN-C Plungers - M6.0x0.75 (6.0mm) x 31.5 mm x 2 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$44.77 AUD
$44.77 AUD
Each
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
M6.0x0.75 (6.0mm)
mm 		31.5
mm 		2.0
N 		5.0
N 		1069692 | PLIT-030-060-075-32-KPN-C --- Plungers - M6.0x0.75 (6.0mm) x 31.5 mm x 2 N
Material: Steel    Tip Diameter (C): 3.0 mm    Tip Length (D): 3.5 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
Part Number: PLIT-030-060-075-32-KPN-C Plungers - M6.0x0.75 (6.0mm) x 31.5 mm x 2 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$44.77 AUD
$44.77 AUD
Each
M8x1 (8.0mm)
mm 		38.5
mm 		2.7
N 		5.4
N 		4.0
mm 		4.0
mm 		1083700 | PLIT-040-080-100-39-KPN-C --- Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Material: Steel    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
Part Number: PLIT-040-080-100-39-KPN-C Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$37.68 AUD
$37.68 AUD
Each
M8x1 (8.0mm)
mm 		38.5
mm 		2.7
N 		5.4
N 		1083700 | PLIT-040-080-100-39-KPN-C --- Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Material: Steel    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
Part Number: PLIT-040-080-100-39-KPN-C Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$37.68 AUD
$37.68 AUD
Each
M10x1 (10.0mm)
mm 		43.5
mm 		2.3
N 		5.4
N 		5.0
mm 		5.0
mm 		1094085 | PLIT-050-100-100-44-KPN-C --- Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Material: Steel    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
Part Number: PLIT-050-100-100-44-KPN-C Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$29.14 AUD
$29.14 AUD
Each
M10x1 (10.0mm)
mm 		43.5
mm 		2.3
N 		5.4
N 		1094085 | PLIT-050-100-100-44-KPN-C --- Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
Part Number: PLIT-050-100-100-44-KPN-C Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$29.14 AUD
$29.14 AUD
Each
M16.0x1.50 (16.0mm)
mm 		68.0
mm 		6.8
N 		15.9
N 		8.0
mm 		8.0
mm 		1115759 | PLIT-080-160-150-68-KPN-C --- Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
Part Number: PLIT-080-160-150-68-KPN-C Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$61.32 AUD
$61.32 AUD
Each
M16.0x1.50 (16.0mm)
mm 		68.0
mm 		6.8
N 		15.9
N 		1115759 | PLIT-080-160-150-68-KPN-C --- Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Material: Steel    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
Part Number: PLIT-080-160-150-68-KPN-C Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$61.32 AUD
$61.32 AUD
Each
M20.0x1.50 (20.0mm)
mm 		74.0
mm 		6.8
N 		15.4
N 		10.0
mm 		10.0
mm 		1125781 | PLIT-100-200-150-74-KPN-C --- Plungers - M20.0x1.50 (20.0mm) x 74 mm x 6.8 N
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-100-200-150-74-KPN-C Plungers - M20.0x1.50 (20.0mm) x 74 mm x 6.8 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$97.41 AUD
$97.41 AUD
Each
M20.0x1.50 (20.0mm)
mm 		74.0
mm 		6.8
N 		15.4
N 		1125781 | PLIT-100-200-150-74-KPN-C --- Plungers - M20.0x1.50 (20.0mm) x 74 mm x 6.8 N
Material: Steel    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-100-200-150-74-KPN-C Plungers - M20.0x1.50 (20.0mm) x 74 mm x 6.8 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$97.41 AUD
$97.41 AUD
Each
M20.0x1.50 (20.0mm)
mm 		78.0
mm 		6.8
N 		17.7
N 		12.0
mm 		12.0
mm 		1125830 | PLIT-120-200-150-78-KPN-C --- Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-120-200-150-78-KPN-C Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$61.86 AUD
$61.86 AUD
Each
M20.0x1.50 (20.0mm)
mm 		78.0
mm 		6.8
N 		17.7
N 		1125830 | PLIT-120-200-150-78-KPN-C --- Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Material: Steel    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-120-200-150-78-KPN-C Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$61.86 AUD
$61.86 AUD
Each
M24x2 (24.0mm)
mm 		96.0
mm 		9.1
N 		20.9
N 		16.0
mm 		16.0
mm 		1131571 | PLIT-160-240-200-96-KPN-C --- Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Material: Steel    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
Part Number: PLIT-160-240-200-96-KPN-C Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$100.50 AUD
$100.50 AUD
Each
M24x2 (24.0mm)
mm 		96.0
mm 		9.1
N 		20.9
N 		1131571 | PLIT-160-240-200-96-KPN-C --- Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Material: Steel    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
Part Number: PLIT-160-240-200-96-KPN-C Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$100.50 AUD
$100.50 AUD
Each
