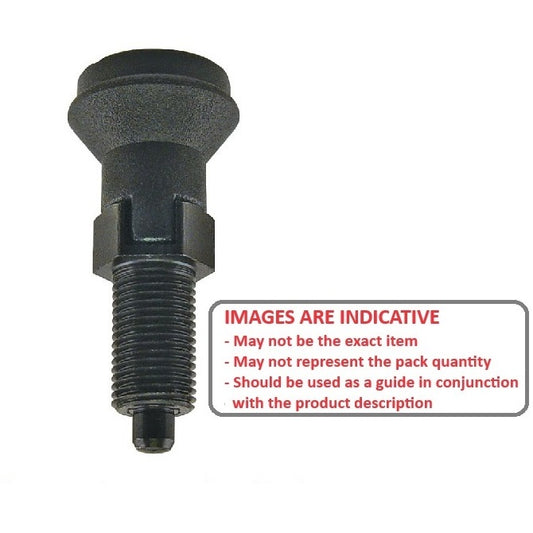

Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut

Plungers -> Indexing Pull Knob -> Steel -> With Locking Slot and Nut

There are 8 products in the sub-categories of Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut. Browse the Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut products table.

Category Details

A selection of With Locking Slot and Nut Steel Indexing Pull Knob Plungers. With thermoplastic knob

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Indexing Pull Knob - Steel - With Locking Slot and Nut category on the Small Parts & Bearings online store.
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel Plunger
Thread (B)
M6 Fine (6x0.75mm)

Overall Length (A)
31.5
mm

(Equiv. 1.24 in.)
Initial End Force
2.0
N
Final End Force
5.0
N
Tip Diameter (C)
3.0
mm
Tip Length (D)
3.5
mm
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel
Material: Steel    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
Part Number: PLIT-030-060-075-32-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$42.50 AUD
$42.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel Plunger
Thread (B)
M6 Fine (6x0.75mm)

Overall Length (A)
31.5
mm

(Equiv. 1.24 in.)
Initial End Force
2.0
N
Final End Force
5.0
N
Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 2 N - Steel
Material: Steel    Tip Diameter (C): 3.0 mm    Tip Length (D): 3.5 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0 mm    Nut Size (L): 10.0
Part Number: PLIT-030-060-075-32-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$42.50 AUD
$42.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel Plunger
Thread (B)
M8 Fine (8x1mm)

Overall Length (A)
38.5
mm

(Equiv. 1.516 in.)
Initial End Force
2.7
N
Final End Force
5.4
N
Tip Diameter (C)
4.0
mm
Tip Length (D)
4.0
mm
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel
Material: Steel    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
Part Number: PLIT-040-080-100-39-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$33.68 AUD
$40.42 AUD $33.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel Plunger
Thread (B)
M8 Fine (8x1mm)

Overall Length (A)
38.5
mm

(Equiv. 1.516 in.)
Initial End Force
2.7
N
Final End Force
5.4
N
Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N - Steel
Material: Steel    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0 mm    Nut Size (L): 13.0
Part Number: PLIT-040-080-100-39-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$33.68 AUD
$40.42 AUD $33.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel Plunger
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
2.3
N
Final End Force
5.4
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.0
mm
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel
Material: Steel    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
Part Number: PLIT-050-100-100-44-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$36.14 AUD
$43.36 AUD $36.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel Plunger
Thread (B)
M10x1 (Extra Fine)

Overall Length (A)
43.5
mm

(Equiv. 1.713 in.)
Initial End Force
2.3
N
Final End Force
5.4
N
Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N - Steel
Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0 mm    Nut Size (L): 17.0
Part Number: PLIT-050-100-100-44-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$36.14 AUD
$43.36 AUD $36.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel Plunger
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
2.7
N
Final End Force
6.4
N
Tip Diameter (C)
6.0
mm
Tip Length (D)
6.0
mm
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel
Material: Steel    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0 mm    Nut Size (L): 19.0
Part Number: PLIT-060-120-150-52-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$40.68 AUD
$48.82 AUD $40.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel Plunger
Thread (B)
M12x1.5 (Fine)

Overall Length (A)
51.7
mm

(Equiv. 2.035 in.)
Initial End Force
2.7
N
Final End Force
6.4
N
Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N - Steel
Material: Steel    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0 mm    Nut Size (L): 19.0
Part Number: PLIT-060-120-150-52-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$40.68 AUD
$48.82 AUD $40.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel Plunger
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
6.8
N
Final End Force
15.9
N
Tip Diameter (C)
8.0
mm
Tip Length (D)
8.0
mm
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
Part Number: PLIT-080-160-150-68-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$51.32 AUD
$61.58 AUD $51.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel Plunger
Thread (B)
M16 Extra Fine (16x1.5mm)

Overall Length (A)
68.0
mm

(Equiv. 2.677 in.)
Initial End Force
6.8
N
Final End Force
15.9
N
Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N - Steel
Material: Steel    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0 mm    Nut Size (L): 24.0
Part Number: PLIT-080-160-150-68-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$51.32 AUD
$61.58 AUD $51.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel Plunger
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
6.8
N
Final End Force
15.4
N
Tip Diameter (C)
10.0
mm
Tip Length (D)
10.0
mm
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-100-200-150-74-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$61.05 AUD
$73.25 AUD $61.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel Plunger
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
74.0
mm

(Equiv. 2.913 in.)
Initial End Force
6.8
N
Final End Force
15.4
N
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N - Steel
Material: Steel    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-100-200-150-74-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$61.05 AUD
$73.25 AUD $61.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

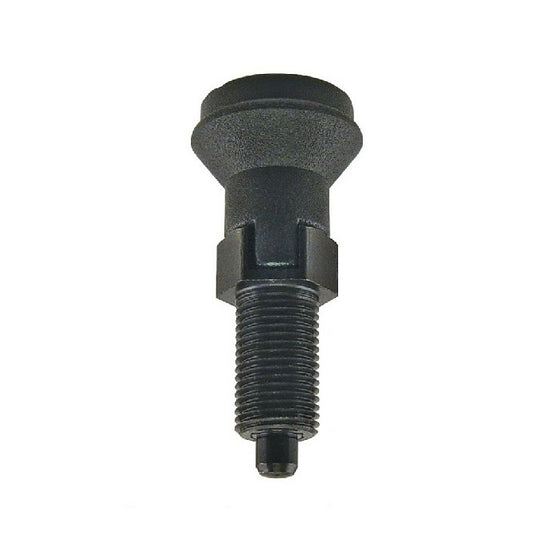

Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel Plunger
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
78.0
mm

(Equiv. 3.071 in.)
Initial End Force
6.8
N
Final End Force
17.7
N
Tip Diameter (C)
12.0
mm
Tip Length (D)
12.0
mm
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel
Material: Steel    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-120-200-150-78-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$82.05 AUD
$98.45 AUD $82.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel Plunger
Thread (B)
M20 Extra Fine (20x1.5mm)

Overall Length (A)
78.0
mm

(Equiv. 3.071 in.)
Initial End Force
6.8
N
Final End Force
17.7
N
Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N - Steel
Material: Steel    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0 mm    Nut Size (L): 30.0
Part Number: PLIT-120-200-150-78-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$82.05 AUD
$98.45 AUD $82.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel Plunger
Thread (B)
M24 Fine (24x2mm)

Overall Length (A)
96.0
mm

(Equiv. 3.78 in.)
Initial End Force
9.1
N
Final End Force
20.9
N
Tip Diameter (C)
16.0
mm
Tip Length (D)
16.0
mm
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel
Material: Steel    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
Part Number: PLIT-160-240-200-96-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$116.77 AUD
$140.13 AUD $116.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel Plunger
Thread (B)
M24 Fine (24x2mm)

Overall Length (A)
96.0
mm

(Equiv. 3.78 in.)
Initial End Force
9.1
N
Final End Force
20.9
N
Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N - Steel
Material: Steel    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0 mm    Nut Size (L): 36.0
Part Number: PLIT-160-240-200-96-LKPN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$116.77 AUD
$140.13 AUD $116.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
