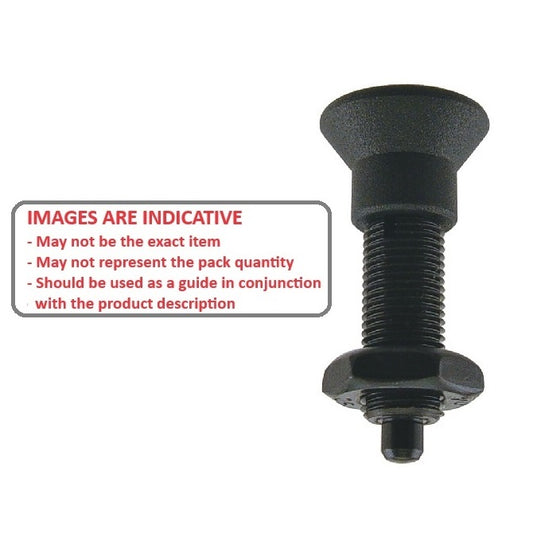

Plungers - Indexing - Pull Knob - No Collar - Steel - With Nut

6 Products in this selection
  • With thermoplastic knob
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
M8x1 (8.0mm)
mm 		38.5
mm 		2.7
N 		5.4
N 		4.0
mm 		4.0
mm 		1083696 | PLIT-040-080-100-39-KPUN-C --- Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Material: Steel    Hex Height (F): 13.5 mm    Knob Diameter (J): 18.0 mm    Hex Size (L): 13.0
Part Number: PLIT-040-080-100-39-KPUN-C Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$32.05 AUD
$32.05 AUD
Each
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
M8x1 (8.0mm)
mm 		38.5
mm 		2.7
N 		5.4
N 		1083696 | PLIT-040-080-100-39-KPUN-C --- Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Material: Steel    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Hex Height (F): 13.5 mm    Knob Diameter (J): 18.0 mm    Hex Size (L): 13.0
Part Number: PLIT-040-080-100-39-KPUN-C Plungers - M8x1 (8.0mm) x 38.5 mm x 2.7 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$32.05 AUD
$32.05 AUD
Each
M10x1 (10.0mm)
mm 		43.5
mm 		2.3
N 		5.4
N 		5.0
mm 		5.0
mm 		1094083 | PLIT-050-100-100-44-KPUN-C --- Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Material: Steel    Hex Height (F): 14.5 mm    Knob Diameter (J): 21.0 mm    Hex Size (L): 17.0
Part Number: PLIT-050-100-100-44-KPUN-C Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$31.23 AUD
$31.23 AUD
Each
M10x1 (10.0mm)
mm 		43.5
mm 		2.3
N 		5.4
N 		1094083 | PLIT-050-100-100-44-KPUN-C --- Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Hex Height (F): 14.5 mm    Knob Diameter (J): 21.0 mm    Hex Size (L): 17.0
Part Number: PLIT-050-100-100-44-KPUN-C Plungers - M10x1 (10.0mm) x 43.5 mm x 2.3 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$31.23 AUD
$31.23 AUD
Each
M12.0x1.50 (12.0mm)
mm 		51.7
mm 		2.7
N 		6.4
N 		6.0
mm 		6.0
mm
Material: Steel    Hex Height (F): 17.7 mm    Knob Diameter (J): 25.0 mm    Hex Size (L): 19.0
Part Number: PLIT-060-120-150-52-KPUN-C Plungers - M12.0x1.50 (12.0mm) x 51.7 mm x 2.7 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$34.23 AUD
$34.23 AUD
Each
M12.0x1.50 (12.0mm)
mm 		51.7
mm 		2.7
N 		6.4
N
Material: Steel    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Hex Height (F): 17.7 mm    Knob Diameter (J): 25.0 mm    Hex Size (L): 19.0
Part Number: PLIT-060-120-150-52-KPUN-C Plungers - M12.0x1.50 (12.0mm) x 51.7 mm x 2.7 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$34.23 AUD
$34.23 AUD
Each
M16.0x1.50 (16.0mm)
mm 		68.0
mm 		6.8
N 		15.9
N 		8.0
mm 		8.0
mm 		1115758 | PLIT-080-160-150-68-KPUN-C --- Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Material: Steel    Hex Height (F): 24.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (L): 24.0
Part Number: PLIT-080-160-150-68-KPUN-C Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$41.68 AUD
$41.68 AUD
Each
M16.0x1.50 (16.0mm)
mm 		68.0
mm 		6.8
N 		15.9
N 		1115758 | PLIT-080-160-150-68-KPUN-C --- Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Material: Steel    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Hex Height (F): 24.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (L): 24.0
Part Number: PLIT-080-160-150-68-KPUN-C Plungers - M16.0x1.50 (16.0mm) x 68 mm x 6.8 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$41.68 AUD
$41.68 AUD
Each

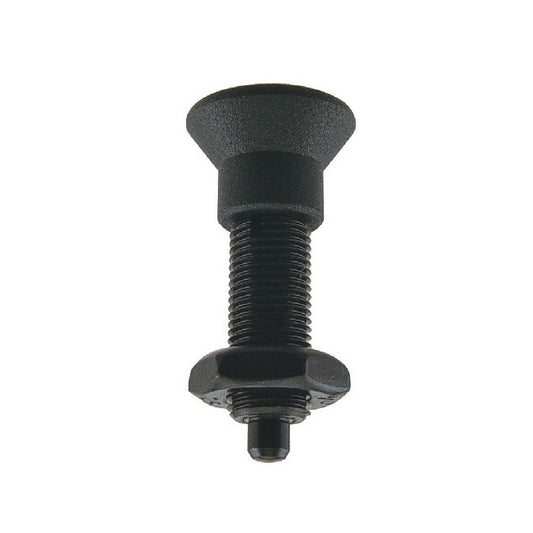

M20.0x1.50 (20.0mm)
mm 		78.0
mm 		6.8
N 		17.7
N 		12.0
mm 		12.0
mm 		1125825 | PLIT-120-200-150-78-KPUN-C --- Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Material: Steel    Hex Height (F): 24.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (L): 30.0
Part Number: PLIT-120-200-150-78-KPUN-C Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$68.95 AUD
$68.95 AUD
Each
M20.0x1.50 (20.0mm)
mm 		78.0
mm 		6.8
N 		17.7
N 		1125825 | PLIT-120-200-150-78-KPUN-C --- Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Material: Steel    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Hex Height (F): 24.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (L): 30.0
Part Number: PLIT-120-200-150-78-KPUN-C Plungers - M20.0x1.50 (20.0mm) x 78 mm x 6.8 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$68.95 AUD
$68.95 AUD
Each
M24x2 (24.0mm)
mm 		96.0
mm 		9.1
N 		20.9
N 		16.0
mm 		16.0
mm 		1131569 | PLIT-160-240-200-96-KPUN-C --- Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Material: Steel    Hex Height (F): 30.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (L): 36.0
Part Number: PLIT-160-240-200-96-KPUN-C Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$60.50 AUD
$60.50 AUD
Each
M24x2 (24.0mm)
mm 		96.0
mm 		9.1
N 		20.9
N 		1131569 | PLIT-160-240-200-96-KPUN-C --- Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Material: Steel    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Hex Height (F): 30.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (L): 36.0
Part Number: PLIT-160-240-200-96-KPUN-C Plungers - M24x2 (24.0mm) x 96 mm x 9.1 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$60.50 AUD
$60.50 AUD
Each
