Collection: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic
Plungers -> Indexing Pull Knob -> No Collar -> Stainless and PlasticThere are 9 products in the sub-categories of Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic. Browse the Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic products table. To narrow down the selection, please choose a sub-category from the links below.

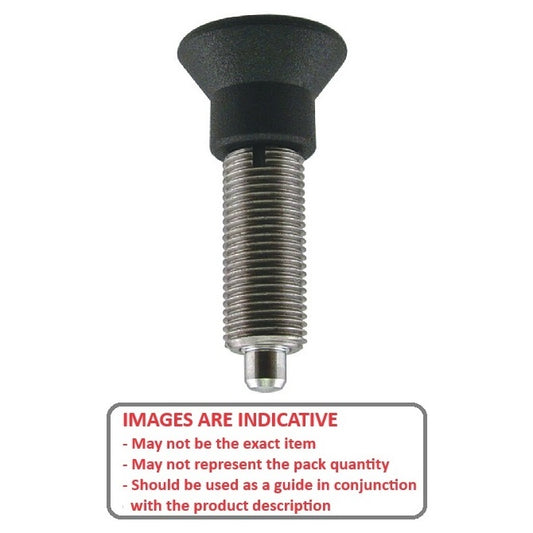

Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard
A selection of Standard Stainless and Plastic No Collar Indexing Pull Knob...
Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut
A selection of With Nut Stainless and Plastic No Collar Indexing Pull...
Category Details
This category includes various types of indexing pull knob plungers.
- Spring-loaded pin used to lock a part into a specific position.
- To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic category on the Small Parts & Bearings online store.
| Thread (B) | Overall Length (A) | Initial End Force | Final End Force | Tip Diameter (C) | Tip Length (D) |
Indicative Image |
|---|---|---|---|---|---|---|
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
Tip Diameter (C)
4.0
mm |
Tip Length (D)
4.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-040-080-100-39-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$46.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread (B) | Overall Length (A) | Initial End Force | Final End Force |
Indicative Image |
||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 4.0 mm
Tip Length (D): 4.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-040-080-100-39-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$46.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
Tip Diameter (C)
4.0
mm |
Tip Length (D)
4.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-040-080-100-39-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$48.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 4.0 mm
Tip Length (D): 4.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-040-080-100-39-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$48.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M10x1 (Extra Fine)
|
Overall Length (A)
43.5
mm (Equiv. 1.713 in.) |
Initial End Force
2.3
N |
Final End Force
5.4
N |
Tip Diameter (C)
5.0
mm |
Tip Length (D)
5.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-050-100-100-44-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$39.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M10x1 (Extra Fine)
|
Overall Length (A)
43.5
mm (Equiv. 1.713 in.) |
Initial End Force
2.3
N |
Final End Force
5.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 5.0 mm
Tip Length (D): 5.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-050-100-100-44-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$39.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M10x1 (Extra Fine)
|
Overall Length (A)
43.5
mm (Equiv. 1.713 in.) |
Initial End Force
2.3
N |
Final End Force
5.4
N |
Tip Diameter (C)
5.0
mm |
Tip Length (D)
5.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-050-100-100-44-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$36.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 2.3 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M10x1 (Extra Fine)
|
Overall Length (A)
43.5
mm (Equiv. 1.713 in.) |
Initial End Force
2.3
N |
Final End Force
5.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 5.0 mm
Tip Length (D): 5.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-050-100-100-44-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$36.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M12x1.5 (Fine)
|
Overall Length (A)
51.7
mm (Equiv. 2.035 in.) |
Initial End Force
2.7
N |
Final End Force
6.4
N |
Tip Diameter (C)
6.0
mm |
Tip Length (D)
6.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-060-120-150-52-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$40.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 2.7 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M12x1.5 (Fine)
|
Overall Length (A)
51.7
mm (Equiv. 2.035 in.) |
Initial End Force
2.7
N |
Final End Force
6.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 6.0 mm
Tip Length (D): 6.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-060-120-150-52-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$40.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M16 Extra Fine (16x1.5mm)
|
Overall Length (A)
68.0
mm (Equiv. 2.677 in.) |
Initial End Force
6.8
N |
Final End Force
15.9
N |
Tip Diameter (C)
8.0
mm |
Tip Length (D)
8.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-080-160-150-68-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$56.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M16 Extra Fine (16x1.5mm)
|
Overall Length (A)
68.0
mm (Equiv. 2.677 in.) |
Initial End Force
6.8
N |
Final End Force
15.9
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 8.0 mm
Tip Length (D): 8.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-080-160-150-68-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$56.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M20 Extra Fine (20x1.5mm)
|
Overall Length (A)
74.0
mm (Equiv. 2.913 in.) |
Initial End Force
6.8
N |
Final End Force
15.4
N |
Tip Diameter (C)
10.0
mm |
Tip Length (D)
10.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-100-200-150-74-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$82.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M20 Extra Fine (20x1.5mm)
|
Overall Length (A)
74.0
mm (Equiv. 2.913 in.) |
Initial End Force
6.8
N |
Final End Force
15.4
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 10.0 mm
Tip Length (D): 10.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-100-200-150-74-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$82.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M20 Extra Fine (20x1.5mm)
|
Overall Length (A)
78.0
mm (Equiv. 3.071 in.) |
Initial End Force
6.8
N |
Final End Force
17.7
N |
Tip Diameter (C)
12.0
mm |
Tip Length (D)
12.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-120-200-150-78-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$82.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 6.8 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M20 Extra Fine (20x1.5mm)
|
Overall Length (A)
78.0
mm (Equiv. 3.071 in.) |
Initial End Force
6.8
N |
Final End Force
17.7
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 12.0 mm
Tip Length (D): 12.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - Standard |
||||||
|
Part Number: PLIT-120-200-150-78-KPU-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$82.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M24 Fine (24x2mm)
|
Overall Length (A)
96.0
mm (Equiv. 3.78 in.) |
Initial End Force
9.1
N |
Final End Force
20.9
N |
Tip Diameter (C)
16.0
mm |
Tip Length (D)
16.0
mm |
|
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-160-240-200-96-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$106.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 9.1 N No Collar - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger | ||||||
|
Thread (B)
M24 Fine (24x2mm)
|
Overall Length (A)
96.0
mm (Equiv. 3.78 in.) |
Initial End Force
9.1
N |
Final End Force
20.9
N |
|
||
|
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Tip Diameter (C): 16.0 mm
Tip Length (D): 16.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut |
||||||
|
Part Number: PLIT-160-240-200-96-KPUN-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$106.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
