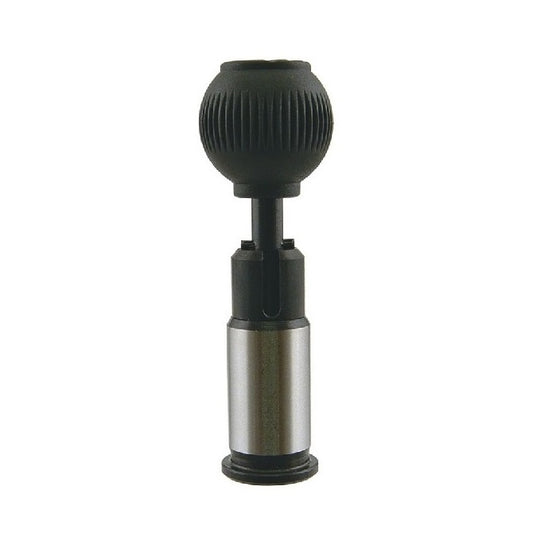

Plungers - Indexing Precision - Ball Grip - With Support and Locking

4 Products in this selection
  • Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
Additional resources:
A more concise listing may be found on the Smallparts store at Plungers - Indexing Precision - Ball Grip - With Support and Locking. Smallparts promote the most popular MBA products.
Body Diameter (I) Body Length (D) Initial End Force Final End Force Tip Diameter (A) Tip Length (K) Indicative
Body Diameter (I)
16.00
mm

(0.63 in.)
Body Length (D)
31.0
mm

(1.22 in.)
Initial End Force
1.5
N
Final End Force
3.1
N
Tip Diameter (A)
10.0
mm
Tip Length (K)
10.0
mm
Indexing Precision Plungers - 16x31 mm - 1.5 N - Steel
Material: Steel    Knob Diameter (B): 25.0 mm    Knob Length (G): 25.0 mm    Internal Thread of Grip Ball: M6.0
Part Number: PLI-P-100-250-19-LSP-BG Indexing Precision Plungers - 16x31 mm - 1.5 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$649.14 AUD
$778.96 AUD $649.14 AUD
Each
Body Diameter (I) Body Length (D) Initial End Force Final End Force Indicative
Body Diameter (I)
16.00
mm

(0.63 in.)
Body Length (D)
31.0
mm

(1.22 in.)
Initial End Force
1.5
N
Final End Force
3.1
N
Indexing Precision Plungers - 16x31 mm - 1.5 N - Steel
Material: Steel    Tip Diameter (A): 10.0 mm    Tip Length (K): 10.0 mm    Knob Diameter (B): 25.0 mm    Knob Length (G): 25.0 mm    Internal Thread of Grip Ball: M6.0
Part Number: PLI-P-100-250-19-LSP-BG Indexing Precision Plungers - 16x31 mm - 1.5 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$649.14 AUD
$778.96 AUD $649.14 AUD
Each
View the product page first if you are unsure.
Body Diameter (I)
20.00
mm

(0.787 in.)
Body Length (D)
35.0
mm

(1.378 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Tip Diameter (A)
12.0
mm
Tip Length (K)
10.0
mm
Indexing Precision Plungers - 20x35 mm - 1.5 N - Steel
Material: Steel    Knob Diameter (B): 32.0 mm    Knob Length (G): 33.0 mm    Internal Thread of Grip Ball: M8.0
Part Number: PLI-P-120-320-23-LSP-BG Indexing Precision Plungers - 20x35 mm - 1.5 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$724.32 AUD
$869.18 AUD $724.32 AUD
Each
Body Diameter (I)
20.00
mm

(0.787 in.)
Body Length (D)
35.0
mm

(1.378 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Indexing Precision Plungers - 20x35 mm - 1.5 N - Steel
Material: Steel    Tip Diameter (A): 12.0 mm    Tip Length (K): 10.0 mm    Knob Diameter (B): 32.0 mm    Knob Length (G): 33.0 mm    Internal Thread of Grip Ball: M8.0
Part Number: PLI-P-120-320-23-LSP-BG Indexing Precision Plungers - 20x35 mm - 1.5 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$724.32 AUD
$869.18 AUD $724.32 AUD
Each
View the product page first if you are unsure.
Body Diameter (I)
25.00
mm
Body Length (D)
42.0
mm
Initial End Force
2.0
N
Final End Force
5.1
N
Tip Diameter (A)
16.0
mm
Tip Length (K)
10.0
mm
Indexing Precision Plungers - 25x42 mm - 2 N - Steel
Material: Steel    Knob Diameter (B): 40.0 mm    Knob Length (G): 41.5 mm    Internal Thread of Grip Ball: M10.0
Part Number: PLI-P-160-400-28-LSP-BG Indexing Precision Plungers - 25x42 mm - 2 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$828.05 AUD
$993.65 AUD $828.05 AUD
Each
Body Diameter (I)
25.00
mm
Body Length (D)
42.0
mm
Initial End Force
2.0
N
Final End Force
5.1
N
Indexing Precision Plungers - 25x42 mm - 2 N - Steel
Material: Steel    Tip Diameter (A): 16.0 mm    Tip Length (K): 10.0 mm    Knob Diameter (B): 40.0 mm    Knob Length (G): 41.5 mm    Internal Thread of Grip Ball: M10.0
Part Number: PLI-P-160-400-28-LSP-BG Indexing Precision Plungers - 25x42 mm - 2 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$828.05 AUD
$993.65 AUD $828.05 AUD
Each
View the product page first if you are unsure.
Body Diameter (I)
38.00
mm

(1.496 in.)
Body Length (D)
60.0
mm

(2.362 in.)
Initial End Force
2.0
N
Final End Force
7.4
N
Tip Diameter (A)
25.0
mm
Tip Length (K)
10.0
mm
Indexing Precision Plungers - 38x60 mm - 2 N - Steel
Material: Steel    Knob Diameter (B): 50.0 mm    Knob Length (G): 51.0 mm    Internal Thread of Grip Ball: M10.0
Part Number: PLI-P-250-500-42-LSP-BG Indexing Precision Plungers - 38x60 mm - 2 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$572.77 AUD
$687.33 AUD $572.77 AUD
Each
Body Diameter (I)
38.00
mm

(1.496 in.)
Body Length (D)
60.0
mm

(2.362 in.)
Initial End Force
2.0
N
Final End Force
7.4
N
Indexing Precision Plungers - 38x60 mm - 2 N - Steel
Material: Steel    Tip Diameter (A): 25.0 mm    Tip Length (K): 10.0 mm    Knob Diameter (B): 50.0 mm    Knob Length (G): 51.0 mm    Internal Thread of Grip Ball: M10.0
Part Number: PLI-P-250-500-42-LSP-BG Indexing Precision Plungers - 38x60 mm - 2 N - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 10, 2025
$572.77 AUD
$687.33 AUD $572.77 AUD
Each
View the product page first if you are unsure.
