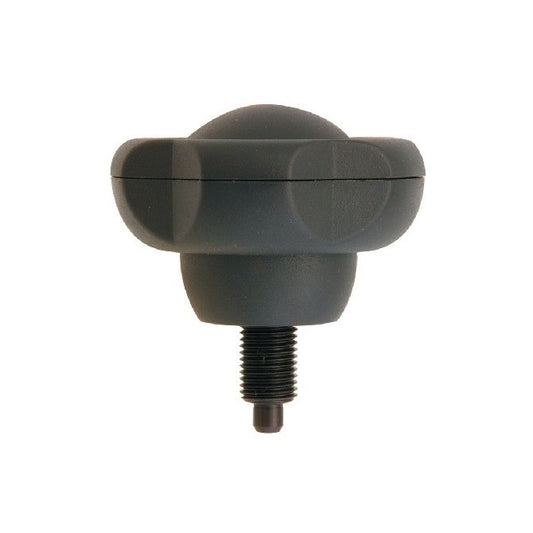

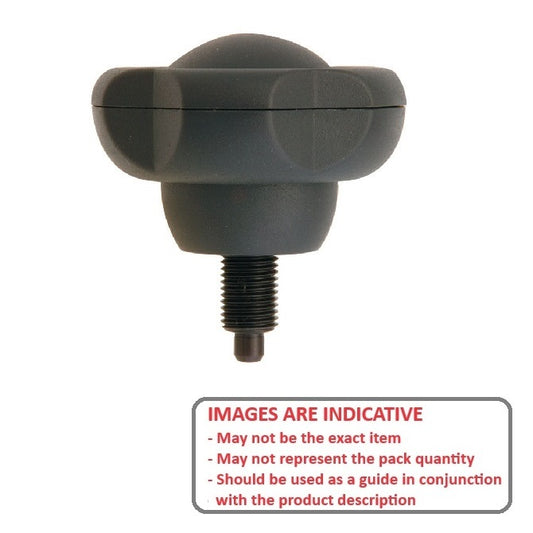

Plungers - Indexing - Large Handle

4 Products in this selection
  • Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
  • Extra large fluted handle for quick and easy plunger retraction
  • Can be fully retracted into the body by pulling up on the handle.
  • Handle is black thermoplastic.
  • Body and pin are steel with black oxide finish.
Thread (B) Thread Length (C) Handle Diameter (A) Handle Length (B) Nose Diameter (E) Tip Length (D) Indicative
3/8-24 UNF (9.525mm)
 13.0
mm 		50.0
mm 		34.8
mm 		5.0
mm 		5.1
mm 		1087361 | PLIT-050-095F-50-LH --- Plungers - 3/8-24 UNF (9.525mm) x 13 mm x 50 mm
Material: Steel
Part Number: PLIT-050-095F-50-LH Plungers - 3/8-24 UNF (9.525mm) x 13 mm x 50 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$48.41 AUD
$48.41 AUD
Each
Thread (B) Thread Length (C) Handle Diameter (A) Handle Length (B) Indicative
3/8-24 UNF (9.525mm)
 13.0
mm 		50.0
mm 		34.8
mm 		1087361 | PLIT-050-095F-50-LH --- Plungers - 3/8-24 UNF (9.525mm) x 13 mm x 50 mm
Material: Steel    Nose Diameter (E): 5.0 mm    Tip Length (D): 5.1 mm
Part Number: PLIT-050-095F-50-LH Plungers - 3/8-24 UNF (9.525mm) x 13 mm x 50 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$48.41 AUD
$48.41 AUD
Each
1/2-13 UNC (12.700mm)
 17.0
mm 		50.0
mm 		34.8
mm 		6.0
mm 		6.1
mm 		1102919 | PLIT-060-127C-50-LH --- Plungers - 1/2-13 UNC (12.700mm) x 17 mm x 50 mm
Material: Steel
Part Number: PLIT-060-127C-50-LH Plungers - 1/2-13 UNC (12.700mm) x 17 mm x 50 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$56.50 AUD
$56.50 AUD
Each
1/2-13 UNC (12.700mm)
 17.0
mm 		50.0
mm 		34.8
mm 		1102919 | PLIT-060-127C-50-LH --- Plungers - 1/2-13 UNC (12.700mm) x 17 mm x 50 mm
Material: Steel    Nose Diameter (E): 6.0 mm    Tip Length (D): 6.1 mm
Part Number: PLIT-060-127C-50-LH Plungers - 1/2-13 UNC (12.700mm) x 17 mm x 50 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$56.50 AUD
$56.50 AUD
Each
5/8-11 UNC (15.875mm)
 22.1
mm 		63.0
mm 		43.9
mm 		8.0
mm 		7.9
mm 		1111779 | PLIT-080-158C-63-LH --- Plungers - 5/8-11 UNC (15.875mm) x 22.1 mm x 63 mm
Material: Steel
Part Number: PLIT-080-158C-63-LH Plungers - 5/8-11 UNC (15.875mm) x 22.1 mm x 63 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$78.50 AUD
$78.50 AUD
Each
5/8-11 UNC (15.875mm)
 22.1
mm 		63.0
mm 		43.9
mm 		1111779 | PLIT-080-158C-63-LH --- Plungers - 5/8-11 UNC (15.875mm) x 22.1 mm x 63 mm
Material: Steel    Nose Diameter (E): 8.0 mm    Tip Length (D): 7.9 mm
Part Number: PLIT-080-158C-63-LH Plungers - 5/8-11 UNC (15.875mm) x 22.1 mm x 63 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$78.50 AUD
$78.50 AUD
Each
3/4-10 UNC (19.050mm)
 23.9
mm 		63.0
mm 		43.9
mm 		10.0
mm 		9.9
mm 		1121238 | PLIT-100-191C-63-LH --- Plungers - 3/4-10 UNC (19.050mm) x 23.9 mm x 63 mm
Material: Steel
Part Number: PLIT-100-191C-63-LH Plungers - 3/4-10 UNC (19.050mm) x 23.9 mm x 63 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$84.05 AUD
$84.05 AUD
Each
3/4-10 UNC (19.050mm)
 23.9
mm 		63.0
mm 		43.9
mm 		1121238 | PLIT-100-191C-63-LH --- Plungers - 3/4-10 UNC (19.050mm) x 23.9 mm x 63 mm
Material: Steel    Nose Diameter (E): 10.0 mm    Tip Length (D): 9.9 mm
Part Number: PLIT-100-191C-63-LH Plungers - 3/4-10 UNC (19.050mm) x 23.9 mm x 63 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$84.05 AUD
$84.05 AUD
Each
