Plungers - Ball Push Fit - Plastic Body - Plastic Ball

Plungers -> Ball Push Fit -> Plastic Body -> Plastic Ball

There are 9 products in the sub-categories of Plungers - Ball Push Fit - Plastic Body - Plastic Ball. Browse the Plungers - Ball Push Fit - Plastic Body - Plastic Ball products table.

Category Details

A selection of Plastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.

  • Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
  • Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
  • Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
  • Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
  • Ball: W.-Nr 1.4034 (420) Stainless Steel.
  • Spring: W.-Nr 1.4310 (301) Stainless Steel.
  • Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Ball Push Fit - Plastic Body - Plastic Ball category on the Small Parts & Bearings online store.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic Plunger
Body Diameter (D)
3.00
mm

(Equiv. 0.118 in.)
Length (L)
4.00
mm

(Equiv. 0.157 in.)
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
4.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.60
mm
Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 3.6 mm
Part Number: PLBP-030-040-PP-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$36.93 AUD $30.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic Plunger
Body Diameter (D)
3.00
mm

(Equiv. 0.118 in.)
Length (L)
4.00
mm

(Equiv. 0.157 in.)
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
4.00
N
Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.60 mm    Shoulder Diameter (S): 3.6 mm
Part Number: PLBP-030-040-PP-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$36.93 AUD $30.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger
Body Diameter (D)
4.00
mm
+ 0.1 / - 0.0
(Equiv. 0.157 in.)
Length (L)
5.0
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.0
N
Final Pressure (F2)
7.0
N
Ball Diameter (D1)
3.0
mm
Ball Height (H)
0.7
mm
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 4.6 mm    Weight (Approx): 0.2 g
Part Number: PLBP-040-050-PP-007 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$18.14 AUD
$21.76 AUD $18.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger
Body Diameter (D)
4.00
mm
+ 0.1 / - 0.0
(Equiv. 0.157 in.)
Length (L)
5.0
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.0
N
Final Pressure (F2)
7.0
N
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 3.0 mm    Ball Height (H): 0.7 mm    Shoulder Diameter (S): 4.6 mm    Weight (Approx): 0.2 g
Part Number: PLBP-040-050-PP-007 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$18.14 AUD
$21.76 AUD $18.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger
Body Diameter (D)
4.00
mm

(Equiv. 0.157 in.)
Length (L)
5.00
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
3.00
mm
Ball Height (H)
0.90
mm
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 4.6 mm
Part Number: PLBP-040-050-PP-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$36.93 AUD $30.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger
Body Diameter (D)
4.00
mm

(Equiv. 0.157 in.)
Length (L)
5.00
mm

(Equiv. 0.197 in.)
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
5.00
N
Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 3.00 mm    Ball Height (H): 0.90 mm    Shoulder Diameter (S): 4.6 mm
Part Number: PLBP-040-050-PP-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.77 AUD
$36.93 AUD $30.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Diameter (D1)
4.0
mm
Ball Height (H)
1.0
mm
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 5.6 mm    Weight (Approx): 0.4 g
Part Number: PLBP-050-060-PP-007 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$4.95 AUD
$4.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Shoulder Diameter (S): 5.6 mm    Weight (Approx): 0.4 g
Part Number: PLBP-050-060-PP-007 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$4.95 AUD
$4.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 6x7 mm - 5 N Plastic Body - Plastic Plunger
Body Diameter (D)
6.00
mm

(Equiv. 0.236 in.)
Length (L)
7.00
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
5.00
N
Final Pressure (F2)
9.00
N
Ball Diameter (D1)
5.00
mm
Ball Height (H)
1.60
mm
Ball Push Fit Plungers - 6x7 mm - 5 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 6.5 mm
Part Number: PLBP-060-070-PP-009 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$19.14 AUD
$22.96 AUD $19.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 6x7 mm - 5 N Plastic Body - Plastic Plunger
Body Diameter (D)
6.00
mm

(Equiv. 0.236 in.)
Length (L)
7.00
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
5.00
N
Final Pressure (F2)
9.00
N
Ball Push Fit Plungers - 6x7 mm - 5 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 5.00 mm    Ball Height (H): 1.60 mm    Shoulder Diameter (S): 6.5 mm
Part Number: PLBP-060-070-PP-009 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$19.14 AUD
$22.96 AUD $19.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 6x7 mm - 6 N Plastic Body - Plastic Plunger
Body Diameter (D)
6.00
mm
+ 0.1 / - 0.0
(Equiv. 0.236 in.)
Length (L)
7.0
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Diameter (D1)
5.0
mm
Ball Height (H)
1.5
mm

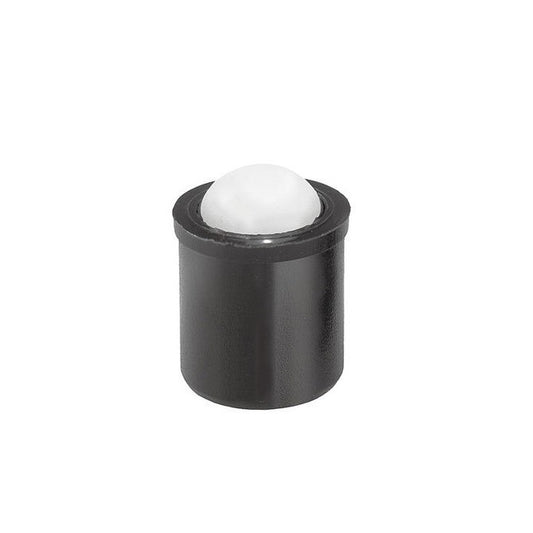

Ball Push Fit Plungers - 6x7 mm - 6 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 6.5 mm    Weight (Approx): 0.7 g
Part Number: PLBP-060-070-PP-012 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$159.05 AUD
$190.85 AUD $159.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 6x7 mm - 6 N Plastic Body - Plastic Plunger
Body Diameter (D)
6.00
mm
+ 0.1 / - 0.0
(Equiv. 0.236 in.)
Length (L)
7.0
mm

(Equiv. 0.276 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Push Fit Plungers - 6x7 mm - 6 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 5.0 mm    Ball Height (H): 1.5 mm    Shoulder Diameter (S): 6.5 mm    Weight (Approx): 0.7 g
Part Number: PLBP-060-070-PP-012 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$159.05 AUD
$190.85 AUD $159.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Plastic Plunger
Body Diameter (D)
8.00
mm
+ 0.1 / - 0.0
(Equiv. 0.315 in.)
Length (L)
9.0
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Diameter (D1)
6.5
mm
Ball Height (H)
1.8
mm
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 8.5 mm    Weight (Approx): 1.5 g
Part Number: PLBP-080-090-PP-012 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$15.50 AUD
$18.60 AUD $15.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Plastic Plunger
Body Diameter (D)
8.00
mm
+ 0.1 / - 0.0
(Equiv. 0.315 in.)
Length (L)
9.0
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
6.0
N
Final Pressure (F2)
12.0
N
Ball Push Fit Plungers - 8x9 mm - 6 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 6.5 mm    Ball Height (H): 1.8 mm    Shoulder Diameter (S): 8.5 mm    Weight (Approx): 1.5 g
Part Number: PLBP-080-090-PP-012 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$15.50 AUD
$18.60 AUD $15.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 8x9 mm - 7 N Plastic Body - Plastic Plunger
Body Diameter (D)
8.00
mm

(Equiv. 0.315 in.)
Length (L)
9.00
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
7.00
N
Final Pressure (F2)
11.00
N
Ball Diameter (D1)
6.00
mm
Ball Height (H)
1.80
mm
Ball Push Fit Plungers - 8x9 mm - 7 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 8.5 mm
Part Number: PLBP-080-090-PP-011 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$22.77 AUD
$27.33 AUD $22.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

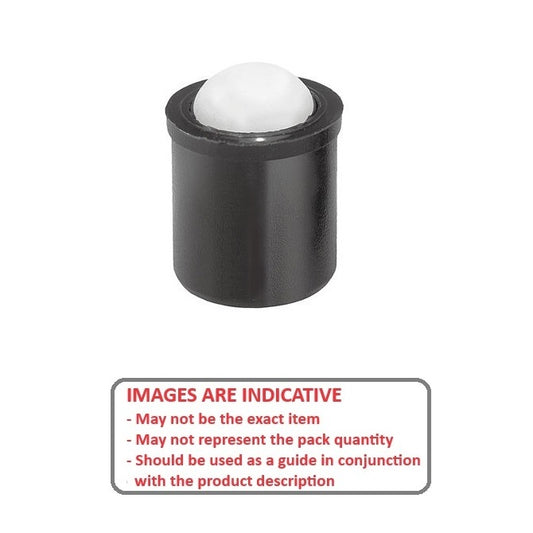

Ball Push Fit Plungers - 8x9 mm - 7 N Plastic Body - Plastic Plunger
Body Diameter (D)
8.00
mm

(Equiv. 0.315 in.)
Length (L)
9.00
mm

(Equiv. 0.354 in.)
Initial Pressure (F1)
7.00
N
Final Pressure (F2)
11.00
N
Ball Push Fit Plungers - 8x9 mm - 7 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 6.00 mm    Ball Height (H): 1.80 mm    Shoulder Diameter (S): 8.5 mm
Part Number: PLBP-080-090-PP-011 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$22.77 AUD
$27.33 AUD $22.77 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 10x13 mm - 9 N Plastic Body - Plastic Plunger
Body Diameter (D)
10.00
mm

(Equiv. 0.394 in.)
Length (L)
13.00
mm

(Equiv. 0.512 in.)
Initial Pressure (F1)
9.00
N
Final Pressure (F2)
15.00
N
Ball Diameter (D1)
8.00
mm
Ball Height (H)
2.60
mm
Ball Push Fit Plungers - 10x13 mm - 9 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 11.0 mm
Part Number: PLBP-100-130-PP-015 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$26.41 AUD
$31.69 AUD $26.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Push Fit Plungers - 10x13 mm - 9 N Plastic Body - Plastic Plunger
Body Diameter (D)
10.00
mm

(Equiv. 0.394 in.)
Length (L)
13.00
mm

(Equiv. 0.512 in.)
Initial Pressure (F1)
9.00
N
Final Pressure (F2)
15.00
N
Ball Push Fit Plungers - 10x13 mm - 9 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 8.00 mm    Ball Height (H): 2.60 mm    Shoulder Diameter (S): 11.0 mm
Part Number: PLBP-100-130-PP-015 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$26.41 AUD
$31.69 AUD $26.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
