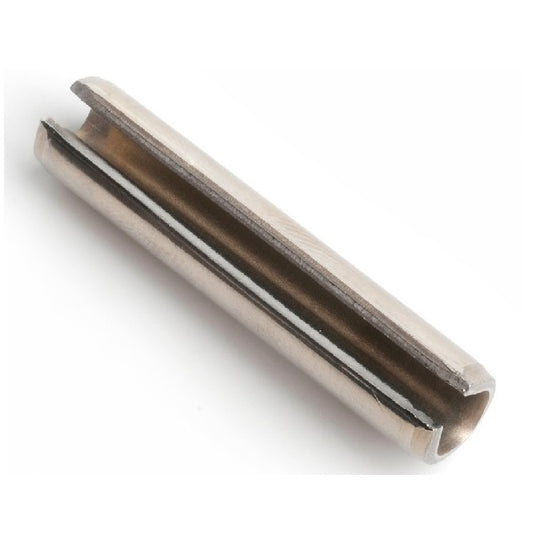

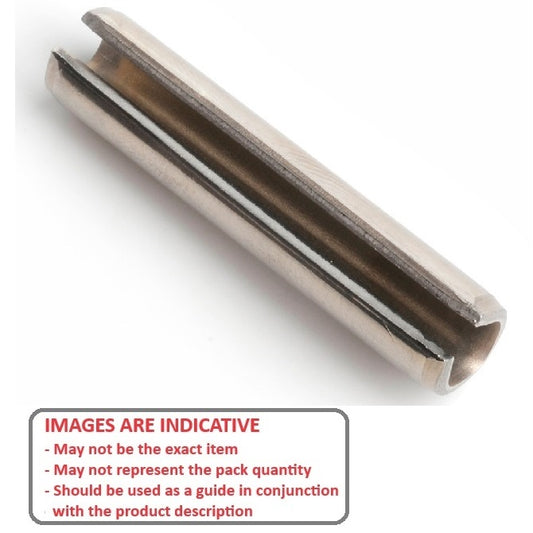

Pins - Roll - Stainless Steel - 300 Grade

57 Products in this selection
  • 300 Grade Stainless DIN1481/ISO8752.
  • Also known as sel-lok and bissell pins
Additional resources:
Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Nominal Diameter (D) Length (L) Free Diameter Thickness (S) Chamfer Length (cL) Indicative
6.00
mm 		24.00
mm 		6.60
mm 		1.20
mm 		1.20-1.40
mm 		1069254 | RP060-0240-4 (5 Pcs) --- Pins - 6 mm x 24 mm x 6.6 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0240-4 (5 Pcs) Pins - 6 mm x 24 mm x 6.6 mm
5 units (25 pcs) Available
| Backorders for more can be expected around Thu, Feb 13, 2025
$5.59 AUD
$5.59 AUD
Per 5
Nominal Diameter (D) Length (L) Free Diameter Indicative
6.00
mm 		24.00
mm 		6.60
mm 		1069254 | RP060-0240-4 (5 Pcs) --- Pins - 6 mm x 24 mm x 6.6 mm
Material: 304 Stainless    Thickness (S): 1.20 mm    Chamfer Length (cL): 1.20-1.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0240-4 (5 Pcs) Pins - 6 mm x 24 mm x 6.6 mm
5 units (25 pcs) Available
| | Backorders for more can be expected around Thu, Feb 13, 2025
$5.59 AUD
$5.59 AUD
Per 5
6.00
mm 		30.00
mm 		6.60
mm 		1.20
mm 		0.40-1.60
mm 		1069571 | RP060-0300-4 (50 Pcs) --- Pins - 6 mm x 30 mm x 6.6 mm
Material: 304 Stainless    Chamfer Diameter (cD): 5.8 mm    Standard: DIN7343/ISO8750    Type: Standard
Part Number: RP060-0300-4 (50 Pcs) Pins - 6 mm x 30 mm x 6.6 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Tue, Jan 28, 2025
$53.59 AUD
$53.59 AUD
Per 50
6.00
mm 		30.00
mm 		6.60
mm 		1069571 | RP060-0300-4 (50 Pcs) --- Pins - 6 mm x 30 mm x 6.6 mm
Material: 304 Stainless    Thickness (S): 1.20 mm    Chamfer Length (cL): 0.40-1.60 mm    Chamfer Diameter (cD): 5.8 mm    Standard: DIN7343/ISO8750    Type: Standard
Part Number: RP060-0300-4 (50 Pcs) Pins - 6 mm x 30 mm x 6.6 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Tue, Jan 28, 2025
$53.59 AUD
$53.59 AUD
Per 50
6.00
mm 		35.00
mm 		6.60
mm 		1.20
mm 		1.20-1.40
mm 		1069767 | RP060-0350-4 --- Pins - 6 mm x 35 mm x 6.6 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0350-4 Pins - 6 mm x 35 mm x 6.6 mm
Contact Us
Item Discontinued - Please contact us if you need a large quantity
6.00
mm 		35.00
mm 		6.60
mm 		1069767 | RP060-0350-4 --- Pins - 6 mm x 35 mm x 6.6 mm
Material: 304 Stainless    Thickness (S): 1.20 mm    Chamfer Length (cL): 1.20-1.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0350-4 Pins - 6 mm x 35 mm x 6.6 mm
Contact Us
Item Discontinued - Please contact us if you need a large quantity |
6.00
mm 		40.00
mm 		6.60
mm 		1.20
mm 		1.20-1.40
mm 		1069895 | RP060-0400-4 (10 Pcs) --- Pins - 6 mm x 40 mm x 6.6 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0400-4 (10 Pcs) Pins - 6 mm x 40 mm x 6.6 mm
4 units (40 pcs) Available
| Backorders for more can be expected around Fri, Jan 03, 2025
$17.95 AUD
$17.95 AUD
Per 10
6.00
mm 		40.00
mm 		6.60
mm 		1069895 | RP060-0400-4 (10 Pcs) --- Pins - 6 mm x 40 mm x 6.6 mm
Material: 304 Stainless    Thickness (S): 1.20 mm    Chamfer Length (cL): 1.20-1.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP060-0400-4 (10 Pcs) Pins - 6 mm x 40 mm x 6.6 mm
4 units (40 pcs) Available
| | Backorders for more can be expected around Fri, Jan 03, 2025
$17.95 AUD
$17.95 AUD
Per 10
8.00
mm 		26.00
mm 		8.80
mm 		1.60
mm 		0.40-2.00
mm 		1083325 | RP080-0260-4 --- Pins - 8 mm x 26 mm x 8.8 mm
Material: 304 Stainless    Chamfer Diameter (cD): 7.8 mm    Standard: DIN7343/ISO8750    Type: Standard
Part Number: RP080-0260-4 Pins - 8 mm x 26 mm x 8.8 mm
Contact Us
Item Discontinued - Please contact us if you need a large quantity
8.00
mm 		26.00
mm 		8.80
mm 		1083325 | RP080-0260-4 --- Pins - 8 mm x 26 mm x 8.8 mm
Material: 304 Stainless    Thickness (S): 1.60 mm    Chamfer Length (cL): 0.40-2.00 mm    Chamfer Diameter (cD): 7.8 mm    Standard: DIN7343/ISO8750    Type: Standard
Part Number: RP080-0260-4 Pins - 8 mm x 26 mm x 8.8 mm
Contact Us
Item Discontinued - Please contact us if you need a large quantity |
10.00
mm 		50.00
mm 		11.00
mm 		2.00
mm 		2.00-2.40
mm 		1094237 | RP100-0500-4 (4 Pcs) --- Pins - 10 mm x 50 mm x 11 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP100-0500-4 (4 Pcs) Pins - 10 mm x 50 mm x 11 mm
1 pack (4 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$2.00 AUD
$3.30 AUD $2.00 AUD
Per 4
10.00
mm 		50.00
mm 		11.00
mm 		1094237 | RP100-0500-4 (4 Pcs) --- Pins - 10 mm x 50 mm x 11 mm
Material: 304 Stainless    Thickness (S): 2.00 mm    Chamfer Length (cL): 2.00-2.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP100-0500-4 (4 Pcs) Pins - 10 mm x 50 mm x 11 mm
1 pack (4 pcs) Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$2.00 AUD
$3.30 AUD $2.00 AUD
Per 4
10.00
mm 		70.00
mm 		11.00
mm 		2.00
mm 		0.50-2.40
mm 		1094580 | RP100-0700-4 (2 Pcs) --- Pins - 10 mm x 70 mm x 11 mm
Material: 304 Stainless    Chamfer Diameter (cD): 9.7 mm    Standard: ASME B18.8.4M Type B    Type: Standard
Part Number: RP100-0700-4 (2 Pcs) Pins - 10 mm x 70 mm x 11 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Fri, Jan 03, 2025
$8.32 AUD
$8.32 AUD
Per 2
10.00
mm 		70.00
mm 		11.00
mm 		1094580 | RP100-0700-4 (2 Pcs) --- Pins - 10 mm x 70 mm x 11 mm
Material: 304 Stainless    Thickness (S): 2.00 mm    Chamfer Length (cL): 0.50-2.40 mm    Chamfer Diameter (cD): 9.7 mm    Standard: ASME B18.8.4M Type B    Type: Standard
Part Number: RP100-0700-4 (2 Pcs) Pins - 10 mm x 70 mm x 11 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Fri, Jan 03, 2025
$8.32 AUD
$8.32 AUD
Per 2
12.00
mm 		100.00
mm 		13.20
mm 		2.50
mm 		2.00-2.40
mm 		1100923 | RP120-1000-4 (100 Pcs) --- Pins - 12 mm x 100 mm x 13.2 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP120-1000-4 (100 Pcs) Pins - 12 mm x 100 mm x 13.2 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Mar 29, 2025
$2,707.77 AUD
$2,707.77 AUD
Per 100
12.00
mm 		100.00
mm 		13.20
mm 		1100923 | RP120-1000-4 (100 Pcs) --- Pins - 12 mm x 100 mm x 13.2 mm
Material: 304 Stainless    Thickness (S): 2.50 mm    Chamfer Length (cL): 2.00-2.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP120-1000-4 (100 Pcs) Pins - 12 mm x 100 mm x 13.2 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Mar 29, 2025
$2,707.77 AUD
$2,707.77 AUD
Per 100
12.00
mm 		116.00
mm 		13.20
mm 		2.50
mm 		2.00-2.40
mm 		1100976 | RP120-1160-4 (50 Pcs) --- Pins - 12 mm x 116 mm x 13.2 mm
Material: 304 Stainless    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP120-1160-4 (50 Pcs) Pins - 12 mm x 116 mm x 13.2 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Fri, Feb 07, 2025
$1,197.50 AUD
$1,197.50 AUD
Per 50
12.00
mm 		116.00
mm 		13.20
mm 		1100976 | RP120-1160-4 (50 Pcs) --- Pins - 12 mm x 116 mm x 13.2 mm
Material: 304 Stainless    Thickness (S): 2.50 mm    Chamfer Length (cL): 2.00-2.40 mm    Standard: DIN1481 / ISO8752    Type: Standard
Part Number: RP120-1160-4 (50 Pcs) Pins - 12 mm x 116 mm x 13.2 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Fri, Feb 07, 2025
$1,197.50 AUD
$1,197.50 AUD
Per 50
