Pins - Pull - Threaded End - Stainless Steel

3 Products in this selection

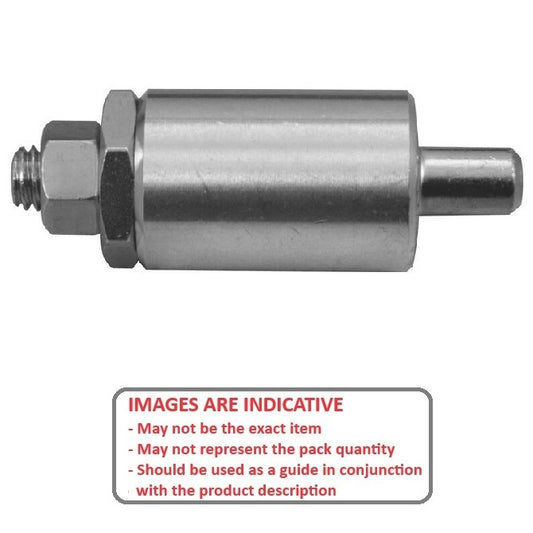

  • Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.
  • Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
  • Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
  • 3/8-16 Threaded end so you can add your own handle or knob.
  • 303 stainless steel plunger assembly and housing.
  • Pull up force approx 2.2kg.
Additional resources:
Master Pins Catalogue PDF
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Nut Height (E) Knob Height (F) Indicative
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763

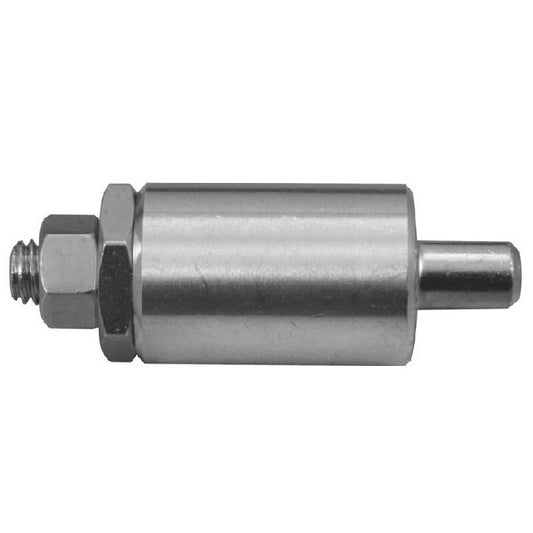

mm 		1087489 | BSD-80SSRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Stainless Steel
Part Number: BSD-80SSRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$67.50 AUD
$67.50 AUD
Each
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Indicative
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1087489 | BSD-80SSRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-80SSRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$67.50 AUD
$67.50 AUD
Each
View the product page first if you are unsure.
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		1102621 | BSD-85SSRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Stainless Steel
Part Number: BSD-85SSRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$68.41 AUD
$68.41 AUD
Each
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1102621 | BSD-85SSRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-85SSRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$68.41 AUD
$68.41 AUD
Each
View the product page first if you are unsure.
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		4.763
mm 		1102637 | BSD-90SSRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Stainless Steel
Part Number: BSD-90SSRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$94.41 AUD
$94.41 AUD
Each
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		1102637 | BSD-90SSRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Stainless Steel    Nut Height (E): 4.763 mm
Part Number: BSD-90SSRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$94.41 AUD
$94.41 AUD
Each
View the product page first if you are unsure.
