Collection: Pins - Pull - Tee Handle - Aluminium and Steel

Pins (With Images)

Pull

Tee Handle

Aluminium and Steel
Stainless Steel
Steel

10 Products in this selection

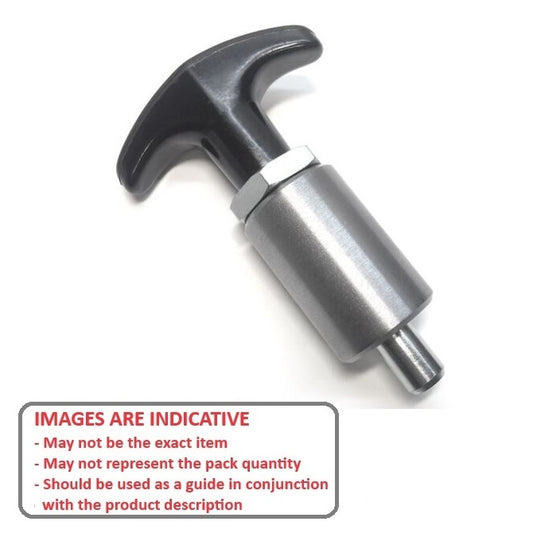

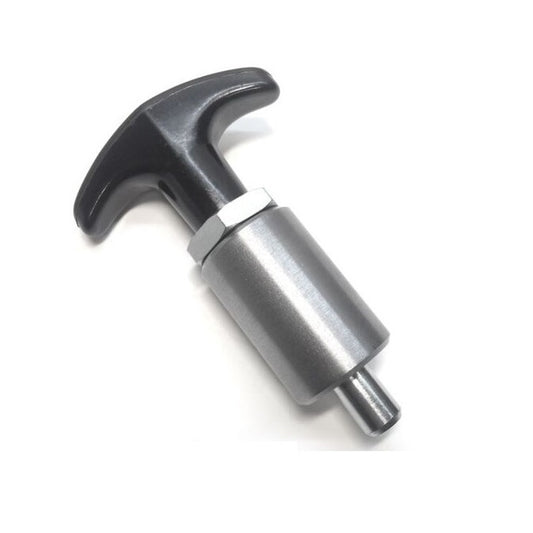

Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.
Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
Handles are black plastic.
Aluminium housing 6061-T6, Steel pin 12L15.
Pull up force approx 2.2kg. Lockout style (indicated in tables) allows you to pull and rotate handle 1/4 turn to lock plunger in retracted position.

Additional resources:
Master Pins Catalogue PDF

Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Nut Height (E)	Knob Height (F)
6.350 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-50ALRS Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Each
Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Indicative Image
6.350 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-50ALRS Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Each View the product page first if you are unsure.
BSD-50ALRS --- Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-50ALRS --- Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Out of stock! Backorder Now
6.350 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Lockout Knob Length (G): 57.150
Part Number: BSD-50LOALRS Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $44.59 AUD Regular price Sale price $44.59 AUD Unit price per Each
6.350 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Lockout Knob Length (G): 57.150
Part Number: BSD-50LOALRS Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $44.59 AUD Regular price Sale price $44.59 AUD Unit price per Each View the product page first if you are unsure.
BSD-50LOALRS --- Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-50LOALRS --- Pull Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $44.59 AUD Regular price Sale price $44.59 AUD Unit price per Out of stock! Backorder Now
9.525 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Lockout Knob Length (G): 57.150
Part Number: BSD-55LOALRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $58.77 AUD Regular price Sale price $58.77 AUD Unit price per Each
9.525 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Lockout Knob Length (G): 57.150
Part Number: BSD-55LOALRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $58.77 AUD Regular price Sale price $58.77 AUD Unit price per Each View the product page first if you are unsure.
BSD-55LOALRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-55LOALRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $58.77 AUD Regular price Sale price $58.77 AUD Unit price per Out of stock! Backorder Now
9.525 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-55ALRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Each
9.525 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-55ALRS Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Each View the product page first if you are unsure.
BSD-55ALRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-55ALRS --- Pull Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-60ALRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.59 AUD Regular price Sale price $57.59 AUD Unit price per Each
12.700 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-60ALRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.59 AUD Regular price Sale price $57.59 AUD Unit price per Each View the product page first if you are unsure.
BSD-60ALRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-60ALRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $57.59 AUD Regular price Sale price $57.59 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Lockout Knob Length (G): 57.150
Part Number: BSD-60LOALRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Each
12.700 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Lockout Knob Length (G): 57.150
Part Number: BSD-60LOALRS Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Each View the product page first if you are unsure.
BSD-60LOALRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-60LOALRS --- Pull Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-65ALRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $56.14 AUD Regular price Sale price $56.14 AUD Unit price per Each
12.700 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-65ALRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $56.14 AUD Regular price Sale price $56.14 AUD Unit price per Each View the product page first if you are unsure.
BSD-65ALRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-65ALRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $56.14 AUD Regular price Sale price $56.14 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Lockout Knob Length (G): 57.150
Part Number: BSD-65LOALRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each
12.700 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Lockout Knob Length (G): 57.150
Part Number: BSD-65LOALRS Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each View the product page first if you are unsure.
BSD-65LOALRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-65LOALRS --- Pull Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Out of stock! Backorder Now
15.875 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Lockout Knob Length (G): 57.150
Part Number: BSD-70LOALRS Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Each
15.875 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Lockout Knob Length (G): 57.150
Part Number: BSD-70LOALRS Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Each View the product page first if you are unsure.
BSD-70LOALRS --- Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-70LOALRS --- Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Out of stock! Backorder Now
15.875 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	36.513 mm
Material: Aluminium and Steel Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-70ALRS Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Each
15.875 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 36.513 mm Type: Non Lockout Knob Length (G): 57.150
Part Number: BSD-70ALRS Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Each View the product page first if you are unsure.
BSD-70ALRS --- Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-70ALRS --- Pull Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Out of stock! Backorder Now
