Collection: Pins - Pull - Round Handle - Aluminium and Steel

Pins (With Images)

Pins - Pull
Pins - Pull - Round Handle

Pins - Pull - Round Handle - Aluminium and Steel

9 Products in this selection

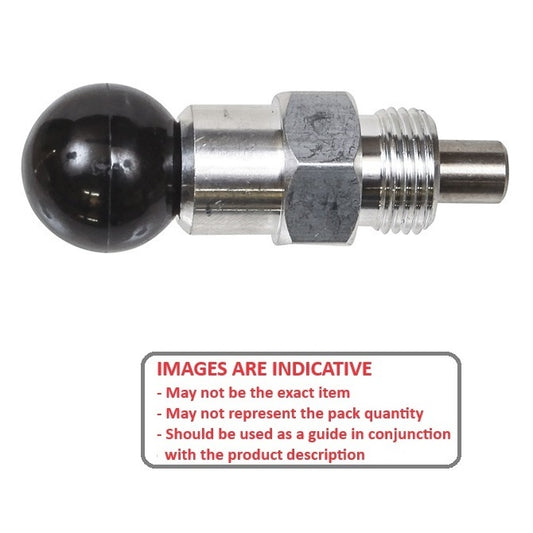

Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.
Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
Handles are black plastic.
Aluminium housing 6061-T6, Steel pin 12L15.
Pull up force approx 2.2kg. Lockout style (indicated in tables) allows you to pull and rotate handle 1/4 turn to lock plunger in retracted position.

Additional resources:
Master Pins Catalogue PDF

Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Nut Height (E)	Knob Height (F)
6.350 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Lockout

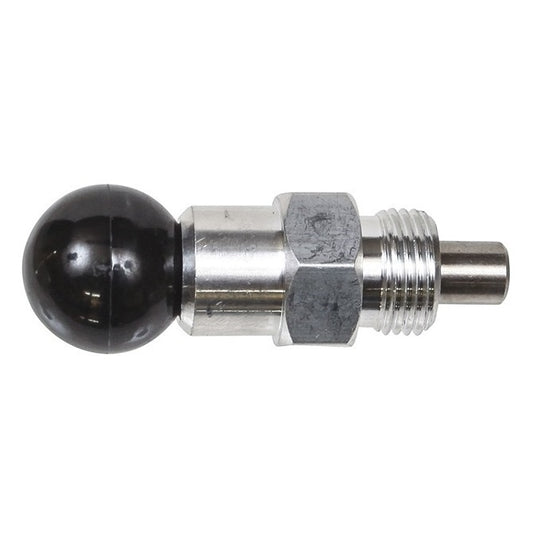

Part Number: BSD-25LOALRS Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Each
Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Indicative Image
6.350 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Lockout
Part Number: BSD-25LOALRS Pins - 6.35 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Each
BSD-25LOALRS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-25LOALRS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
9.525 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Lockout
Part Number: BSD-30LOALRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.86 AUD Regular price Sale price $55.86 AUD Unit price per Each
9.525 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Lockout
Part Number: BSD-30LOALRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.86 AUD Regular price Sale price $55.86 AUD Unit price per Each
BSD-30LOALRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-30LOALRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $55.86 AUD Regular price Sale price $55.86 AUD Unit price per Out of stock! Backorder Now
9.525 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Non Lockout
Part Number: BSD-30ALRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each
9.525 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Non Lockout
Part Number: BSD-30ALRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each
BSD-30ALRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-30ALRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Non Lockout
Part Number: BSD-35ALRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Each
12.700 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Non Lockout
Part Number: BSD-35ALRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Each
BSD-35ALRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-35ALRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Lockout
Part Number: BSD-35LOALRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $60.41 AUD Regular price Sale price $60.41 AUD Unit price per Each
12.700 mm	14.288 mm	38.100 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Lockout
Part Number: BSD-35LOALRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $60.41 AUD Regular price Sale price $60.41 AUD Unit price per Each
BSD-35LOALRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel BSD-35LOALRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Aluminium and Steel Regular price $60.41 AUD Regular price Sale price $60.41 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Non Lockout
Part Number: BSD-40ALRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.41 AUD Regular price Sale price $55.41 AUD Unit price per Each
12.700 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Non Lockout
Part Number: BSD-40ALRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.41 AUD Regular price Sale price $55.41 AUD Unit price per Each
BSD-40ALRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-40ALRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $55.41 AUD Regular price Sale price $55.41 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Lockout
Part Number: BSD-40LOALRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $66.32 AUD Regular price Sale price $66.32 AUD Unit price per Each
12.700 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Lockout
Part Number: BSD-40LOALRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $66.32 AUD Regular price Sale price $66.32 AUD Unit price per Each
BSD-40LOALRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-40LOALRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $66.32 AUD Regular price Sale price $66.32 AUD Unit price per Out of stock! Backorder Now
15.875 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Lockout
Part Number: BSD-45LOALRS Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each
15.875 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Lockout
Part Number: BSD-45LOALRS Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each
BSD-45LOALRS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-45LOALRS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Out of stock! Backorder Now
15.875 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm	34.925 mm
Material: Aluminium and Steel Type: Non Lockout
Part Number: BSD-45ALRS Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $64.23 AUD Regular price Sale price $64.23 AUD Unit price per Each
15.875 mm	14.288 mm	57.150 mm	25.400 mm
Material: Aluminium and Steel Nut Height (E): 4.763 mm Knob Height (F): 34.925 mm Type: Non Lockout
Part Number: BSD-45ALRS Pins - 15.875 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $64.23 AUD Regular price Sale price $64.23 AUD Unit price per Each
BSD-45ALRS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel BSD-45ALRS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm Aluminium and Steel Regular price $64.23 AUD Regular price Sale price $64.23 AUD Unit price per Out of stock! Backorder Now
