Pins - Clevis - Pin Locking - Low Carbon Steel

10 Products in this selection
  • Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
  • In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
  • Made from low carbon steel
Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Nom. Pin Diameter (D) Grip Length (EL) Nom. Length (L) Head Diameter (H) Indicative
6.35
mm
- 0.05 / - 0.18 		17.07
mm
+ 0.51 / - 0.00 		19.46
mm
+ 0.51 / - 0.00 		1073843 | CLP-064-0171-P --- Clevis Pins - 6.35 mm x 17.07 mm x 19.46 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-064-0171-P Clevis Pins - 6.35 mm x 17.07 mm x 19.46 mm
10 Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$3.86 AUD
$3.86 AUD
Each
Nom. Pin Diameter (D) Grip Length (EL) Nom. Length (L) Head Diameter (H) Indicative
6.35
mm
- 0.05 / - 0.18 		17.07
mm
+ 0.51 / - 0.00 		19.46
mm
+ 0.51 / - 0.00 		1073843 | CLP-064-0171-P --- Clevis Pins - 6.35 mm x 17.07 mm x 19.46 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-064-0171-P Clevis Pins - 6.35 mm x 17.07 mm x 19.46 mm
10 Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$3.86 AUD
$3.86 AUD
Each
View the product page first if you are unsure.
7.94
mm
- 0.05 / - 0.18 		20.62
mm
+ 0.51 / - 0.00 		23.83
mm
+ 0.51 / - 0.00 		1079857 | CLP-079-0206-P (5 Pcs) --- Clevis Pins - 7.94 mm x 20.62 mm x 23.83 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-079-0206-P (5 Pcs) Clevis Pins - 7.94 mm x 20.62 mm x 23.83 mm
1 pack (5 pcs) Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$6.50 AUD
$6.50 AUD
Per 5
7.94
mm
- 0.05 / - 0.18 		20.62
mm
+ 0.51 / - 0.00 		23.83
mm
+ 0.51 / - 0.00 		1079857 | CLP-079-0206-P (5 Pcs) --- Clevis Pins - 7.94 mm x 20.62 mm x 23.83 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-079-0206-P (5 Pcs) Clevis Pins - 7.94 mm x 20.62 mm x 23.83 mm
1 pack (5 pcs) Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$6.50 AUD
$6.50 AUD
Per 5
View the product page first if you are unsure.
9.53
mm
- 0.05 / - 0.18 		23.83
mm
+ 0.51 / - 0.00 		26.97
mm
+ 0.51 / - 0.00 		1089822 | CLP-095-0238-P --- Clevis Pins - 9.53 mm x 23.83 mm x 26.97 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-095-0238-P Clevis Pins - 9.53 mm x 23.83 mm x 26.97 mm
39 Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$4.50 AUD
$4.50 AUD
Each
9.53
mm
- 0.05 / - 0.18 		23.83
mm
+ 0.51 / - 0.00 		26.97
mm
+ 0.51 / - 0.00 		1089822 | CLP-095-0238-P --- Clevis Pins - 9.53 mm x 23.83 mm x 26.97 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 2.4 mm
Part Number: CLP-095-0238-P Clevis Pins - 9.53 mm x 23.83 mm x 26.97 mm
39 Available Immediately | Further orders can be expected around Fri, Mar 21, 2025
$4.50 AUD
$4.50 AUD
Each
View the product page first if you are unsure.
11.11
mm
- 0.05 / - 0.18 		19.43
mm
+ 0.51 / - 0.00 		25.40
mm
+ 0.51 / - 0.00 		1096217 | CLP-111-0194-P (12 Pcs) --- Clevis Pins - 11.11 mm x 19.43 mm x 25.4 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.0 mm
Part Number: CLP-111-0194-P (12 Pcs) Clevis Pins - 11.11 mm x 19.43 mm x 25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 02, 2025
$22.95 AUD
$22.95 AUD
Per 12
11.11
mm
- 0.05 / - 0.18 		19.43
mm
+ 0.51 / - 0.00 		25.40
mm
+ 0.51 / - 0.00 		1096217 | CLP-111-0194-P (12 Pcs) --- Clevis Pins - 11.11 mm x 19.43 mm x 25.4 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.0 mm
Part Number: CLP-111-0194-P (12 Pcs) Clevis Pins - 11.11 mm x 19.43 mm x 25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 02, 2025
$22.95 AUD
$22.95 AUD
Per 12
View the product page first if you are unsure.
11.11
mm
- 0.05 / - 0.18 		70.23
mm
+ 0.51 / - 0.00 		76.20
mm
+ 0.51 / - 0.00 		1096336 | CLP-111-0702-P --- Clevis Pins - 11.11 mm x 70.23 mm x 76.2 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.0 mm
Part Number: CLP-111-0702-P Clevis Pins - 11.11 mm x 70.23 mm x 76.2 mm
30 Available Immediately | Further orders can be expected around Wed, Apr 02, 2025
$4.05 AUD
$4.05 AUD
Each
11.11
mm
- 0.05 / - 0.18 		70.23
mm
+ 0.51 / - 0.00 		76.20
mm
+ 0.51 / - 0.00 		1096336 | CLP-111-0702-P --- Clevis Pins - 11.11 mm x 70.23 mm x 76.2 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.0 mm
Part Number: CLP-111-0702-P Clevis Pins - 11.11 mm x 70.23 mm x 76.2 mm
30 Available Immediately | Further orders can be expected around Wed, Apr 02, 2025
$4.05 AUD
$4.05 AUD
Each
View the product page first if you are unsure.
12.00
mm
- 0.05 / - 0.18 		43.00
mm
+ 0.51 / - 0.00 		50.00
mm
+ 0.51 / - 0.00 		1100358 | CLP-120-0430-C --- Clevis Pins - 12 mm x 43 mm x 50 mm
Material: Carbon Steel - Low Carbon    Ret. Pin Dia. (M): 4.0 mm    Standard: DIN1438
Part Number: CLP-120-0430-C Clevis Pins - 12 mm x 43 mm x 50 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 02, 2025
$18.86 AUD
$18.86 AUD
Each
12.00
mm
- 0.05 / - 0.18 		43.00
mm
+ 0.51 / - 0.00 		50.00
mm
+ 0.51 / - 0.00 		1100358 | CLP-120-0430-C --- Clevis Pins - 12 mm x 43 mm x 50 mm
Material: Carbon Steel - Low Carbon    Ret. Pin Dia. (M): 4.0 mm    Standard: DIN1438
Part Number: CLP-120-0430-C Clevis Pins - 12 mm x 43 mm x 50 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Apr 02, 2025
$18.86 AUD
$18.86 AUD
Each
View the product page first if you are unsure.
12.70
mm
- 0.10 / - 0.23 		30.56
mm
+ 0.51 / - 0.00 		34.52
mm
+ 0.51 / - 0.00 		1103856 | CLP-127-0306-P (10 Pcs) --- Clevis Pins - 12.7 mm x 30.56 mm x 34.52 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-127-0306-P (10 Pcs) Clevis Pins - 12.7 mm x 30.56 mm x 34.52 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$54.77 AUD
$54.77 AUD
Per 10
12.70
mm
- 0.10 / - 0.23 		30.56
mm
+ 0.51 / - 0.00 		34.52
mm
+ 0.51 / - 0.00 		1103856 | CLP-127-0306-P (10 Pcs) --- Clevis Pins - 12.7 mm x 30.56 mm x 34.52 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-127-0306-P (10 Pcs) Clevis Pins - 12.7 mm x 30.56 mm x 34.52 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$54.77 AUD
$54.77 AUD
Per 10
View the product page first if you are unsure.
15.88
mm
- 0.10 / - 0.23 		36.91
mm
+ 0.51 / - 0.00 		40.87
mm
+ 0.51 / - 0.00 		1113276 | CLP-159-0369-P --- Clevis Pins - 15.88 mm x 36.91 mm x 40.87 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-159-0369-P Clevis Pins - 15.88 mm x 36.91 mm x 40.87 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$11.41 AUD
$11.41 AUD
Each
15.88
mm
- 0.10 / - 0.23 		36.91
mm
+ 0.51 / - 0.00 		40.87
mm
+ 0.51 / - 0.00 		1113276 | CLP-159-0369-P --- Clevis Pins - 15.88 mm x 36.91 mm x 40.87 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-159-0369-P Clevis Pins - 15.88 mm x 36.91 mm x 40.87 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$11.41 AUD
$11.41 AUD
Each
View the product page first if you are unsure.
15.88
mm
- 0.10 / - 0.23 		40.64
mm
+ 0.51 / - 0.00 		46.84
mm
+ 0.51 / - 0.00 		1113299 | CLP-159-0406-P --- Clevis Pins - 15.88 mm x 40.64 mm x 46.84 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-159-0406-P Clevis Pins - 15.88 mm x 40.64 mm x 46.84 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$20.77 AUD
$20.77 AUD
Each
15.88
mm
- 0.10 / - 0.23 		40.64
mm
+ 0.51 / - 0.00 		46.84
mm
+ 0.51 / - 0.00 		1113299 | CLP-159-0406-P --- Clevis Pins - 15.88 mm x 40.64 mm x 46.84 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 3.8 mm
Part Number: CLP-159-0406-P Clevis Pins - 15.88 mm x 40.64 mm x 46.84 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$20.77 AUD
$20.77 AUD
Each
View the product page first if you are unsure.
19.05
mm
- 0.10 / - 0.28 		43.66
mm
+ 0.51 / - 0.00 		48.41
mm

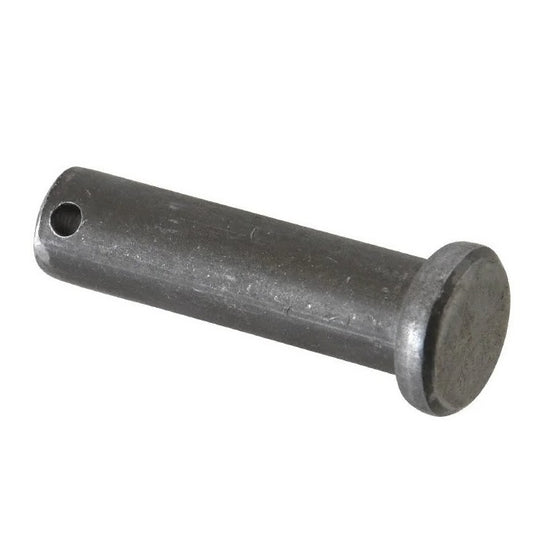

+ 0.51 / - 0.00 		1121925 | CLP-191-0437-P --- Clevis Pins - 19.05 mm x 43.66 mm x 48.41 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 4.0 mm
Part Number: CLP-191-0437-P Clevis Pins - 19.05 mm x 43.66 mm x 48.41 mm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$12.11 AUD
$18.16 AUD $12.11 AUD
Each
19.05
mm
- 0.10 / - 0.28 		43.66
mm
+ 0.51 / - 0.00 		48.41
mm
+ 0.51 / - 0.00 		1121925 | CLP-191-0437-P --- Clevis Pins - 19.05 mm x 43.66 mm x 48.41 mm
Material: Carbon Steel - Low Carbon 1010 or 1018 Steel    Ret. Pin Dia. (M): 4.0 mm
Part Number: CLP-191-0437-P Clevis Pins - 19.05 mm x 43.66 mm x 48.41 mm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$12.11 AUD
$18.16 AUD $12.11 AUD
Each
