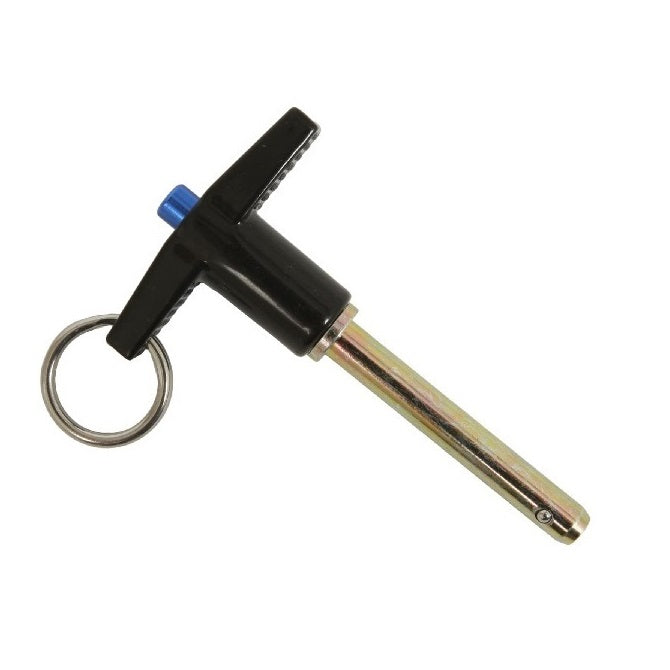

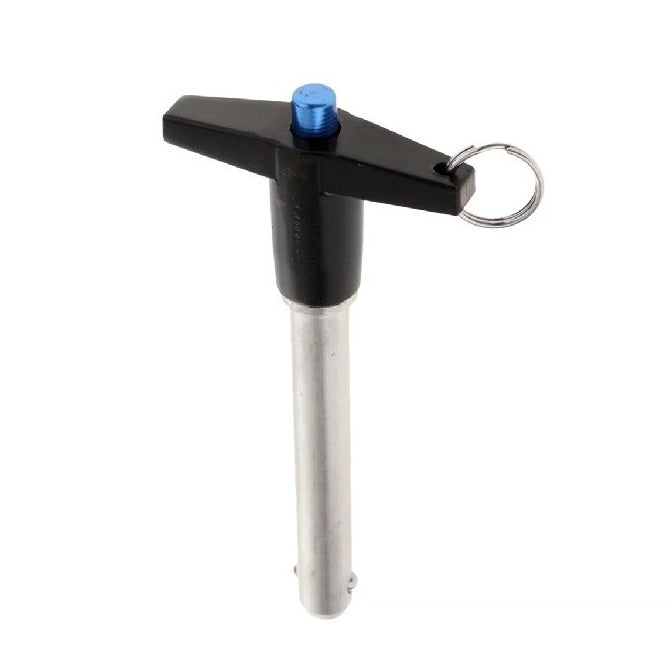

Collection: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial

Pins (With Images)

Ball Lock

No Shoulder

Tee Handle

Commercial 304 Stainless Steel
Industrial

Plastic Handle
Stainless Steel Heavy Duty

53 Products in this selection

This is a combined category of Industrial Tee Handle No Shoulder Ball Lock Pins.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Open Ball Distance (B)	Max. Handle Height (H)	Indicative Image
4.76 mm	25.40 mm	17-4 PH Stainless	6.60 mm	5.58 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0254-TI-S17 Ball Lock Pins - 4.76 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $98.05 AUD Regular price Sale price $98.05 AUD Unit price per Each
Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Indicative Image
4.76 mm	25.40 mm	17-4 PH Stainless	6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.58 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0254-TI-S17 Ball Lock Pins - 4.76 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $98.05 AUD Regular price Sale price $98.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0254-TI-S17 --- Ball Lock Pins - 4.76 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-048-0254-TI-S17 --- Ball Lock Pins - 4.76 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $98.05 AUD Regular price Sale price $98.05 AUD Unit price per Out of stock! Backorder Now
4.76 mm	38.10 mm	17-4 PH Stainless	6.60 mm	5.58 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0381-TI-S17 Ball Lock Pins - 4.76 mm x 38.1 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Each
4.76 mm	38.10 mm	17-4 PH Stainless	6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.58 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0381-TI-S17 Ball Lock Pins - 4.76 mm x 38.1 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0381-TI-S17 --- Ball Lock Pins - 4.76 mm x 38.1 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-048-0381-TI-S17 --- Ball Lock Pins - 4.76 mm x 38.1 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $116.14 AUD Regular price Sale price $116.14 AUD Unit price per Out of stock! Backorder Now
4.76 mm	50.80 mm	17-4 PH Stainless	6.60 mm	5.58 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0508-TI-S17 Ball Lock Pins - 4.76 mm x 50.8 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $103.95 AUD Regular price Sale price $103.95 AUD Unit price per Each
4.76 mm	50.80 mm	17-4 PH Stainless	6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.58 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0508-TI-S17 Ball Lock Pins - 4.76 mm x 50.8 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $103.95 AUD Regular price Sale price $103.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0508-TI-S17 --- Ball Lock Pins - 4.76 mm x 50.8 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-048-0508-TI-S17 --- Ball Lock Pins - 4.76 mm x 50.8 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $103.95 AUD Regular price Sale price $103.95 AUD Unit price per Out of stock! Backorder Now
4.76 mm	63.50 mm	17-4 PH Stainless	6.60 mm	5.58 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0635-TI-S17 Ball Lock Pins - 4.76 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $129.68 AUD Regular price Sale price $129.68 AUD Unit price per Each
4.76 mm	63.50 mm	17-4 PH Stainless	6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.58 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0635-TI-S17 Ball Lock Pins - 4.76 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $129.68 AUD Regular price Sale price $129.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0635-TI-S17 --- Ball Lock Pins - 4.76 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-048-0635-TI-S17 --- Ball Lock Pins - 4.76 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $129.68 AUD Regular price Sale price $129.68 AUD Unit price per Out of stock! Backorder Now
4.76 mm	76.20 mm	17-4 PH Stainless	6.60 mm	5.58 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0762-TI-S17 Ball Lock Pins - 4.76 mm x 76.2 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Each
4.76 mm	76.20 mm	17-4 PH Stainless	6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.58 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 89.00 Kg Calc. Double Shear Strength: 2300 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-048-0762-TI-S17 Ball Lock Pins - 4.76 mm x 76.2 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0762-TI-S17 --- Ball Lock Pins - 4.76 mm x 76.2 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-048-0762-TI-S17 --- Ball Lock Pins - 4.76 mm x 76.2 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $102.14 AUD Regular price Sale price $102.14 AUD Unit price per Out of stock! Backorder Now
5.00 mm	25.00 mm	Alloy Steel / Aluminium Handle	6.00 mm	5.54 mm
Material: Steel Alloy with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Part Number: BLP-050-0250-TI-AC Ball Lock Pins - 5 mm x 25 mm Alloy Steel / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Each
5.00 mm	25.00 mm	Alloy Steel / Aluminium Handle	6.00 mm
Material: Steel Alloy with Aluminium Handle Open Ball Distance (B): 5.54 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Part Number: BLP-050-0250-TI-AC Ball Lock Pins - 5 mm x 25 mm Alloy Steel / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Each View the product page first if you are unsure.
BLP-050-0250-TI-AC --- Ball Lock Pins - 5 mm x 25 mm Alloy Steel / Aluminium Handle Steel Alloy with Aluminium Handle BLP-050-0250-TI-AC --- Ball Lock Pins - 5 mm x 25 mm Alloy Steel / Aluminium Handle Steel Alloy with Aluminium Handle Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Out of stock! Backorder Now
6.00 mm	25.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm	6.99 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0250-TI-S17 Ball Lock Pins - 6 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each
6.00 mm	25.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Open Ball Distance (B): 6.99 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0250-TI-S17 Ball Lock Pins - 6 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-060-0250-TI-S17 --- Ball Lock Pins - 6 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle BLP-060-0250-TI-S17 --- Ball Lock Pins - 6 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Out of stock! Backorder Now
6.00 mm	40.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm	6.99 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0400-TI-S17 Ball Lock Pins - 6 mm x 40 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $81.59 AUD Regular price Sale price $81.59 AUD Unit price per Each
6.00 mm	40.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Open Ball Distance (B): 6.99 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0400-TI-S17 Ball Lock Pins - 6 mm x 40 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $81.59 AUD Regular price Sale price $81.59 AUD Unit price per Each View the product page first if you are unsure.
BLP-060-0400-TI-S17 --- Ball Lock Pins - 6 mm x 40 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle BLP-060-0400-TI-S17 --- Ball Lock Pins - 6 mm x 40 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle Regular price $81.59 AUD Regular price Sale price $81.59 AUD Unit price per Out of stock! Backorder Now
6.00 mm	50.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm	6.99 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0500-TI-S17 Ball Lock Pins - 6 mm x 50 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $113.77 AUD Regular price Sale price $113.77 AUD Unit price per Each
6.00 mm	50.00 mm	17-4 PH Stainless / Aluminium Handle	7.00 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Open Ball Distance (B): 6.99 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-060-0500-TI-S17 Ball Lock Pins - 6 mm x 50 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $113.77 AUD Regular price Sale price $113.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-060-0500-TI-S17 --- Ball Lock Pins - 6 mm x 50 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle BLP-060-0500-TI-S17 --- Ball Lock Pins - 6 mm x 50 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle Regular price $113.77 AUD Regular price Sale price $113.77 AUD Unit price per Out of stock! Backorder Now
6.35 mm	12.70 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0127-TI-S17 Ball Lock Pins - 6.35 mm x 12.7 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $96.50 AUD Regular price Sale price $96.50 AUD Unit price per Each
6.35 mm	12.70 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0127-TI-S17 Ball Lock Pins - 6.35 mm x 12.7 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $96.50 AUD Regular price Sale price $96.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0127-TI-S17 --- Ball Lock Pins - 6.35 mm x 12.7 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-0127-TI-S17 --- Ball Lock Pins - 6.35 mm x 12.7 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $96.50 AUD Regular price Sale price $96.50 AUD Unit price per Out of stock! Backorder Now
6.35 mm	25.40 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0254-TI-S17 Ball Lock Pins - 6.35 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $101.77 AUD Regular price Sale price $101.77 AUD Unit price per Each
6.35 mm	25.40 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0254-TI-S17 Ball Lock Pins - 6.35 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $101.77 AUD Regular price Sale price $101.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0254-TI-S17 --- Ball Lock Pins - 6.35 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-0254-TI-S17 --- Ball Lock Pins - 6.35 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $101.77 AUD Regular price Sale price $101.77 AUD Unit price per Out of stock! Backorder Now
6.35 mm	50.80 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0508-TI-S17 Ball Lock Pins - 6.35 mm x 50.8 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $119.14 AUD Regular price Sale price $119.14 AUD Unit price per Each
6.35 mm	50.80 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0508-TI-S17 Ball Lock Pins - 6.35 mm x 50.8 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $119.14 AUD Regular price Sale price $119.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0508-TI-S17 --- Ball Lock Pins - 6.35 mm x 50.8 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-0508-TI-S17 --- Ball Lock Pins - 6.35 mm x 50.8 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $119.14 AUD Regular price Sale price $119.14 AUD Unit price per Out of stock! Backorder Now
6.35 mm	63.50 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0635-TI-S17 Ball Lock Pins - 6.35 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $121.77 AUD Regular price Sale price $121.77 AUD Unit price per Each
6.35 mm	63.50 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0635-TI-S17 Ball Lock Pins - 6.35 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $121.77 AUD Regular price Sale price $121.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0635-TI-S17 --- Ball Lock Pins - 6.35 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-0635-TI-S17 --- Ball Lock Pins - 6.35 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $121.77 AUD Regular price Sale price $121.77 AUD Unit price per Out of stock! Backorder Now
6.35 mm	76.20 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0762-TI-S17 Ball Lock Pins - 6.35 mm x 76.2 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $125.05 AUD Regular price Sale price $125.05 AUD Unit price per Each
6.35 mm	76.20 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-0762-TI-S17 Ball Lock Pins - 6.35 mm x 76.2 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $125.05 AUD Regular price Sale price $125.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0762-TI-S17 --- Ball Lock Pins - 6.35 mm x 76.2 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-0762-TI-S17 --- Ball Lock Pins - 6.35 mm x 76.2 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $125.05 AUD Regular price Sale price $125.05 AUD Unit price per Out of stock! Backorder Now
6.35 mm	101.60 mm	17-4 PH Stainless	7.36 mm	7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-1016-TI-S17 Ball Lock Pins - 6.35 mm x 101.6 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $149.68 AUD Regular price Sale price $149.68 AUD Unit price per Each
6.35 mm	101.60 mm	17-4 PH Stainless	7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 102.00 Kg Calc. Double Shear Strength: 4100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-064-1016-TI-S17 Ball Lock Pins - 6.35 mm x 101.6 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $149.68 AUD Regular price Sale price $149.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-1016-TI-S17 --- Ball Lock Pins - 6.35 mm x 101.6 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-064-1016-TI-S17 --- Ball Lock Pins - 6.35 mm x 101.6 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $149.68 AUD Regular price Sale price $149.68 AUD Unit price per Out of stock! Backorder Now
7.94 mm	25.40 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0254-TI-S17 Ball Lock Pins - 7.94 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $108.95 AUD Regular price Sale price $108.95 AUD Unit price per Each
7.94 mm	25.40 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0254-TI-S17 Ball Lock Pins - 7.94 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $108.95 AUD Regular price Sale price $108.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0254-TI-S17 --- Ball Lock Pins - 7.94 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-0254-TI-S17 --- Ball Lock Pins - 7.94 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $108.95 AUD Regular price Sale price $108.95 AUD Unit price per Out of stock! Backorder Now
7.94 mm	38.10 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0381-TI-S17 Ball Lock Pins - 7.94 mm x 38.1 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $131.14 AUD Regular price Sale price $131.14 AUD Unit price per Each
7.94 mm	38.10 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0381-TI-S17 Ball Lock Pins - 7.94 mm x 38.1 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $131.14 AUD Regular price Sale price $131.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0381-TI-S17 --- Ball Lock Pins - 7.94 mm x 38.1 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-0381-TI-S17 --- Ball Lock Pins - 7.94 mm x 38.1 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $131.14 AUD Regular price Sale price $131.14 AUD Unit price per Out of stock! Backorder Now
7.94 mm	63.50 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0635-TI-S17 Ball Lock Pins - 7.94 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $139.14 AUD Regular price Sale price $139.14 AUD Unit price per Each
7.94 mm	63.50 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-0635-TI-S17 Ball Lock Pins - 7.94 mm x 63.5 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $139.14 AUD Regular price Sale price $139.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0635-TI-S17 --- Ball Lock Pins - 7.94 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-0635-TI-S17 --- Ball Lock Pins - 7.94 mm x 63.5 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $139.14 AUD Regular price Sale price $139.14 AUD Unit price per Out of stock! Backorder Now
7.94 mm	101.60 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1016-TI-S17 Ball Lock Pins - 7.94 mm x 101.6 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Each
7.94 mm	101.60 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1016-TI-S17 Ball Lock Pins - 7.94 mm x 101.6 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-1016-TI-S17 --- Ball Lock Pins - 7.94 mm x 101.6 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-1016-TI-S17 --- Ball Lock Pins - 7.94 mm x 101.6 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Out of stock! Backorder Now
7.94 mm	127.00 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1270-TI-S17 Ball Lock Pins - 7.94 mm x 127 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $184.41 AUD Regular price Sale price $184.41 AUD Unit price per Each
7.94 mm	127.00 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1270-TI-S17 Ball Lock Pins - 7.94 mm x 127 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $184.41 AUD Regular price Sale price $184.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-1270-TI-S17 --- Ball Lock Pins - 7.94 mm x 127 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-1270-TI-S17 --- Ball Lock Pins - 7.94 mm x 127 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $184.41 AUD Regular price Sale price $184.41 AUD Unit price per Out of stock! Backorder Now
7.94 mm	152.40 mm	17-4 PH Stainless	8.38 mm	9.52 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1524-TI-S17 Ball Lock Pins - 7.94 mm x 152.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Each
7.94 mm	152.40 mm	17-4 PH Stainless	8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.52 mm Handle Width (F): 46.10 mm Handle Length (G): 32.25 mm Pull Out Strength: 225.00 Kg Calc. Double Shear Strength: 6400 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-079-1524-TI-S17 Ball Lock Pins - 7.94 mm x 152.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-1524-TI-S17 --- Ball Lock Pins - 7.94 mm x 152.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-079-1524-TI-S17 --- Ball Lock Pins - 7.94 mm x 152.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Out of stock! Backorder Now
8.00 mm	15.00 mm	17-4 PH Stainless / Aluminium Handle	8.00 mm	9.42 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-080-0150-TI-S17 Ball Lock Pins - 8 mm x 15 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Each
8.00 mm	15.00 mm	17-4 PH Stainless / Aluminium Handle	8.00 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Open Ball Distance (B): 9.42 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-080-0150-TI-S17 Ball Lock Pins - 8 mm x 15 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-080-0150-TI-S17 --- Ball Lock Pins - 8 mm x 15 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle BLP-080-0150-TI-S17 --- Ball Lock Pins - 8 mm x 15 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle Regular price $76.41 AUD Regular price Sale price $76.41 AUD Unit price per Out of stock! Backorder Now
8.00 mm	25.00 mm	17-4 PH Stainless / Aluminium Handle	8.00 mm	9.42 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-080-0250-TI-S17 Ball Lock Pins - 8 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Each
8.00 mm	25.00 mm	17-4 PH Stainless / Aluminium Handle	8.00 mm
Material: Stainless Steel 17-4 PH with Aluminium Handle Open Ball Distance (B): 9.42 mm Handle Width (F): 13.00 mm Handle Length (G): 46.00 mm Pull Out Strength: 32.00 Kg Calc. Double Shear Strength: 18 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu
Part Number: BLP-080-0250-TI-S17 Ball Lock Pins - 8 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-080-0250-TI-S17 --- Ball Lock Pins - 8 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle BLP-080-0250-TI-S17 --- Ball Lock Pins - 8 mm x 25 mm 17-4 PH Stainless / Aluminium Handle Stainless Steel 17-4 PH with Aluminium Handle Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Out of stock! Backorder Now
9.53 mm	25.40 mm	17-4 PH Stainless	9.27 mm	11.17 mm
Material: Stainless Steel 17-4 PH Handle Width (F): 52.45 mm Handle Length (G): 36.83 mm Pull Out Strength: 256.00 Kg Calc. Double Shear Strength: 9100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-095-0254-TI-S17 Ball Lock Pins - 9.53 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Each
9.53 mm	25.40 mm	17-4 PH Stainless	9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.17 mm Handle Width (F): 52.45 mm Handle Length (G): 36.83 mm Pull Out Strength: 256.00 Kg Calc. Double Shear Strength: 9100 Kg Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless Steel
Part Number: BLP-095-0254-TI-S17 Ball Lock Pins - 9.53 mm x 25.4 mm 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-095-0254-TI-S17 --- Ball Lock Pins - 9.53 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH BLP-095-0254-TI-S17 --- Ball Lock Pins - 9.53 mm x 25.4 mm 17-4 PH Stainless Stainless Steel 17-4 PH Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Out of stock! Backorder Now
