Collection: Pins - Ball Lock - Keyring Style - Single Ball - 300 Grade Stainless Steel

Pins (With Images)

Ball Lock

Keyring Style

Single Ball

300 Grade Stainless Steel
316 Stainless Steel
Steel

70 Products in this selection

Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
Positive lock detent pins.
300 Grade Stainless Handles
300 Grade Stainless Components
440C Stainless Balls

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more concise listing may be found on the Smallparts store at Pins - Ball Lock - Keyring Style - Single Ball - 300 Grade Stainless Steel. Smallparts promote the most popular MBA products.

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C )	Open Ball Distance (B)	Max. Handle Height (H)	Indicative Image

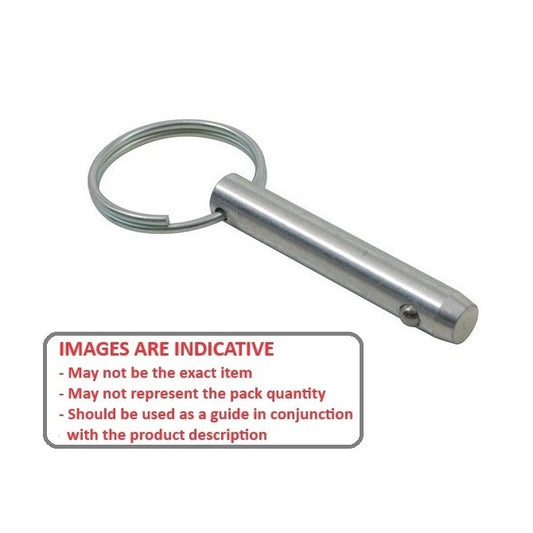

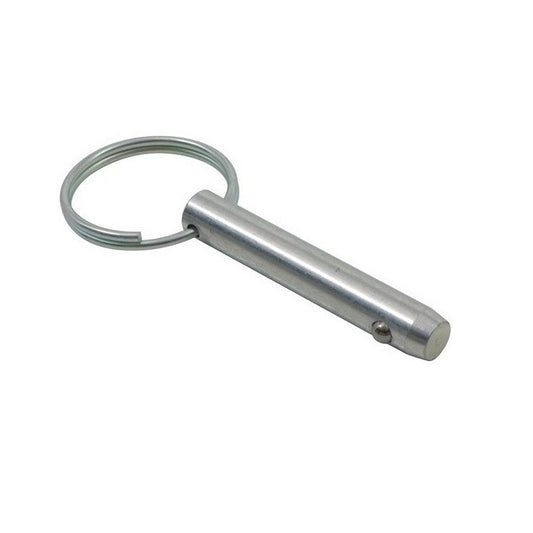

Nominal Diameter 4.76 mm	Grip Length (B) 12.70 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0127-K1-S3 Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Each
Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C )	Indicative Image
Nominal Diameter 4.76 mm	Grip Length (B) 12.70 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0127-K1-S3 Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0127-K1-S3 --- Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel BLP-048-0127-K1-S3 --- Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 4.76 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0203-K1-S3 Ball Lock Pins - 4.76x20.32 mm - 303 Stainless Steel 20 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0203-K1-S3 Ball Lock Pins - 4.76x20.32 mm - 303 Stainless Steel 20 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0203-K1-S3 --- Ball Lock Pins - 4.76x20.32 mm - 303 Stainless Steel BLP-048-0203-K1-S3 --- Ball Lock Pins - 4.76x20.32 mm - 303 Stainless Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per 20 Available Now
Nominal Diameter 4.76 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0254-K1-S3 Ball Lock Pins - 4.76x25.4 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0254-K1-S3 Ball Lock Pins - 4.76x25.4 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0254-K1-S3 --- Ball Lock Pins - 4.76x25.4 mm - 303 Stainless Steel BLP-048-0254-K1-S3 --- Ball Lock Pins - 4.76x25.4 mm - 303 Stainless Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 4.76 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0330-K1-S3 Ball Lock Pins - 4.76x33.02 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0330-K1-S3 Ball Lock Pins - 4.76x33.02 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0330-K1-S3 --- Ball Lock Pins - 4.76x33.02 mm - 303 Stainless Steel BLP-048-0330-K1-S3 --- Ball Lock Pins - 4.76x33.02 mm - 303 Stainless Steel Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 4.76 mm	Grip Length (B) 38.10 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0381-K1-S3 Ball Lock Pins - 4.76x38.1 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 38.10 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0381-K1-S3 Ball Lock Pins - 4.76x38.1 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0381-K1-S3 --- Ball Lock Pins - 4.76x38.1 mm - 303 Stainless Steel Sale BLP-048-0381-K1-S3 --- Ball Lock Pins - 4.76x38.1 mm - 303 Stainless Steel Regular price $14.23 AUD Regular price ~~$17.07 AUD~~ Sale price $14.23 AUD Unit price per 10 Available Now Sale
Nominal Diameter 4.76 mm	Grip Length (B) 44.45 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0445-K1-S4 Ball Lock Pins - 4.76x44.45 mm - 304 Stainless Steel 38 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 44.45 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0445-K1-S4 Ball Lock Pins - 4.76x44.45 mm - 304 Stainless Steel 38 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Each
BLP-048-0445-K1-S4 --- Ball Lock Pins - 4.76x44.45 mm - 304 Stainless Steel Sale BLP-048-0445-K1-S4 --- Ball Lock Pins - 4.76x44.45 mm - 304 Stainless Steel Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per 38 Available Now Sale
Nominal Diameter 4.76 mm	Grip Length (B) 50.80 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0508-K1-S3 Ball Lock Pins - 4.76x50.8 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 50.80 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0508-K1-S3 Ball Lock Pins - 4.76x50.8 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0508-K1-S3 --- Ball Lock Pins - 4.76x50.8 mm - 303 Stainless Steel BLP-048-0508-K1-S3 --- Ball Lock Pins - 4.76x50.8 mm - 303 Stainless Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 4.76 mm	Grip Length (B) 63.50 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0635-K1-S3 Ball Lock Pins - 4.76x63.5 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 63.50 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0635-K1-S3 Ball Lock Pins - 4.76x63.5 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0635-K1-S3 --- Ball Lock Pins - 4.76x63.5 mm - 303 Stainless Steel BLP-048-0635-K1-S3 --- Ball Lock Pins - 4.76x63.5 mm - 303 Stainless Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 4.76 mm	Grip Length (B) 76.20 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0762-K1-S3 Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each
Nominal Diameter 4.76 mm	Grip Length (B) 76.20 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 5.08 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 5.18 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 4.75 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-048-0762-K1-S3 Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0762-K1-S3 --- Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel BLP-048-0762-K1-S3 --- Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 12.70 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0127-K1-S3 Ball Lock Pins - 6.35x12.7 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 12.70 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0127-K1-S3 Ball Lock Pins - 6.35x12.7 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0127-K1-S3 --- Ball Lock Pins - 6.35x12.7 mm - 303 Stainless Steel Sale BLP-064-0127-K1-S3 --- Ball Lock Pins - 6.35x12.7 mm - 303 Stainless Steel Regular price $10.23 AUD Regular price ~~$12.27 AUD~~ Sale price $10.23 AUD Unit price per 10 Available Now Sale
Nominal Diameter 6.35 mm	Grip Length (B) 19.05 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0191-K1-S4 (250 Pcs) Ball Lock Pins - 6.35x19.05 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $978.77 AUD Regular price Sale price $978.77 AUD Unit price per Per 250
Nominal Diameter 6.35 mm	Grip Length (B) 19.05 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0191-K1-S4 (250 Pcs) Ball Lock Pins - 6.35x19.05 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $978.77 AUD Regular price Sale price $978.77 AUD Unit price per Per 250 View the product page first if you are unsure.
BLP-064-0191-K1-S4 (250 Pcs) --- Ball Lock Pins - 6.35x19.05 mm - 304 Stainless Steel BLP-064-0191-K1-S4 (250 Pcs) --- Ball Lock Pins - 6.35x19.05 mm - 304 Stainless Steel Regular price $978.77 AUD Regular price Sale price $978.77 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0203-K1-S3 Ball Lock Pins - 6.35x20.32 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0203-K1-S3 Ball Lock Pins - 6.35x20.32 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0203-K1-S3 --- Ball Lock Pins - 6.35x20.32 mm - 303 Stainless Steel BLP-064-0203-K1-S3 --- Ball Lock Pins - 6.35x20.32 mm - 303 Stainless Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0254-K1-S3 Ball Lock Pins - 6.35x25.4 mm - 303 Stainless Steel 1 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0254-K1-S3 Ball Lock Pins - 6.35x25.4 mm - 303 Stainless Steel 1 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0254-K1-S3 --- Ball Lock Pins - 6.35x25.4 mm - 303 Stainless Steel Sale BLP-064-0254-K1-S3 --- Ball Lock Pins - 6.35x25.4 mm - 303 Stainless Steel Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per 1 Available Now Sale
Nominal Diameter 6.35 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0330-K1-S3 Ball Lock Pins - 6.35x33.02 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0330-K1-S3 Ball Lock Pins - 6.35x33.02 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0330-K1-S3 --- Ball Lock Pins - 6.35x33.02 mm - 303 Stainless Steel BLP-064-0330-K1-S3 --- Ball Lock Pins - 6.35x33.02 mm - 303 Stainless Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 38.10 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0381-K1-S3 (5 Pcs) Ball Lock Pins - 6.35x38.1 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Per 5
Nominal Diameter 6.35 mm	Grip Length (B) 38.10 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0381-K1-S3 (5 Pcs) Ball Lock Pins - 6.35x38.1 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Per 5 View the product page first if you are unsure.
BLP-064-0381-K1-S3 (5 Pcs) --- Ball Lock Pins - 6.35x38.1 mm - 303 Stainless Steel BLP-064-0381-K1-S3 (5 Pcs) --- Ball Lock Pins - 6.35x38.1 mm - 303 Stainless Steel Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 50.80 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0508-K1-S3 Ball Lock Pins - 6.35x50.8 mm - 303 Stainless Steel 148 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.41 AUD Regular price ~~$5.29 AUD~~ Sale price $4.41 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 50.80 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0508-K1-S3 Ball Lock Pins - 6.35x50.8 mm - 303 Stainless Steel 148 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.41 AUD Regular price ~~$5.29 AUD~~ Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0508-K1-S3 --- Ball Lock Pins - 6.35x50.8 mm - 303 Stainless Steel Sale BLP-064-0508-K1-S3 --- Ball Lock Pins - 6.35x50.8 mm - 303 Stainless Steel Regular price $4.41 AUD Regular price ~~$5.29 AUD~~ Sale price $4.41 AUD Unit price per 148 Available Now Sale
Nominal Diameter 6.35 mm	Grip Length (B) 57.15 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0572-K1-S4 Ball Lock Pins - 6.35x57.15 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 57.15 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0572-K1-S4 Ball Lock Pins - 6.35x57.15 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0572-K1-S4 --- Ball Lock Pins - 6.35x57.15 mm - 304 Stainless Steel BLP-064-0572-K1-S4 --- Ball Lock Pins - 6.35x57.15 mm - 304 Stainless Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 63.50 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0635-K1-S4 Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel 6 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.95 AUD Regular price ~~$5.95 AUD~~ Sale price $4.95 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 63.50 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0635-K1-S4 Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel 6 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.95 AUD Regular price ~~$5.95 AUD~~ Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0635-K1-S4 --- Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Sale BLP-064-0635-K1-S4 --- Ball Lock Pins - 6.35x63.5 mm - 304 Stainless Steel Regular price $4.95 AUD Regular price ~~$5.95 AUD~~ Sale price $4.95 AUD Unit price per 6 Available Now Sale
Nominal Diameter 6.35 mm	Grip Length (B) 76.20 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0762-K1-S3 Ball Lock Pins - 6.35x76.2 mm - 303 Stainless Steel 1 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 76.20 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0762-K1-S3 Ball Lock Pins - 6.35x76.2 mm - 303 Stainless Steel 1 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0762-K1-S3 --- Ball Lock Pins - 6.35x76.2 mm - 303 Stainless Steel BLP-064-0762-K1-S3 --- Ball Lock Pins - 6.35x76.2 mm - 303 Stainless Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per 1 Available Now
Nominal Diameter 6.35 mm	Grip Length (B) 88.90 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0889-K1-S4 Ball Lock Pins - 6.35x88.9 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each
Nominal Diameter 6.35 mm	Grip Length (B) 88.90 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-0889-K1-S4 Ball Lock Pins - 6.35x88.9 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0889-K1-S4 --- Ball Lock Pins - 6.35x88.9 mm - 304 Stainless Steel BLP-064-0889-K1-S4 --- Ball Lock Pins - 6.35x88.9 mm - 304 Stainless Steel Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 6.35 mm	Grip Length (B) 101.60 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-1016-K1-S4 (2 Pcs) Ball Lock Pins - 6.35x101.6 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 2
Nominal Diameter 6.35 mm	Grip Length (B) 101.60 mm	Pin Material Grade 304 Stainless Steel	Locking Ball to End (C ) 7.93 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Open Ball Distance (B): 7.26 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 5.59 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-064-1016-K1-S4 (2 Pcs) Ball Lock Pins - 6.35x101.6 mm - 304 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 2 View the product page first if you are unsure.
BLP-064-1016-K1-S4 (2 Pcs) --- Ball Lock Pins - 6.35x101.6 mm - 304 Stainless Steel BLP-064-1016-K1-S4 (2 Pcs) --- Ball Lock Pins - 6.35x101.6 mm - 304 Stainless Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 7.94 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm	Open Ball Distance (B) 9.09 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0203-K1-S3 Ball Lock Pins - 7.94x20.32 mm - 303 Stainless Steel 8 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each
Nominal Diameter 7.94 mm	Grip Length (B) 20.32 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 9.09 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0203-K1-S3 Ball Lock Pins - 7.94x20.32 mm - 303 Stainless Steel 8 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0203-K1-S3 --- Ball Lock Pins - 7.94x20.32 mm - 303 Stainless Steel BLP-079-0203-K1-S3 --- Ball Lock Pins - 7.94x20.32 mm - 303 Stainless Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per 8 Available Now
Nominal Diameter 7.94 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm	Open Ball Distance (B) 9.09 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0254-K1-S3 Ball Lock Pins - 7.94x25.4 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each
Nominal Diameter 7.94 mm	Grip Length (B) 25.40 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 9.09 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0254-K1-S3 Ball Lock Pins - 7.94x25.4 mm - 303 Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0254-K1-S3 --- Ball Lock Pins - 7.94x25.4 mm - 303 Stainless Steel BLP-079-0254-K1-S3 --- Ball Lock Pins - 7.94x25.4 mm - 303 Stainless Steel Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 7.94 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm	Open Ball Distance (B) 9.09 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0330-K1-S3 Ball Lock Pins - 7.94x33.02 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each
Nominal Diameter 7.94 mm	Grip Length (B) 33.02 mm	Pin Material Grade 303 Stainless Steel	Locking Ball to End (C ) 9.53 mm
Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Open Ball Distance (B): 9.09 mm Ring Diameter (R ): 25.40 mm Depth of Ring in Pin (D): 6.35 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-079-0330-K1-S3 Ball Lock Pins - 7.94x33.02 mm - 303 Stainless Steel 10 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0330-K1-S3 --- Ball Lock Pins - 7.94x33.02 mm - 303 Stainless Steel Sale BLP-079-0330-K1-S3 --- Ball Lock Pins - 7.94x33.02 mm - 303 Stainless Steel Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per 10 Available Now Sale
