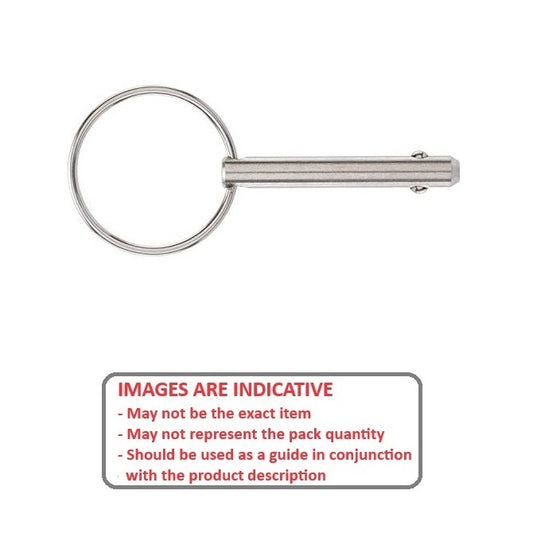

Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel

2 Products in this selection
  • Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
  • Positive lock detent pins.
  • 300 Grade Stainless Handles
  • 300 Grade Stainless Components
  • 440C Stainless Balls
Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
A more concise listing may be found on the Smallparts store at Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel. Smallparts promote the most popular MBA products.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C ) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
4.76
mm
Grip Length (B)
31.75
mm
Pin Material Grade
304 Stainless Steel
Locking Ball to End (C )
5.08
mm
Open Ball Distance (B)
5.18
mm
1056493 | BLP-048-0318-K2-S4 --- Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0318-K2-S4 Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
8 Available Immediately | Further orders can be expected around Tue, Apr 29, 2025
$57.05 AUD
$57.05 AUD
Each
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C ) Indicative
Nominal Diameter
4.76
mm
Grip Length (B)
31.75
mm
Pin Material Grade
304 Stainless Steel
Locking Ball to End (C )
5.08
mm
1056493 | BLP-048-0318-K2-S4 --- Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Open Ball Distance (B): 5.18 mm    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0318-K2-S4 Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
8 Available Immediately | Further orders can be expected around Tue, Apr 29, 2025
$57.05 AUD
$57.05 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
4.76
mm
Grip Length (B)
25.40
mm
Pin Material Grade
304 Stainless Steel
Locking Ball to End (C )
5.08
mm
Open Ball Distance (B)
5.18
mm
1058227 | BLP-048-0254-K2-S4 --- Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0254-K2-S4 Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Each
Nominal Diameter
4.76
mm
Grip Length (B)
25.40
mm
Pin Material Grade
304 Stainless Steel
Locking Ball to End (C )
5.08
mm
1058227 | BLP-048-0254-K2-S4 --- Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Open Ball Distance (B): 5.18 mm    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0254-K2-S4 Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Each
