Mounts - Vibration Isolation Pads

Mounts -> Vibration Isolation Pads

There are 2 products in the sub-categories of Mounts - Vibration Isolation Pads. Browse the Mounts - Vibration Isolation Pads products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of vibration isolation pads mounts.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Vibration Isolation Pads category on the Small Parts & Bearings online store.
Non-Impact Load Impact Load Base Diameter (A) Base Height (H) Thread Size Thread Length Indicative
Non-Impact Load
680.4
Kg
Impact Load
453.6
Kg
Base Diameter (A)
88.9

Base Height (H)
47.625
mm
Thread Size
88.9
mm
Thread Length
1/2-13 UNC (12.70mm)
mm

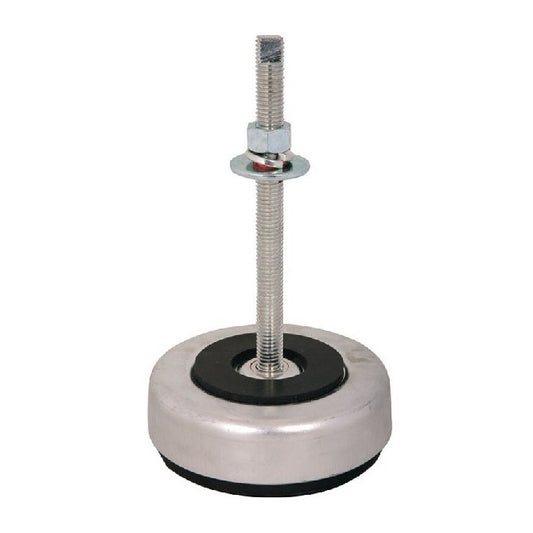

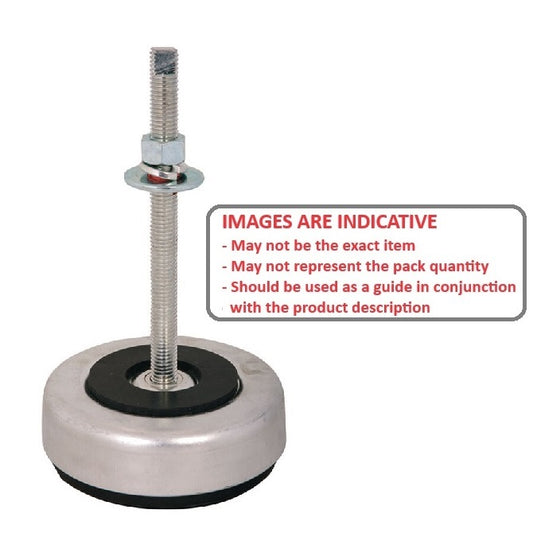

Vibration Isolation Pads Mounts - 680.4 Kg - 453.6 Kg - 88.9 - Steel and Neoprene
Material: Steel and Neoprene
Category: Mounts - Vibration Isolation Pads - Compression Shear
Part Number: MVI-0680-PC
Vibration Isolation Pads Mounts - 680.4 Kg - 453.6 Kg - 88.9 Compression Shear - Steel and Neoprene Mount
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 14, 2025
$300.23 AUD
$300.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Non-Impact Load Impact Load Base Diameter (A) Base Height (H) Indicative
Non-Impact Load
680.4
Kg
Impact Load
453.6
Kg
Base Diameter (A)
88.9

Base Height (H)
47.625
mm
Vibration Isolation Pads Mounts - 680.4 Kg - 453.6 Kg - 88.9 - Steel and Neoprene
Material: Steel and Neoprene    Thread Size: 88.9 mm    Thread Length: 1/2-13 UNC (12.70mm) mm
Category: Mounts - Vibration Isolation Pads - Compression Shear
Part Number: MVI-0680-PC
Vibration Isolation Pads Mounts - 680.4 Kg - 453.6 Kg - 88.9 Compression Shear - Steel and Neoprene Mount
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 14, 2025
$300.23 AUD
$300.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Non-Impact Load
2041
Kg
Impact Load
1360
Kg
Base Diameter (A)
139.7

Base Height (H)
57.15
mm
Thread Size
139.7
mm
Thread Length
5/8-11 UNC (15.88mm)
mm
Vibration Isolation Pads Mounts - 2041 Kg - 1360 Kg - 139.7 - Steel and Neoprene
Material: Steel and Neoprene
Category: Mounts - Vibration Isolation Pads - Compression Shear
Part Number: MVI-2041-PC
Vibration Isolation Pads Mounts - 2041 Kg - 1360 Kg - 139.7 Compression Shear - Steel and Neoprene Mount
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 14, 2025
$636.68 AUD
$764.02 AUD $636.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Non-Impact Load
2041
Kg
Impact Load
1360
Kg
Base Diameter (A)
139.7

Base Height (H)
57.15
mm
Vibration Isolation Pads Mounts - 2041 Kg - 1360 Kg - 139.7 - Steel and Neoprene
Material: Steel and Neoprene    Thread Size: 139.7 mm    Thread Length: 5/8-11 UNC (15.88mm) mm
Category: Mounts - Vibration Isolation Pads - Compression Shear
Part Number: MVI-2041-PC
Vibration Isolation Pads Mounts - 2041 Kg - 1360 Kg - 139.7 Compression Shear - Steel and Neoprene Mount
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 14, 2025
$636.68 AUD
$764.02 AUD $636.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
