Mounts - Levelling Studded - Swivel - With Lag Holes

2 Products in this selection
  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches. Lag holes alow base to be secured.
  • Hardened ball prevents galling and forms it's own seat.
  • Large diameter pad design assures solid support.
  • Zinc plated with gold chromate finish.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - With Lag Holes. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
3/4-10 UNC (19.05mm)
76.2
mm 		38.1
mm 		101.6
mm 		12.70
mm 		139.7

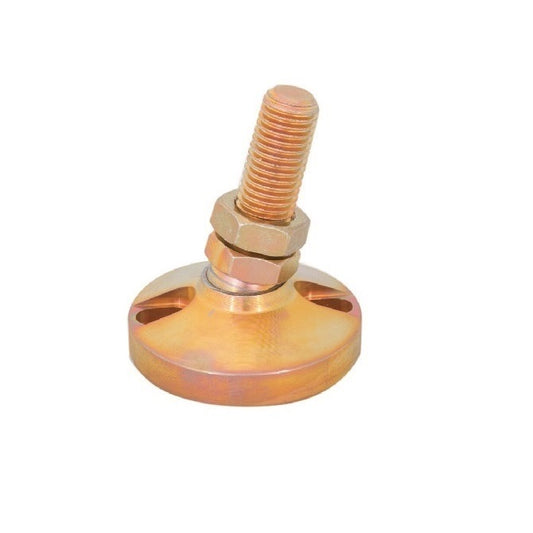

mm 		1120963 | MSM-191C-102-C-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 15, 2025
$171.14 AUD
$171.14 AUD
Each
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
3/4-10 UNC (19.05mm)
76.2
mm 		38.1
mm 		101.6
mm 		1120963 | MSM-191C-102-C-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 139.7 mm    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 15, 2025
$171.14 AUD
$171.14 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
76.2
mm 		38.1
mm 		50.8
mm 		12.70
mm 		88.9

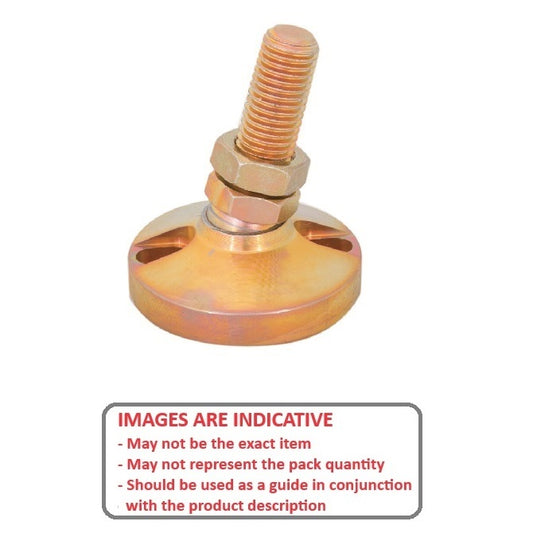

mm 		1122780 | MSM-191C-051-C-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-051-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 15, 2025
$151.68 AUD
$151.68 AUD
Each
3/4-10 UNC (19.05mm)
76.2
mm 		38.1
mm 		50.8
mm 		1122780 | MSM-191C-051-C-2LH --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-051-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, May 15, 2025
$151.68 AUD
$151.68 AUD
Each
View the product page first if you are unsure.
