Mounts - Levelling Studded Machine

4 Products in this selection
  • Levelling adjusters. Reduces noise and vibration on heavy machinery, compressors and presses.
  • High strength aluminium alloy mounting plate is embedded in each pad with two tapped mounting holes for installation on all types of machines.
  • The elastomer compound used in these pads is highly resistant to oil and chemicals.
  • 1/2 UNC thread cold forged x 2.5 inch bolt supplied with each mount.
  • Thousands of tiny suction pockets on the bottom prevent the machine from walking or slipping out of position.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded Machine. Smallparts promote the most popular MBA products.
Size Height Durometer Indicative
101.60 x 101.60
mm 		30.2
mm 		60.0

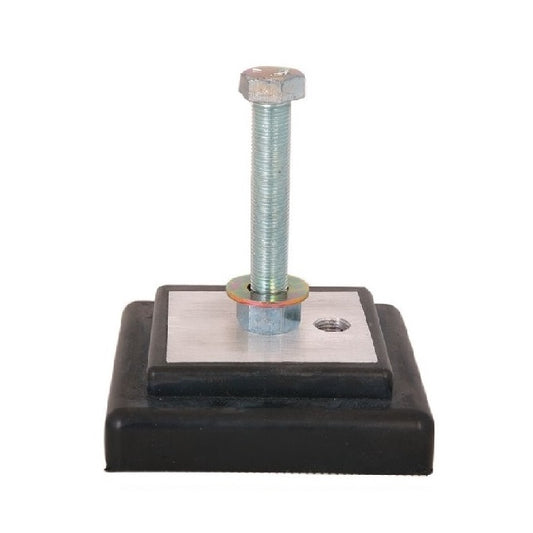

1188858 | MLM-1810-101-MC --- Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Material: Aluminium - Steel - Elastomer Duro 60    Load Rating: 1810 Kg
Part Number: MLM-1810-101-MC Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$102.41 AUD
$102.41 AUD
Each
Size Height Durometer Indicative
101.60 x 101.60
mm 		30.2
mm 		60.0
1188858 | MLM-1810-101-MC --- Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Material: Aluminium - Steel - Elastomer Duro 60    Load Rating: 1810 Kg
Part Number: MLM-1810-101-MC Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$102.41 AUD
$102.41 AUD
Each
View the product page first if you are unsure.
101.60 x 101.60
mm 		30.2
mm 		80.0
1188859 | MLM-4540-101-MC --- Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Material: Aluminium - Steel - Elastomer Duro 80    Load Rating: 4540 Kg
Part Number: MLM-4540-101-MC Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$102.68 AUD
$102.68 AUD
Each
101.60 x 101.60
mm 		30.2
mm 		80.0
1188859 | MLM-4540-101-MC --- Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Material: Aluminium - Steel - Elastomer Duro 80    Load Rating: 4540 Kg
Part Number: MLM-4540-101-MC Levelling Studded Machine Mounts - 101.60 x 101.60 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$102.68 AUD
$102.68 AUD
Each
View the product page first if you are unsure.
152.40 x 152.40
mm 		30.2
mm 		60.0
1201434 | MLM-1810-152-MC --- Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Material: Aluminium - Steel - Elastomer Duro 60    Load Rating: 1810 Kg
Part Number: MLM-1810-152-MC Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$287.32 AUD
$287.32 AUD
Each
152.40 x 152.40
mm 		30.2
mm 		60.0
1201434 | MLM-1810-152-MC --- Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Material: Aluminium - Steel - Elastomer Duro 60    Load Rating: 1810 Kg
Part Number: MLM-1810-152-MC Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 60 - Aluminium - Steel - Elastomer Duro 60
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$287.32 AUD
$287.32 AUD
Each
View the product page first if you are unsure.
152.40 x 152.40
mm 		30.2
mm 		80.0
1201435 | MLM-4540-152-MC (4 Pcs) --- Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Material: Aluminium - Steel - Elastomer Duro 80    Load Rating: 4540 Kg
Part Number: MLM-4540-152-MC (4 Pcs) Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$711.23 AUD
$711.23 AUD
Per 4
152.40 x 152.40
mm 		30.2
mm 		80.0
1201435 | MLM-4540-152-MC (4 Pcs) --- Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Material: Aluminium - Steel - Elastomer Duro 80    Load Rating: 4540 Kg
Part Number: MLM-4540-152-MC (4 Pcs) Levelling Studded Machine Mounts - 152.40 x 152.40 30.2 mm - 80 - Aluminium - Steel - Elastomer Duro 80
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$711.23 AUD
$711.23 AUD
Per 4
View the product page first if you are unsure.
