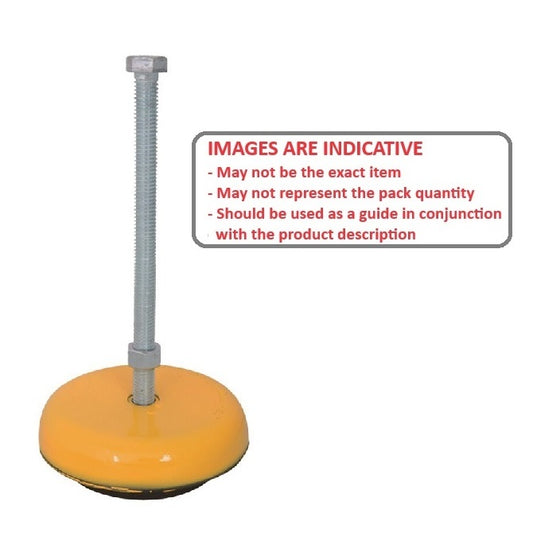

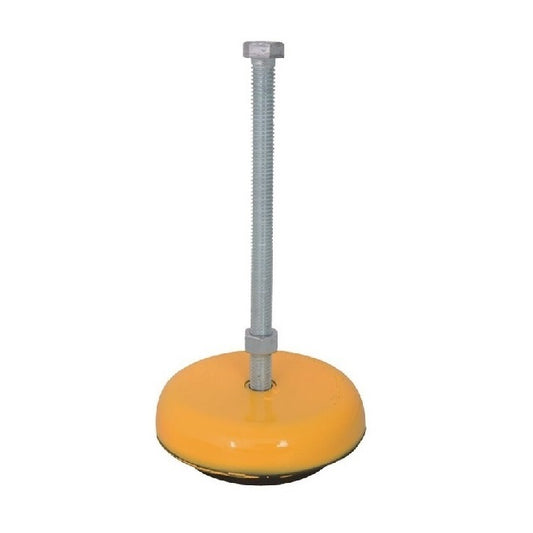

Mounts - Levelling Studded - Elastomer Base OSHA Yellow

10 Products in this selection
  • Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
  • Simplifies installation. 63.5mm of neoprene provides controlled deflections under load.
  • High isolation efficiency for vibration and shock forces, and reduction of transmitted sound. Adjustable up to 12.7mm above loaded height by a few turns of the leveling bolt and tightening the checknut.
  • Corrosion resistant outer housing provides high strength. Neoprene elastomer resists oil, grease, ozone and caustics.
  • Zinc plated hardware resists rust. Hex head bolt and locknut finished with mounts. Height dimensions indicate free height of mount under no load.
  • OSHA Yellow Steel Cover over elastomer base
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
1/4-28 UNF (6.35mm)
50.8
mm 		25.4
mm 		44.5
mm 		25.4
mm 		69.9
mm 		1075016 | MLM-064F-CEB-OSHAY --- Levelling Studded Mounts - 1/4-28 UNF (6.35mm) x 50.8 mm x 25.4 mm
Material: Steel    Load Rating: 45 Kg    Finish: Zinc Plated
Part Number: MLM-064F-CEB-OSHAY Levelling Studded Mounts - 1/4-28 UNF (6.35mm) x 50.8 mm x 25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$156.95 AUD
$156.95 AUD
Each
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
1/4-28 UNF (6.35mm)
50.8
mm 		25.4
mm 		44.5
mm 		1075016 | MLM-064F-CEB-OSHAY --- Levelling Studded Mounts - 1/4-28 UNF (6.35mm) x 50.8 mm x 25.4 mm
Material: Steel    Base Height (E): 25.4 mm    Overall Height: 69.9 mm    Load Rating: 45 Kg    Finish: Zinc Plated
Part Number: MLM-064F-CEB-OSHAY Levelling Studded Mounts - 1/4-28 UNF (6.35mm) x 50.8 mm x 25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$156.95 AUD
$156.95 AUD
Each
View the product page first if you are unsure.
3/8-24 UNF (9.53mm)
79.4
mm 		38.1
mm 		76.2
mm 		38.1
mm 		114.3
mm 		1090191 | MLM-095F-CEB-OSHAY --- Levelling Studded Mounts - 3/8-24 UNF (9.53mm) x 79.4 mm x 38.1 mm
Material: Steel    Load Rating: 135 Kg    Finish: Zinc Plated
Part Number: MLM-095F-CEB-OSHAY Levelling Studded Mounts - 3/8-24 UNF (9.53mm) x 79.4 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$116.32 AUD
$116.32 AUD
Each
3/8-24 UNF (9.53mm)
79.4
mm 		38.1
mm 		76.2
mm 		1090191 | MLM-095F-CEB-OSHAY --- Levelling Studded Mounts - 3/8-24 UNF (9.53mm) x 79.4 mm x 38.1 mm
Material: Steel    Base Height (E): 38.1 mm    Overall Height: 114.3 mm    Load Rating: 135 Kg    Finish: Zinc Plated
Part Number: MLM-095F-CEB-OSHAY Levelling Studded Mounts - 3/8-24 UNF (9.53mm) x 79.4 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$116.32 AUD
$116.32 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
120.7
mm 		38.1
mm 		127.0
mm 		38.1
mm 		165.1
mm 		1104972 | MLM-127C-127-CEB-OSHAY-121 --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Material: Steel    Load Rating: 450 Kg    Finish: Zinc Plated
Part Number: MLM-127C-127-CEB-OSHAY-121 Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$218.86 AUD
$218.86 AUD
Each
1/2-13 UNC (12.7mm)
120.7
mm 		38.1
mm 		127.0
mm 		1104972 | MLM-127C-127-CEB-OSHAY-121 --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Material: Steel    Base Height (E): 38.1 mm    Overall Height: 165.1 mm    Load Rating: 450 Kg    Finish: Zinc Plated
Part Number: MLM-127C-127-CEB-OSHAY-121 Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$218.86 AUD
$218.86 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
120.7
mm 		38.1
mm 		203.2
mm 		38.1
mm 		241.3
mm 		1104973 | MLM-127C-203-CEB-OSHAY --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Material: Steel    Load Rating: 450 Kg    Finish: Zinc Plated
Part Number: MLM-127C-203-CEB-OSHAY Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$203.59 AUD
$203.59 AUD
Each
1/2-13 UNC (12.7mm)
120.7
mm 		38.1
mm 		203.2
mm 		1104973 | MLM-127C-203-CEB-OSHAY --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Material: Steel    Base Height (E): 38.1 mm    Overall Height: 241.3 mm    Load Rating: 450 Kg    Finish: Zinc Plated
Part Number: MLM-127C-203-CEB-OSHAY Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 120.7 mm x 38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$203.59 AUD
$203.59 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
160.3
mm 		41.3
mm 		127.0
mm 		41.3
mm 		168.3
mm 		1105084 | MLM-127C-127-CEB-OSHAY-160 --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 160.3 mm x 41.3 mm
Material: Steel    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-127C-127-CEB-OSHAY-160 Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$303.68 AUD
$303.68 AUD
Each
1/2-13 UNC (12.7mm)
160.3
mm 		41.3
mm 		127.0
mm 		1105084 | MLM-127C-127-CEB-OSHAY-160 --- Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 160.3 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 168.3 mm    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-127C-127-CEB-OSHAY-160 Levelling Studded Mounts - 1/2-13 UNC (12.7mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$303.68 AUD
$303.68 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		127.0
mm 		41.3
mm 		168.3
mm 		1122816 | MLM-191C-127-CEB-OSHAY-160 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Load Rating: 2000 Kg    Finish: Zinc Plated
Part Number: MLM-191C-127-CEB-OSHAY-160 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$317.05 AUD
$317.05 AUD
Each
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		127.0
mm 		1122816 | MLM-191C-127-CEB-OSHAY-160 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 168.3 mm    Load Rating: 2000 Kg    Finish: Zinc Plated
Part Number: MLM-191C-127-CEB-OSHAY-160 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$317.05 AUD
$317.05 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		203.2
mm 		41.3
mm 		244.5
mm 		1122817 | MLM-191C-203-CEB-OSHAY-160 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-191C-203-CEB-OSHAY-160 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$338.32 AUD
$338.32 AUD
Each
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		203.2
mm 		1122817 | MLM-191C-203-CEB-OSHAY-160 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 244.5 mm    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-191C-203-CEB-OSHAY-160 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$338.32 AUD
$338.32 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		254.0
mm 		41.3
mm 		295.3
mm 		1122818 | MLM-191C-254-CEB-OSHAY --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-191C-254-CEB-OSHAY Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$542.50 AUD
$542.50 AUD
Each
3/4-10 UNC (19.05mm)
160.3
mm 		41.3
mm 		254.0
mm 		1122818 | MLM-191C-254-CEB-OSHAY --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 295.3 mm    Load Rating: 1900 Kg    Finish: Zinc Plated
Part Number: MLM-191C-254-CEB-OSHAY Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 160.3 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$542.50 AUD
$542.50 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
184.2
mm 		41.3
mm 		127.0
mm 		41.3
mm 		168.3
mm 		1122819 | MLM-191C-127-CEB-OSHAY-184 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Material: Steel    Load Rating: 4500 Kg    Finish: Zinc Plated
Part Number: MLM-191C-127-CEB-OSHAY-184 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$468.32 AUD
$468.32 AUD
Each
3/4-10 UNC (19.05mm)
184.2
mm 		41.3
mm 		127.0
mm 		1122819 | MLM-191C-127-CEB-OSHAY-184 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 168.3 mm    Load Rating: 4500 Kg    Finish: Zinc Plated
Part Number: MLM-191C-127-CEB-OSHAY-184 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$468.32 AUD
$468.32 AUD
Each
View the product page first if you are unsure.
3/4-10 UNC (19.05mm)
184.2
mm 		41.3
mm 		203.2
mm 		41.3
mm 		244.5
mm 		1122820 | MLM-191C-203-CEB-OSHAY-184 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Material: Steel    Load Rating: 4500 Kg    Finish: Zinc Plated
Part Number: MLM-191C-203-CEB-OSHAY-184 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$386.68 AUD
$386.68 AUD
Each
3/4-10 UNC (19.05mm)
184.2
mm 		41.3
mm 		203.2
mm 		1122820 | MLM-191C-203-CEB-OSHAY-184 --- Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 244.5 mm    Load Rating: 4500 Kg    Finish: Zinc Plated
Part Number: MLM-191C-203-CEB-OSHAY-184 Levelling Studded Mounts - 3/4-10 UNC (19.05mm) x 184.2 mm x 41.3 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$386.68 AUD
$386.68 AUD
Each
View the product page first if you are unsure.
