Mounts - Levelling Socket - Swivel - With Lag Holes

Mounts -> Levelling Socket -> Swivel -> With Lag Holes

There are 3 products in the sub-categories of Mounts - Levelling Socket - Swivel - With Lag Holes. Browse the Mounts - Levelling Socket - Swivel - With Lag Holes products table.

Category Details

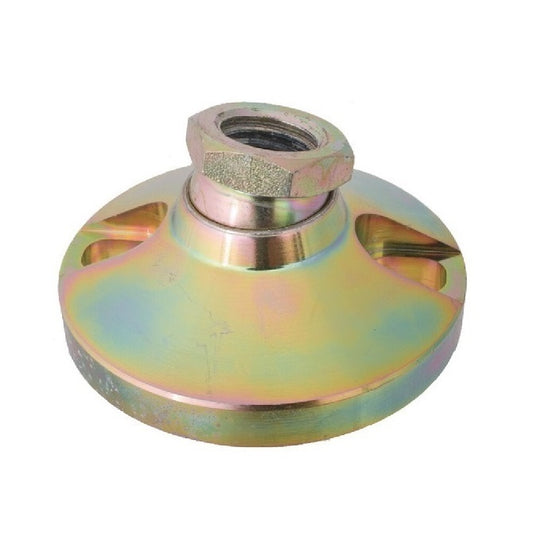

A selection of With Lag Holes Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches. Lag holes alow base to be secured.

  • An expanded range may be available on special order. Please enquire.
  • Hardened ball prevents galling and forms it's own seat.
  • Large diameter pad design assures solid support.
  • Zinc plated with gold chromate finish.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - With Lag Holes category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Base Height (E)
7.93
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 2720 Kg    Cap Screw to Suit (I): 5/16-18 UNC (7.938mm)    H: 50.038 mm    Hex Flats (B): 22.225 mm
Part Number: MSF-159C-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$256.23 AUD
$256.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm
Foot Height (C)
31.8
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Load Rating: 2720 Kg    Cap Screw to Suit (I): 5/16-18 UNC (7.938mm)    H: 50.038 mm    Hex Flats (B): 22.225 mm
Part Number: MSF-159C-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$256.23 AUD
$256.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Thread Size (A)
3/4-16 UNF (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Base Height (E)
12.70
mm
Levelling Socket Mounts - 3/4-16 UNF -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    H: 61.214 mm    Hex Flats (B): 26.975 mm
Part Number: MSF-191F-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$272.14 AUD
$326.56 AUD $272.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 3/4-16 UNF - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Thread Size (A)
3/4-16 UNF (19.05mm)
Base Diameter (D)
76.2
mm
Foot Height (C)
38.1
mm
Levelling Socket Mounts - 3/4-16 UNF -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Load Rating: 3270 Kg    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    H: 61.214 mm    Hex Flats (B): 26.975 mm
Part Number: MSF-191F-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$272.14 AUD
$326.56 AUD $272.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x36.5 mm Swivel - Steel Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
36.5
mm
Base Height (E)
27.76
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x36.5 mm - Steel
Material: Steel    Load Rating: 9980 Kg    Cap Screw to Suit (I): 1/2-13 UNC (12.700mm)    H: 82.042 mm    Hex Flats (B): 34.925 mm
Part Number: MSF-254C-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$406.59 AUD
$487.91 AUD $406.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x36.5 mm Swivel - Steel Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
36.5
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x36.5 mm - Steel
Material: Steel    Base Height (E): 27.76 mm    Load Rating: 9980 Kg    Cap Screw to Suit (I): 1/2-13 UNC (12.700mm)    H: 82.042 mm    Hex Flats (B): 34.925 mm
Part Number: MSF-254C-C-2LH (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$406.59 AUD
$487.91 AUD $406.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
