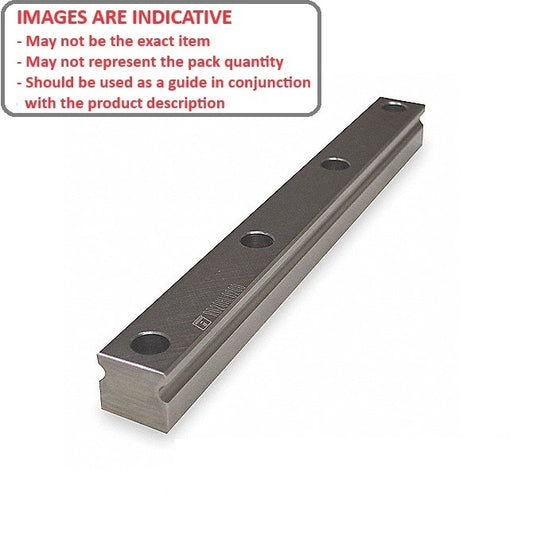

Linear - Rail Systems Type 2 Rails

2 Products in this selection
  • Match with carriage by size column 1. Thomson 500 Series provide long life, exceptional rigidity, high dynamic and static load capabilities in all directions.
  • Accommodates high moment loads and maintains high running accuracy. Improved machine accuracies and rigidity resulting in reduced vibration and extended machine and tool life.
  • Rails are subjected to multiple straightening processes during and after grinding of the ball paths to ensure straight and accurate rails.
Additional resources:
A more concise listing may be found on the Smallparts store at Linear - Rail Systems Type 2 Rails. Smallparts promote the most popular MBA products.
Size Width (B1) Length Height (J1) F1 F2 Indicative
20
19.000
mm 		160.000
mm 		19.000
mm 		5.800
mm 		10.000

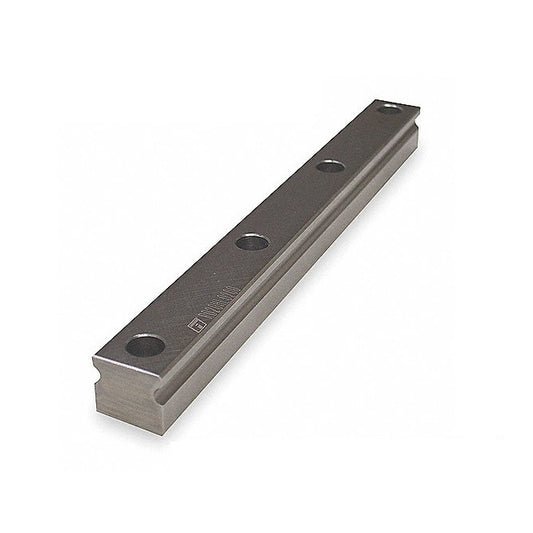

mm 		1124019 | TLM-3153RS --- Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
G1: 6.500 mm    Screw Size (S3): M5 (5x0.8mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3153RS Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$314.86 AUD
$314.86 AUD
Each
Size Width (B1) Length Height (J1) Indicative
20
19.000
mm 		160.000
mm 		19.000
mm 		1124019 | TLM-3153RS --- Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
F1: 5.800 mm    F2: 10.000 mm    G1: 6.500 mm    Screw Size (S3): M5 (5x0.8mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3153RS Rail Systems Type 2 Rails Linear - Size 20 - 19x160 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$314.86 AUD
$314.86 AUD
Each
View the product page first if you are unsure.
25
22.700
mm 		820.000
mm 		22.700
mm 		7.000
mm 		11.000
mm 		1133014 | TLM-3164RS --- Rail Systems Type 2 Rails Linear - Size 25 - 22.7x820 mm
G1: 8.000 mm    Screw Size (S3): M6    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3164RS Rail Systems Type 2 Rails Linear - Size 25 - 22.7x820 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$1,748.86 AUD
$1,748.86 AUD
Each
25
22.700
mm 		820.000
mm 		22.700
mm 		1133014 | TLM-3164RS --- Rail Systems Type 2 Rails Linear - Size 25 - 22.7x820 mm
F1: 7.000 mm    F2: 11.000 mm    G1: 8.000 mm    Screw Size (S3): M6    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3164RS Rail Systems Type 2 Rails Linear - Size 25 - 22.7x820 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$1,748.86 AUD
$1,748.86 AUD
Each
View the product page first if you are unsure.
