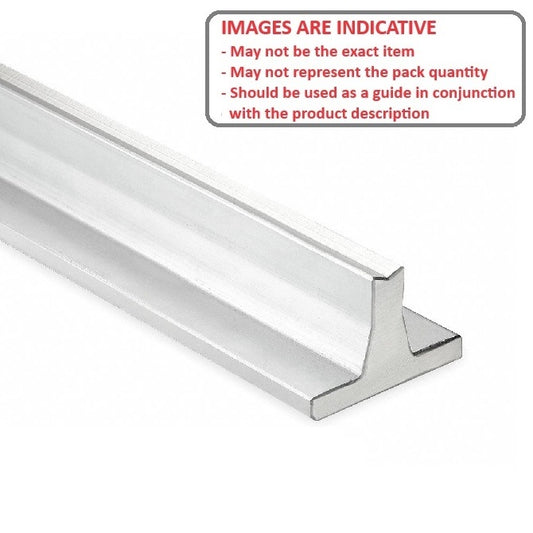

Linear - Rail Supports - Without Shaft

1 Item Available
  • For mounting of linear shafting.
  • Shafting sold separately.
  • Support is made from aluminium
Additional resources:
A more concise listing may be found on the Smallparts store at Linear - Rail Supports - Without Shaft. Smallparts promote the most popular MBA products.
Suits Nom. Shaft Size (d) Height to Shaft Centre (H) Length (+0/-1.59mm) Foot Height (V) Base Width (A) Support Angle (a) Indicative
38.1
mm 		63.5
mm 		609.6
mm 		9.652
mm 		76.2
mm 		20 ° 1152091 | TLM-1906RS --- Rail Supports Linear - 38.1x63.5x609.6 mm
Hole Spacing (T): 203.2 mm    Base Mtg. Hole (U): 8.636 mm    Shaft Mtg. Hole (O): 8.636 mm    Bolt Hole Centres (E): 57.15 mm
Part Number: TLM-1906RS Rail Supports Linear - 38.1x63.5x609.6 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, May 09, 2025
$809.68 AUD
$809.68 AUD
Each
Suits Nom. Shaft Size (d) Height to Shaft Centre (H) Length (+0/-1.59mm) Foot Height (V) Indicative
38.1
mm 		63.5
mm 		609.6
mm 		9.652
mm 		1152091 | TLM-1906RS --- Rail Supports Linear - 38.1x63.5x609.6 mm
Base Width (A): 76.2 mm    Support Angle (a): 20 °    Hole Spacing (T): 203.2 mm    Base Mtg. Hole (U): 8.636 mm    Shaft Mtg. Hole (O): 8.636 mm    Bolt Hole Centres (E): 57.15 mm
Part Number: TLM-1906RS Rail Supports Linear - 38.1x63.5x609.6 mm
Out of Stock | Backorder Now | Orders can be expected around Fri, May 09, 2025
$809.68 AUD
$809.68 AUD
Each
