Collection: Linear - Mini Rail Carriages

Linear (With Images)

Mini Rail Carriages

5 Products in this selection

Carriages for the Mini-Rail system. Match by rail width. Rail sold separately.
Low profile self-lubricating linear guide system with one piece carriage design. Excellent alternative to linear ball bearing systems. Precision series made from RC70 ceramic coated rail with self lubricating Frelon Gold.
Dampens vibration and tolerates shock loads. Will not rust. No metal to metal contact. No balls or rolling elements to trap contamination, skid or damage rail.
Operation is consistent, smooth and quiet. Maintenance free. Used in packaging machines, medical equipment, wash-down and harsh environments.

Suits Rail Width	Carraige Width (C)	Carriage Length (D)	Carriage Bolt Size (E)	Carriage Bolt Distances Length	Carriage Bolt Distances Width
7.00 mm	17.00 mm	24.00 mm	M2 mm	8.00 mm	12.00 mm
Material: Aluminium K: 6.20 mm N: 2.30 mm

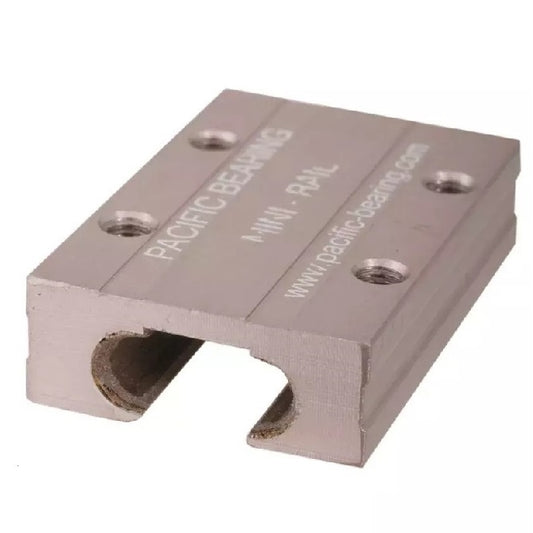

Part Number: PBC-1212RS Mini Rail Carriages Linear - 7 mm x 17 mm x 24 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $123.32 AUD Regular price Sale price $123.32 AUD Unit price per Each

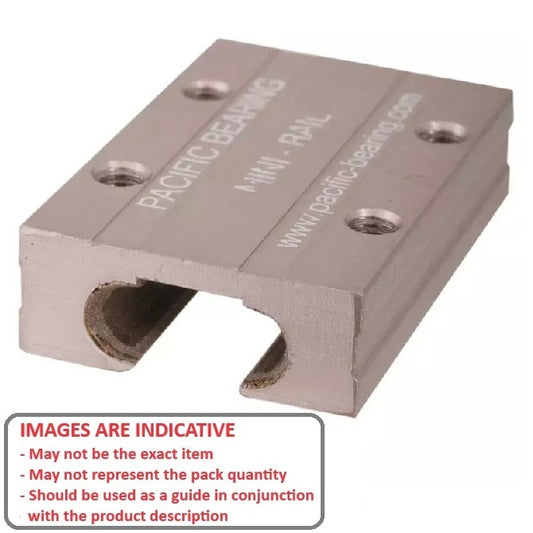

Suits Rail Width	Carraige Width (C)	Carriage Length (D)	Carriage Bolt Size (E)	Indicative Image
7.00 mm	17.00 mm	24.00 mm	M2 mm
Material: Aluminium Carriage Bolt Distances Length: 8.00 mm Carriage Bolt Distances Width : 12.00 mm K: 6.20 mm N: 2.30 mm
Part Number: PBC-1212RS Mini Rail Carriages Linear - 7 mm x 17 mm x 24 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $123.32 AUD Regular price Sale price $123.32 AUD Unit price per Each View the product page first if you are unsure.
PBC-1212RS --- Mini Rail Carriages Linear - 7 mm x 17 mm x 24 mm Aluminium PBC-1212RS --- Mini Rail Carriages Linear - 7 mm x 17 mm x 24 mm Aluminium Regular price $123.32 AUD Regular price Sale price $123.32 AUD Unit price per Out of stock! Backorder Now
9.00 mm	20.00 mm	30.00 mm	M3 (3x0.5mm) mm	13.00 mm	15.00 mm
Material: Aluminium K: 8.00 mm N: 2.50 mm
Part Number: PBC-1213RS Mini Rail Carriages Linear - 9 mm x 20 mm x 30 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $98.68 AUD Regular price Sale price $98.68 AUD Unit price per Each
9.00 mm	20.00 mm	30.00 mm	M3 (3x0.5mm) mm
Material: Aluminium Carriage Bolt Distances Length: 13.00 mm Carriage Bolt Distances Width : 15.00 mm K: 8.00 mm N: 2.50 mm
Part Number: PBC-1213RS Mini Rail Carriages Linear - 9 mm x 20 mm x 30 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $98.68 AUD Regular price Sale price $98.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-1213RS --- Mini Rail Carriages Linear - 9 mm x 20 mm x 30 mm Aluminium PBC-1213RS --- Mini Rail Carriages Linear - 9 mm x 20 mm x 30 mm Aluminium Regular price $98.68 AUD Regular price Sale price $98.68 AUD Unit price per Out of stock! Backorder Now
12.00 mm	27.00 mm	34.00 mm	M3 (3x0.5mm) mm	15.00 mm	20.00 mm
Material: Aluminium K: 10.70 mm N: 3.50 mm
Part Number: PBC-1214RS Mini Rail Carriages Linear - 12 mm x 27 mm x 34 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $120.68 AUD Regular price Sale price $120.68 AUD Unit price per Each
12.00 mm	27.00 mm	34.00 mm	M3 (3x0.5mm) mm
Material: Aluminium Carriage Bolt Distances Length: 15.00 mm Carriage Bolt Distances Width : 20.00 mm K: 10.70 mm N: 3.50 mm
Part Number: PBC-1214RS Mini Rail Carriages Linear - 12 mm x 27 mm x 34 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $120.68 AUD Regular price Sale price $120.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-1214RS --- Mini Rail Carriages Linear - 12 mm x 27 mm x 34 mm Aluminium PBC-1214RS --- Mini Rail Carriages Linear - 12 mm x 27 mm x 34 mm Aluminium Regular price $120.68 AUD Regular price Sale price $120.68 AUD Unit price per Out of stock! Backorder Now
15.00 mm	32.00 mm	42.00 mm	M3 (3x0.5mm) mm	20.00 mm	25.00 mm
Material: Aluminium K: 14.10 mm N: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15 mm x 32 mm x 42 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $131.50 AUD Regular price Sale price $131.50 AUD Unit price per Each
15.00 mm	32.00 mm	42.00 mm	M3 (3x0.5mm) mm
Material: Aluminium Carriage Bolt Distances Length: 20.00 mm Carriage Bolt Distances Width : 25.00 mm K: 14.10 mm N: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15 mm x 32 mm x 42 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $131.50 AUD Regular price Sale price $131.50 AUD Unit price per Each View the product page first if you are unsure.
PBC-1215RS --- Mini Rail Carriages Linear - 15 mm x 32 mm x 42 mm Aluminium PBC-1215RS --- Mini Rail Carriages Linear - 15 mm x 32 mm x 42 mm Aluminium Regular price $131.50 AUD Regular price Sale price $131.50 AUD Unit price per Out of stock! Backorder Now
20.00 mm	46.00 mm	62.00 mm	M4 (4x0.7mm) mm	38.00 mm	38.00 mm
Material: Aluminium K: 21.20 mm N: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20 mm x 46 mm x 62 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $153.95 AUD Regular price Sale price $153.95 AUD Unit price per Each
20.00 mm	46.00 mm	62.00 mm	M4 (4x0.7mm) mm
Material: Aluminium Carriage Bolt Distances Length: 38.00 mm Carriage Bolt Distances Width : 38.00 mm K: 21.20 mm N: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20 mm x 46 mm x 62 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $153.95 AUD Regular price Sale price $153.95 AUD Unit price per Each View the product page first if you are unsure.
PBC-1216RS --- Mini Rail Carriages Linear - 20 mm x 46 mm x 62 mm Aluminium PBC-1216RS --- Mini Rail Carriages Linear - 20 mm x 46 mm x 62 mm Aluminium Regular price $153.95 AUD Regular price Sale price $153.95 AUD Unit price per Out of stock! Backorder Now
